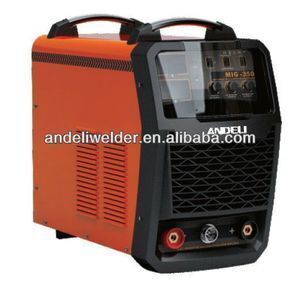

professional tig mma mig mag welding machine with top quality

Click here to contact

Product details

Packaging Detail:	1.strong export package or following custmers' demands 2.diamension of machine:642323573mm 3.N.G.:42.6KG;	duty cycle(%):	80;
Delivery Detail:	15-20workdays after prepaid;	Voltage:	380;
output current(A):	60-350;	output voltage(V):	15-40;
rated frequency(Hz):	50/60;	Model Number:	MIG-350;
power factor:	0.93;	Power(W):	14;
Pilot Arc Current:	60-350;	Condition:	New;
rated input voltage(V):	three phase AC380±15%;	Port:	FOB Ningbo/Shanghai;
Brand Name:	ANDELI;	Warranty:	1 year;
Pulse Frequency:	50/60;	rated input current:	14;
Certification:	CCC CE ROHS;	Dimensions:	642323573;
efficiency(%):	85;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Supply Ability:	10000 Piece/Pieces per Month;	After-sales Service Provided:	Overseas service center available;
no-load loss(W):	100;	no-load voltage(V):	50;
Arc Current:	21;	Place of Origin:	Zhejiang China (Mainland);
Usage:	tig mma mig mag welding machine;	Rated Duty Cycle:	60%;

professional tig mma mig mag welding machine with top quality

Product Description

1.welding machine mig welder
2.Low cost but high effciency
3.can be adjusted for different requirement
4.small splash
5.Long life

Product Show:

Specifications:

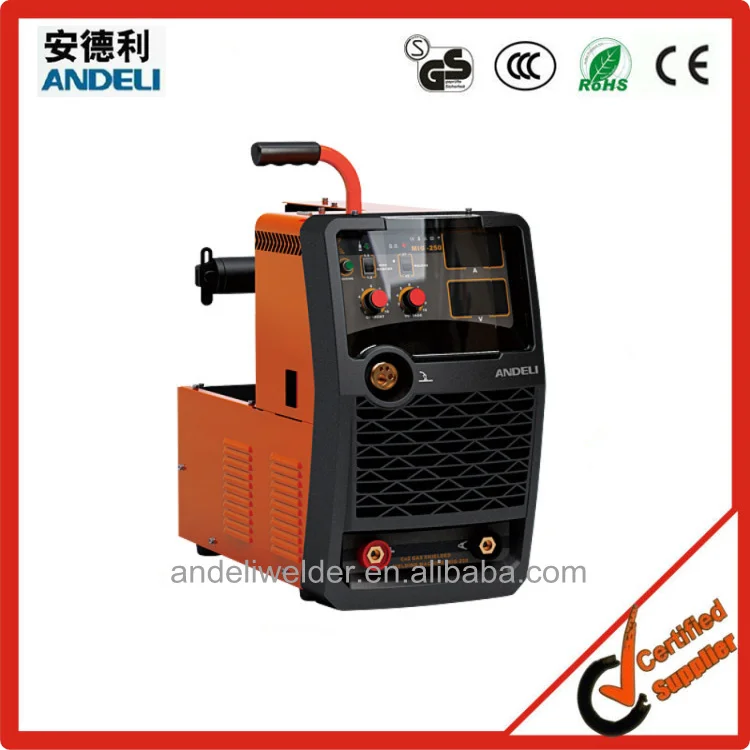

Inverter CO2 Gas Shielded Welding Machine
Model	MIG-200Y	MIG-250Y
Type	MOSFET
Rated input voltage (V)	single phase AC220 ±15%	three phase AC380 ±15%
Rated frequency (Hz)	50/60
Rated input current (A)	23.5	10.5
Output current (A)	180	220
Output voltage (V)	23	25
Duty cycle (%)	60	60
Efficiency (%)	85	85
Power factor	0.93	0.93
Diameter of wire (mm)	0.8	1.0
Type of wire feeder	built-in	built-in
Net weight of machine(KG)	33.7	35.2
Gross weight of machine packing(KG)	40	41.3
Gross weight of accessories packing (KG)	—	—
Dimension of machine (mm)	630×315×695	630×315×695
Dimension of packing- machine (mm)	660×370×750	660×370×750
Dimension of packing-wire feeder (mm)	—	—
including accessories: earth clamp×1pcs, cable joint×1pcs, grounding cable×3meters, pressure regulator×1pcs, MIG torch×1pcs,
additional accessories for MIG-200F/MIG-250F: double drive wire feeder×1pcs, control cable×5meters

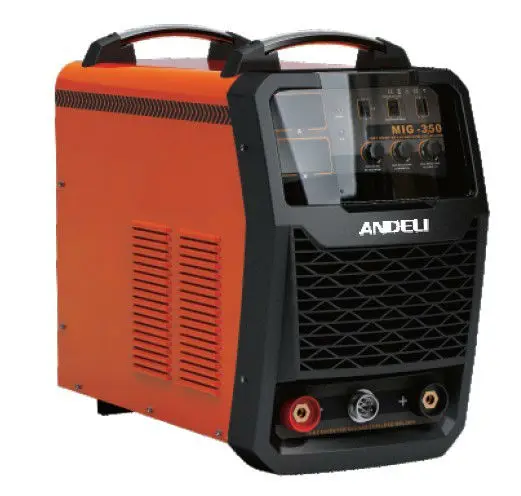

MIG CO2 Gas Shielded Welding Machine
Model	MIG-350	MIG-500	MIG-630
Type	IGBT Module
Function	MIG
Rated input voltage (V)	three phase AC380 ±15%
Rated frequency (Hz)	50/60
Rated input power (KVA)	14	25	35
Rated input current (A)	21	38	53
Input protection circuit breaker (A)	40	63	100
Rated working voltage (V)	34	40	45
Output current (A)	60-350	60-500	60-630
Output voltage (V)	15-40	15-50	15-50
Diameter of input power cable (mm3)	≥3×4	90%	≥3×6
Welding cable (mm2)	≥35	≥50	≥70
Diameter of welding wire (mm3)	0.8/1.0/1.2	1.0/1.2/1.6	1.0/1.2/1.6
No-load voltage (V)	50	75	95
No-load loss (W)	100	150	150
Rated duty cycle (%)	80	80	80
Efficiency (%)	85	85	85
Power factor	0.93	0.93	0.93

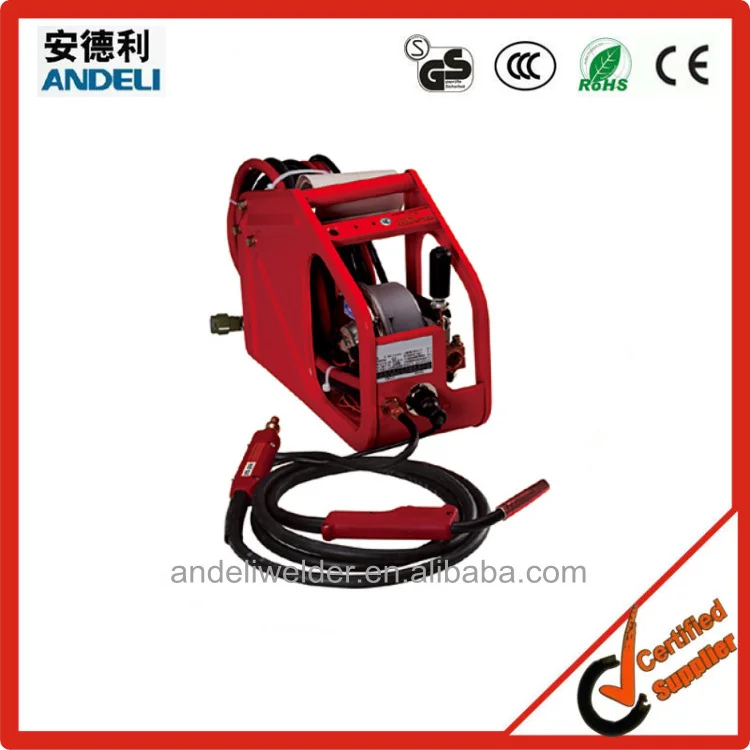

Wire feeder	separated
Net weight (KG)	40.5	50.3	60.7
Gross weight (KG)	45.5	55.8	73
Housing of machine	iron	iron	iron
Dimension of machine (mm)	645×335×576		700×360×638
Packing	carton/carton		wooden box/carton
Dimension of packing (mm)	machine: 700×390×660 wire feeder: 555×435×410		machine: 760×480×710 wire feeder: 555×435×410
including accessories: earth clamp×1pcs, cable joint×2pcs, gas regulator×1pcs, double drive wire feeder×1pcs, grounding cable×3meters, control line×5meters, MIG torch×1pcs
additional accessories for NB-350S/500S/630S: cable joint×1pcs, inner hexagon spanner×1pcs
