Applicable industries: | Building materials store, manufacturing plant, machinery repair shop, retail store, print shop, construction, energy and mining, industrial | Mechanical test report: | if |
port: | Qingdao or Shanghai | Certification: | ISO9001 certification |
Video shipment inspection: | if | preset pressure: | 0.6 MPa |
Fuel tank capacity: | 130 liters | Core component warranty: | 1 year |
Origin: | Henan, China | Health status: | new |
weight: | 50 kg | payment terms: | L/C, Western Union, T/T, Paypal |
Marketing Type: | normal product | Warranty: | 1 year |
Working oil temperature: | 5-80℃ | Core components: | Oil purifier |
Local service location: | not any | strength: | 0.75KW |
Filtration accuracy: | 3-100 microns | brand: | China Airlines |
Showroom location: | not any | Packaging Details: | Neutral packing |
Nominal flow: | 32-100 l/min | After-sales service provided: | online support |
After warranty service: | online support | Voltage: | AC 380V, 50Hz |
flow: | 32/50/100/63 l/min | Dimensions (L*W*H): | custom made |
Supply capacity: | 1000 pieces per month |
Specification
Explosion-proof box series mobile oil filter unit (FLYC) | ||||
Model | (F)LYC-32C | (F)LYC-50C | (F)LYC-63C | (F)LYC-100C |
Rated flow L/min | 32 | 50 | 63 | 100 |
Pressure Mpa | 0.6 | |||
Pressure loss Mpa | ≤0.02 | |||
Primary filtration precision μm | 100 | |||
Primary filtration precision μm | 10,20,40 | |||
Secondary filtration precision μm | 3,5,10 | |||
Motor power kw | 0.75 | 1.1 | 1.1 | 2.2 |
Voltage V | AC380V | |||
weight kg | Post-90s | 100 | 118 | 160 |
Dimensions mm L×B×H | 950×560×900 | 950×560×900 | 950×560×900 | 1000×600×1130 |

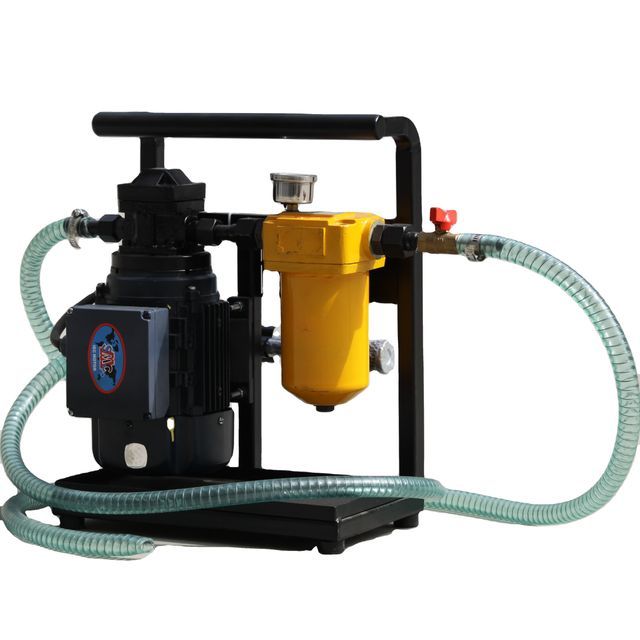

Introduction
A portable filter device developed and produced by our company is suitable for various petroleum-based mineral oils. Its design is simple and practical, and it is easy to move and maintain. The filter device can also conveniently filter the oil of various hydraulic and lubricating systems, and can also be connected to the system as a bypass filter..
advantage
1 The high-pressure pipeline is equipped with an overflow protection device to protect the safety of the hydraulic system
2 Adopt thermal relay protection to prevent motor overload damage.
3 The coarse filter protects the oil pump and prolongs the service life of the main filter
4 The filtration level of the coarse filter can be selected by the customer.
5 The oil filter adopts a quick-opening structure, which is convenient to replace the filter element
6 There is a pressure gauge on the panel to remind you to replace the filter element on time.
7 Use secondary filtration: coarse filtration and microfiltration
application
1 Filtration of the hydraulic lubrication system when refueling
2 Bypass filter when the hydraulic lubrication system is working
3 Hydraulic lubrication system circuit filtration before putting into operation
4 The low hydraulic lubrication system pumped out by the oil pump filter does not need the device itself
image display
If you want to know more about the oil purifier, please leaveaskTell the following information:
1 traffic
2 voltage
3 filter levels
4 Is it explosion-proof
