1.6m Automatic Glass Sandblasting Machine

Supplier: Liaoda (LAD) Glass Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms Dawn Ding
Price: $7000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Key Selling Points:	Energy saving;	Brand Name:	YD;
Certification:	CE;	Dimension(LWH):	470015002200mm;
Machine Type:	Glass Sandblasting Machine;	Supply Ability:	12 Set/Sets per Month;
Condition:	New;	Power(W):	3.5KW;
After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;	Port:	Shunde, Guangdong;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	After-sales Service Provided:	Engineers available to service machinery overseas;
Voltage:	220/380/415/480V 50/60HZ;	Weight:	1500KG;
Place of Origin:	Guangdong China (Mainland);	Applicable Industries:	Hotels,Building Material Shops,Manufacturing Plant,Restaurant;
Warranty:	1 year;	Production Capacity:	20-30 square meter / hour;
Packaging Detail:	Plastic sheet or wooden box;	Vertical:	Sandblasting;

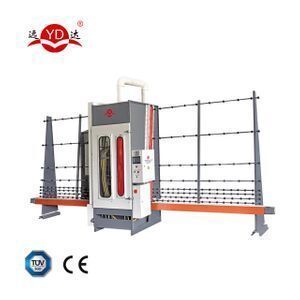

Automatic Glass sandblasting machine

Application

1. The sandblasting machine is an automatic running machine. Spray space, height, guning stopover time, remain space are set on the touch screen.

2. With multi-gun and automatic dust remover system, it has excellent working performance and high efficiency. it can installed with 3-4 guns as required. The guns position adjustable.

3. The machine can be used for flat stone, wood, with the changing of conveyor belt to conveyor rollers.

Machine specification

Machine type	YD-SB-1500	YD-SB-2000	YD-SB-2500
Max.glass height	1500mm	2000mm	2500mm
Power:	3.5kw	3.5kw	3.5kw
Output	25-30square meter / hour	25-30square meter / hour	25-30 square meter / hour
Number of guns	3 or 4 automatic guns, 1 manual gun	3 or 4 automatic guns, 1 manual gun	3 or 4 automatic guns, 1 manual gun
Kind of height control	PLC	PLC	PLC
Size of machine	450015002500mm	700015002800mm	800015003300mm
Weight	800kg	1000kg	1200kg

Photo of machines

1. Touch screen control, PLC, able to set sandblasting width, height here

2. Use 3 or 4 automatic sandblasting guns

3. With the use of dust collection device

4. Clear and easy operation pages

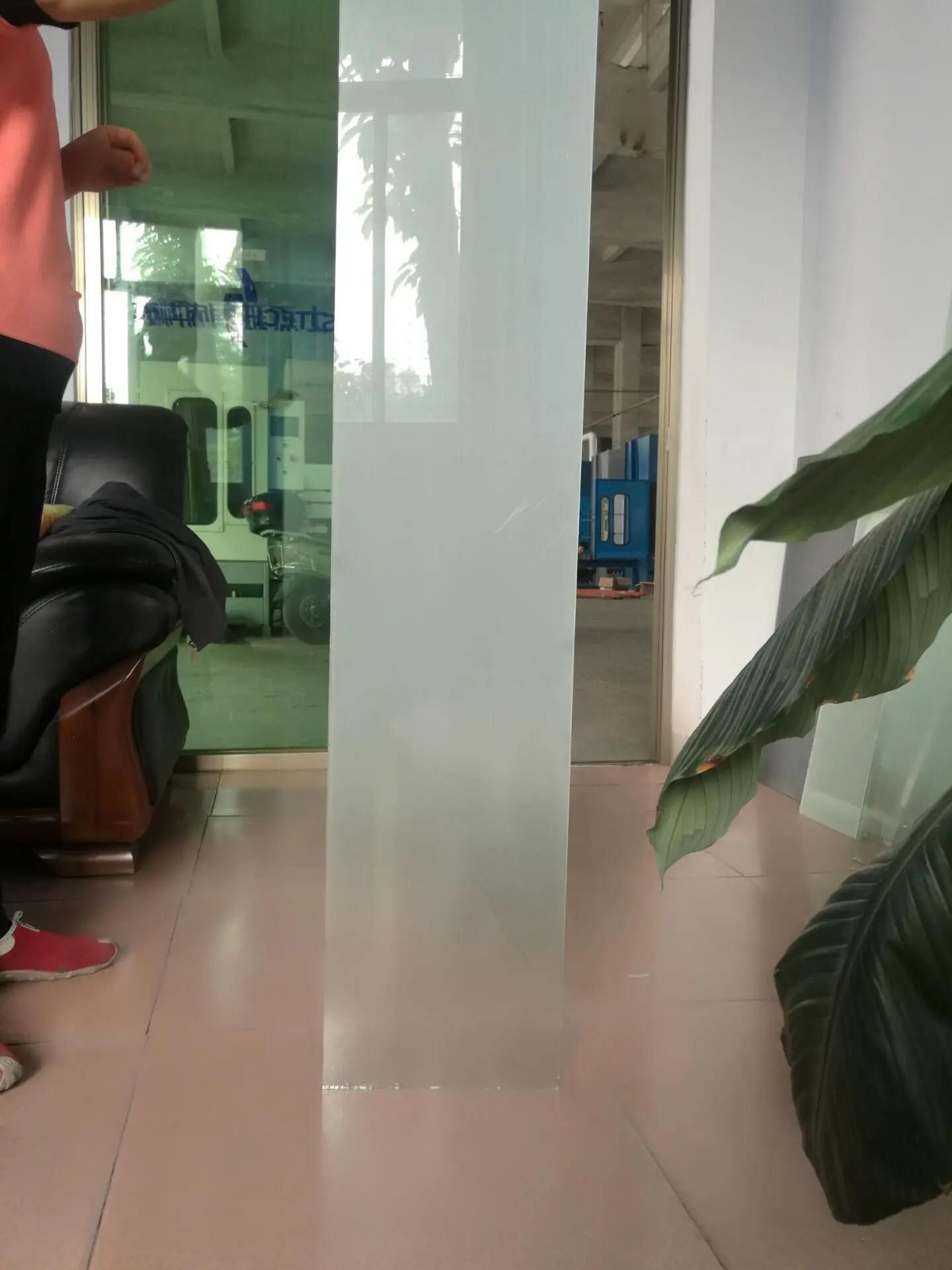

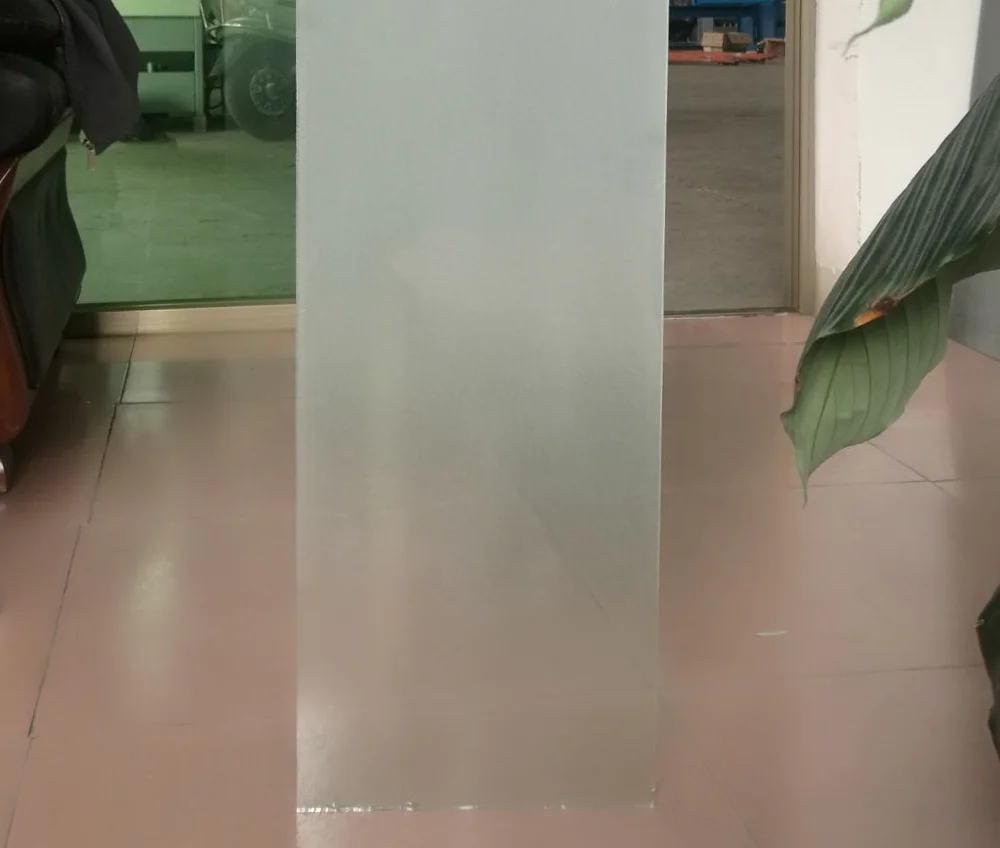

5. High quality sand blasting result

Package and Shipping

Can be shipped by LCL(Less Than Container Loading) and FCL(Full container loading)
For one machine, it can be packed by one steel palate and shipped by LCL.
