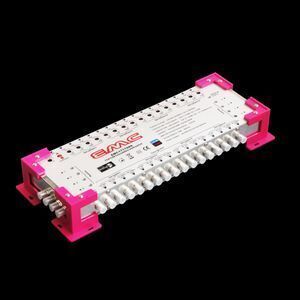

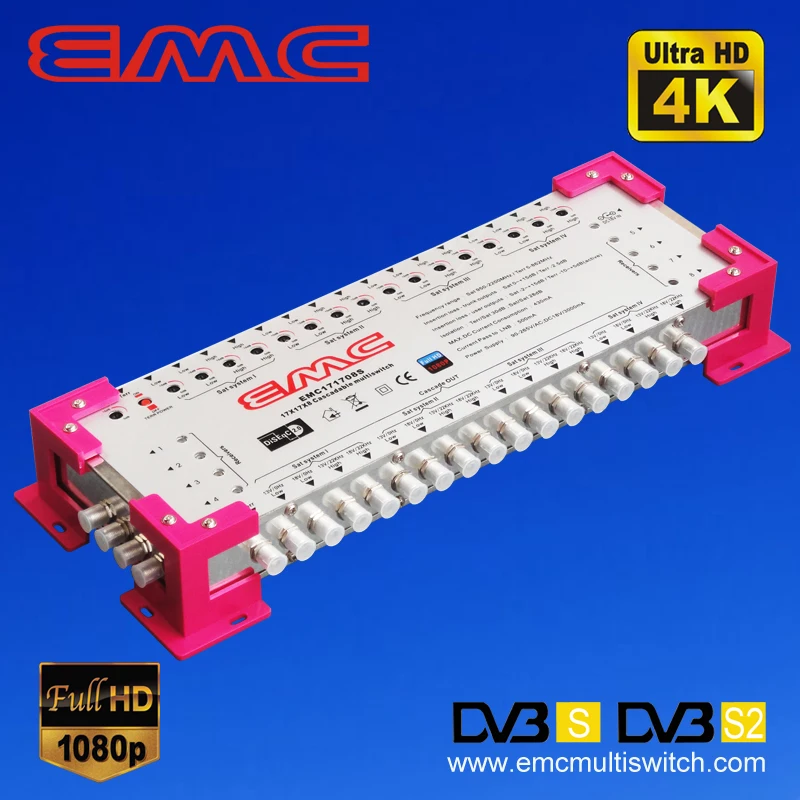

Cascadegain multiswitch EMC171708S

Product details
Product shell:tinplate case;working voltage:AC100-240V / DC18V;
packaging:giftbox / whitebox;Packaging Detail:EMC giftbox /OEM giftbox / whitebox;
Payment Terms:T/T,Western Union,MoneyGram;certification:CE RoHS;
Port:zhuhai/shenzhen;Place of Origin:Guangdong China (Mainland);
Color of the plastic case:Free selected;Service support:OEM/ODM;
With LED:Yes;Supply Ability:10000 Piece/Pieces per Month;
Brand Name:EMC;Model Number:EMC171708S;



EMC171708S Features:
1. Professional multiswitch with high sensitivity
2. 16Satellite IF inputs and 1 terrestrial TV inpupt, 8 user out
3. User control: 13/18V,0/22kHz and DiSEqC 1.0(2.0) commands

4. Trunk compensation amplifier circuit, in Cascade 0 ~ 15 dB gain adjustable output , ensure the

    cascade output signal no attenuation

5. supports cable lengths up to  200 meters , suitable for Decentralized apartment project

6. power adaptor is professional with strong power and low ripple interference and good High heat

    dissipation system

7. With User LED indicator
8. Trunk  all ports have current protection circuit



ParameterConditionSpecification
Frequency rangeSat. trunks950~2150MHz
Terr.trunks5~872MHz
User outputs5~2150MHz
 Input  ports 16Sat+1Terr
Output  ports 8user+17Cascade
User to control 13/18V,0/22kHz and DiSEqC 1.0/2.0 commands

Insertion loss

Sat-user 0~+15dB  adjustable gain
Terr-user -18~+2dB  adjustable gain
Sat-trunks 0~+15dB  adjustable gain
Terr-trunks-3dB

Inputs isolation-user

V/H25dB
low/high bands28dB
Sat/Sat   30dB
Inputs isolation-trunkBetween channel 32dB
User Max Output Level

Sat100dBµV
Terr89dBµV
DC Current Consumption 450mA+LNB    (Signal input is active)
Temperature range -40~+80°c
Dimension 400×155×60mm
Packing 5PCS/CTN
MEAS 52X42.5X34.5CM
