signal adjustable: | Yes; | Model Number: | EMC171732S; |
packaging: | giftbox / whitebox; | working voltage: | AC100-240V / DC18V; |
Supply Ability: | 10000 Piece/Pieces per Month; | Product shell: | tinplate case; |
Payment Terms: | T/T,Western Union,MoneyGram; | Packaging Detail: | EMC giftbox /OEM giftbox / whitebox 5pcs/carton; |
certification: | CE RoHS; | Brand Name: | EMC; |
Port: | zhuhai/shenzhen; | Color of the plastic case: | Free selected; |
LED indicator: | Yes; | Service support: | OEM/ODM; |
Place of Origin: | Guangdong China (Mainland); |

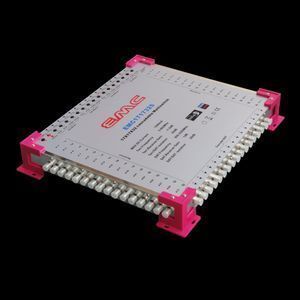

EMC171732S
EMC171732S Features: |
1. Professional multiswitch with high sensitivity |
2. 16Satellite IF inputs and 1 terrestrial TV inpupt, 32 user out |
3. User control: 13/18V,0/22kHz and DiSEqC 1.0(2.0) commands |
4. Trunk compensation amplifier circuit, in Cascade 0 ~ 15 dB gain adjustable output , ensure the cascade output signal no attenuation |
5. supports cable lengths up to 200 meters , suitable for Decentralized apartment project |
6. power adaptor is professional with strong power and low ripple interference and good High heat dissipation system |
7. With User LED indicator |
8. Trunk all ports have current protection circuit |
Parameter | Condition | Specification |
Frequency range | Sat. trunks | 950~2150MHz |
Terr.trunks | 5~872MHz | |
User outputs | 5~2150MHz | |
Input ports | 16Sat+1Terr | |
Output ports | 32user+17Cascade | |
User to control | 13/18V,0/22kHz and DiSEqC 1.0/2.0 commands | |
Insertion loss | Sat-user | 0~+13dB adjustable gain |
Terr-user | -18~+2dB adjustable gain | |
Sat-trunks | 0~+15dB adjustable gain | |
Terr-trunks | -6dB | |
Inputs isolation-user | V/H | 25dB |
low/high bands | 28dB | |
Sat/Sat | 30dB | |
Inputs isolation-trunk | Between channel | 32dB |
User Max Output Level | Sat | 100dBµV |
Terr | 89dBµV | |
DC Current Consumption | 450mA+LNB (Signal input is active) | |
Temperature range | -40~+80°c | |
Dimension | 400×355×60mm | |
Packing | 5PCS/CTN | |
MEAS | 52X42.5X34.5CM |
Trade patterns:
1.Normal lead time: 7days for sample order;15~30 days for production order.
2.Payment: T/T,
3.DHL/ Fedex/ UPS/ TNT/ EMS /Air shipping/ Sea shipping is available
4.Shipping port: Guangzhou/ ShenZhen/ ZhuHai.
5.Payment condition: 30% before production, 70% before delivery.
