DiSEqC switch 4x1 EMC4102A

Product details
Control mode:DiSEqC1.0 / 2.0;Main body shell:Zinc die-cast housing;
Water-proof:Yes;Brand Name:EMC;
Supply Ability:500000 Piece/Pieces per Month;Certification:CE RoHS;
Model Number:EMC4102A;Port:Shenzhen zhuhai;
Place of Origin:Guangdong China (Mainland);Payment Terms:T/T,Western Union;
Working voltage:13V/18V (12-20V);Packaging Detail:Each in a Gift box, 200 PCS / 400PCS / 500PCS to a Carton.;

 EMC4102A

Features:

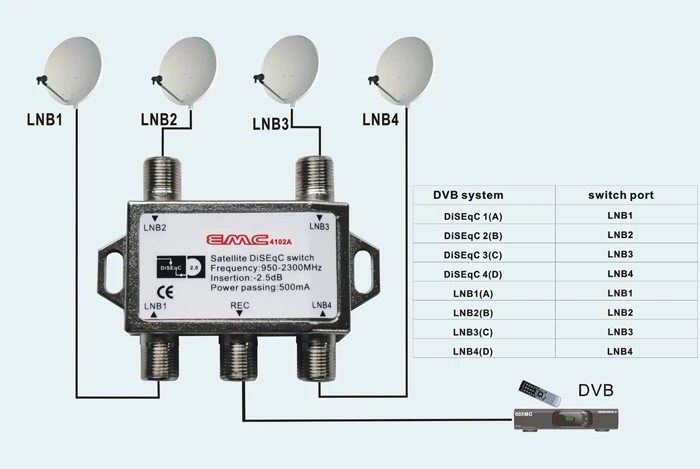

1.   4 satellite inputs selected by DiSEqC commands.
2.   User switching commands:DiSEqC 1.0(2.0)
3.   Zinc die cast housing
4.   Sealed with silicon glue to proof water.
5.     Excellent quality chip , professional program design and compatible   with more  types of satellite receiver

6.     EMC4102A/B is in the same appearance but different in size.



+
 Specifications:
 Item    Model       EMC4102A
 Frequency Range:950-2150MHz
 Input        4 Sat
 Output1 User
 loss SAT(user):2dB

 Return Loss:

9dB
 Isolation SAT/SAT:28dB
 DC Current Consumption:10(mA)
 LNB power supply max: 500(mA)

 Normal Working Voltage:

12-20(V)

 Working temperature:    -40~80(°C)
 Dimension:69X55X14mm
 Packing:200/400PCS/CTN









Product packaging mode







Trade patterns:

1.Normal lead time: 7days for sample order;15~30 days for production order.

2.Payment: T/T,

3.DHL/ Fedex/ UPS/ TNT/ EMS /Air shipping/ Sea shipping is available

4.Shipping port: Guangzhou/ ShenZhen/ ZhuHai.

5.Payment condition: 30% before production, 70% before delivery.
