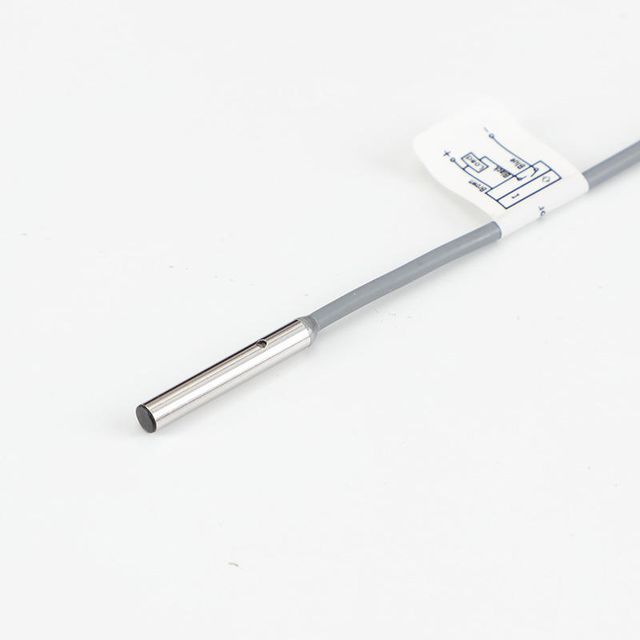

D3 Ultra-miniature Inductive Displacement Sensor

Click here to contact

Product details

Durable:	company	High reliability:	no wear
High quality grade:	short lead time	brand:	Ji Mou
Packaging Details:	Carton standard packaging	Reverse polarity protection:	reverse polarity protection
theory:	Inductive sensor	Surge protection:	overload protection
usage:	position sensor	output:	switch transducer
Small size:	easy to install	port:	DHL Express
long lasting:	excellent long-term stability	payment terms:	wire transfer, paypal
Stablize:	economic benefits	Supply capacity:	10000 pieces per week
A wide range of detection objects:	Contactless	Origin:	Guangdong, China
Mini, Lightweight:	white	model:	IA1D-S030.8P-O3B2

1. Specifications

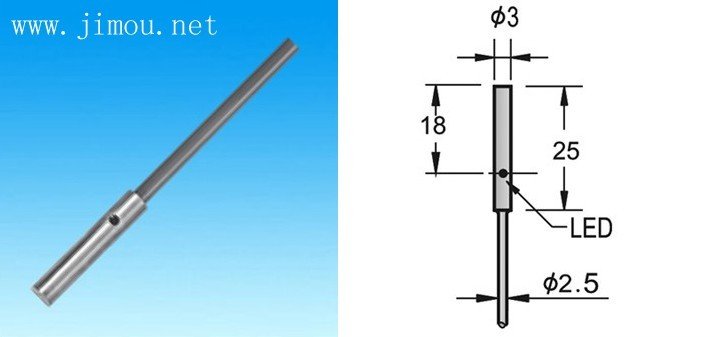

D3 Ultra-miniature Inductive Displacement Sensor
diameter	Φ3
shielded unshielded	shield
Switch distance Sn:(mm)	0.6mm/ 0.8mm/ 1.0mm
building materials	Stainless steel
With LED Without LED	with LED
Operating Voltage	10-30V
ripple	<10%
No-load current	<10mA
Maximum load current	100mA
leakage current	<0.01mA
voltage drop	<1.5V
On-off level	2KHz
Response time	0.1ms/0.1ms
switching hysteresis	<15% (strontium)
Repeatability	<1.0% (Strontium)
protection category	IP67
Operating temperature	-25°C - +70°C
temperature drift	<10% (strontium)
Short circuit protection	Yes
overload trigger point	120mA
electromagnetic compatibility	RFI>3V/M / EFT>1KV / ESD>4KV (contact)
Shock/vibration	IEC 60947-5-2, part 7.4.1 / IEC 60947-5-2, part 7.4.2
material active surface	Nylon 66
DC 3-wire 10-30V NPN No	IA1D-S03*N-O3A2	1
DC 3-wire 10-30V NPN No	IA1D-S03*N-C3A2	2
DC 3 wire 10-30V PNP No	IA1D-S03*P-O3A2	3
DC 3-wire 10-30V PNP normally closed	IA1D-S03*P-C3A2	4
DC 4wire 10-30V conversion NPN(NO&N.C.)
DC 4wire 10-30V conversion PNP(NO&N.C.)
DC 2-wire 10-60V No
DC 2-wire 10-60V normally closed
DC 3 wire 10-55V NPN No
DC 3-wire 10-55V NPN normally closed
DC 3 wire 10-55V PNP No
DC 3 wire 10-55V PNP normally closed
DC 3-wire 5-36V NPN No
DC 3-wire 5-36V NPN normally closed
DC 3-wire 5-36V PNP No
DC 3-wire 5-36V PNP normally closed
DC 4-wire 5-36V conversion NPN(NO&N.C.)
DC 4wire 5-36V conversion PNP(NO&N.C.)
	Wiring Diagram No.
Cable2M (PVC)	2.5Φ3*0.14
Weight / grams)	about 25g
