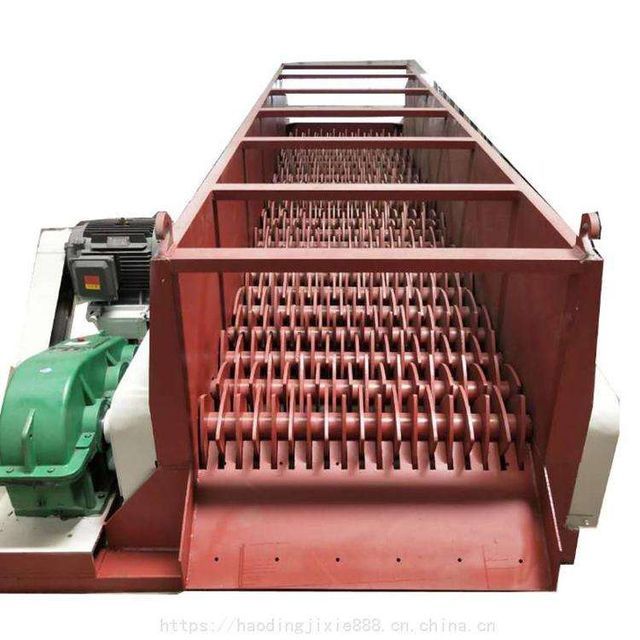

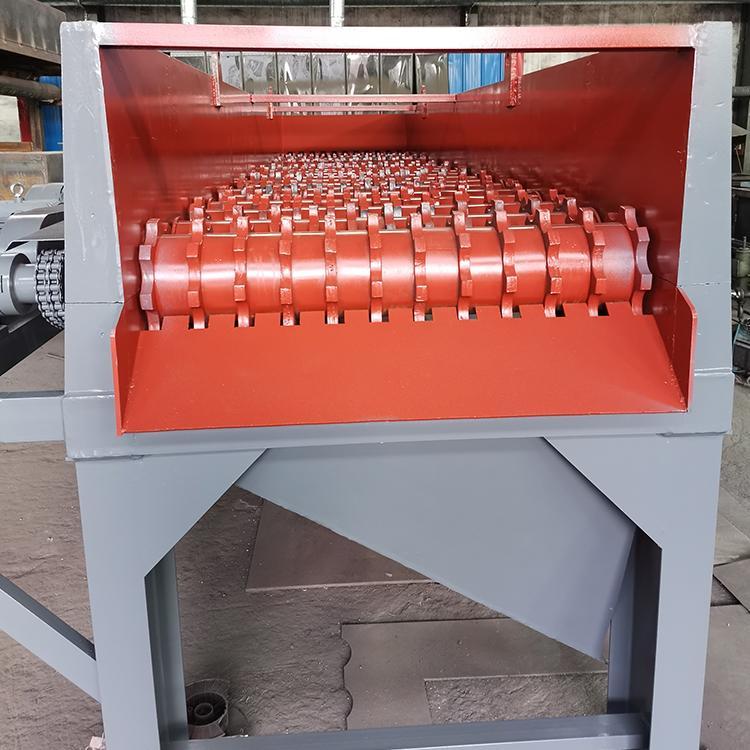

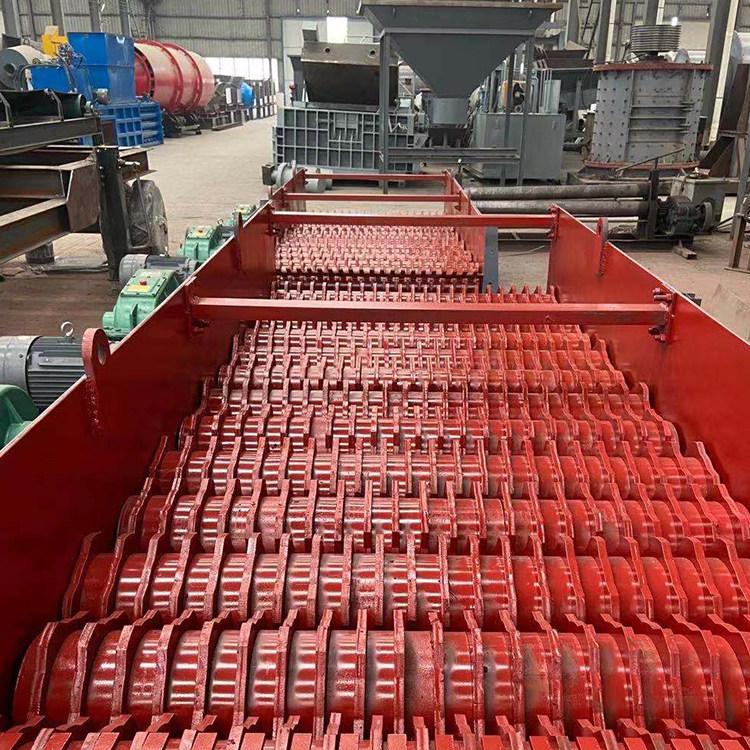

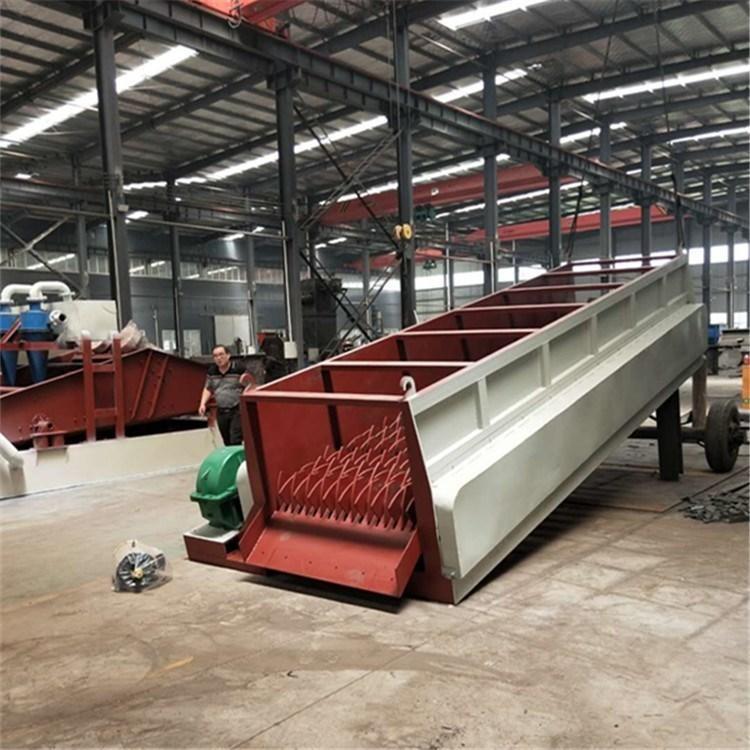

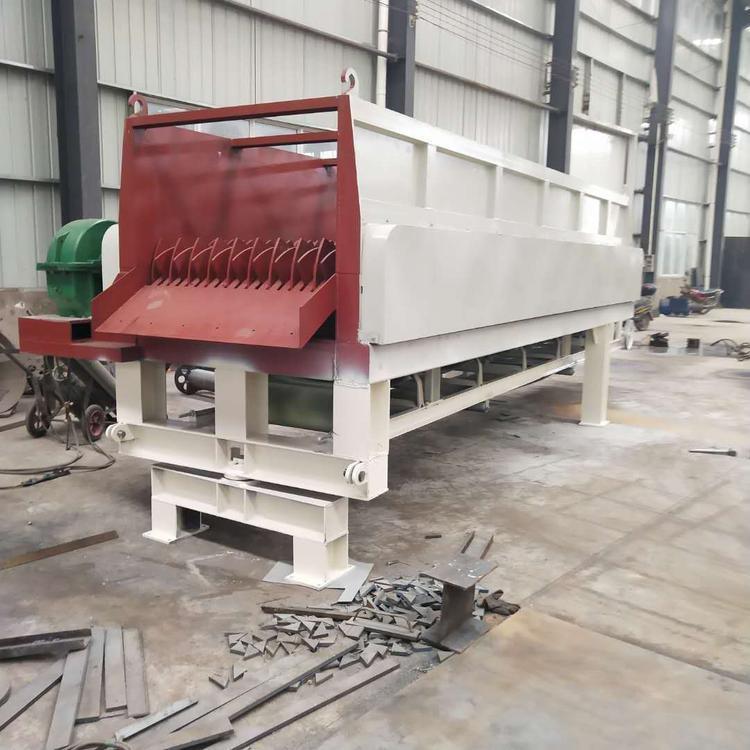

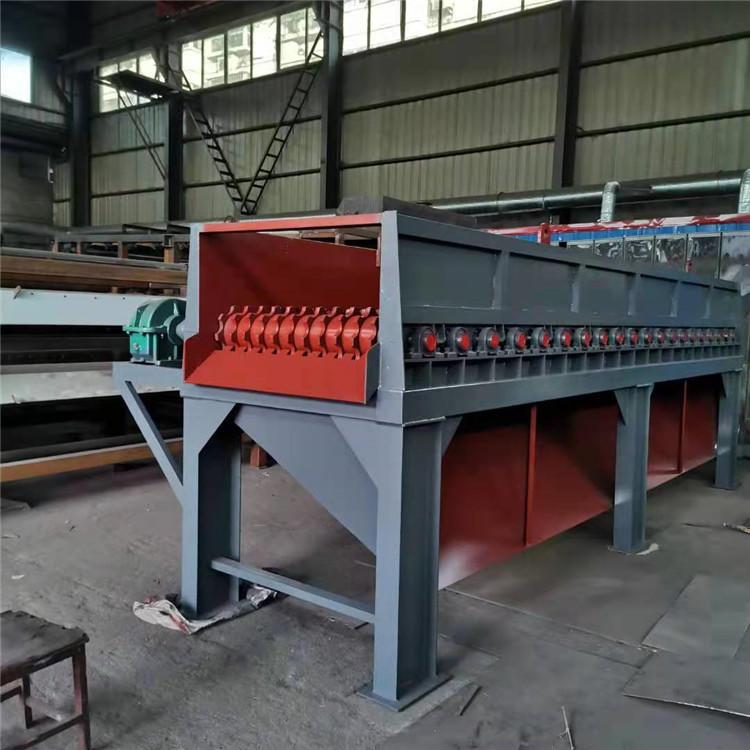

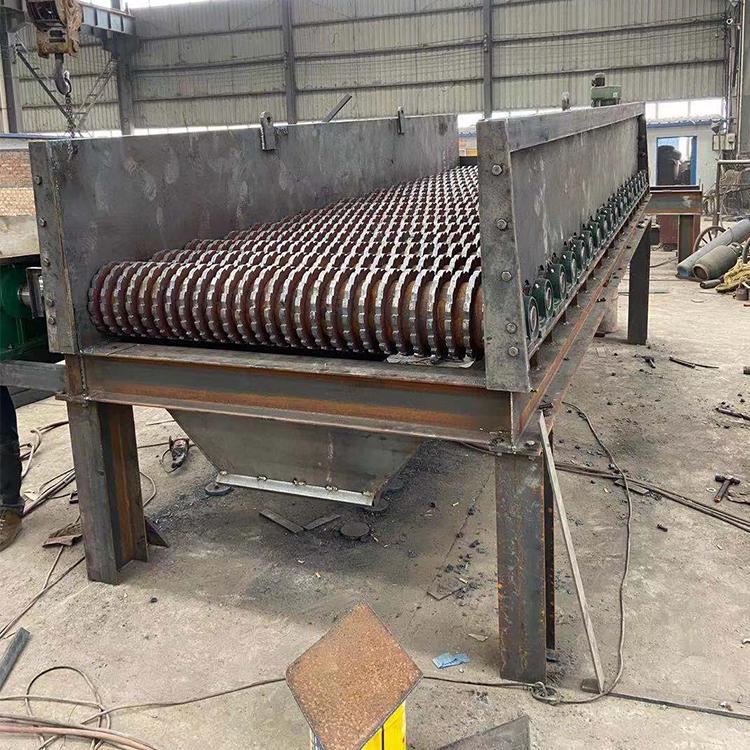

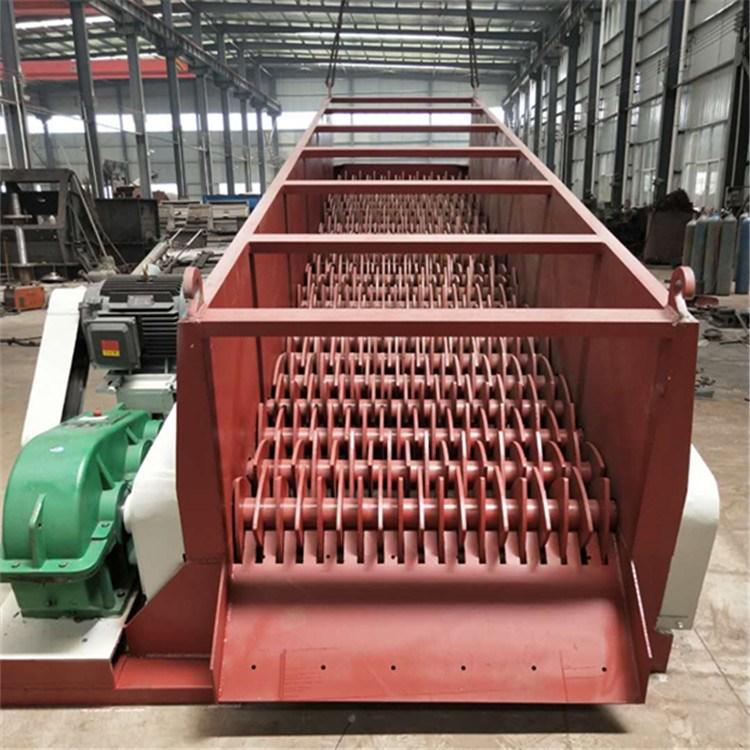

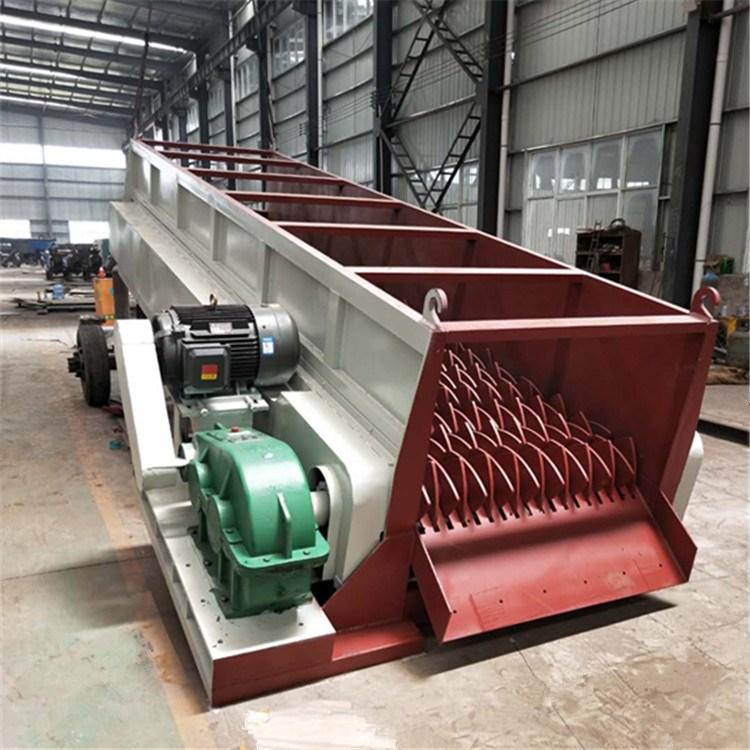

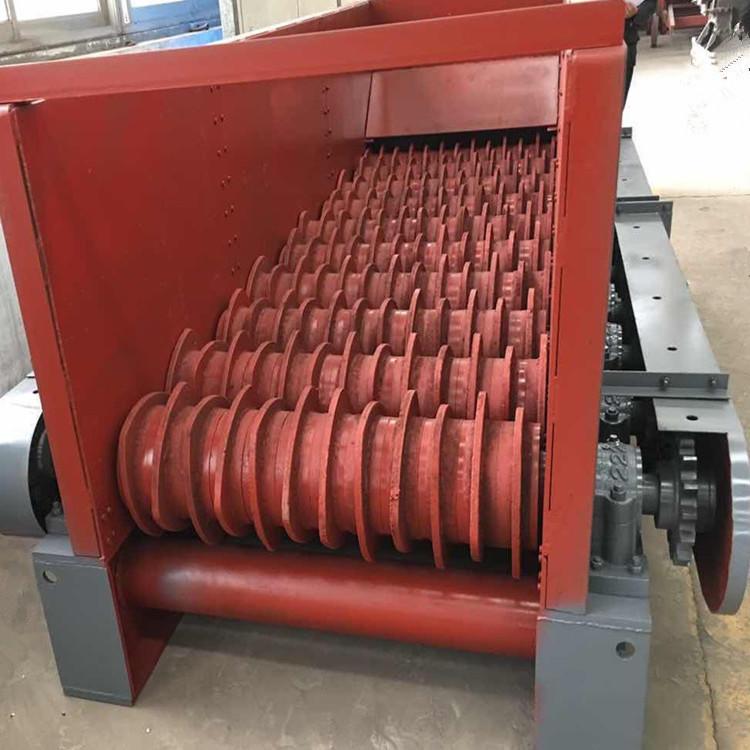

Swing Feeder Disc Screening Machine

Supplier: Gongyi Forui Machinery Factory
Region: Henan, China
Contact: Mr Kevin Zhao
Price: $6000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

weight:	6000 kg	Power type:	custom made
application:	mining	Origin:	Henan, China
Marketing Type:	New Products 2021	Capacity(t/h):	custom made
Video shipment inspection:	if	Supply capacity:	50 cases per month
brand:	Fury	Certification:	different
Package preview:		Mechanical test report:	if
Warranty:	1 year	port:	Qingdao
Core component warranty:	1 year	Health status:	new
Packaging Details:	as requested	Core components:	engine
After warranty service:	online support, spare parts	Local service location:	not any
After-sales service provided:	Free spare parts, online support, video technical support, on-site installation, commissioning and training, on-site maintenance and repair services	Showroom location:	not any
payment terms:	L/C, Western Union, T/T	Applicable industries:	Energy and Mining

product description

Swing feeder is also called roller screen or disc screen.

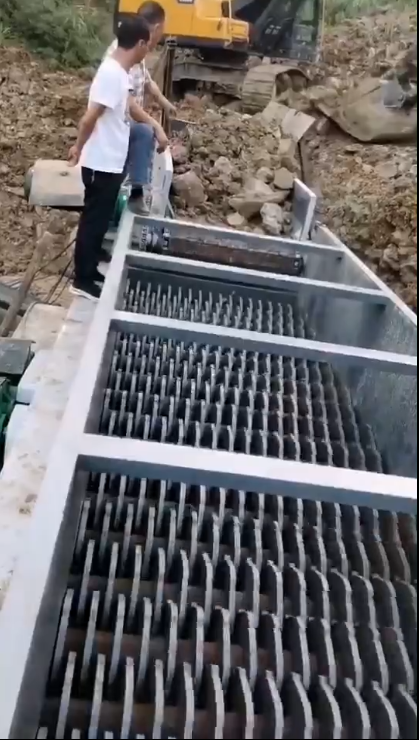

Swing feeders provide two functions in one unit: feeding at a controlled rate, and rejecting fines from the feed. These feeders are ideal for wet, sticky materials where fines need to be peeled or stuck to larger pieces. They also do a good job of removing materials with a high clay content. Oscillating feeders can be used to feed and debark material in aggregate and mineral processing applications.

Used before the primary crusher, the oscillating feeder does not perform well where other feeders and debarkers are too wet and sticky. Due to the unique concept design and mode, they can obtain sufficiently clean products; the output products will be suitable for the next crushing stage. Since the transport of material is horizontal, subsequent crushers are fed slowly and continuously.

How Swing Feeders Work

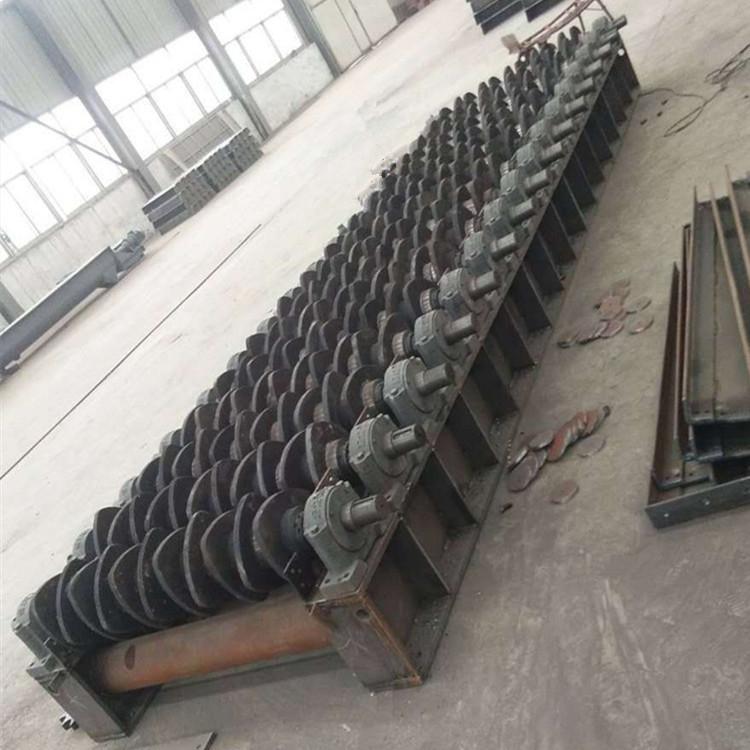

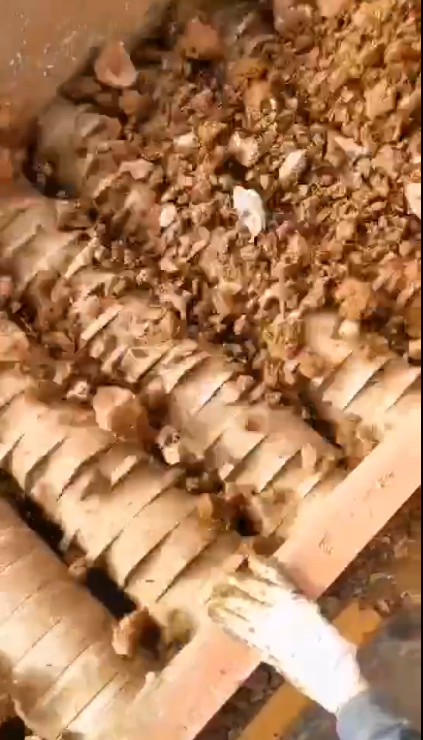

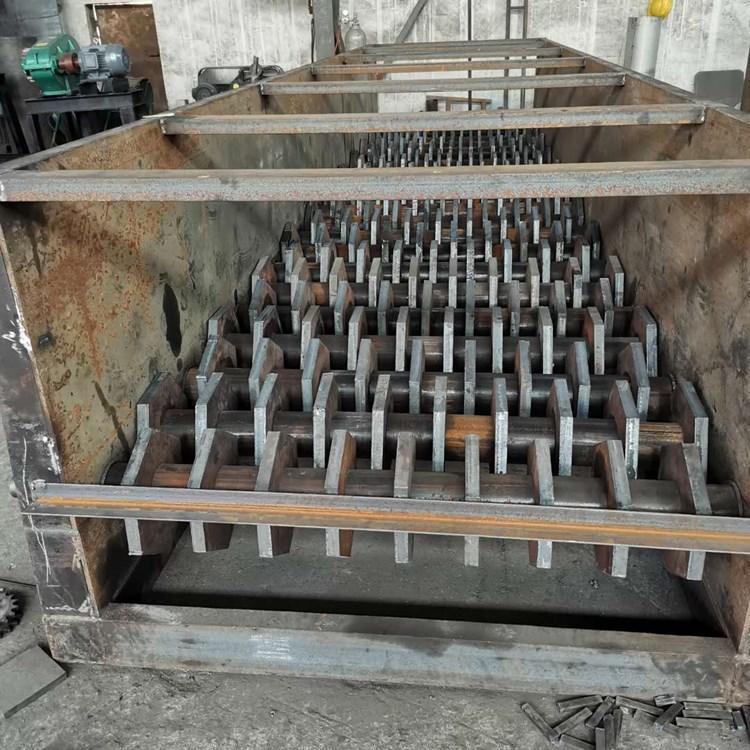

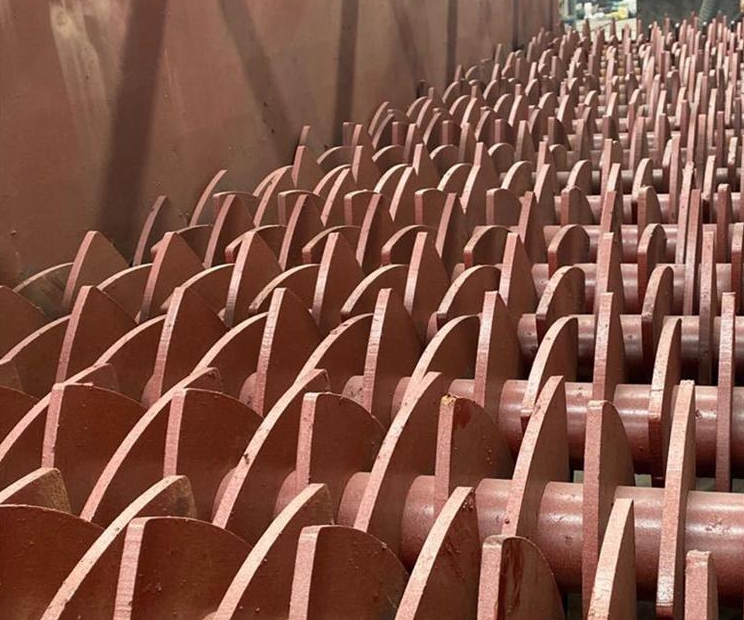

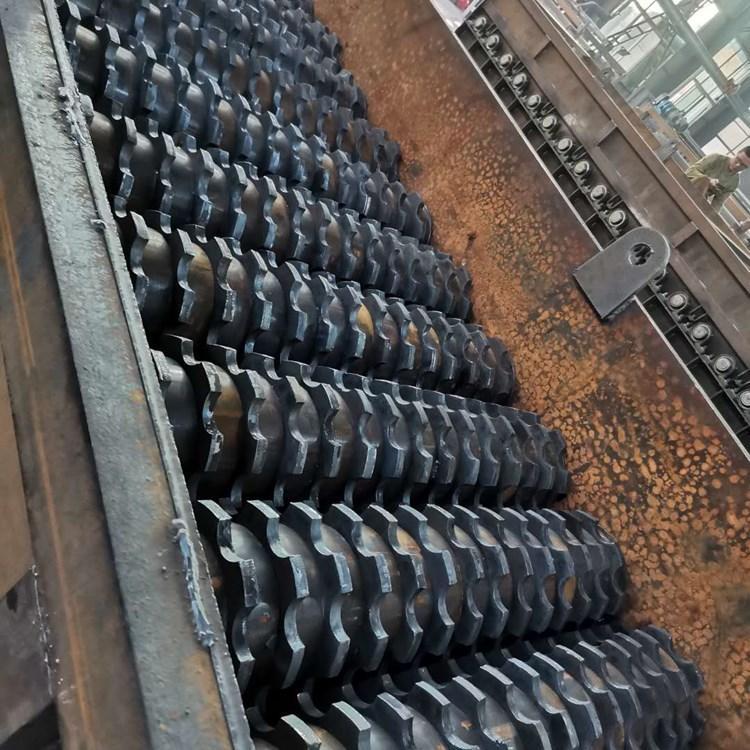

The Wobbler Feeder consists of a frame, an elliptical rod and a chain drive system for rotating the rod. The bars are oval and at 90-degree angles to adjacent bars. The drive system maintains 90-degree timing by linking all rods through a double or triple chain connected to a sprocket on each rod. This keeps the gap or opening between the rods at the same size throughout the rotation of the rods. As the material moves from the feed end to the discharge end, large pieces of material are forced to move up and down within the load, rubbing against each other. This action forces any sticky material (such as clay) out and allows it to pass through the opening between the rods. The rotation of the rod also moves the material from the feed end to the discharge end and scrubs continuously the entire distance.

Swing Feeder Applications

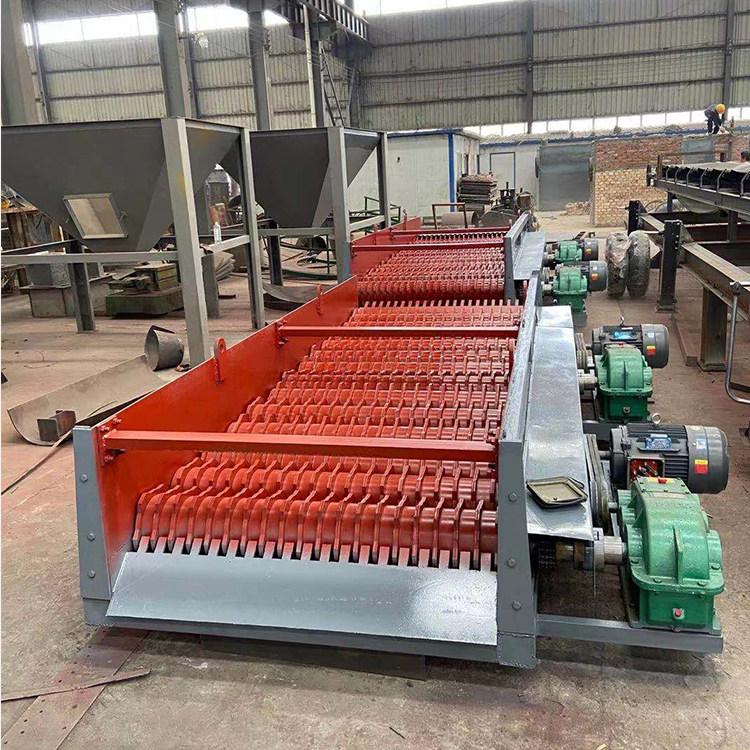

swing feeder forAggregates and MiningApplications for sorting raw ore material prior to the primary crusher. This debarking of the feed reduces unnecessary wear on the primary crusher. Since scalping feed reduces the amount of material going to the primary crusher, it also reduces the size and capacity of the crusher required. Depending on the application, they can be fed by an apron feeder or directly by truck or loader. They can also be used in secondary applications to separate feed that has been comminuted. Wobbler Feeder is available as single or multi-stage equipment. Due to the modularity of the length of the swing feeder, almost any size of separation surface can be realized. This type of equipment is suitable for different operations of limestone, clay stone, coal, natural stone, salt, gypsum and other materials.
