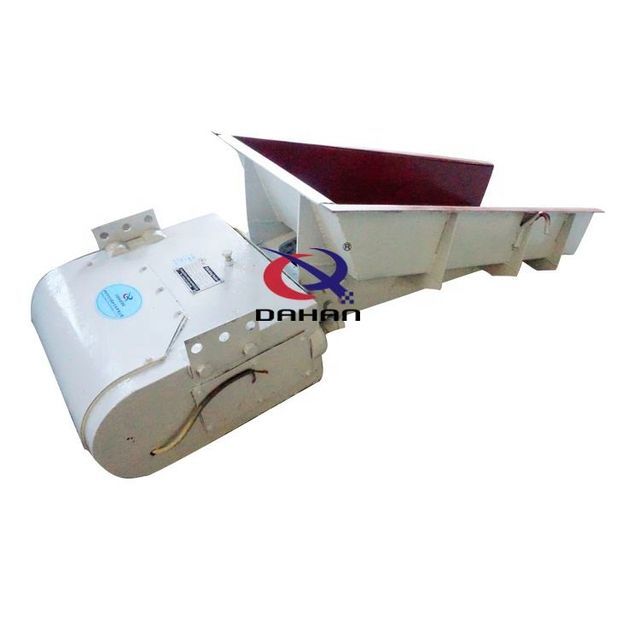

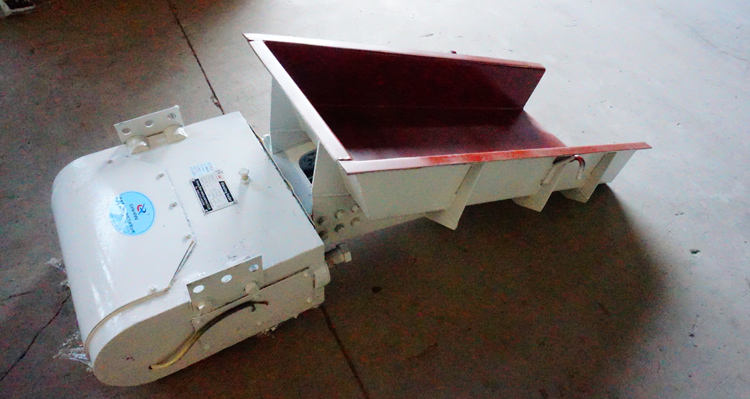

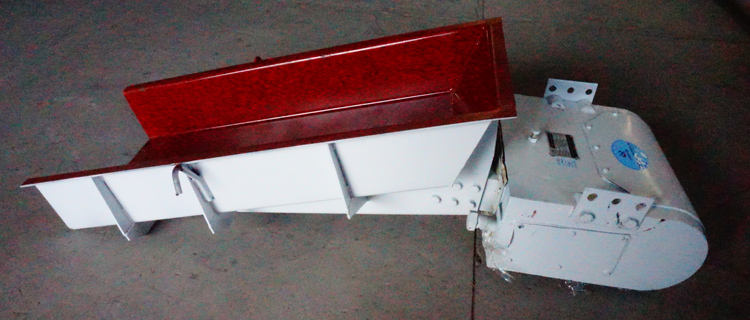

GZ series mine vibrating screen machine electromagnetic vibrating feeder for sale

Supplier: Xinxiang Dahan Vibrating Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Anna Shi
Price: $2360.00 / 1 - 2 sets
$2320.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

Supply capacity:	100 sets of electromagnetic vibrating feeders per month	Local service locations:	not any
port:	Shanghai, Tianjin, Qingdao, or what you need.	payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Cash
Dimensions (LWH):	1815840765mm	After Warranty Service:	online support
Double Amplitude:	1.75mm	Health status:	new
Showroom location:	not any	Core component warranty:	1.5 years
stage:	single	Production capacity (tons/hour):	5-1400 tons/hour
Certification:	ISO9001:2008, CE	Warranty:	1 year
weight:	668 kg	Video outbound inspection:	if
color:	client needs	Origin:	Henan, China
Voltage (V):	220V/380V/415V	Marketing Type:	Hot Products of 2019
Power type:	electrical	Material:	Stainless steel 304/carbon steel

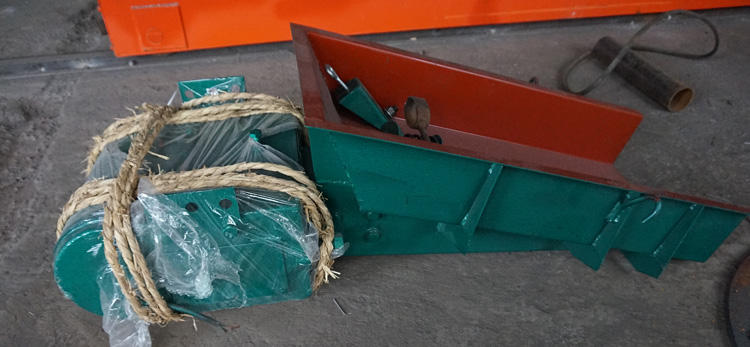

Function:	uniform feeding	Packaging Details:	GZ series mine vibrating screen machine electromagnetic vibrating feeder can be packaged according to the size of the machine. Our standard export package is fumigation-free wooden box, 1 set/carton. If you have special requirements, please let us know.
After-sales service:	one year	Core components:	engine
After-sales service provided:	Video technical support, free spare parts, online support	brand:	big man
custom made:	acceptable	size:	standard
Mechanical test report:	if	Vibration frequency:	3000 rpm
Package preview:		Applicable industries:	Mechanical repair shops, food and beverage plants, construction, energy and mining
application:	Mining/Pharmaceutical/Food

GZ series mine vibrating screen machine electromagnetic vibrating feeder for sale

Product Description

GZ series electromagnetic vibrating feeder is widely used in mining, metallurgy, coal, building materials, chemical industry, electric power, food and other industries. It is used to uniformly, continuously or quantitatively feed block, granular and powder materials from storage bins or other storage equipment to the receiving equipment.

main feature

1) The linear structure is simple and easy to install and maintain.

2) This series of electromagnetic vibrating feeders has the advantages of small size, low noise, light weight, high operating frequency, low power consumption, etc., and can be used in the automatic control process to realize the automation of the production process.

3) The feeding volume can be adjusted steplessly, and it can be started frequently and run continuously under the conditions of rated voltage and rated amplitude, which is convenient for installation and maintenance.

You can click here to check the price

application

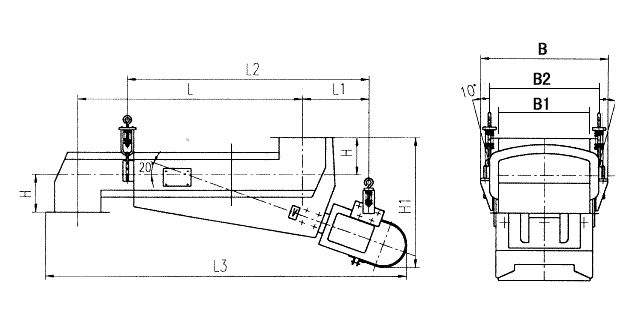

Technical Parameters

type	Model	capacity per hour		Maximum feed size (mm)	Double amplitude (mm)	vibration frequency (times/minute)	Voltage (Volts)	Current A		Power (kW)	Weight (kg)
type	Model	horizontal	-10°	Maximum feed size (mm)	Double amplitude (mm)	vibration frequency (times/minute)	Voltage (Volts)	Working current	Indicating current	Power (kW)	Weight (kg)
standard	Guangzhou No. 1	5	7	50	1.75	3000	220	1.34	1	0.06	77
	Guangzhou No. 2	10	14	50				3	2.3	0.15	151
	Canton Z3	25	35	75				4.6	3.8	0.2	233
	GZ4	50	70	100				8.4	7	0.45	Chapter 460
	GZ5	100	140	150				12.7	10.6	0.65	Chapter 668
	Canton Z6	150	210	200	1.5		380	16.4	13.3	1.5	Chapter 1271
	Canton Z7	250	350	300				24.6	20	2.5	1920
	Canton Z8	400	Chapter 560	300				39.4	32	4	3040
	Canton Z9	600	Chapter 840	500				47.6	38.6	5.5	3750
	Canton Z10	750	1050	500				39.4×2	32×2	4.0×2	6491
	Guangzhou 11	1000	1400	500				47.6×2	38.6×2	5.5×2	7680
vibrate up	GZ3S	25	35	75	1.75		220	4.6	3.8	0.2	Chapter 242
	GZ4S	50	70	100				8.4	7	0.45	Chapter 457
	GZ5S	100	140	150				12.7	10.6	0.65	Chapter 666
	Canton Z6S	150	210	200	1.5		380	16.4	13.3	1.5	1246
	GZ7S	250	350	250				24.6	20	2.5	1963
	GZ8S	400	Chapter 560	300				39.4	32	4	3306
closing ceremony	Guangzhou 1F	4	5.6	40	1.75		220	1.34	1	0.06	78
	GZ2	8	11.2	40				3	2.3	0.15	154
	GZ3F	20	28	60				4.6	3.8	0.2	Chapter 247
	GZ4F	40	50	60				8.4	7	0.45	Chapter 464
	GZ5F	80	112	80				12.7	10.6	0.65	Chapter 668
	GZ6F	120	168	80	1.5		380	16.4	13.3	1.5	1278
light tank	QZ5	100	140	200	1.75		220	12.7	10.6	0.65	Chapter 653
	GZ6Q	150	200	250	1.5		380	16.4	13.3	1.5	1326
	GZ7Q	250	350	300				24.6	20	2.5	1992
	GZ8Q	400	Chapter 560	350				39.4	32	4	3046
Horizontal tank	GZ5P	50	140	100	1.75		220	12.7	10.6	0.65	Chapter 633
	GZ6P	75	210	300	1.5		380	16.4	13.3	1.5	1238
	GZ7P	125	350	350	1.5		380	24.6	20	2.5	1858
wide tank	GZ5K1		200	100	1.5		220	12.7×2	10.6×2	0.65×2	1212
	GZ5K2		240	100							Chapter 1343
	GZ5K3		270	100							Chapter 1376
	GZ5K4		300	100							1408
