More Competitive Magnetic Feeder Electromechanic Vibrating Feeder
-
Supplier: Xinxiang Dahan Vibrating Machinery Co., Ltd. -
Region: Henan, China -
Contact: Ms Anna Shi -
Price: $1000.00 /set -
Min. Order: 1 set
| Showroom Location: | None; | Supply Ability: | 100 Set/Sets per Month; |
| Voltage(V): | 220V/240V/380V/415V/440V/460V; | Weight: | 53kg; |
| Capacity(t/h): | 100 sets per month; | Rated speed(RPM): | 3000 rpm; |
| After sale service: | Engineers available to service machinery overseas; | Brand Name: | Dahan; |
| Material: | Stainless steel/Carbon steel; | Port: | Shanghai,Tianjin,Qingdao,or your need; |
| Certification: | ISO9001:2008, CE; | Product name: | More Competitive Magnetic Feeder Electromechanic Vibrating Feeder; |
| Instalation: | Technical Guidance; | Dimension(L*W*H): | 800*300*350mm; |
| Warranty: | 1 YEAR; | Local Service Location: | None; |
| Noise level: | 30 dB Max; | Frequency: | 50 Hz; |
| After Warranty Service: | Video technical support,Online support; | After-sales Service Provided: | Video technical support,Free spare parts,Online support,Field installation, commissioning and training,Field maintenance and repair service; |
| Packaging Detail: | Outer packing is plywood case, conform to the international standards. Inner packing is Moisture-proof and water-proof membrane.; | Application: | powdery and particle; |
| Applicable Industries: | Machinery Repair Shops,Food & Beverage Factory,Construction works ,Energy & Mining; | Color: | Customers' Requirement; |
| Application: | Mining/medicine/food; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Cash; |
| Condition: | New; | Power Type: | Electric; |
| Place of Origin: | Henan China; |

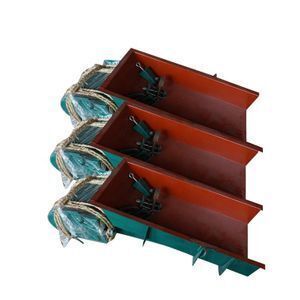

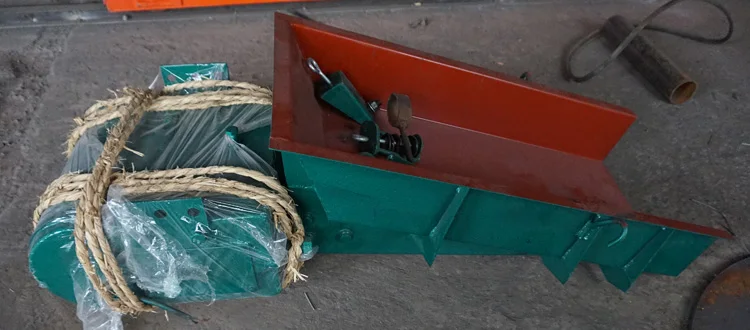

More Competitive Magnetic Feeder Electromechanic Vibrating Feeder
The electromagnetic feeder is applicable to products which is easy-broken, easy-separated and coated with flavouring, such as: baked food, snack food, potato chips, frozen food, peanut, confectionery that are with high requirement of convey system.No breakage of single machine. When comparing with common vibratory conveyor , the products’ breakage rate reduces about 50% and seasoning loss rate reduces 70%.Dynamic distributions of product at each convey point, multi-conveyor linkage for long distance transportation, multi-conveyor synchronization and in-phase transmission.
Model | Capacity(t/h) | Feeding | Amplitude | Voltage | Current(A) | Power | ||
0° | -10° | mm | mm | (V) | Working | Indicate | (Kw) | |
GZ1 | 5 | 7 | 50 | 1.75 | 220 | 1.34 | 1 | 0.06 |
GZ2 | 10 | 14 | 50 | 3.0 | 2.3 | 0.15 | ||
GZ3 | 25 | 35 | 75 | 4.58 | 3.8 | 0.2 | ||
GZ4 | 50 | 70 | 100 | 8.4 | 7 | 0.45 | ||
GZ5 | 100 | 140 | 150 | 12.7 | 10.6 | 0.65 | ||
Model | Weight (kg) | Dimensions | |||||||
L1 | L2 | L3 | L4 | H1 | H2 | B1 | B2 | ||
GZ1 | 50 | 910 | 600 | 200 | 550 | 100 | 360 | 200 | 230 |
GZ2 | 50 | 1175 | 800 | 310 | 660 | 120 | 450 | 300 | 388 |
GZ3 | 75 | 1460 | 1000 | 350 | 870 | 175 | 580 | 450 | 550 |
GZ4 | 100 | 1615 | 1100 | 413 | 960 | 200 | 645 | 500 | 620 |
GZ5 | 150 | 1815 | 1200 | 462 | 1050 | 250 | 765 | 700 | 850 |
We have established an efficient product quality control system in accordance with ISO9001&CE Quality Control System standard. Each process comes with a detailed quality record, and only the qualified products will be subjected to further processing. Thus we can guarantee that all the vibrating screen machine, vibrator motor, vibrating feeder and conveyor system are up to client’s requirements.

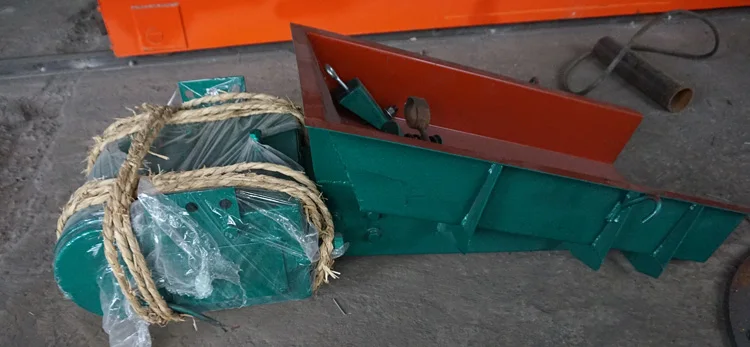

Standard export plywood packing.
The Packed in standard export wooden case packing. If you have special requirements, please just inform us.
Delivery Time:
Within 7-10 working days
the manufacturing time: 7-10 working days after payment

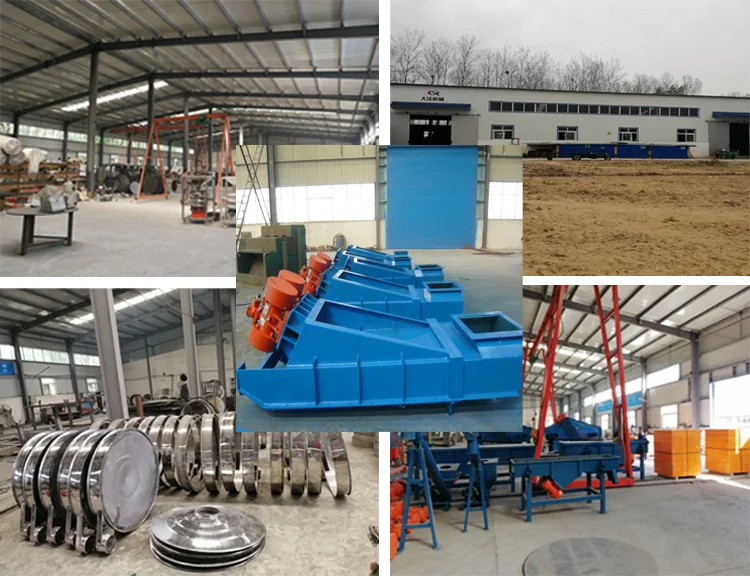

The XinXiang Dahan Vibrating Machinery Co.,LTD, is specialized in the vibrating screen equipment,vibration machinery series products manufacturer,from the design and production to salesprovide a complete assembly line service,committed to solved all kinds of sieving problem,after years of development process of the introduction of foreign advanced technology to improve the orginal screen,and upgrades,for customer screening requipments in terms ally developed into a professional manufacturing enterprise in the industry of xinxiang vibrating screen.
We provide 12months quality warranty to make sure your machine well runs consistently.
Pre-sale services:
a. Professional engineer design the production line for you
b.Recommend suitable equipment according to your special demand.
During-sale services:
a.Pre-check and accept products before delivery
b.Send technicians to the jobsite for guiding the installation and adjustment
c.Training operators and finishing the check to satisfy your requiremnet
After-sale services:
a.Common problem can be solved through web in 24 hours,complex problem can be reacted immediately in 24 hours and solved as soon as possible
b.To establish long-term friendship, we will regulary contact with our customers.
FAQ
Q: What is the real delivery time of your factory?
A: 10 to 15 days for general series products, meanwhile, customized products would need 20 days to 40 days based on different situations.
Q: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry, this is also the feature of the label impression of DH for most of our customers at home or abroad.However, we do recognized that there do have small amount of the product which may got faulty or damaged for different reasons.
Q: How does your after-sale service work if the product got damaged?
A: In the guarantee time 12 months, our general after-sale serve.
-
