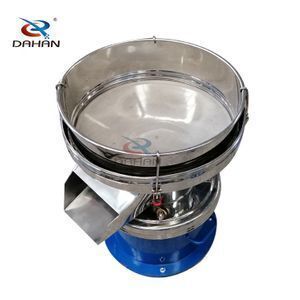

Dahan Sequins 450 Type Vibrating Filter Sieve liquid sieve shaker

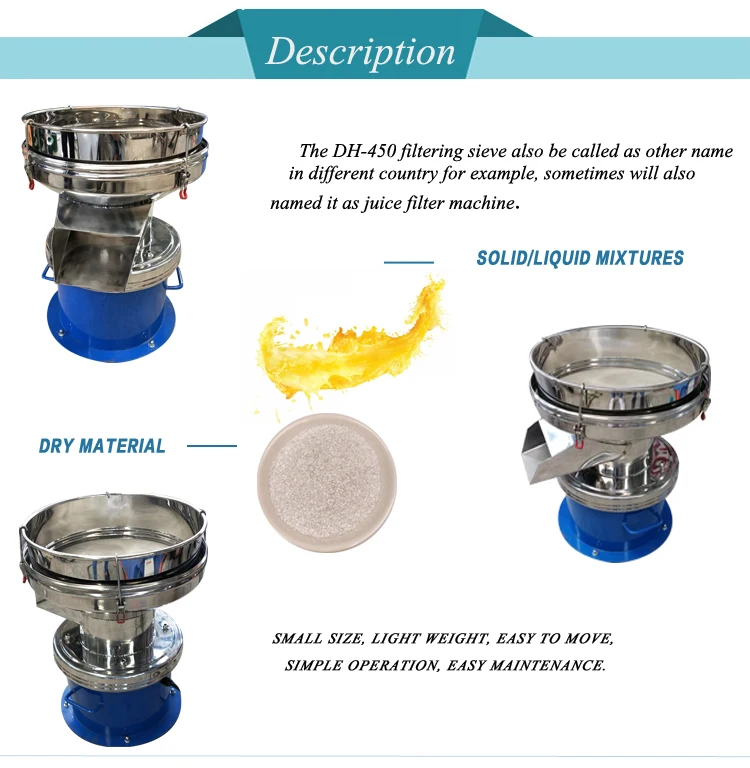

Dahan Sequins 450 Type Vibrating Filter Sieve liquid sieve shaker also named 450 type filter sieve is a kind of low noise, high efficiency, easy to move the small vibrating screen filter.It is to put the powder grain grading,liquid filtration combined as one of the single layer filter screen.Applicable to various industries manufacturers with a single screening and filtering. It is usually used in some products which is with less impurities.

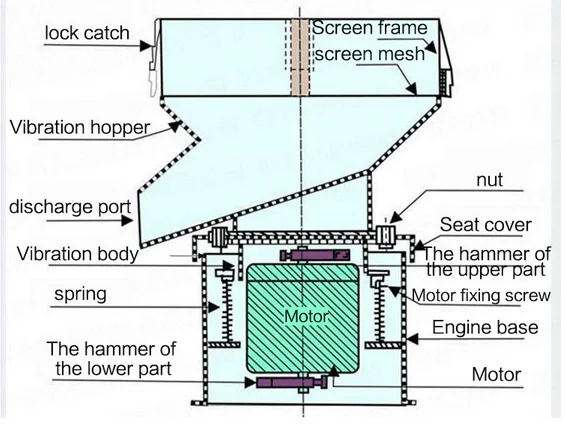

Working Principle

Its vertical motor, which is installed with two eccentric hammers on the top and bottom respectively, is regarded as a vibratory source. The eccentric hammers change rotation into horizontal, vertical and inclined movement, and then pass the movement to the sieving surface. Adjusting the phase angle on the top and bottom can change trajectories of the materials on the sieve.

Technical Parameters

 Detailed Images

Main Features

1.Impurities of scraps can be automatically removed and operation can be automated.

2.Mesh is not blocked,powder not float in the sky,mesh to 400 mesh.
3.Screening,high filtration efficiency;Any granule, powder, mucus is applicable.
4.Unique screen frame structure design,screen mesh long using time,convenient to replace the screen.
5.High efficiency,exquisite design,durable,any powder,mucus class all can apply.
6.Model (304) stainless steel material,small,light weight,can not move,no space occupation.

Product Show

Product Application

Chemical industry: coatings, inks, pastes, paints, latex paints, aluminum pastes.
Food industry: starch, soy milk, juice, beverages, milk mouth, seasonings.
Other industries: mud, pulp, waste liquid, Chinese and Western medicine liquid, etc.

Are You Satisfied With The Product
Click To Get The Latest Offer!

We have established an efficient product quality control system in accordance with ISO9001&CE Quality Control System standard. Each process comes with a detailed quality record, and only the qualified products will be subjected to further processing. Thus we can guarantee that all the vibrating screen machine, vibrator motor, vibrating feeder and conveyor system are up to client’s requirements.

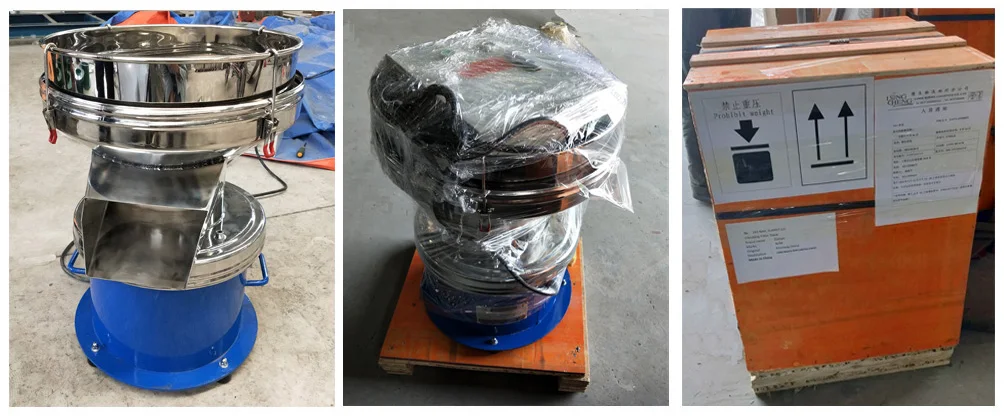

1) We offer free,professional,fumigation-free,and standards wooden case according to product size,and 1 set/case.If you have special equipment please just inform us.

2) We usually use international well-known logistics companies,according to your shipment address.If you have a designated forwarder company,please let us know.

1)We provide 12months quality warranty to make sure your machine well runs consistently.

2)Professional engineer design the production line for you.

3)Recommend suitable equipment according to your special demand.

4)Common problem can be solved through web in 24 hours,complex problem can be reacted immediately in 24 hours and solved as soon as possible.

Q:What is the real delivery time of your factory?

A:10 to 15 days for general series products,meanwhile,customized products would need 20 days to 40 days based on different situations.

Q:How do you ensure the quality of your products?

A:Generally,our equipments are the most  durable type in the industry,this is also the feature of the

label impression of DH for most of our customers at home or abroad.However,we do recognized that there do have small amount of the product which may got faulty or damaged for different reasons.

Q:How do you after-sale service work if the product got damaged?

A:In the guarantee time 12 months,our general aftersale serve.
