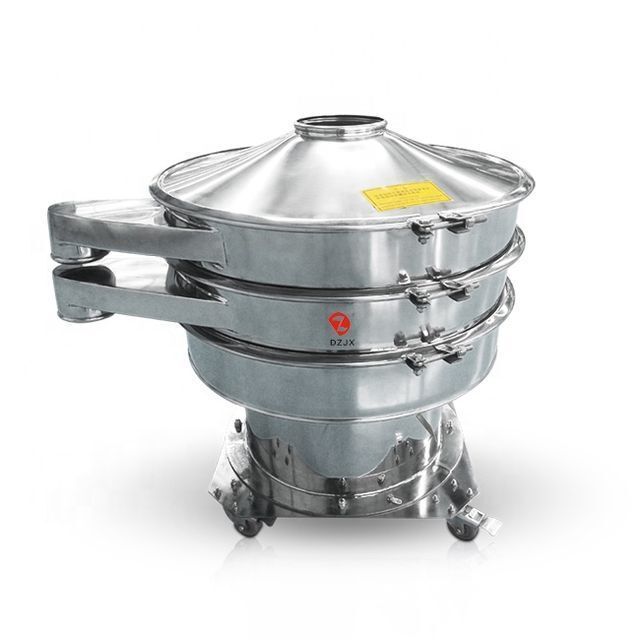

Rotary Coffee Bean powder vibrating sieve shaker/Palm oil vibrating screen sifter/Sesame seed Screening mesh Sieving Machine

Supplier: Xinxiang Dongzhen Machinery Co., Ltd.
Region: Henan, China
Contact: Mr Robert LEO
Price: $1090.00 / 1 - 4 sets
$990.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Weight:	80 KG;	Brand Name:	DZJX;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;	Port:	Qingdao Guangzhou Shenzhen Shanghai Ningbo Suzhou Dalian Rizhao Tianjin Yingkou;
Capacity:	Recommended Suitable Model;	Mesh size:	2-500 Mesh;
Local Service Location:	Philippines Brazil;	Marketing Type:	New Product 2020;
Type:	Circular;	Voltage:	110V220V230V380V400V415V440V500V600V50HZ60HZ;
Showroom Location:	Philippines,Brazil;	Warranty of core components:	1 Year;
Core Components:	Motor,BALL;	Application:	Food Processing;
Surface treatment:	Sandblast/mirror polishing/coating powder/satin finishing;	Function:	Screening\separation;
Package Preview:	;	Supply Ability:	500 Sets per Month;
Condition:	New;	After-sales Service Provided:	Free spare parts;
Material:	Carbon Steel/ Stainless Steel 304/SUS316;	Place of Origin:	Henan, China;
Layer(s):	1-4 Layers;	Dimension(LWH):	Vary;

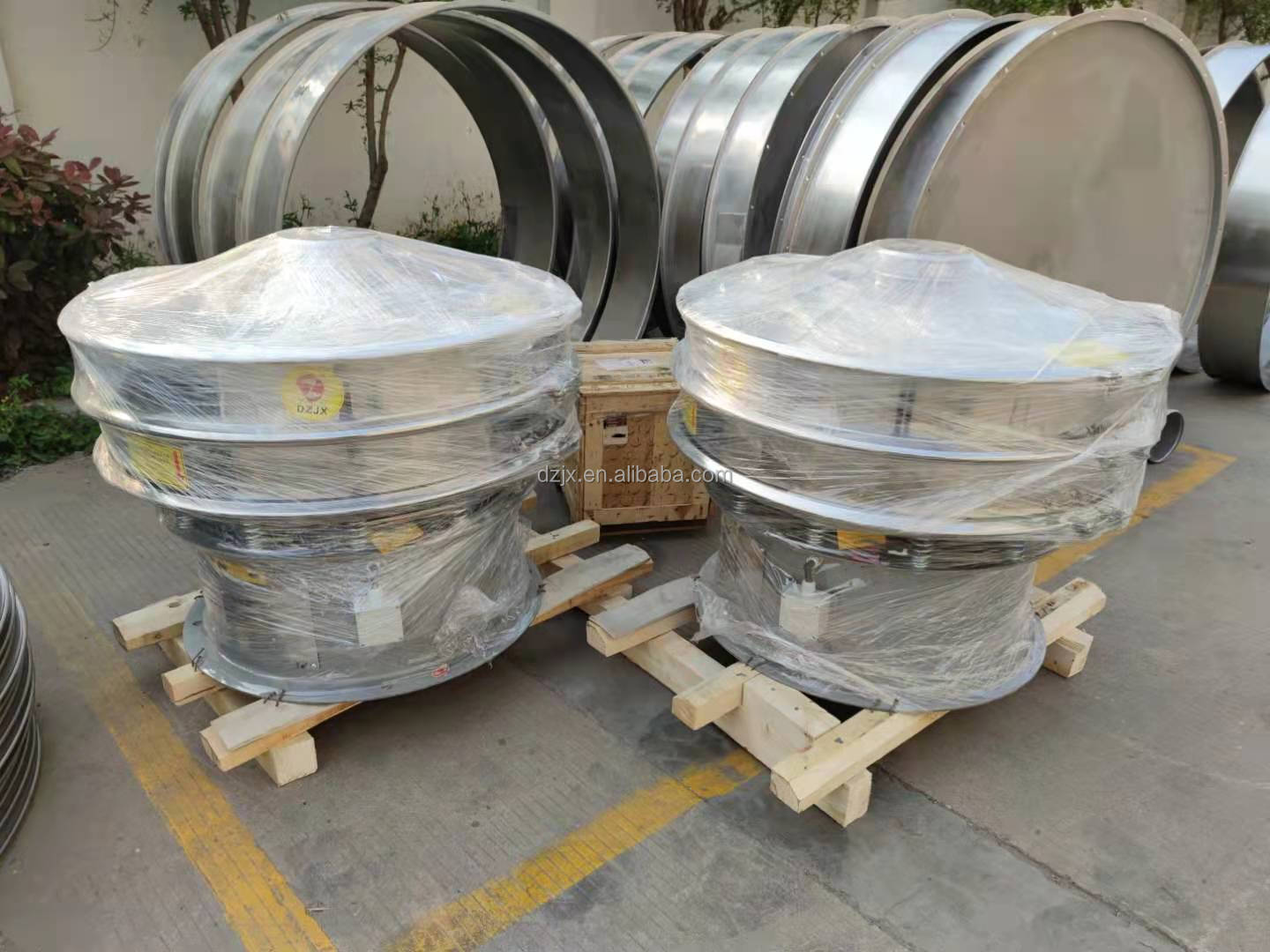

Motor:	Vertical Vibrating Motor;	Packaging Detail:	1. The inner packaging:stretch film; outer packaging:standard export fumigation-free wooden box 2. According to customer requirements;
Usage:	Powdwes Screening;	Video outgoing-inspection:	Provided;
Machinery Test Report:	Provided;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Other,Advertising Company;
Warranty:	1 Year;

Products Description

S49 -B Vibrating Sifter is a kind of mature technology,general and tend to be standardized classic inertia screening equipment.It can meet the requirement of most materials in grading granulated stuffs and screening out powder and liquid in different operation.High screening efficiency,it adopts whole sealing structure design which can avoid polluting effectively.The direction of outlet port can be changed within 360 degrees.We can provide customized service according to customers' requirements.

Working Principle

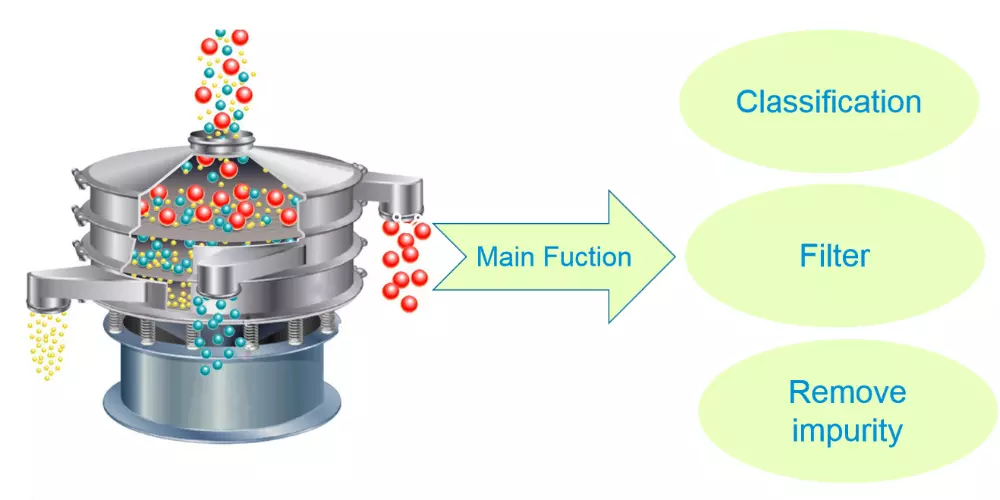

When the machine begins running,the operation of the vibrating motor generates exciting force,then under the power of exciting force,the machine body do compound movement,last,the materials on the sieve mesh do jumping movement with the machine body.

Why choose us

If you want to know more about it, please click the picture to contact us

The discharge port and screen mesh are connected seamlessly to prevent material storage

Food grade full welding to prevent material storage

304 stainless steel manual feeding port

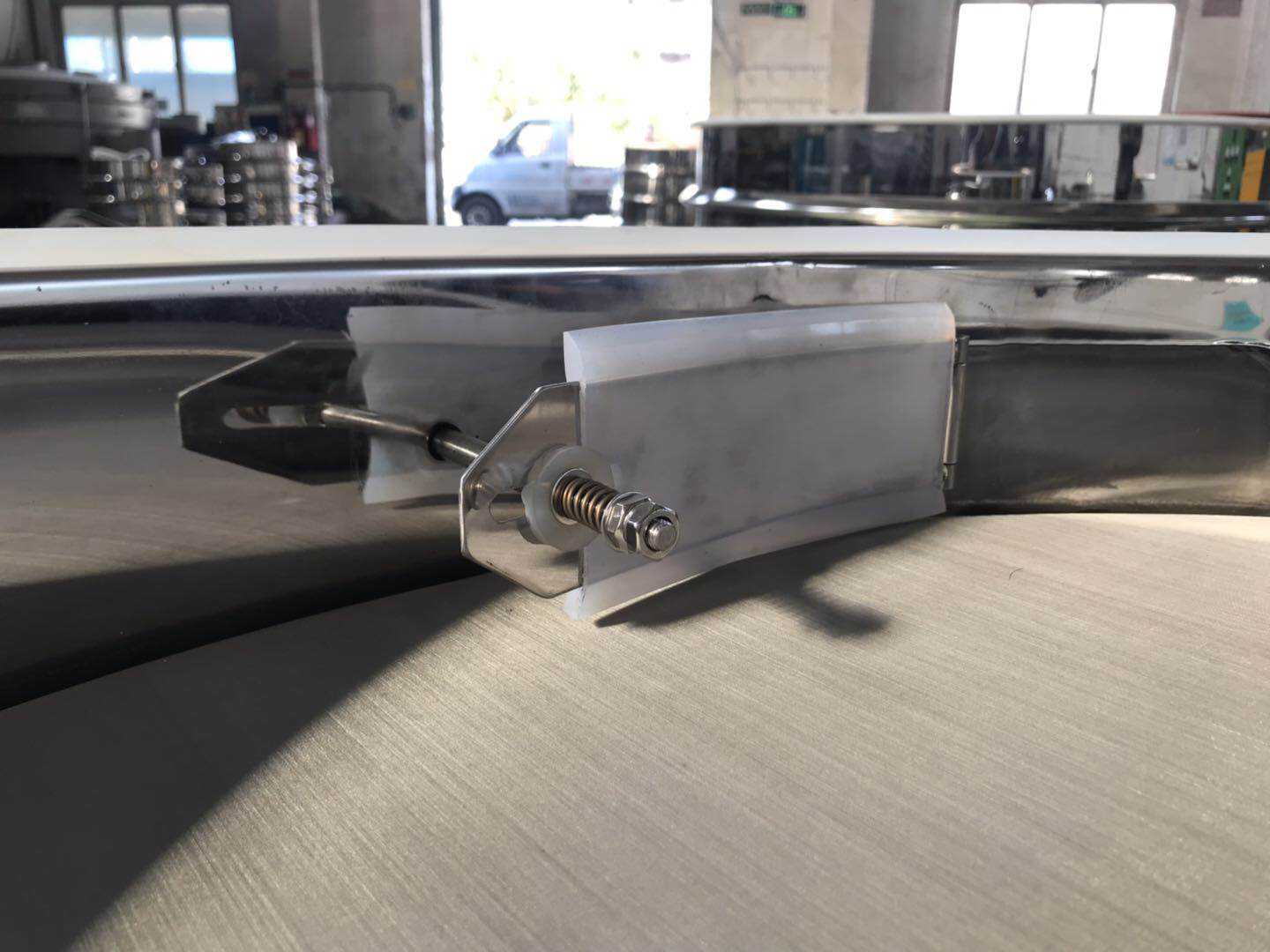

Bolt&Spring fastener

Fastening, anti falling, easy to open and close.

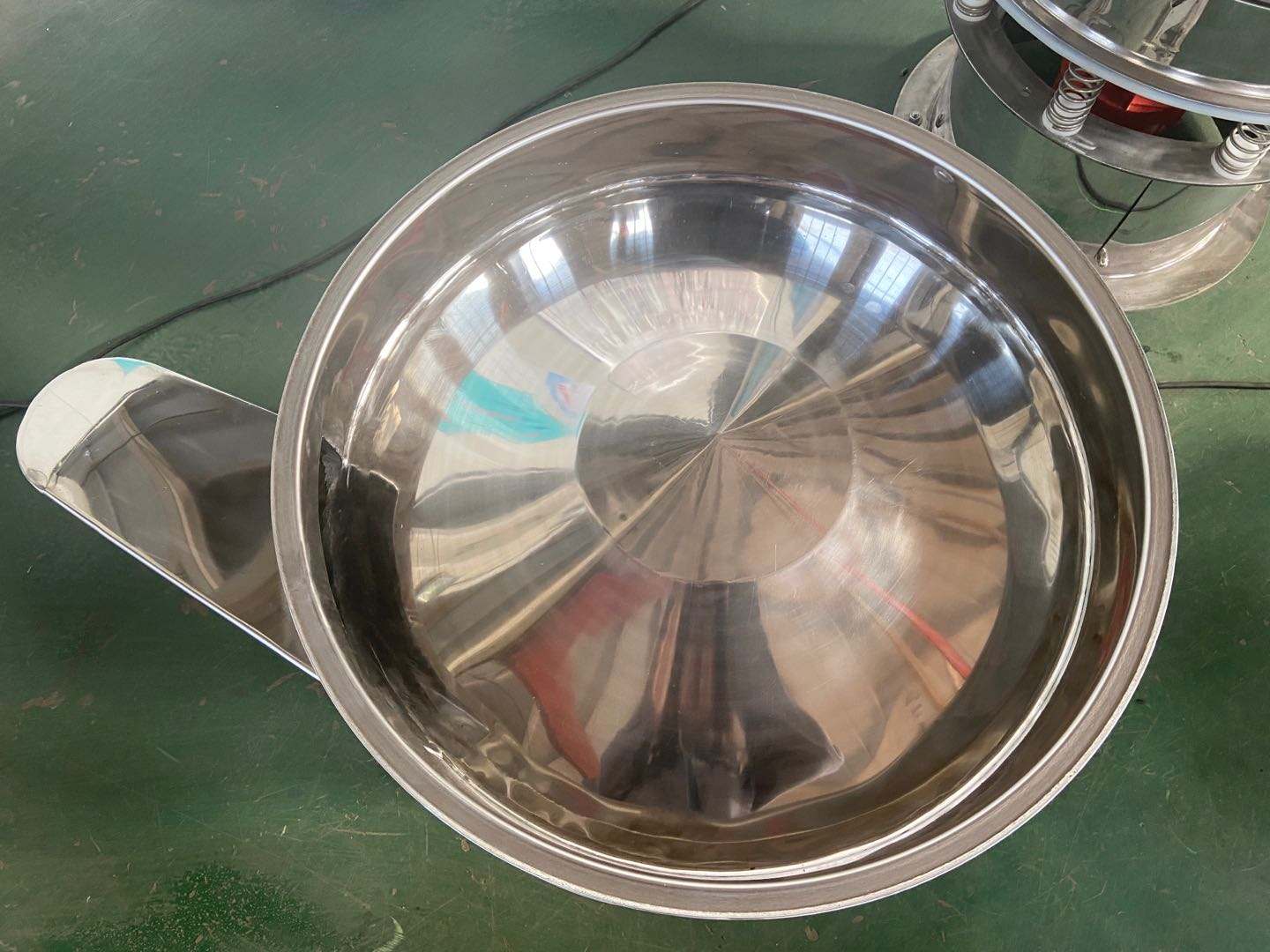

Polishing process

Internal and external mirror surface polishing, leaving no dead angle.

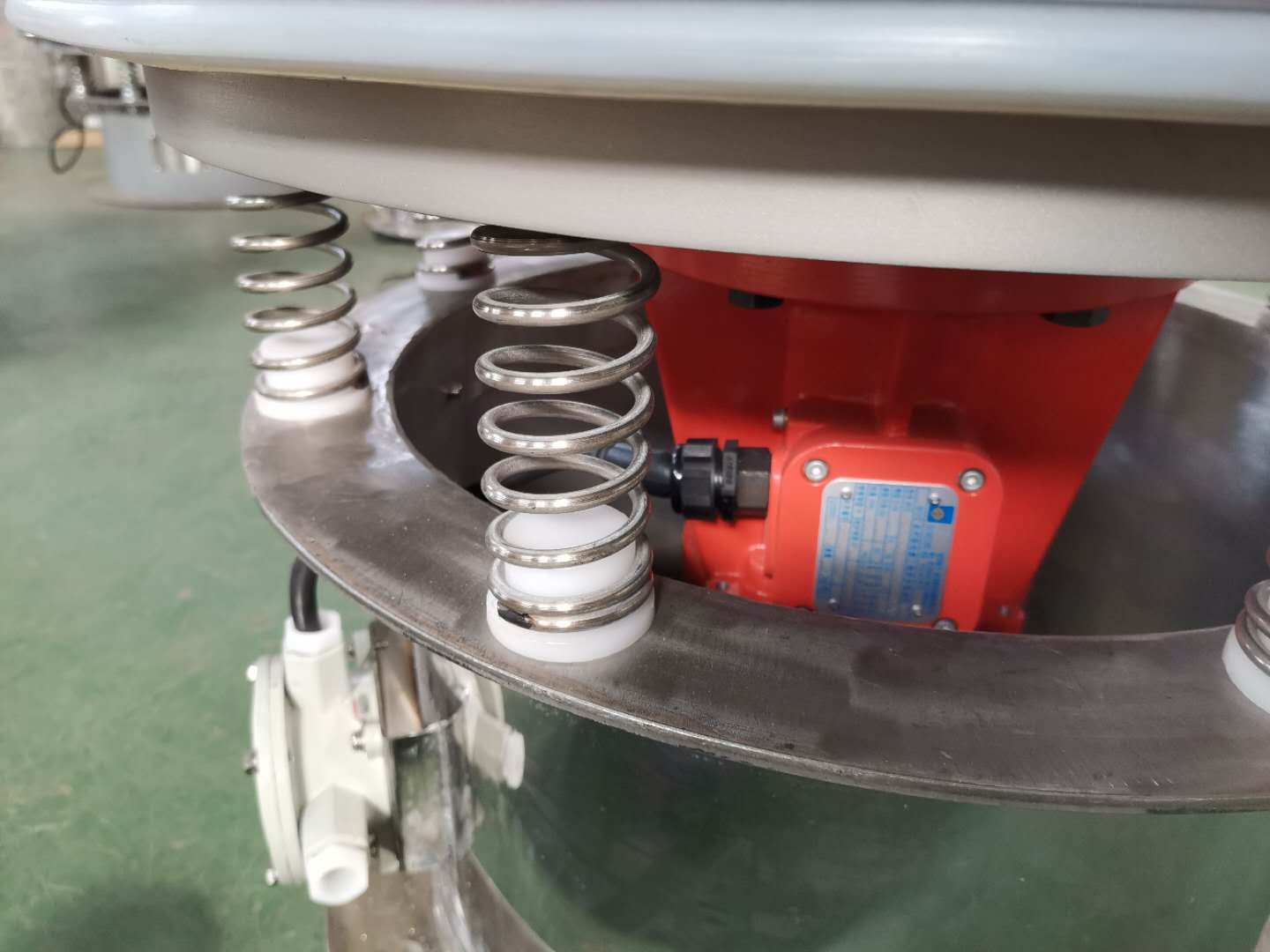

Stainless steel spring & Nylon spring seat

Strong fatigue resistance, durable.

Good shock absorption effect, safe production.

Explosion proof junction box

It is safe, dustproof, waterproof and easy to operate.

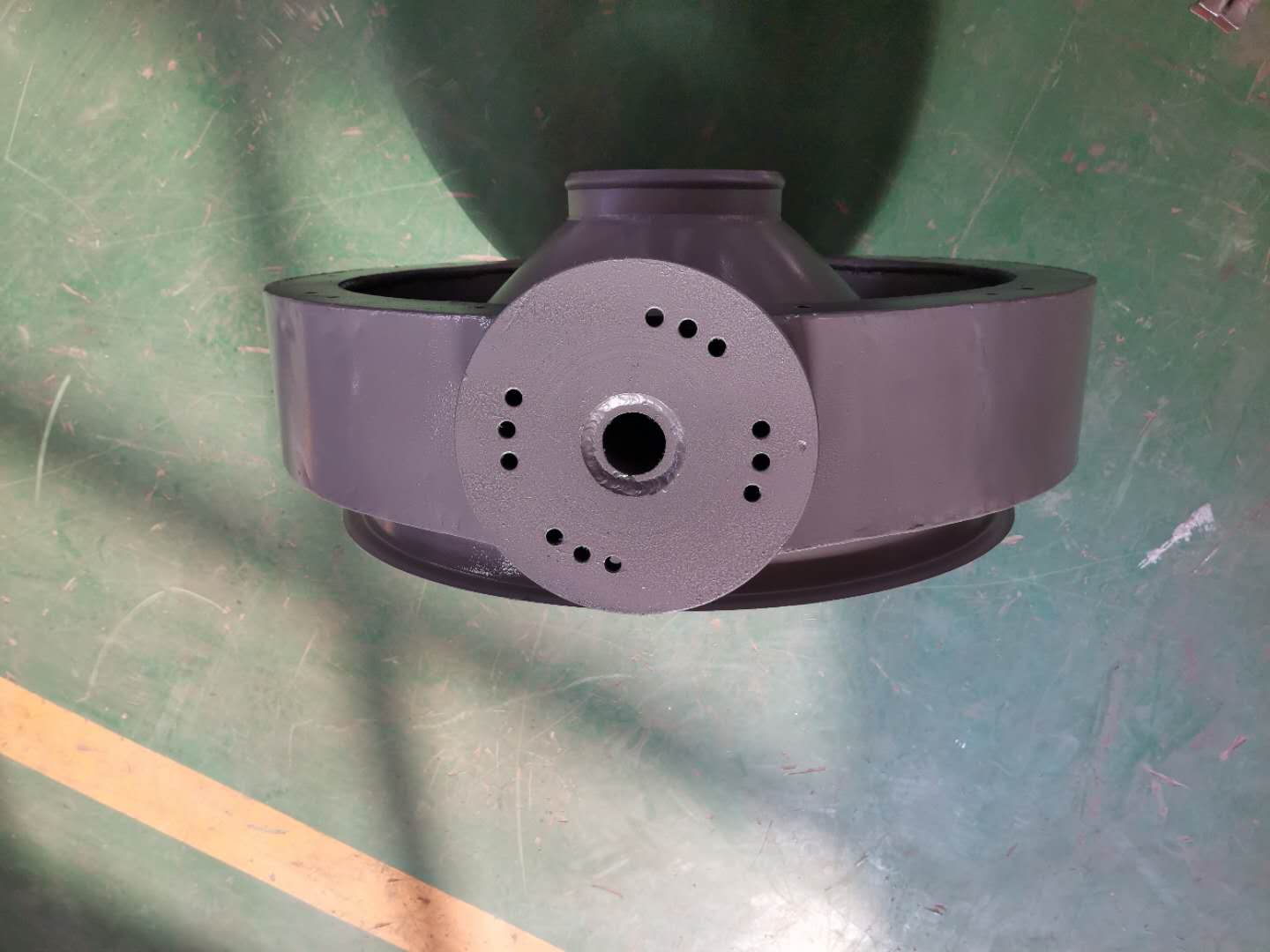

Motor angle adjustable mounting hole

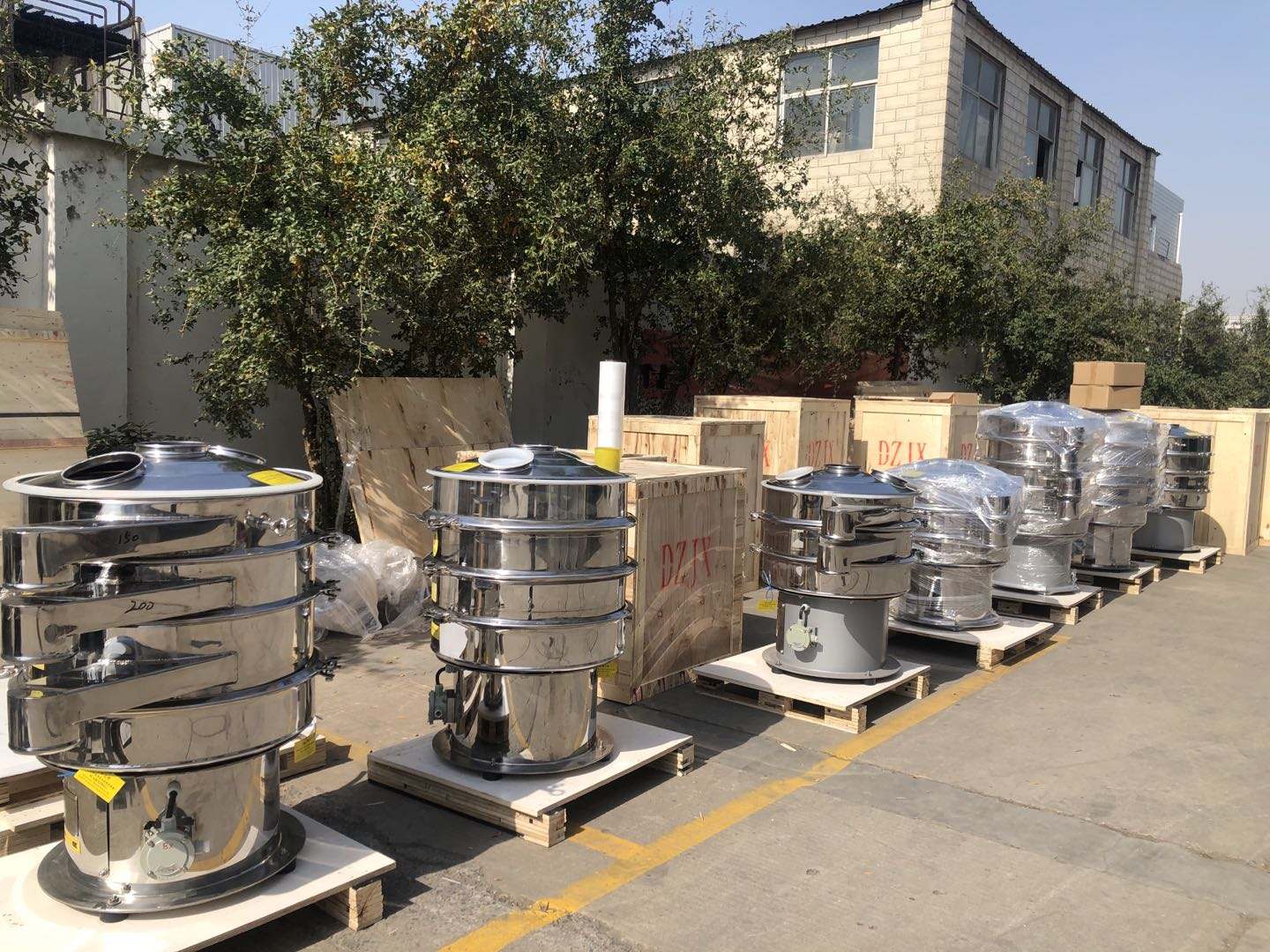

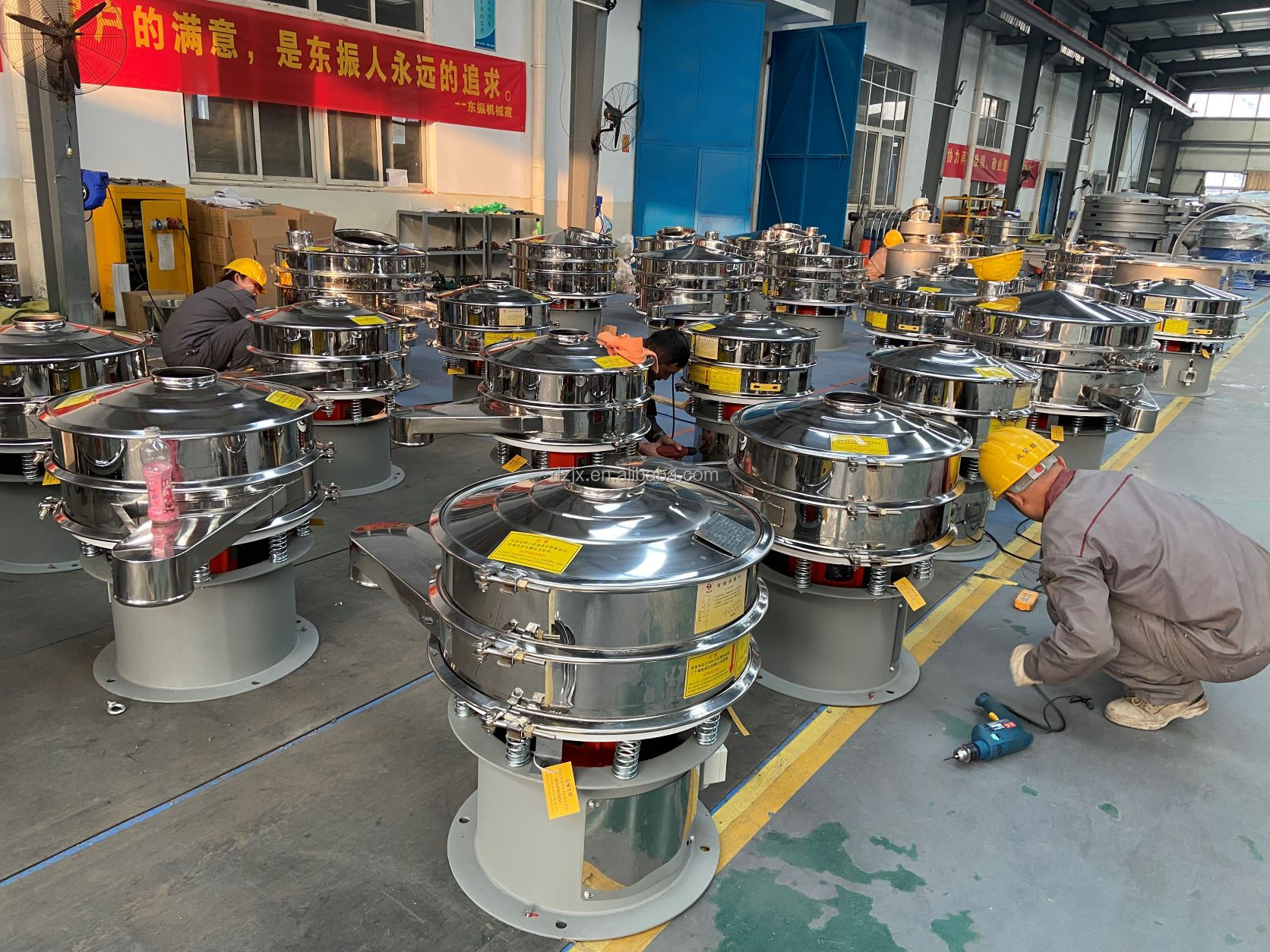

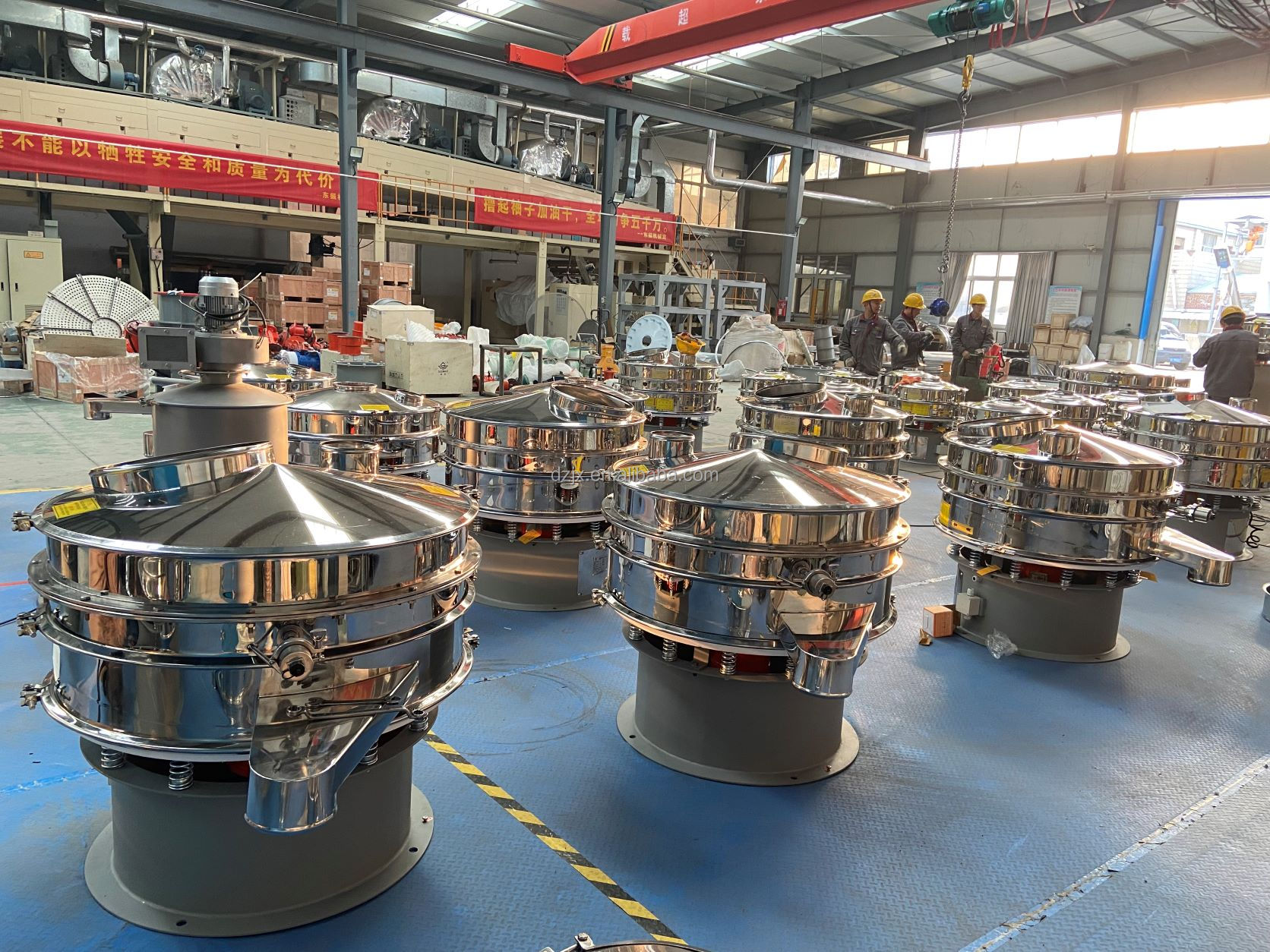

Product shows

Application

Chemical industry: resin pigment, calcium carbonate, decorative coatings, medicine, grease, paint, palette, etc. Abrasive material and ceramic industry: building sand, mica, alumina, silica sand, abrasive, refractory material, slurry, etc. Food industry: sugar, salt, alkali, flour powder, nut powder, whey protein powder , maltodextrin , flavors , sucralose , xanthan gum, soy lecithin ,farina, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc. Paper-making industry:coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc. Metallurgy and mining industry: quartz sand, sand, ore, titanium oxide, zinc oxide, etc. Mechanical industry: casting sand, charcoal, grafito, powder metallurgy, electromagnetic material and metal powder, etc

Product Parameters

Model	Diameter(mm)	Deck	Screen mesh area(mm)	Mesh size(mesh)	Max particle size(mm)	Power(kw)
S494-B	Φ400	1-4	Φ380	3-500	<20	0.25
S496-B	Φ600	1-4	Φ600	3-500	<20	0.6
S498-B	Φ800	1-4	Φ750	3-500	<30	0.6
S4910-B	Φ1000	1-5	Φ900	3-500	<30	0.8
S4912-B	Φ1200	1-5	Φ1100	3-500	<30	1.5
S4915-B	Φ1500	1-4	Φ1450	3-500	<50	2.2
S4918-B	Φ1800	1-3	Φ1750	3-500	<50	2.5
S4920-B	Φ2000	1-3	Φ1950	3-500	<60	2.5

How To Choose Suitable Model?

1. If you have ever used the screen machine, kindly pls tell us its DIAMETER, LAYERS, MESH SIZES, MATERIALS. 2. If never use the machine until now, pls offer us the info about material as below: 2.1. Handling material? Bulk density? 2.2. Will you do a separation or dust-removal? 2.3. Production Capacity per hour(KG/H)? 2.4. How many Layers do you need? Mesh size of each layer? 2.5. Material of Construction material?(Stainless steel or Mild Steel) 2.6. Voltage(V), Frequency(Hz), Phase(P)?

* For more details, please click here to contact us

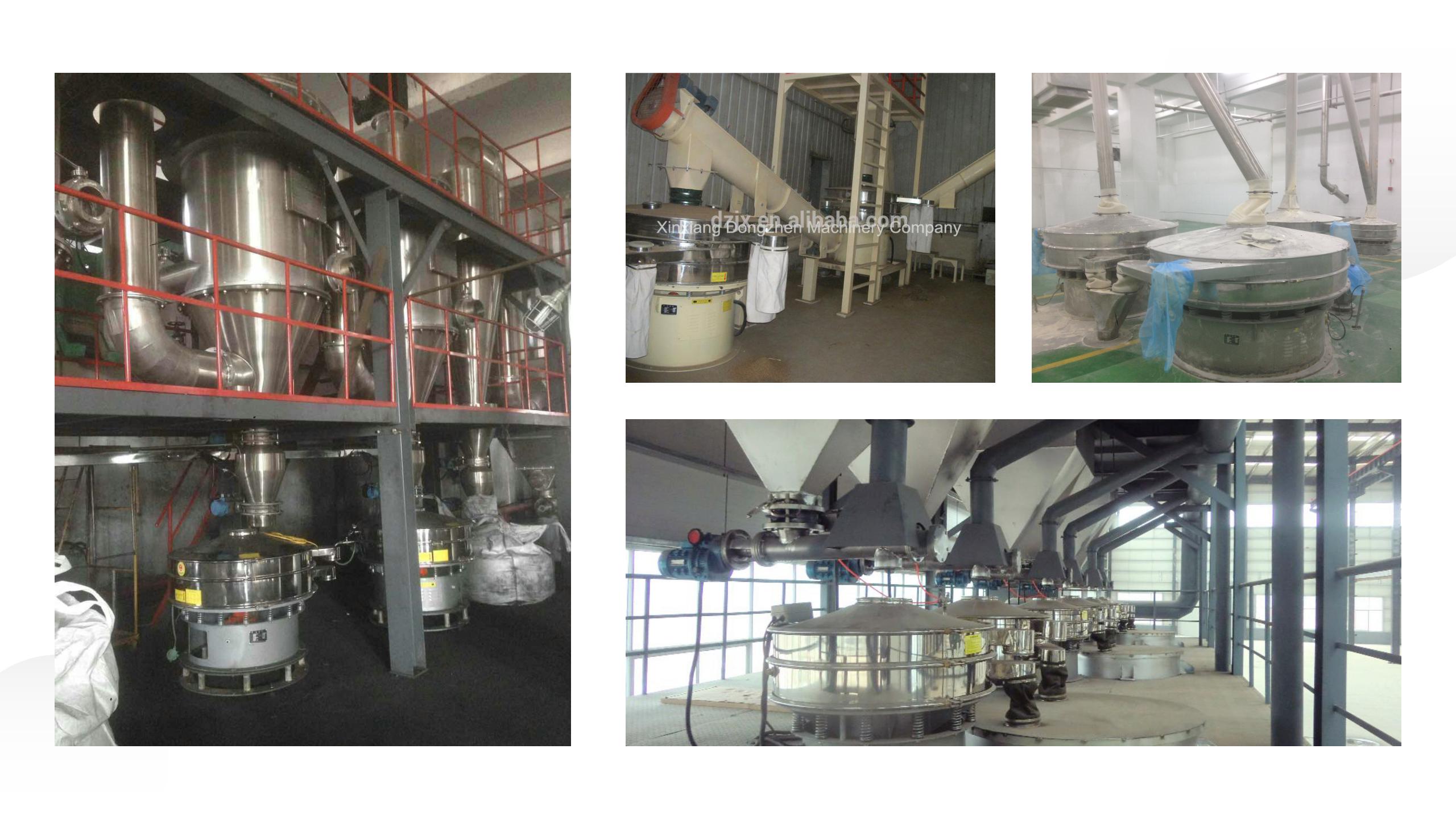

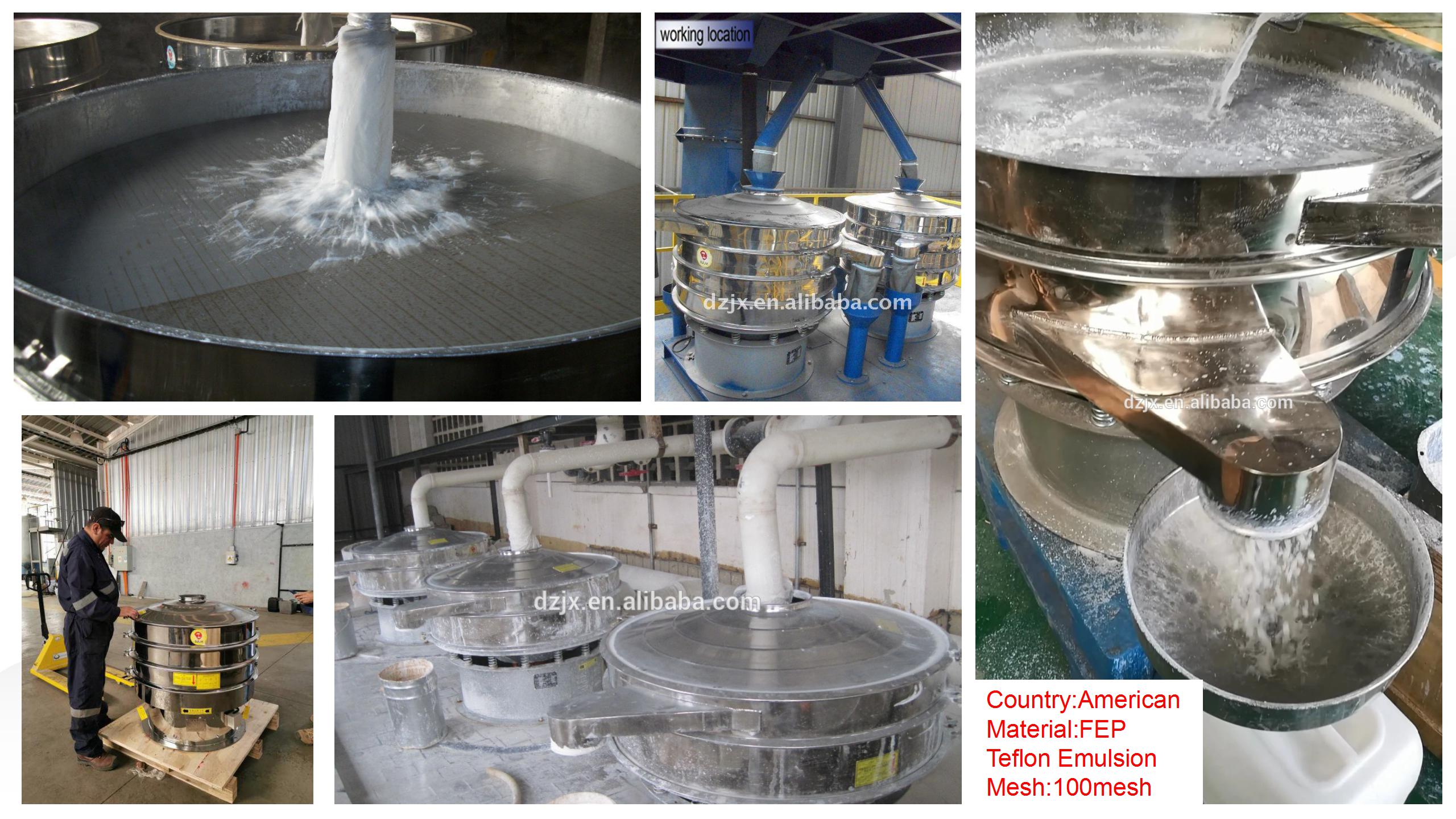

Customer site
