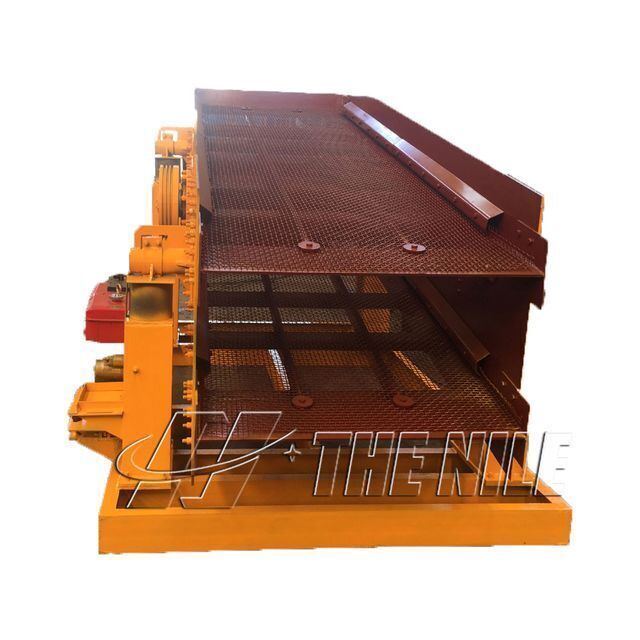

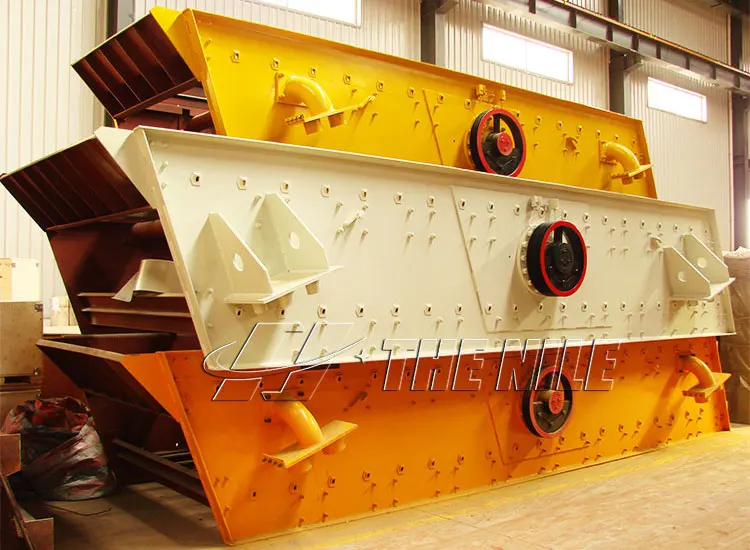

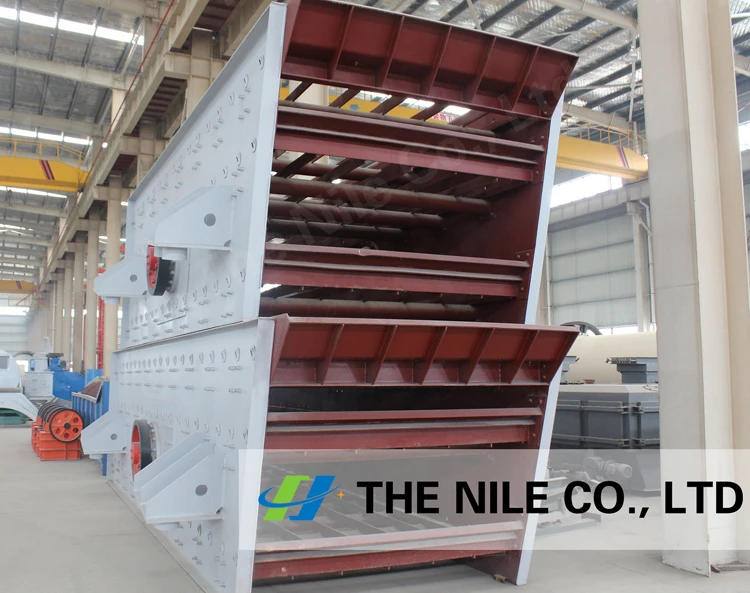

Sand Production Line Crushing And Screening Plants Vibrating Sieve Machine 3YK1860 Vibrating Screen

Introduction
Circular vibrating screen is a kind of screening equipment with multiple layers of screen and circular vibrating track.The flow distance of raw materials on the screens is long,the screening grades are multiple,and the screening effect is excellent.It adopts the adjustable drum exciter and eccentric shaft with counterweight wheels.It has advantages of reliable structure,powerful exciting force,high screening efficiency,low noise,long service life,safety,convenient maintenance,etc.

Outstanding Advantages

1.The cylinder eccentric shaft and eccentric block are adopted to adjust the amplitude,effectively increasing the excitation force and production capacity;
2.Long sieving can effectively improve screening efficiency and evenness;
3.Customized design can achieve kinds of screening specifications;

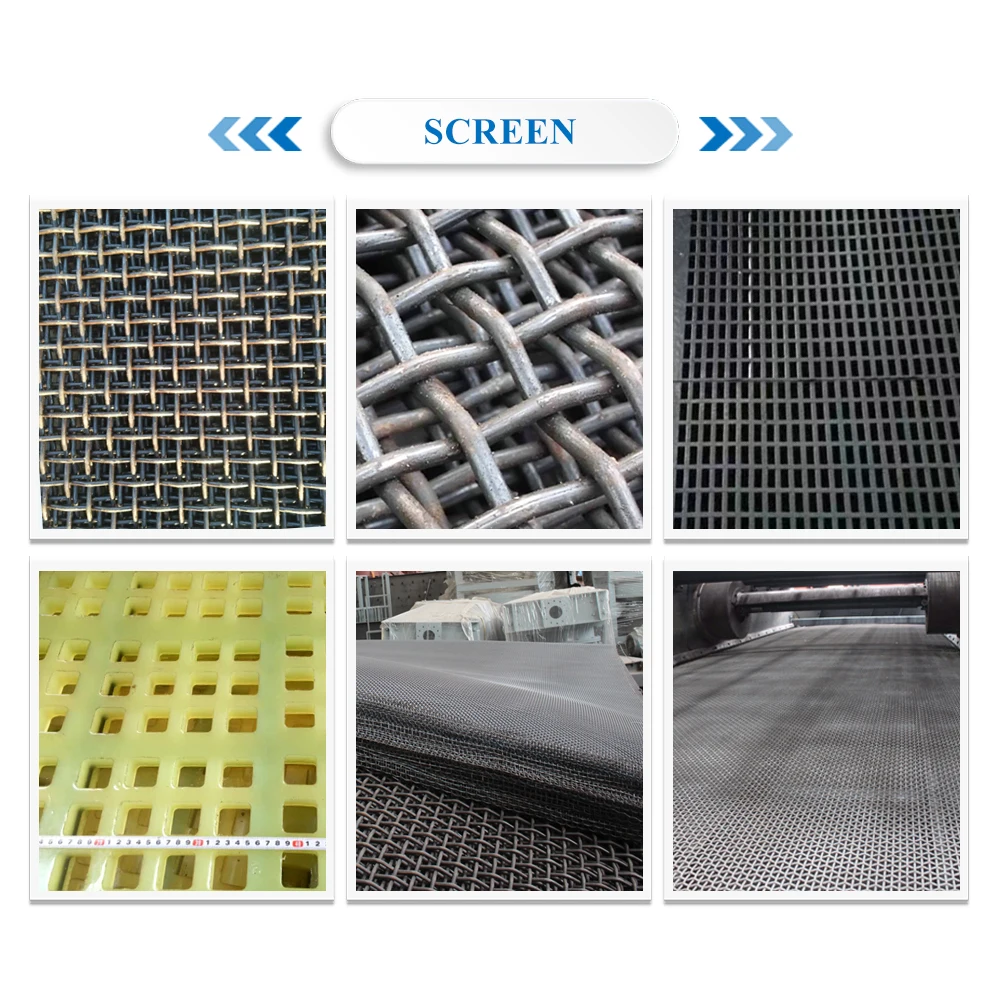

4.Adopt the spring steel for woven mesh with long service life and not easy to plug holes.Punching hole mesh,polyurethane and other materials are options.

Working Principle

Circular vibrating screen uses the motor driving two pairs of exciters on the both sides of screen box through the couplings with rubber type element.The two pairs of exciters,connecting with the universal joint coupling in the middle, rotate synchronously under the unequal centrifugal force.Under the action of the exciters and the spring group,the screen box can be vibrated in full amplitude by the near circular track.Meanwhile,the raw materials on the screens are thrown under the action of the screen box vibrating.During the process of raw materials jumping and rolling forward,the materials smaller than the sieve mesh will fall down layer by layer until out of the screen box.

Standard package in wooden boxes or container.

The Nile Co.,Ltd.is committed to designing,producing grinding mills,crushers,conveyors,feeding machine,drying and calcinating as well as beneficiation equipments,fine sand recyling equipment etc,which are widely applied in electricity,metallurgy,mine and quarry ,wharf,granary,chemical industry.Our products have been spreaded all over China,and also exported to European,American,Asian,African countries and enjoyed great popularity among our customers.

Our company owns an experienced and skilled sales and service team which compose a perfect service network.We will send the professional engineers to the installation sites and provide guidance for the installation,commissioning and initial run as well as planning administration of the equipments after purchase.

Pre-sale services:

(1) Advice of model choice.
(2) Design and manufacture machines according to customer's special requirements
(3) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and program

 After-sale services :

(1) Arrange technicians to go to the site to guide installation
(2) If your machine is out of warranty period, you can go to the Nile's overseas office to buy spare parts.
(4) complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site production of 1 month, until the user' satisfaction.

Q1: Are you factory or trade company?
A1: We are factory.

Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.

Q3: How will you help the customer to install the equipment?
A3: Our senior engineer will guide the installation and commissioning as well as the initial production at

Q4: How about the wear parts supply?
A4: We offer wear parts to our customer with our most favorable price. If there are problems youcould not handle, we will send our technicians to your place and you are therefore, responsible for all thecost involved.

Q5: What about the payment method?

A5:T/T, L/C Paypal is available

Q6: What about after-sale service?
A6:12 months warranty for all kinds of products.
