Top soil sieving machine for sawdust sawdust waste Mobile compost drum sieving machine

Product details
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, Cash or Negotiablecolor:Yellow, white, red, blue, gray (or according to customer requirements)
Core component warranty:1 yearSupply capacity:40 sets of sawdust screen designs per month
application:glass, mulch, organic matter, bark, MSW, municipal solid waste, wood chips, firewood, topsoil, compost, solids, municipal solid wasteScreen material:Steel rod, steel plate, manganese steel wire braid, stainless steel
Package preview:product name:Mobile Sawdust, Wood Chips, Garbage, Compost Drum Screening Machine
Origin:Henan, ChinaPackaging Details:All products will be anti-rust and moisture-proof before shipment. 20GP container or 40GP container equipment is packed with plastic wrap or steel box or fumigation-free wooden box, depending on the weight of the machine. The motor is packed in steel box or fumigation-free wooden box. The control panel is packed in a wooden case. Loading containers at the factory.
type:compost drum screening machineMechanical test report:if
brand:ZoomlionVoltage:380V/415V/440V
Health status:newweight:2200 kg
capacity:1-200 tons per hourMarketing Type:normal product
Warranty:1 yearVideo shipment inspection:if
Install:A manual is provided to guide usersApplicable industries:Hotels, Manufacturing Plants, Farms, Households, Food Stores, Energy and Mining, Food and Beverage Stores, Others, Advertising Agencies
Core components:engineport:Qingdao, Dalian, Tianjin, Lianyungang, Dalian, Shanghai, Guangzhou (according to customer requirements)
Output size:Less than 6mm or as requiredShowroom location:not any
Dimensions (L*W*H):According to different modelsModel:firewood tumbler price
Feed size:less than 300mmaspect:5600x2015x2010mm

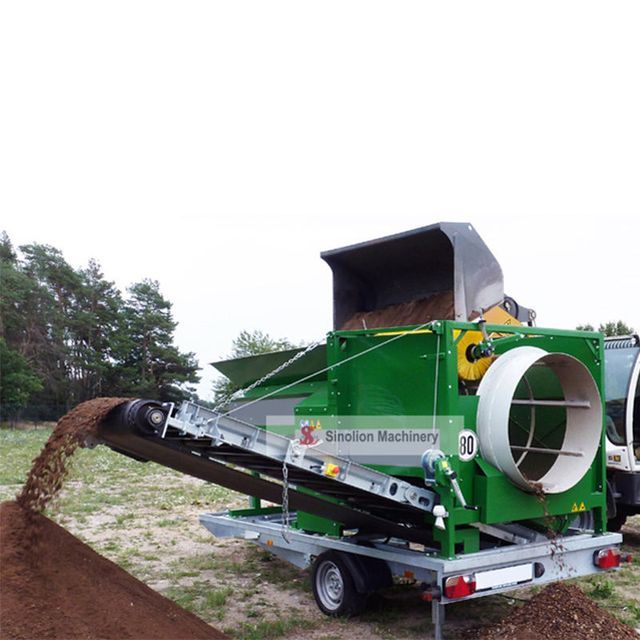

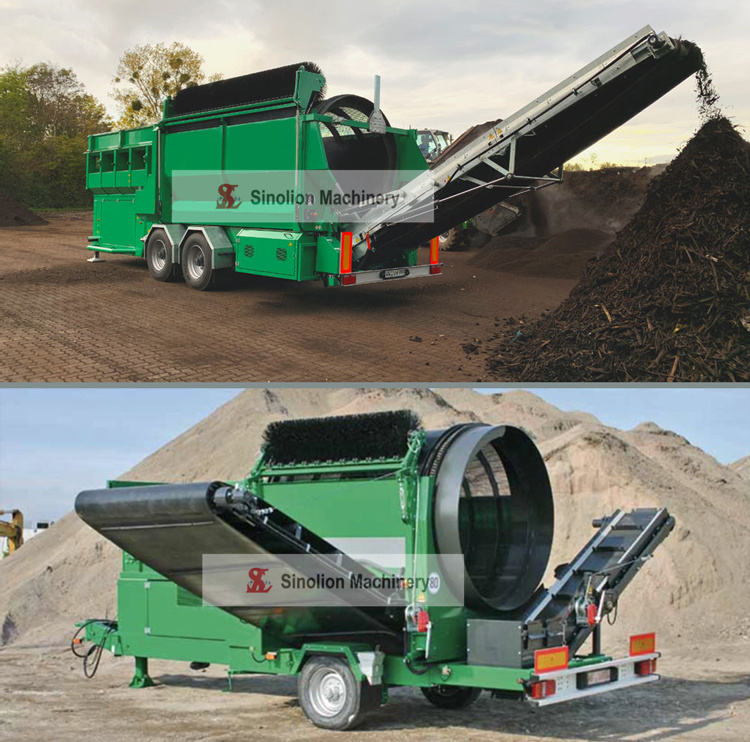

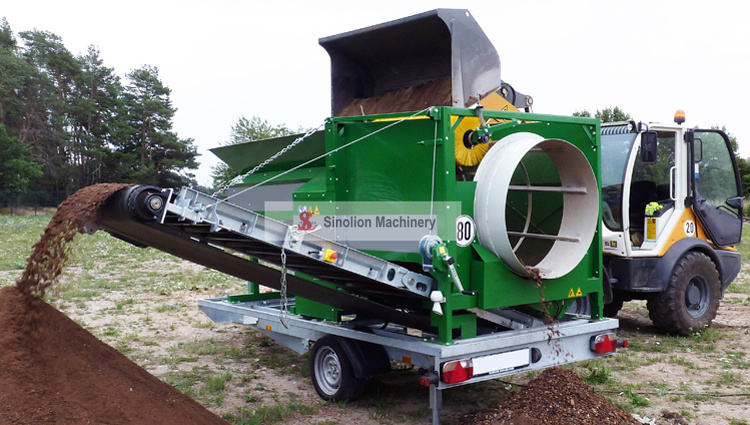

Wheeled Mobile Sawdust, Wood Chips, Garbage, Compost Drum Screening Machine

Product Description





This wheeled mobile trommel system offers a high degree of flexibility and a comprehensive product range, from the smallest screening machines of less than 1.8 tons to the largest of 20 tons, enabling the company to supply Customers provide services, civil engineering, glass and even gravel pits and quarries. This wheeled mobile machine is not only used for the processing of earth materials, but also for more specific areas of application, such as the extraction of recyclable fractions of plastics, foils and wood chips as well as composting, grinding of materials, processing of construction rubble, stones, gravel , and the recycling of glass and even sandbags.

This wheeled mobile machine neatly sifts compost, soil, sand, slag, gravel, wood chips, garbage, stones and mineral waste from 2 – 80 mm. Material is filled into belt feeders that hold up to 5.5 cubic meters. The material is then fed into the double drum. It consists of a solid steel inner cage and an outer cage that can be equipped with wire mesh of various mesh sizes. What is not retained in the inner cage is captured by the outer cage, and the fine parts are discharged through the conveyor belt. Once the mountain of work has been eliminated, it can be dragged to the next location.







Technical Parameters



Model

capacity

strength

Screen

Output size

input size

(t/h)

(kilowatt)

Diameter (mm)

Length (mm)

(mm)

(mm)

GTS1020

1-2

3.0

1000

2000

0~100

≤300

GTS1030

2-3

4.0

1000

3000

0~100

≤300

GTS1240

3-5

5.5

1200

4000

0~100

≤300

GTS1540

5-8

7.5

1500

4000

0~100

≤300

GTS1560

6-10

11

1500

6000

0~100

≤400

GTS2080

10-20

15

2000

8000

0~100

≤400



The trommel screen is a heavy duty mobile trommel machine designed for small to medium sized topsoil and composting operations.





» Horizontal rollers provide consistent output.



» Material rides on the screen for extremely efficient separation.
