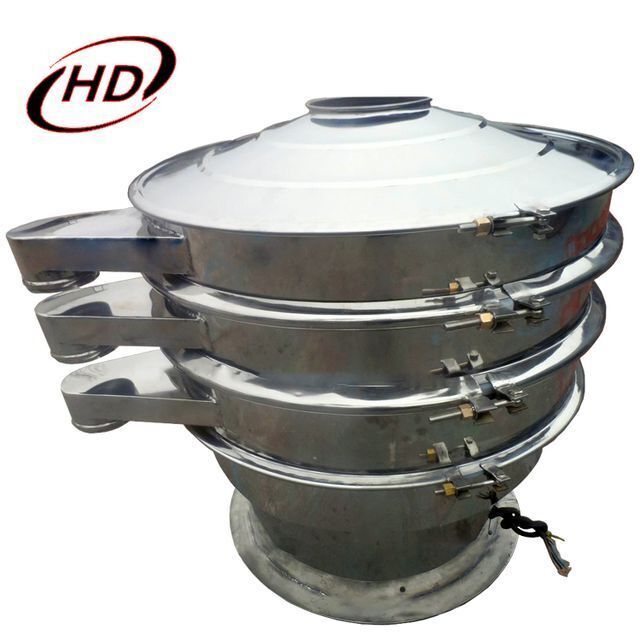

Stainless Steel Rotary Vibrating Flour Screen/Granular Powder Circular Vibratory Sifter Sieve Machine

Supplier: Xinxiang Hongda Vibration Equipment Co., Ltd.
Region: Henan, China
Contact: Mr Evan W
Price: $2000.00 / 1 - 2 sets
$1960.00 / 3 - 9 sets
$1900.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Machinery Test Report:	Provided;	Showroom Location:	United States,Thailand;
Motor:	YZUL-30-4;	Usage:	Filtering,Grading,Sieving and separation;
Brand Name:	HONGDA;	Weight:	240 KG;
Sieve Area:	1.0 m2;	Machine Diameter:	1200mm(Optional);
Supply Ability:	150 Sets per Month Stainless Steel Rotary Vibrating Flour Screen/Granular Powder Ci;	Application:	Powder,Granular or liquid;
Package Preview:	;	Voltage:	110V-660V;
Port:	Qingdao,Tianjin,Shanghai,Yiwu etc;	Place of Origin:	Henan, China;
Certification:	ISO/CE;	Packaging Detail:	Wooden case in export standard or the full container Stainless Steel Rotary Vibrating Flour Screen/Granular Powder Circular Vibratory Sifter Sieve Machine;
Condition:	New;	Mesh hole size(mesh):	2-500 mesh;
Layer(s):	1-4 Layers;	Mesh material:	SUS304/316L;
Type:	Circular;	Frame Material:	Stainless steel 304/316L,Carbon steel;
Cleaning system:	Bouncing Ball;	Warranty:	1.5 years;
Warranty of core components:	1.5 YEAR;	Applicable Industries:	Garment Shops,Building Material Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Home Use,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops;
Core Components:	Motor;	Marketing Type:	Ordinary Product;
Dimension(LWH):	1380mm1300mm1180mm;	Payment Terms:	L/C,Western Union,D/A,T/T,MoneyGram,Cash;
Video outgoing-inspection:	Provided;

Stainless Steel Rotary Vibrating Flour Screen/Granular Powder Circular Vibratory Sifter Sieve Machine

Our advantages on vibrating screen:
1).OEM service.
2).More than 30 years experience of sieving industry.Specialized in various vibrating screen,like Rotary Vibrating Screen,Ultrasonic Vibrating Screen,Linear(Rectangle)Vibrating Screen,Tumbler Screen,Rectangle swing Screen,Mining Vibrating Screen,Dewater Screen etc.
3).Delivery on time.
4).3% to 10% discounts for new customer.(Based on the quantity.)
5).Professional engineer team help you choose a best machine for your project.

Product Description

XZS Rorary vibrating screen also called rotary vibro sifter,vibratory sieve.It can filter the liquid like waste water and waster oil etc,remove the impurity in the material,such as milk powder,rice,corn etc.Classify or grade the mixed powder into different size that you requirement.

Details specification

Model	XZS rotary vibrating screen
Machine Diameter	400mm-2000mm
Motor Power	0.25KW-3kw
Mesh hole	2-500 mesh(More than 200 mesh,can use ultrasonic system )
Machine Material	All stainless steel 304/316L,All carbon steel,Contact material part with sus304/316L
Layers	1-6 layer(1-4 layer has best screening effiency)

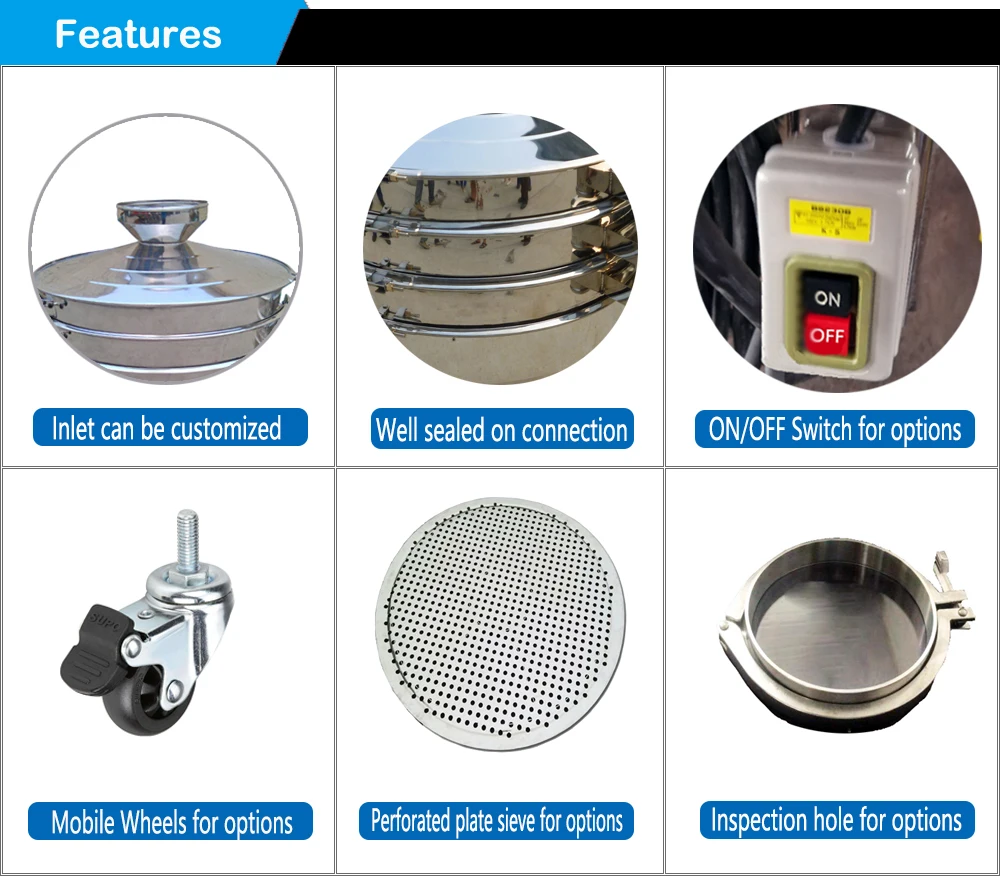

Auxiliary Means	Ultrasonic system/universal wheel /Viewport/ON OR OFF switch/Iron remover/Flange/Valve
HS Code	8479820090
Applications	Kinds of powder(particle)/Liquid/Solids and liquids
Voltages	Single Phase or Three Phase 110v-660V

1)Chemical industry: resin, pigment, cosmetic, coatings, Chinese medicine powder

2)Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce, syrup

3)Metallurgy, Mine industry: aluminum powered, copper powder, ore alloy powder, welding rod powder

4)Medicinal industry: all kinds of medicine

5)Waste treatment: disposed oil, disposed water, disposed dye waste water, active carbon

Model	Diameter(mm)	Feeding Size(mm)	Frequency(RPM)	Layers	Power(kw)
XZS-400	400	<10	1500	1-5	0.25
XZS-600	600	<10	1500	1-5	0.55
XZS-800	800	<15	1500	1-5	0.75
XZS-1000	1000	<20	1500	1-5	1.1
XZS-1200	1200	<20	1500	1-5	1.5
XZS-1500	1500	<30	1500	1-5	2.2
XZS-1800	1800	<30	1500	1-5	2.2
XZS-2000	2000	<30	1500	1-5	3

How to confirm the model:

1).If you have ever used the machine,Pls give me the model directly.

2).If you never used this machine or you wanna us to recommend,Pls give me the information as below.

a).The material you wanna to sieve.

b).The capacity(Tons/Hour) that you require?

c).The layers of the machine?And the mesh size of each layer.

d).Your local voltages

e).The special requirement?

Packaging:Film the machine and packaged wooden case outside or as your requirement.

Delivery Time:We promise that the standard model 2-3 working days.No-standard model,3-5 working days.

About Hongda

Xinxiang Hongda Vibration Equipment Co., Ltd. is establish in 1986.We mainly specialize in vibration motors,vibration equipment,conveying equipment.Products have been exported to dozens of countries like USA,UK,Spain,Canada,Thailan etc.We firmly believe that QUALITY FOR SURVIVAL,CREDIBILITY FOR DEVELOPMENT.Welcome to visit to us!

Our products as followings:

1) Vibration Equipment:XZS Rotary vibrating screen,DZSF Linear Vibrating screen,dehydration vibrating screen,YA/YK round vibrating screen.ZDP Vibrating platform.YBS Tumbler screen.

2) Vibrating motor:JZO vibrating motor,Y-Series vibrating motor,TZDC vibrating motor,VB vibrating motor,XVM vibrating motor,YZUL vertical vibrating motor.ZSF silo vibrator.explosion-proof vibration motor

3) Conveyor equipment:TD-75 Rubber belt conveyor,DY mobile belt conveyor,DJ sidewall belt conveyor,LS screw conveyor,GX screw conveyor,WLS shaftless screw conveyor,

4) Bucket elevator:TD Belt type bucket elevator,TH chain type bucket elevator,NE Plate chain bucket elevator.

5) Feeding equipment:JL rotary feeder(impeller feeder),GZG Vibrating feeder,DK disk feeder.GZ electromagnetic feeder.

FAQ

The payment

We company accept TT,L/C,Western Union for new customer.

The delivery time
Normal delivery time within 3 working days, complete production line or larger equipment may take longer. Exact delivery shall be confirmed when place the order.

About quality

Welcome to our factory and check the quality of product.We will send you the video and pictures before shipment after you order.

Equipment warranty
Equipment with 12 months warranty, can be extended to 24 months as request.

Our Services

1).OEM services provided.

2).Help you confirm the suitable model and quote you with best price.

3).The drawing can be sent if needed.

4).Provide spare parts for you.

5).Good pre-sales and after-sales service
