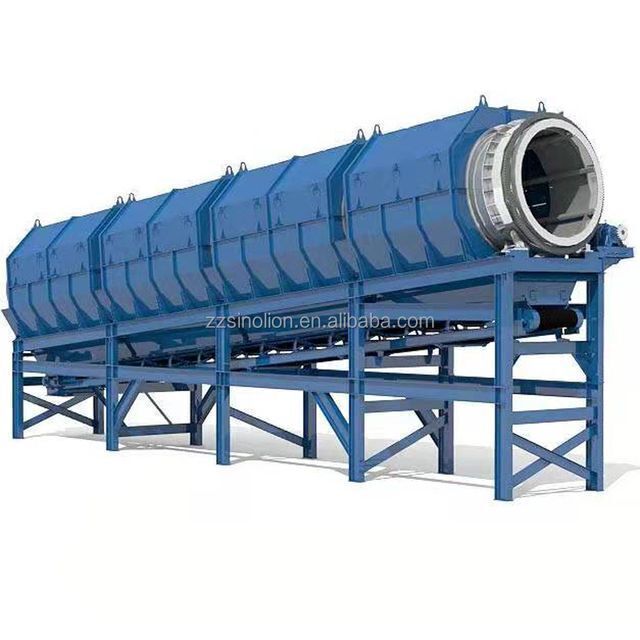

Rotary trommel screen machine widely use for topsoil,compost, sand, gravel, aggregate, municipal solid waste, garbage recycling

Supplier: Zhengzhou Sinolion Machinery Co., Ltd.
Region: Henan, China
Contact: Mr Sinolion Machinery
Price: $1500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Package Preview:	;	Product name:	trommel screen widely , sand, gravel, aggregate, municipal waste;
Condition:	New;	Feeding size:	less than 300mm;
Discharge size:	less than 6mm or as request;	Weight:	2200 KG;
Supply Ability:	40 Sets per Month;	Marketing Type:	New Product 2020;
Capacity:	1-200 tons per hour;	Packaging Detail:	All products will be processed to be rustproof and moisture proof before delivery. 20GP container or 40GP container Equipment is packed with plastic wrap or steel case or free fumigation wooden cases, depends on machine weight. Motor is packed with steel case or free fumigation wooden case. Control panel is packed with wooden case. Loading container in factory.;
Keyword:	waste garbage recycling machine;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops;
Dimension:	5600x2015x2010mm;	Screen material:	steel bar, steel plate, manganese steel wire woven, stainless steel;
Warranty of core components:	2 years;	Port:	Qingdao, Dalian, Tianjin, Lianyungang, Dalian, Shanghai, Guangzhou( as client request);
Core Components:	Gearbox,Motor;	Place of Origin:	Henan, China;
Power:	3-45KW;	Warranty:	24 months;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;	Type:	Other;
Voltage:	as client request;	Dimension(LWH):	As per different model;
Video outgoing-inspection:	Provided;	Showroom Location:	Canada,United States,Germany,Brazil,Indonesia,Mexico,Russia,Australia;
Name:	waste treatment machinery;	Machinery Test Report:	Provided;
Brand Name:	Sinolion;	Application:	glass, mulch, organics, bark, MSW, plaster board,Other;

Rotary trommel screen machine widely use for topsoil,compost, sand, gravel, aggregate, municipal solid waste, garbage recycling

Product Description

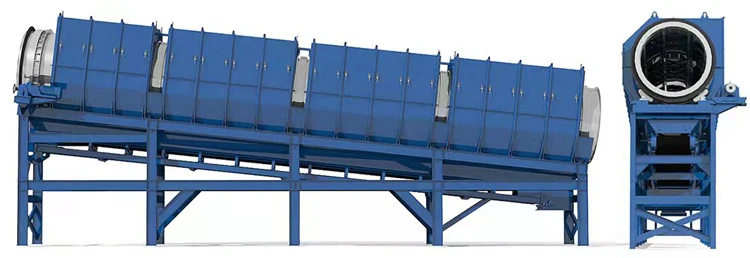

Shaftless trommel screen working principle:
Due to the turning and rolling of the material in the screen drum, the material stuck in the screen hole can be ejected to prevent the screen hole from being clogged. GTS series shaftless trommel screen machine mainly consists of motor, gearbox, screen drum, frame, sealing cover, inlet and outlet. The screen drum is mounted obliquely on the frame. The motor is coupled to the drum unit via a coupling through a reducer to drive the screen drum unit to rotate about its axis. After the material enters the screen drum, due to the tilting and rotation of drum screen, the material on the screen surface is turned over and rolled, so that the qualified material (the product under the sieve) is discharged through the screen, and the unqualified material (the product on the sieve) ) is discharged through the end of the screen drum.

Application:munlcpal solid waste,construction waste,stone,compost,wood chips,sawdust,soil,coal,river sand,refractory materials,chemiacal,etc

Technical Parameters

Model	Drum size (m)	Drum inclination (°)	Drum speed (r/min)	Mesh size (mm)	Max feeding size (mm)	capacity (m³/h)	Motor power (kw)
GTS820	Φ0.8×2	6-10	32	2-20	Mesh size×2.5	7-30	3
GTS830	Φ0.8×3	6-10	32	2-20	Mesh size×2.5	8-50	3
GTS1020	Φ1×2	6-10	25	2-20	Mesh size×2.5	10-60	4
GTS1030	Φ1×3	6-10	25	2-20	Mesh size×2.5	11-80	4
GTS1230	Φ1.2×3	6-10	20	2-20	Mesh size×2.5	12-100	5.5
GTS1240	Φ1.2×4	6-10	20	2-20	Mesh size×2.5	14-120	5.5
GTS1530	Φ1.5×3	6-10	17	2-20	Mesh size×2.5	16-120	5.5
GTS1540	Φ1.5×4	6-10	17	2-20	Mesh size×2.5	18-150	7.5
GTS1550	Φ1.5×5	6-10	17	2-20	Mesh size×2.5	20-180	11
GTS1560	Φ1.5×6	6-10	17	2-20	Mesh size×2.5	22-200	11
GTS1850	Φ1.8×5	6-10	14	2-20	Mesh size×2.5	24-220	15
GTS1860	Φ1.8×6	6-10	14	2-20	Mesh size×2.5	26-240	15
GTS2050	Φ2×5	6-10	12	2-20	Mesh size×2.5	50-600	22
GTS2080	Φ2×8	6-10	12	2-20	Mesh size×2.5	80-700	22
GTS2260	Φ2.2×6	6-10	10	2-20	Mesh size×2.5	100-800	30
GTS2280	Φ2.2×8	6-10	10	2-20	Mesh size×2.5	120-850	30
