port: | Qingdao, Shanghai, Tianjin and other ports. | type: | liner |
Power type: | electrical | Warranty: | 1 year |
product name: | Screening function vibrating feeder | application: | mining, construction |
structure: | reasonable | Model: | ZSW, ZGT, GZD |
Key words: | 490X110 ZSW vibrating feeder | Certification: | ISO9001:2008 |
Function: | feed fine powder | Material: | Stainless steel |
Supply capacity: | 100 sets per month | brand: | Xinkaijian |
Dimensions (L*W*H): | 4392*2519*2003, 5093*2545*2014 | color: | yellow |
payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Origin: | Henan, China |
After-sales service provided: | On-site installation, commissioning and training | Health status: | new |
weight: | 4.8t, 5.4t, 6.3t, 9.2t, 11.2t | Name: | ZSW vibrating feeder |
Applicable industries: | Energy and Mining | Maximum feed size: | 500mm~1000mm |
Capacity(t/h): | 100~1000 tons/hour | Packaging Details: | Standard containers, bare hosts, motors and small parts are packed in wooden boxes. |
vibrating feederdescribe
The vibrating feeder produced by our company is a linear vibrating feeder with stable vibration, reliable operation and long service life. It can continuously and evenly feed the crushing equipment and classify the materials. It is widely used in crushing and screening plants in mineral processing, building materials, silicate, chemical and other industries.
The vibrating feeder can evenly and continuously feed the bulk or granular materials from the silo to the feeding device. It can realize uniform feeding to the crusher in the sand and gravel production line, and coarsely screen the materials.
Vibrating feeders are widely used in combined crushing and screening operations in metallurgy, mining, mineral processing, building materials, and chemical industries.
The vibrating feeder consists of a body, a spring, a spring seat, a vibrator, a vibrating motor and a vibrating rod.
Advantages and Features of Vibrating Feeder
1. The vibration is stable,
2. Reliable operation,
3. Long service life,
4. Low noise,
5. Low power consumption,
6. Easy to adjust,
7. Simple structure,
8. Easy to install,
9. Light weight,
10. Small size,
11. Simple maintenance.
Working principle of vibrating feeder
The vibrating feeder motor drives the eccentric block of the vibrator to rotate at high speed through the V-belt. The eccentric block generates a large eccentric force, which excites the vibrating screen box to make a certain range of circular motion. The materials on the inclined screen are continuously thrown by the impulse from the screen box, and the materials smaller than the screen holes pass through the screen to achieve classification. Vibrating feeder is widely used in mines, crushing plants, sand making plants, etc.
Technical parameters of vibrating feeder
Model | Maximum feed size (mm) | Capacity (t/h) | Power (Kw) | Dimensions (mm) | Weight (tons) |
GZT-0724 | 450 | 30-80 | 2×1.5 | 2481*1130*990 | 2.4 |
GZT-0932 | 560 | 80-150 | 2×2.2 | 3298*1512*1195 | 3.2 |
GZT-0940 | 560 | 80-150 | 2×3 | 4100*1818*1134 | 3.7 |
GZT-1148 | 600 | 150-300 | 2×5.5 | 4926*1676*1475 | 5.1 |
GZT-1256 | 800 | 180-400 | 2×7.5 | 5704*1840*1492 | 6.3 |
GZT-1560 | 1000 | 400-600 | 2×15 | 6110*2440*1560 | 8.9 |
ZSW380×95 | 500 | 100-160 | 11 | 3970*2259*1880 | 4.8 |
ZSW420×110 | 580 | 120-240 | 15 | 4392*2519*2003 | 5.4 |
ZSW490×110 | 630 | 150-320 | 18.5 | 5093*2545*2014 | 6.3 |
ZSW600×130 | 750 | 400-600 | twenty two | 6124*2863*2051 | 9.2 |
ZSW600×150 | 600×900×1200 | 500-700 | 30 | 6271*2369*2698 | 11.2 |
ZSW600×180 | 700×1050×1400 | 700-1000 | 37 | 6375*2653*2913 | 13.7 |

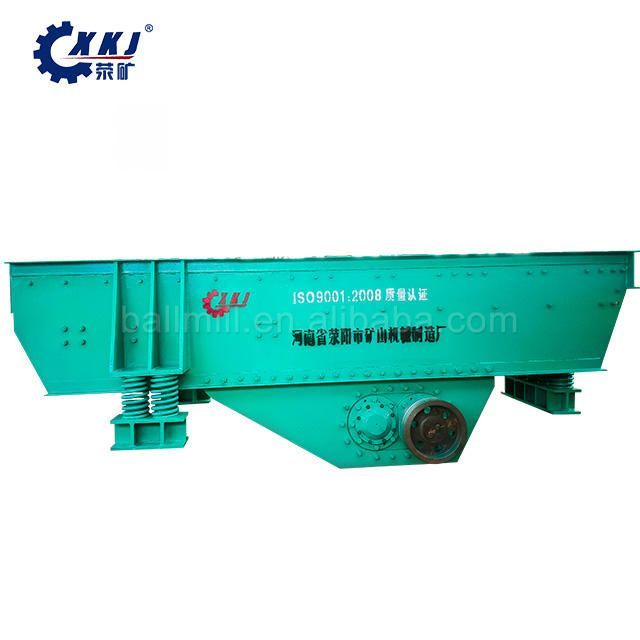

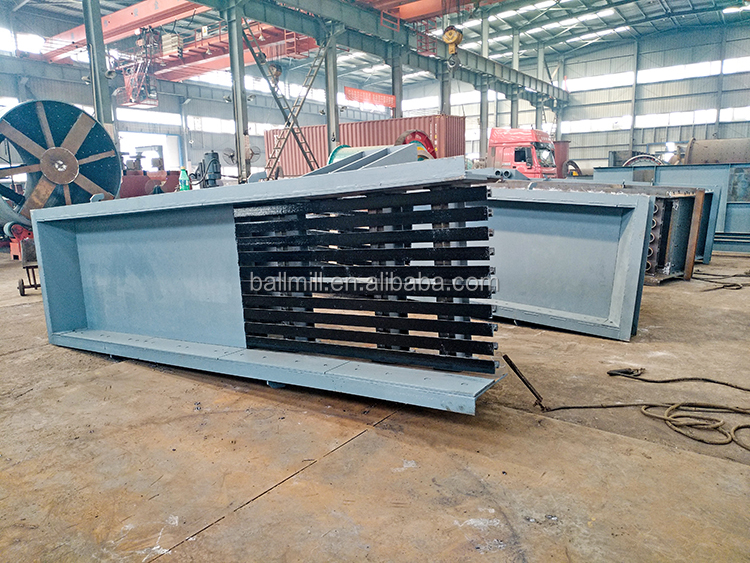

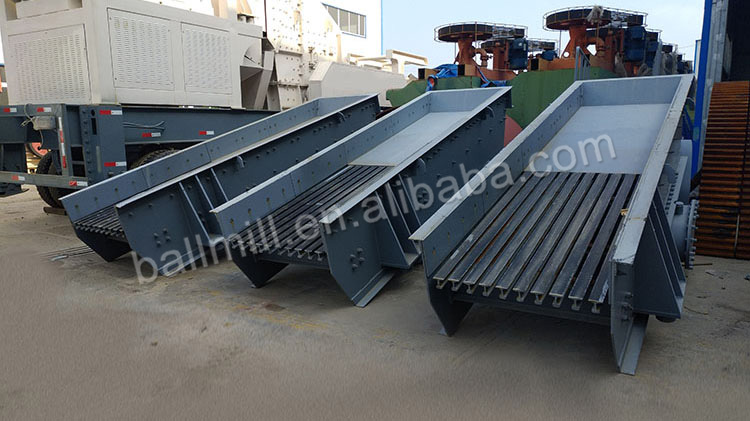

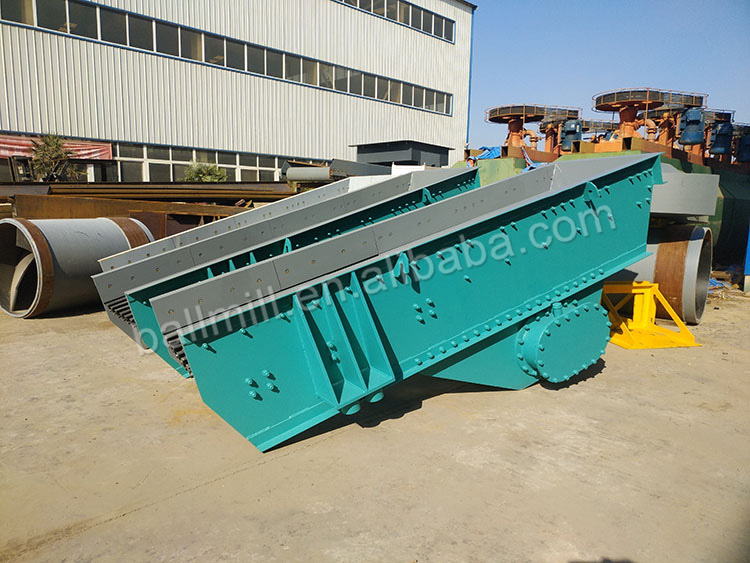

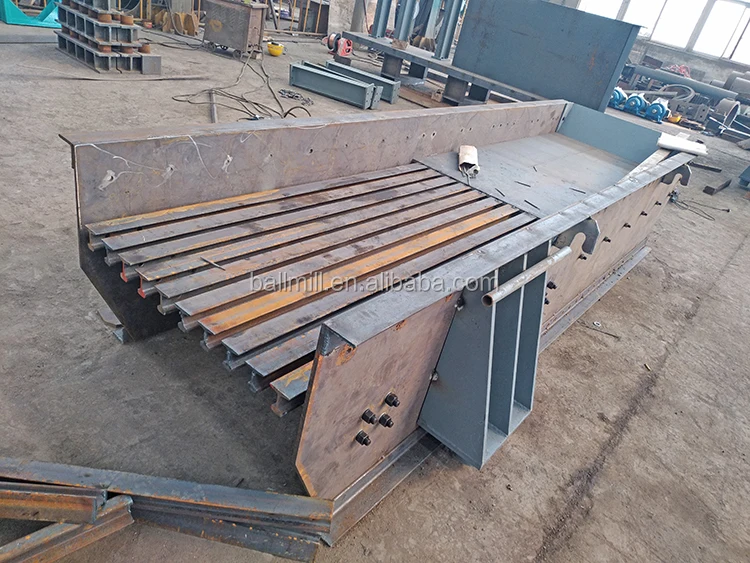

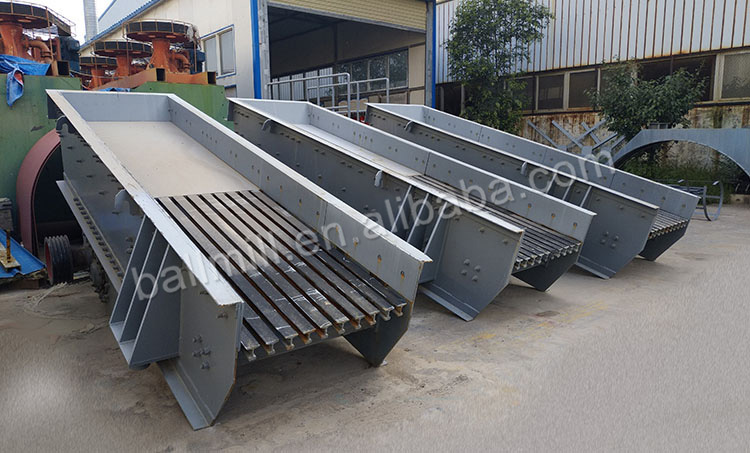

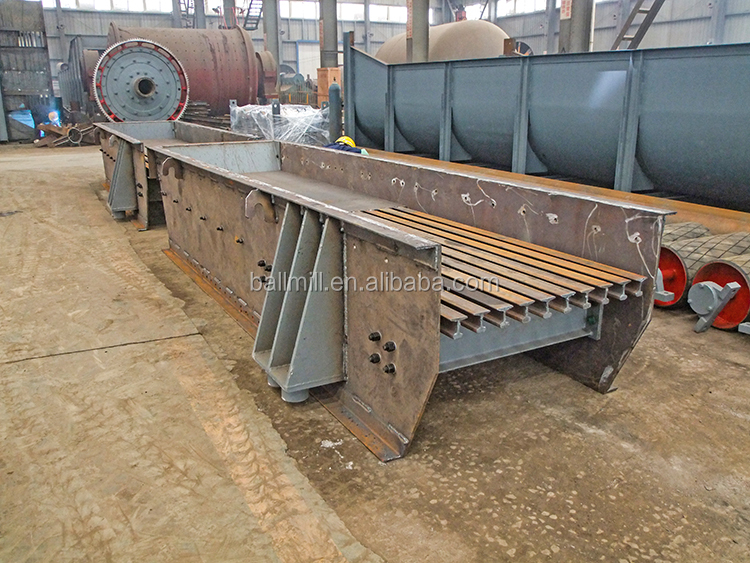

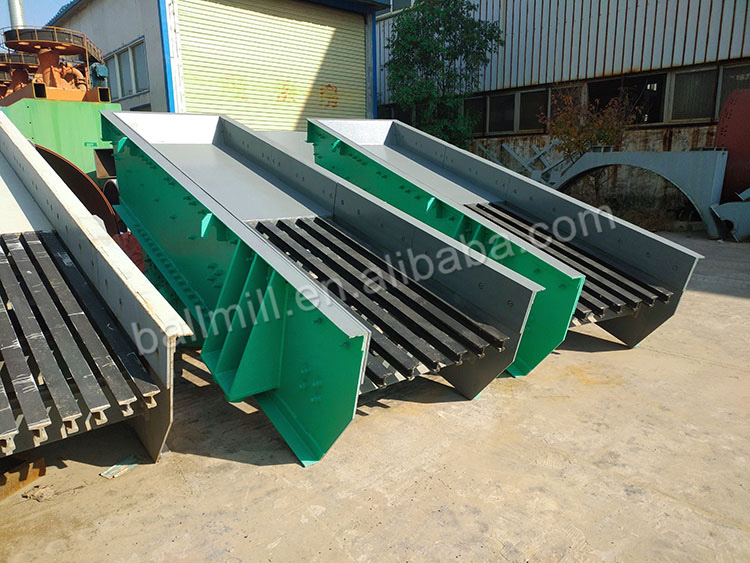

Vibrating feeder display
