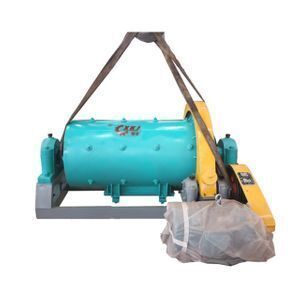

Small Mini Ball Mill 1 Ton Per Hour/Grinding Ball Mill cement gold processing Machine Prices

Click here to contact
Product details
Port:Qingdao,Shanghai,Tianjin and other ports;Cylinder RPM(r/min):24.1-45.5;
Condition:New;Place of Origin:Henan China;
Weight:2.4-46t;Warranty:1 YEAR;
Dimension(L*W*H):Customized;Brand Name:XKJ;
Packaging Detail:Standard containers, bare main machine, motors and small parts are packed in wooden cases;Applicable Industries:Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Construction works ,Energy & Mining;
Capacity(t/h):0.2-40TPH;Motor Type:AC Motor;
After-sales Service Provided:Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Type:Ball Mill;Balls load:0.5-17.5t;
Feeding size(mm):≤10,≤15,≤25;Discharging size(mm):0.074-0.4;
Supply Ability:50 Set/Sets per Month;Certification:ISO CE;
Product Description
1. Brief Introduction
Ball mill can divide into 2 types, wet ball mill and dry ball mill. Ball mill is a mineral processing machine for milling the materials into powders after they are crushed. It is widely applied to the production of cements, silicate products, building materials, fireproof materials, fertilizers, glass, ceramics as well as nonferrous and ferrous metal processing industries.
2. Specification
Model
Ball load
(t)
Feeding size
(mm)
Discharging size
(t/h)
Capacity
(t/h)
Power
(kW)
Dimension
(mm)
Weight
(t)
MQG600x18000.5≤100.074-0.50.2-0.57.53100x1624x10702.5
MQG900x18001.8≤200.074-0.60.8-2154196x2300x19855.8
MQG900x30002.7≤200.074-0.30.8-3226170x2034x20747.5
MQG1200x24004.8≤250.074-0.61.5-4306520x2850x25409.8
MQG1200x45005.2≤250.074-0.61.5-6458820x3070x263013.2
MQG1300x40005.8≤250.074-0.62-6457661x2720x210014.8
MQG1500x35008.3≤250.074-0.63-6908500x3100x210017.6
MQG1500x450010≤250.074-0.44-8959680x3200x211422.3
MQG1500x570012≤250.074-0.45-1011010440x3200x211426.7
MQG1500x640013≤250.074-0.48-1213011140x3200x211429.2
Model Cylinder RPM(r/min)Balls Load(t)Feeding Size (mm)Discharging Size(mm)Capacity(t/h)Motor Model Motor Power(kw)Dimension(L*W*H)(mm)Weight(t)
GZM600X180045.50.5≤100.074-0.80.2-0.4Y132M2-65.53010X1625X10702.4
GZM750X180041.70.9≤150.074-0.80.3-0.9Y160M-67.53040X1743X11953.5
GZM900X210038.51.7≤150.074-0.50.5-1.5Y160L-6154100X2200X17005.5
GZM1200X280036.74≤200.074-0.61.3-4Y250M-6374800X2520X21209.5
GZM1500X350028.88.4≤250.074-0.43-8YR280M-8756580X3100X248017.6
GZM2100X450024.117.5≤250.074-0.610-40JR138-824510000X4970X350046
3. Main Advantages
1) Ball Mill is an efficient tool for grinding many materials into fine powder;
2) Ball mill is used to grind many kinds of mine and other materials, or to select the mine;
3) Ball mill is widely used in building material, and chemical industry.
4) There are two ways of grinding: the dry way and the wet way.
5) Ball mill can be divided into tabular type and flowing type according to different expelling mine
6) To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.
7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
8) The longer the ball mill runs, the finer the powder will be.
9) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.
10) Our ball mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals.

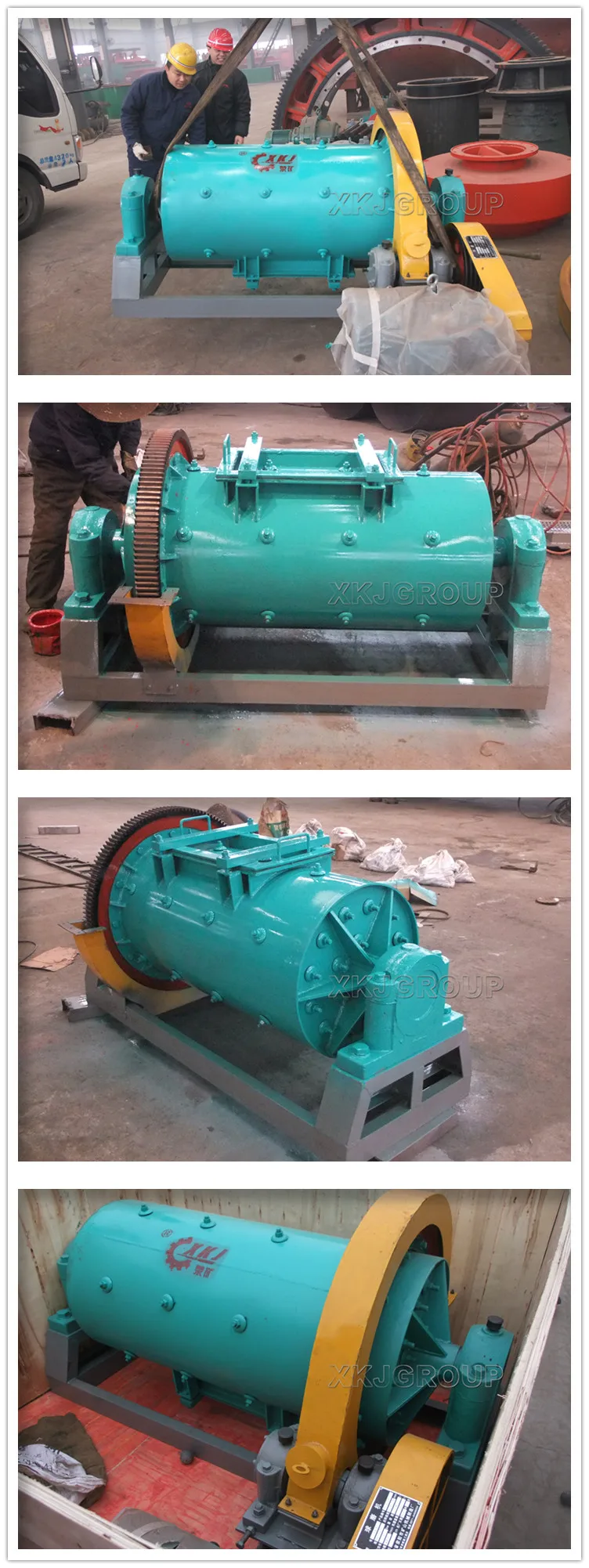

4. Our Ball Mill Display



Packaging & Shipping

Packaging Detail: 1. small parts are wooden box package.
                             2. main engine nude packing, container, or upon customers requirement.
Delivery Detail:   within 20 days
Ports: Qingdao, Shanghai, Tianjin and other ports.

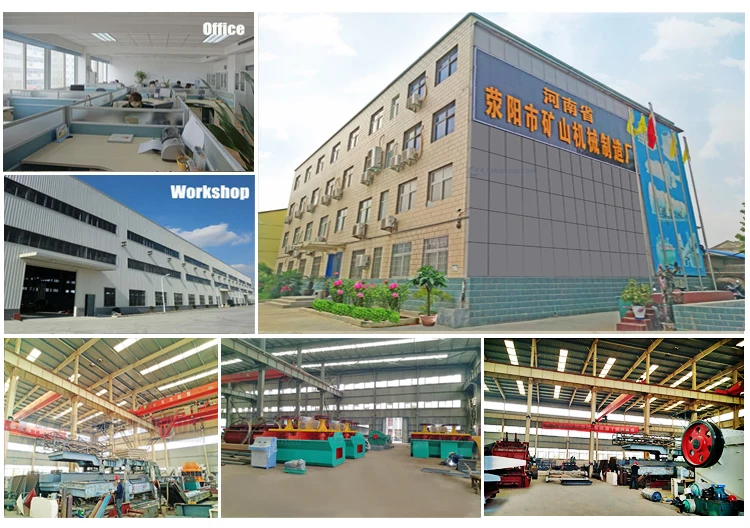

Company Information

Meanwhile, We have four casting factories that specialize in producing wearing parts for our clients. If your machine are not manufactured by our company, please provide us the wearing parts drawing.

FAQ

1. How long is the delivery time of your machine?

The delivery time is within 20-30 working days. But if the project is very large and clients have some special requirement about the equipment, the delivery time will be extened.

2.What are the payment terms?

The payment terms are L/C, T/T, D/A, D/P and other.

3.What is the minimum order quantity of your machine?

1 set. Our service will be to satisfy the needs of every client.

4.How long is the warranty period about machine?

Our machine warranty period is 1 year. Wearing parts and problem coursed by worker's wrong operation are not included.

5.What is the after sale service of your company?

We will provide foundation drawing to the clients for installation. Besides, we can provide installation service, workers training service, etc.

6.Can you provide wearing parts?

We have four casting factories that specialize in producing wearing parts for our clients. If your machine are not manufactured by our company, please provide us the wearing parts drawing.

7.Can you provide me a solution and quotation?

Of course. Please give us your details about project, raw material, the capacity, max feeding size, the output size, the usage of final products, etc.

Why choose us
  • We have a professional engineering group after-sales team.
  • We have the large factory and good production capacity.
  • We have a professional sales and service team.
