Certification: | International Organization for Standardization CE certification | Mechanical test report: | if |

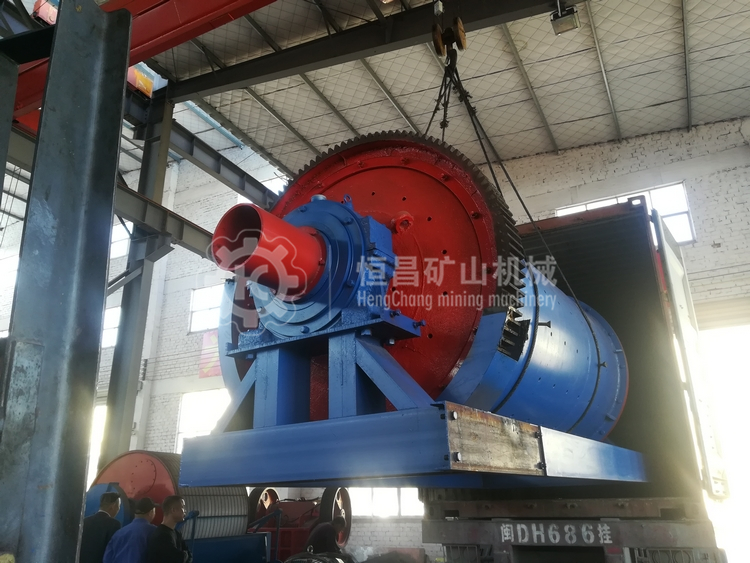

Packaging Details: | Small gold ball mill, regular packing, full container packing. | capacity: | 0.2-0.7 tons/hour |
weight: | 3200 kg | Supply capacity: | 30 sets per month |
Material: | Carbon steel | Marketing Type: | 2020 New Products |

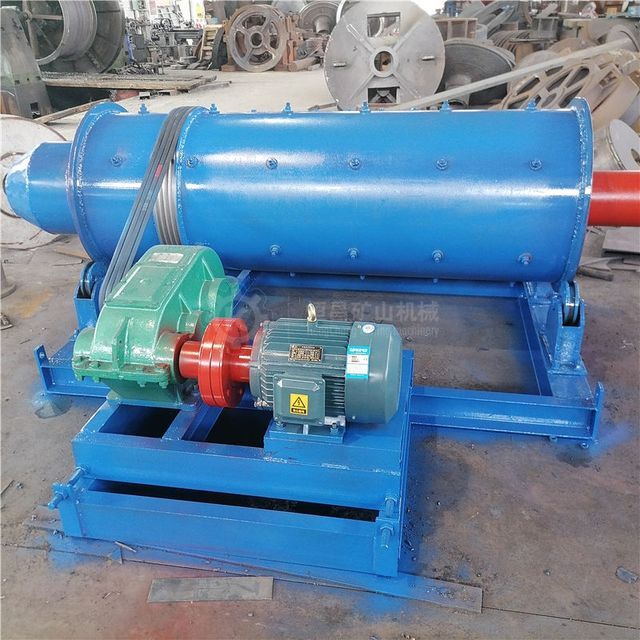

Name: | Small gold ball mill | brand: | Jiangxi Hengchang |
Dimensions (L*W*H): | 3643*1550*1100 mm | color: | blue or as your request |
Maximum Ball Load: | 0.8 tons | Production capacity (tons/hour): | 0.2-0.7 tons/hour |
Origin: | Jiangxi, China | Video outbound inspection: | if |
Core component warranty: | 1 year | Local service locations: | not any |
Applicable industries: | Construction Engineering, Energy and Mining | engine: | engine |
port: | Xiamen Port | type: | ball mill |
Showroom location: | not any | Health status: | new |
After-sales service provided: | Engineers can repair machinery overseas, video technical support, online support, on-site installation, commissioning and training, on-site maintenance and repair services | Motor type: | AC motor |
Core components: | engine, motor | liner: | High manganese steel |
Maximum feed size: | 25mm | payment terms: | L/C, Western Union, D/P, T/T, MoneyGram |
Warranty: | 1 year |
Small gold ball millintroduce:
Ball mill is the key equipment for grinding crushed materials. Ball mill is widely used in cement, silicate, new building materials, refractory materials, fertilizers, ferrous metals and non-ferrous metals and other grinding production lines. Metals, glass ceramics, etc. Ball mills can grind a wide variety of ores and other materials both dry and wet. There are two types of ball mills, grid type and overflow type, due to different discharge methods.
Small gold ball mill Working Standards:

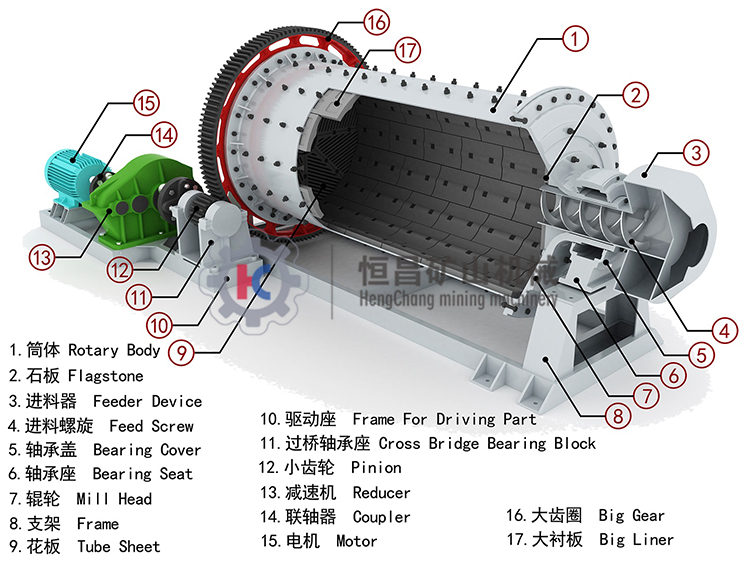

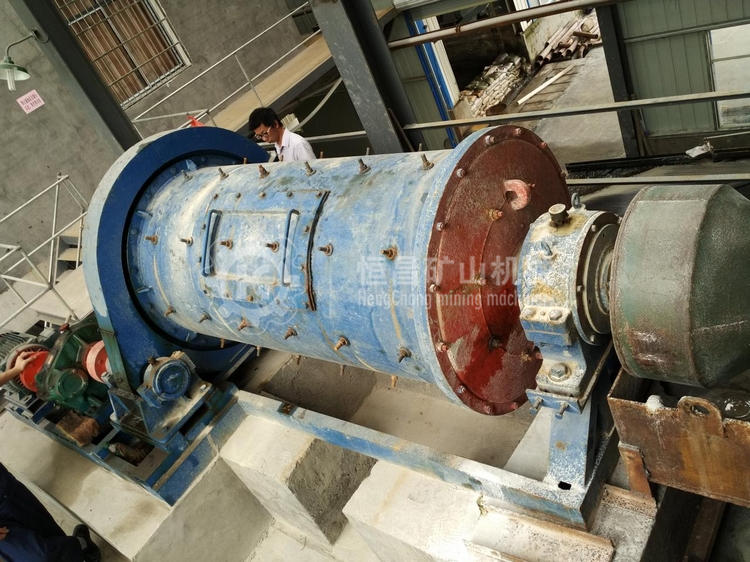

The ball mill is a horizontal rotating device driven by external gears. The material is evenly conveyed to the grinding chamber through the hollow shaft. There are trapezoidal liners and corrugated liners and steel balls of different specifications in the cavity. The centrifugal force generated by the rotation of the cylinder brings the steel balls to a certain height, which impacts and grinds the materials. The ground material is discharged through the unloading plate to complete the grinding process.
Small gold ball millapplication:
Ball mills are mainly used in mineral, cement, refractory, chemical and other industries to grind materials. There are two types of ball mills, dry and wet. When the wet ball mill is working, a certain amount of water and other liquids will be added to the material to increase the flow capacity of the material, thereby increasing the production capacity. When the dry ball mill is working, the flow capacity of the material is reduced, which affects the production capacity. Therefore, a suction device is required at the outlet of the ball mill to form a negative pressure in the ball mill and increase the flow capacity of the material, so the production capacity is increased.
Model | revolution | ball | biggest size | capacity | strength | aspect | weight |
rpm | t | mm | ton/hour | kilowatt | (length x width x height) mm | Kilogram | |
GM0912 | 41.6 | 1.1 | 25 | 0.3-0.9 | 11 | 3843*1850*1400 | 4210 |
GM0921 | 41.6 | 1.8 | 25 | 0.6-1.5 | 15 | 4743*1850*1400 | 6660 |
GM0933 | 41.6 | 2.8 | 25 | 0.9-2.3 | 30 | 5943*1850*1400 | 7770 |
GM1224 | 35.1 | 4.0 | 25 | 1.6-4.1 | 37 | 5540*2300*1850 | 10020 |
GM1232 | 35.1 | 5.3 | 25 | 2.2-5.5 | 45 | 6340*2300*1850 | 11230 |
GM1244 | 35.1 | 7.3 | 25 | 3.0-7.5 | 55 | 7540*2300*1850 | 13210 |
GM1324 | 30.2 | 4.5 | 25 | 1.5-3.5 | 37 | 5035*2370*1880 | 10210 |
GM1334 | 30.2 | 6.5 | 25 | 2.2-5.0 | 75 | 6035*2370*1880 | 13117 |
GM1524 | 30.7 | 7.0 | 25 | 2.8-6.5 | 55 | 6830*2930*2060 | 15430 |
GM1530 | 30.7 | 9.0 | 25 | 3.5-8.0 | 80 | 7430*2930*2060 | 16843 |
GM1536 | 30.7 | 11.0 | 25 | 4.5-10.0 | 95 | 8030*2930*2060 | 18649 |
GM1545 | 30.7 | 13.5 | 25 | 5.5-13.5 | 110 | 8930*2930*2060 | 20000 |
GM1830 | 25.04 | 13.0 | 25 | 3.0-17.0 | 130 | 9525*3960*2250 | 29490 |
GM1836 | 25.04 | 15.0 | 25 | 4.0-21.5 | 155 | 10125*3960*2250 | 31600 |
GM1844 | 25.04 | 19.0 | 25 | 5.2-26.0 | 180 | 10925*3960*2250 | 34210 |
GM1864 | 25.04 | 27.0 | 25 | 8.0-40.0 | 210 | 12925*3960*2250 | 42440 |
GM2130 | 23.8 | 20.0 | 25 | 4.0-30.0 | 180 | 8475*4060*3400 | 41965 |
GM2145 | 23.8 | 25.0 | 25 | 5.6-42.0 | 280 | 9975*4060*3400 | 49230 |
GM3245 | 18.7 | 65.0 | 25 | 100-145 | 630 | 13000*7200*5700 | 145000 |
