Nano powder steel ball mill grinder laboratory grid ball mill with grinding ball grinder
-
Supplier: Jiangxi Victor International Mining Equipment Co., Ltd. -
Region: Jiangxi, China -
Contact: Ms zhang haohao -
Price: $1300.00 / 1 - 9 sets
$1250.00 / >=10 sets -
Min. Order: 1 set
Product details
| Output size: | 0.074mm | weight: | 800kg |
| application: | stone powder grinding | Production capacity (tons/hour): | 0.045-0.09 |
| Core component warranty: | 1 year | Video outbound inspection: | if |
| Install: | Engineer's Guide | brand: | West Kendall |
| Applicable industries: | Energy and Mining | price: | competitive |
| Marketing type: | 2020 new products | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Dimensions (length*width*height): | 1630*1260*1730mm | Name: | Nano ball mill |
| quality: | international standards | Mechanical test report: | if |
| Warranty: | 1 year | Motor type: | AC motor |
| product name: | Laboratory Grid Ball Grinder | Packaging details: | International standard packaging. |
| Health status: | new | Core components: | engine |
| After-sales service: | Technical Support | type: | ball mill |
| Place of origin: | Jiangxi, China | usage: | grinding ore |
| port: | Xiamen/Shenzhen | Showroom location: | Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Brazil, Peru, Indonesia, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, South Korea, Chile, Colombia, Algeria, Romania, South Africa, Ukraine, Nigeria, Japan, Malaysia, Australia |
| Feed size: | 5-10mm |
product description
Laboratory Grinding Mill

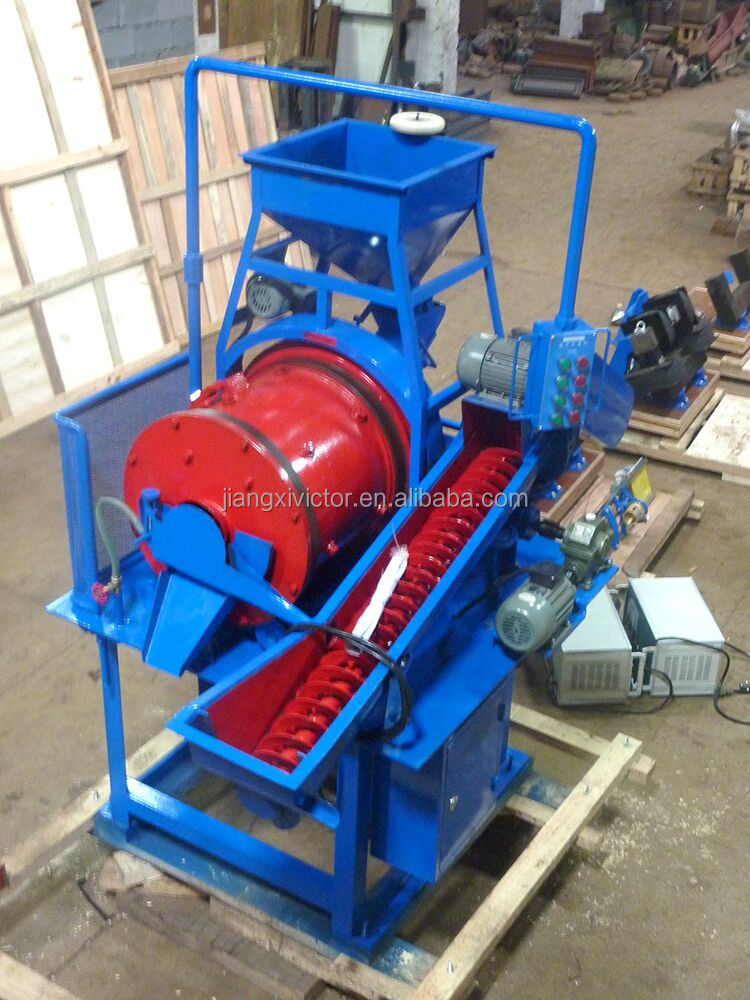

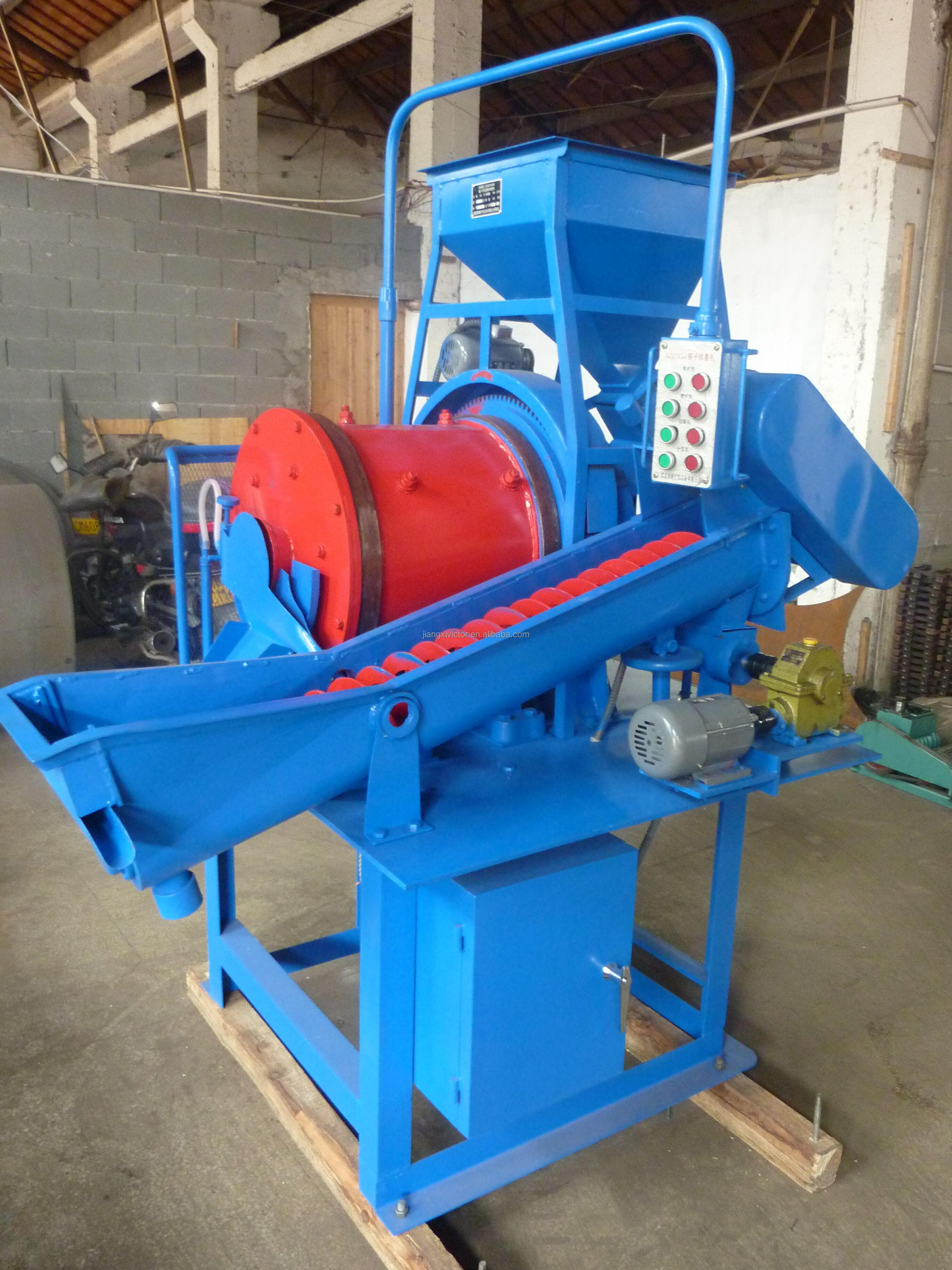

The XMQL420*450 ball mill is mainly composed of a 420×450 grid ball mill, a 150×1200 spiral classifier, a 35-liter swing feeder and a 90×600 screw conveyor, which can form continuous cutting and grinding work. Equipment installs electrical installations and water supply systems.
No additional infrastructure is required for installation. After unpacking, install the four anchor screws on the lower part of the rack, clean the packaging grease, check the lubrication, and connect the water pipes and power supply. Try driving, confirm the operation direction, and it will operate in the order of operations. According to the properties of the materials to be processed and the specific requirements for the particle size characteristics of the grinding products, the following three different grinding processes can be used for grinding:
1. Pre-grinding, inspection and grading;
2. Pre-grading, sand return and grinding;
3. Start grinding;
No additional infrastructure is required for installation. After unpacking, install the four anchor screws on the lower part of the rack, clean the packaging grease, check the lubrication, and connect the water pipes and power supply. Try driving, confirm the operation direction, and it will operate in the order of operations. According to the properties of the materials to be processed and the specific requirements for the particle size characteristics of the grinding products, the following three different grinding processes can be used for grinding:
1. Pre-grinding, inspection and grading;
2. Pre-grading, sand return and grinding;
3. Start grinding;
product specifications
Model | capacity | Feed size | Output size | strength | Dimensions |
unit | kg/hour | mm | mm | kilowatt | mm |
LZMQL420x450 | 45-90 | 5-10 | 95%-0.074(200 mesh) | 2.12 | 1630x1260x1730 |
working principle
1. Check whether there are any abnormalities in various parts of the equipment, whether there are obstacles near the equipment and rotating parts, clean the surrounding work site, and make preparations for process-related equipment.
2. Check whether there is enough lubricating oil in the oil cup, box, bearings and supporting wheels.
3. Check whether there is waste ore or other dirt in the feeder, ball mill, classifier, and screw conveyor. Use manual operation alone to see if the rotation is flexible.
4. Turn off the main power supply and connect the main water pipe. Start the classifier, ball mill, screw conveyor, and ore feeder, and observe whether the movement and rotation are normal. Clean the mining machine first, then open the water valve, and wash away the dust, dirt and rust remaining in the ball mill, classifier, and screw conveyor before shutting down.
5. Put the materials into the ore storage barrel.
6. According to the predetermined solid-to-liquid ratio of the pulverizer and the fineness of the overflow of the classifier, adjust and measure the water consumption at the inlet and outlet of the pulverizer.
2. Check whether there is enough lubricating oil in the oil cup, box, bearings and supporting wheels.
3. Check whether there is waste ore or other dirt in the feeder, ball mill, classifier, and screw conveyor. Use manual operation alone to see if the rotation is flexible.
4. Turn off the main power supply and connect the main water pipe. Start the classifier, ball mill, screw conveyor, and ore feeder, and observe whether the movement and rotation are normal. Clean the mining machine first, then open the water valve, and wash away the dust, dirt and rust remaining in the ball mill, classifier, and screw conveyor before shutting down.
5. Put the materials into the ore storage barrel.
6. According to the predetermined solid-to-liquid ratio of the pulverizer and the fineness of the overflow of the classifier, adjust and measure the water consumption at the inlet and outlet of the pulverizer.
Function overview
application
XMQL420*450 ball mill is used for continuous grinding operations by mineral processing research units and pilot plants, as well as the research and determination of ore grindability indicators in mineral processing feasibility studies. It can also be provided to mineral processing plants as grinding equipment or other equipment including Ball mill, spiral classifier, swing feeder, conveyor, three different processes can be selected for grinding respectively: 1. Pre-grinding, inspection
Grading 2 pre-grading sand, then back grinding 3. Start grinding.
Grading 2 pre-grading sand, then back grinding 3. Start grinding.
