Production capacity (tons/hour): | 4 to 10 | type: | ball mill |
Warranty: | 12 months | Mechanical test report: | if |
After-sales service provided: | Engineers available to repair machinery overseas | Video outbound inspection: | if |
Packaging Details: | Diesel ball mills are packed in fumigation-free wooden boxes, steel boxes, or as required. | Origin: | Henan, China |
product name: | Diesel ball mill | Health status: | new |
payment terms: | L/C, Western Union, D/P, D/A, T/T, Moneygram, Negotiable | weight: | 1200 kg |
color: | According to customer's request | Showroom location: | not any |
Applicable industries: | Energy and Mining | Motor type: | AC motor |
Core component warranty: | 2 years | Core components: | PLC, engine, bearing, gearbox, motor, gear |
Dimensions (L*W*H): | 5600x1800x2100 mm | Marketing Type: | normal product |
brand: | Deja | Supply capacity: | 30 sets per month |
port: | Qingdao, Tianjin, Shanghai, Guangzhou, or as required |
Contact us for more information Whatsapp and Wechat: +86 137 2141 9876
Brief Introduction of Small Diesel Engine Ball Mill
Ball mills work on the principle of impact: when a ball falls from near the top of the housing, it is impacted to reduce size. A ball mill consists of a hollow cylindrical shell that rotates about its axis. The axis of the shell may be horizontal or at a small angle to the horizontal. It is partially filled with balls. The grinding medium is a sphere, and the material of the sphere can be steel (chrome steel), stainless steel or rubber. The inner surface of the cylinder is usually lined with wear-resistant materials such as manganese steel or rubber.
Model | turn around Speed (rev/min) |
grinding Medium (tons) |
Feed size (mm) |
freed Dimensions (mm) |
capacity (ton/hour) |
engine (kilowatt) |
weight (Ton) |
900x1800 | 38 | 1.5 | 20 | 0.075-0.89 | 0.65-2 | 18.5 | 5.5 |
1200x2400 | 32 | 3.8 | 0-20 | 0.074-0.4 | 0.9-4.8 | 30 | 9.2 |
1200x2800 | 32 | 4.0 | 0-20 | 0.074-0.4 | 1.0-5.0 | 30 | 9.5 |
1200x3000 | 32 | 4.5 | 0-20 | 0.074-0.4 | 1.2-5.6 | 37 | 11.5 |
1200x4500 | 30 | 5.5 | 0-20 | 0.074-0.4 | 1.5-6.0 | 55 | 13.6 |
1500x3000 | No. 27 | 7.0 | 0-25 | 0.074-0.4 | 2.5-6.5 | 75 | 15.0 |
1500x3500 | No. 27 | 8.5 | 0-25 | 0.074-0.4 | 3.0-8.2 | 75 | 15.6 |
1500x4500 | No. 27 | 11 | 0-25 | 0.074-0.4 | 4-10 | 95 | 21.0 |
1500x5700 | No. 27 | 12 | 0-25 | 0.074-0.4 | 4-13 | 110 | 23.5 |
1830x3000 | twenty four | 12 | 0-25 | 0.074-0.4 | 5-15 | 130 | 31.0 |
1830x3600 | twenty four | 13 | 0-25 | 0.074-0.4 | 5-16 | 130 | 32.0 |
1830x4500 | twenty four | 14 | 0-25 | 0.074-0.4 | 5-18 | 155 | 33.5 |
1830x7000 | twenty four | twenty one | 0-25 | 0.074-0.4 | 6-20 | 210 | 36.0 |
2100x3000 | twenty four | 18 | 0-25 | 0.074-0.4 | 7-26 | 210 | 38.0 |
2100x3600 | twenty four | twenty one | 0-25 | 0.074-0.4 | 7-35 | 215 | 39.5 |
2100x4500 | twenty four | 26 | 0-25 | 0.074-0.4 | 8-42 | 245 | 43.5 |
2200x3000 | twenty one | 28 | 0-25 | 0.074-0.4 | 8-43 | 245 | 46.0 |
2200x4800 | twenty one | 35 | 0-25 | 0.074-0.4 | 9-45 | Chapter 285 | 48.0 |
2400x3000 | twenty one | twenty three | 0-25 | 0.074-0.4 | 8-60 | Chapter 285 | 55.0 |
2700x4500 | twenty one | 48 | 0-25 | 0.074-0.4 | 12-83 | Chapter 475 | 79.0 |
3200x4500 | 18 | 65 | 0-25 | 0.074-0.4 | 25-120 | 630 | 137 |

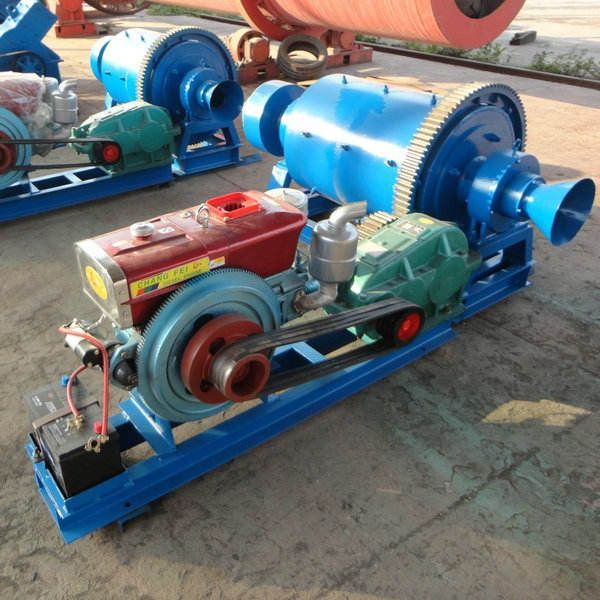

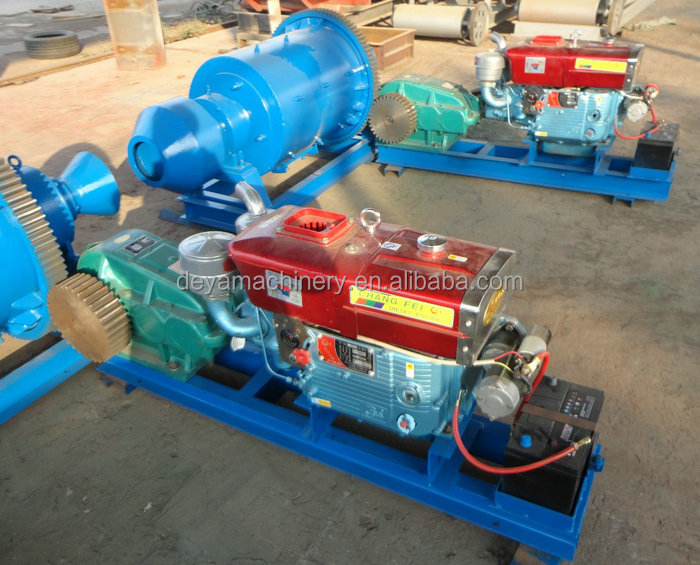

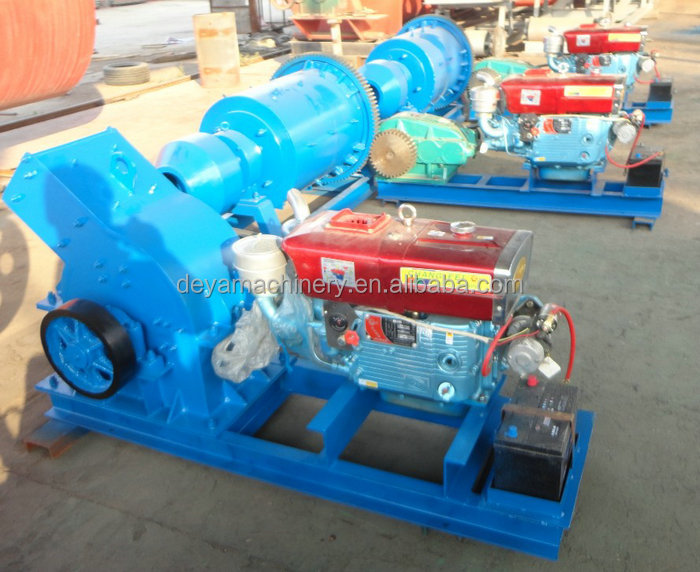

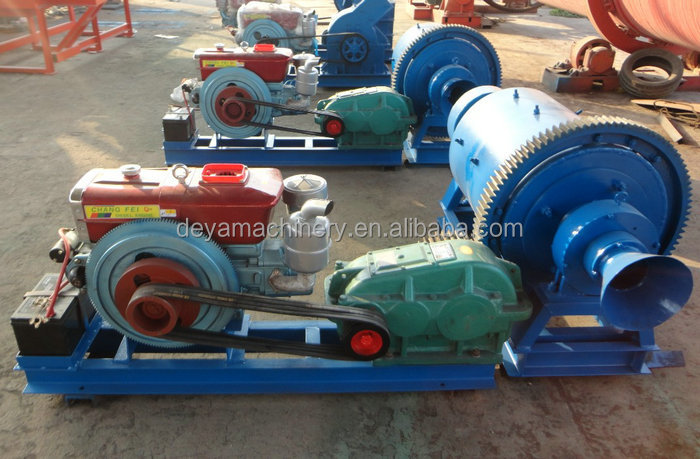

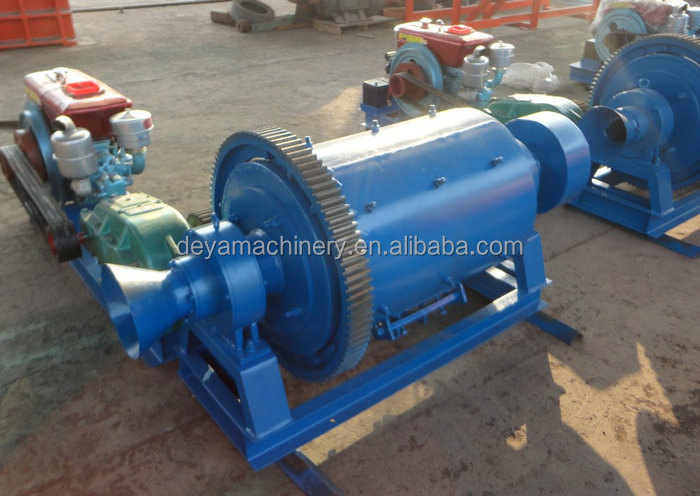

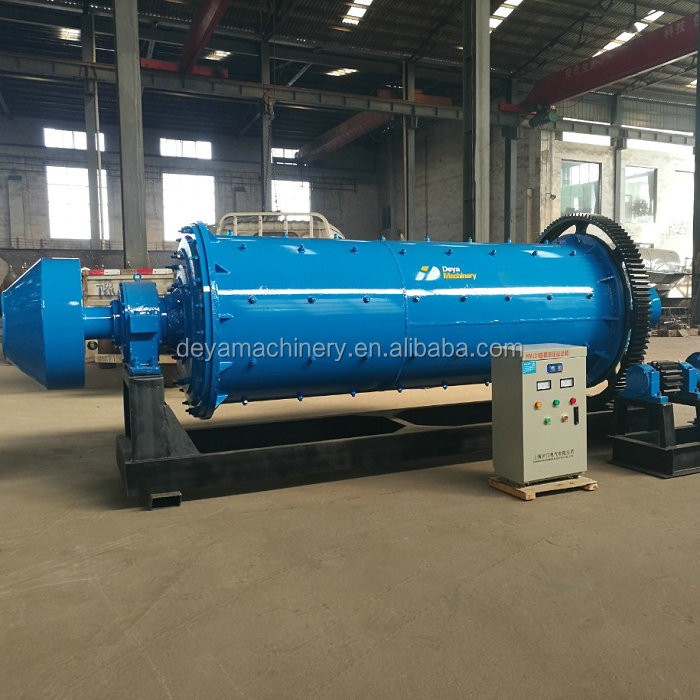

Small diesel engine driven ball mill for sale

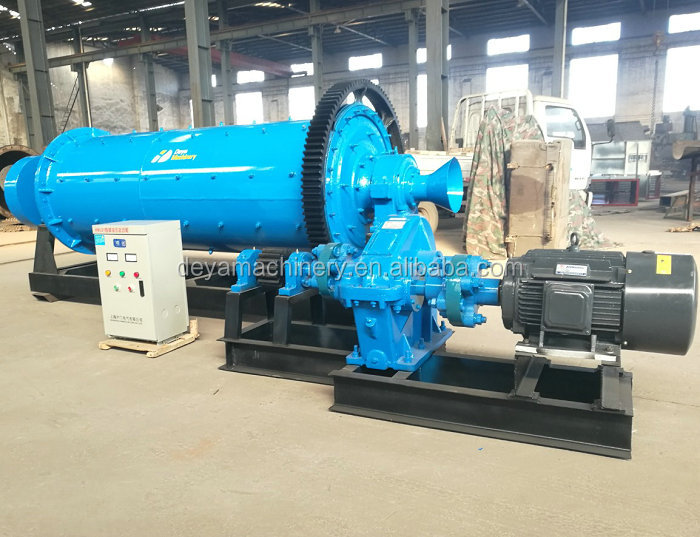

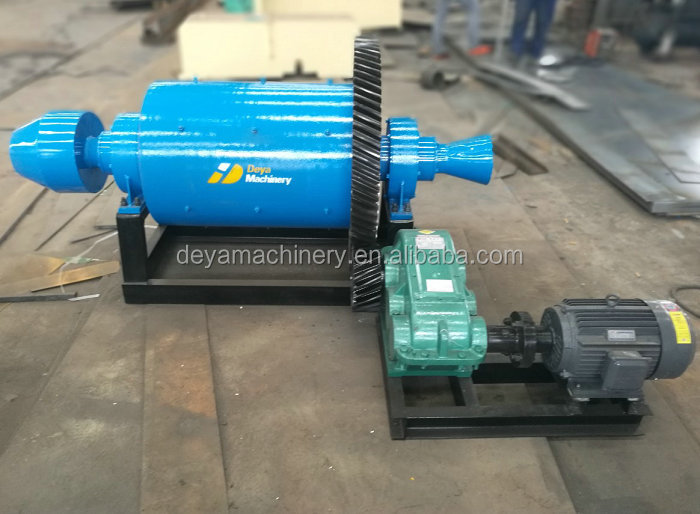

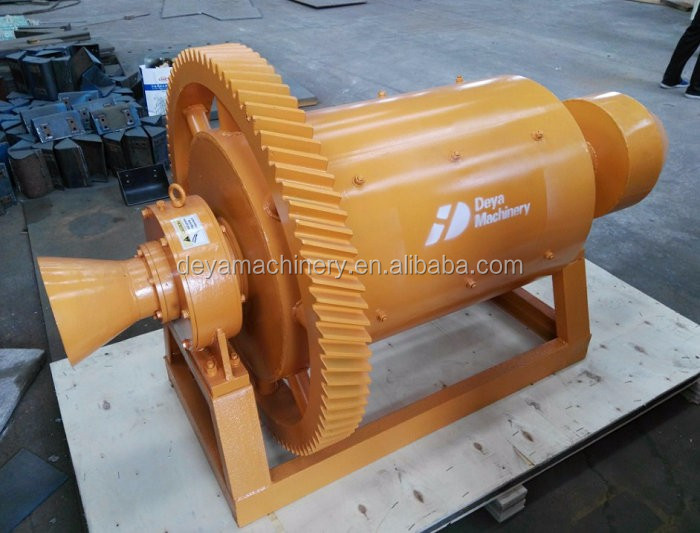

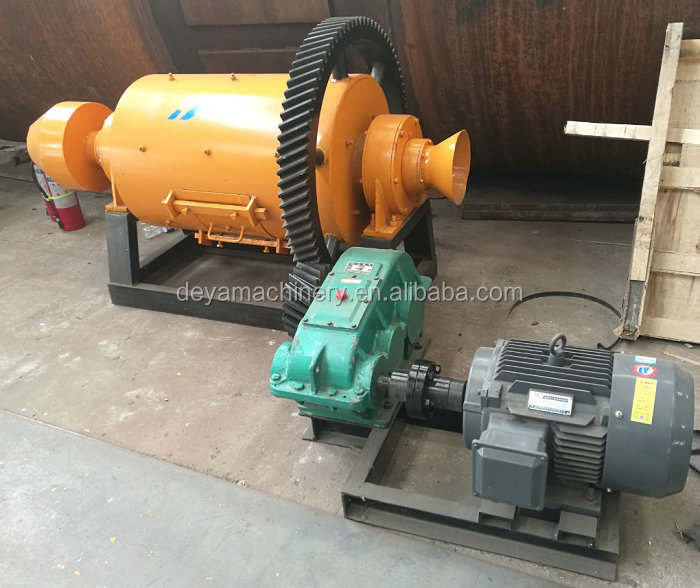

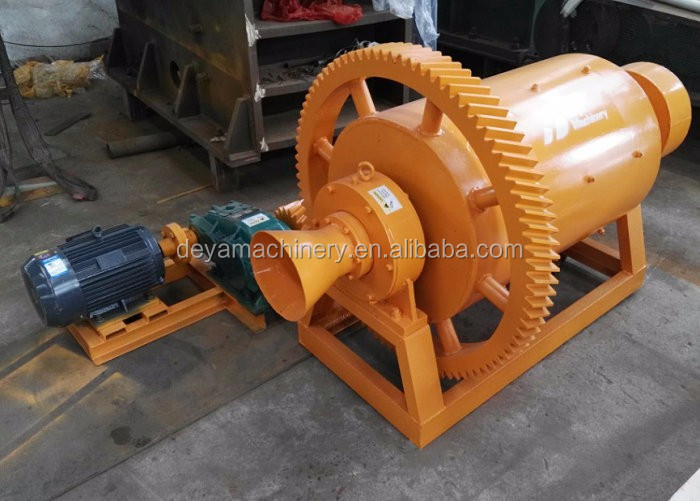

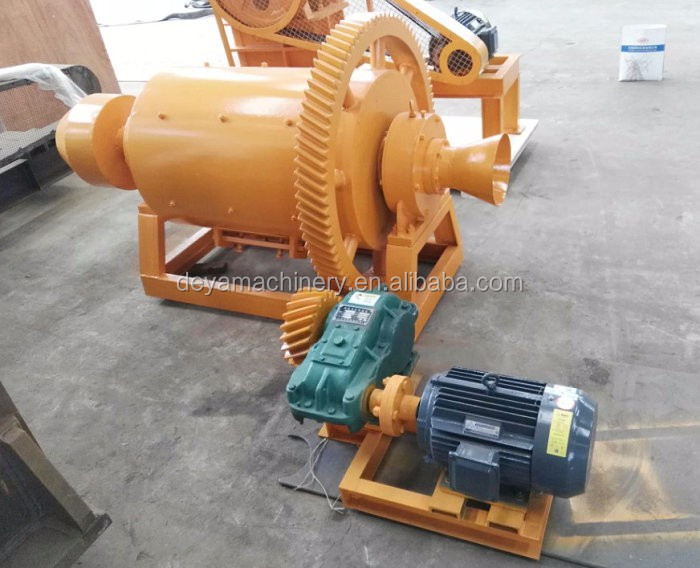

Small ball mill produced by Deya Machinery

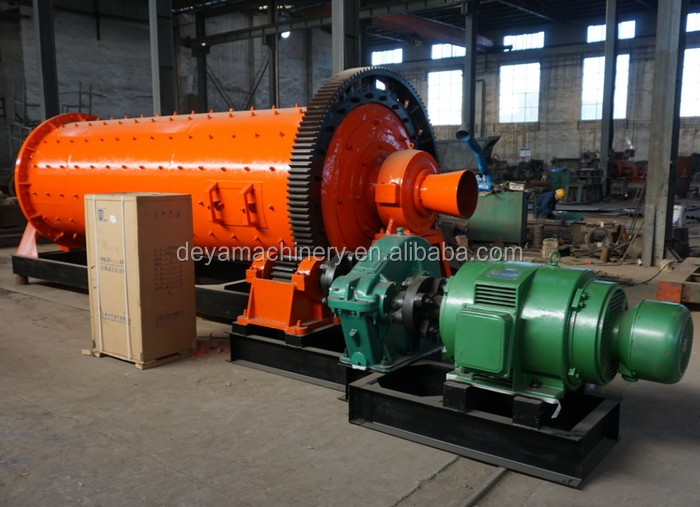

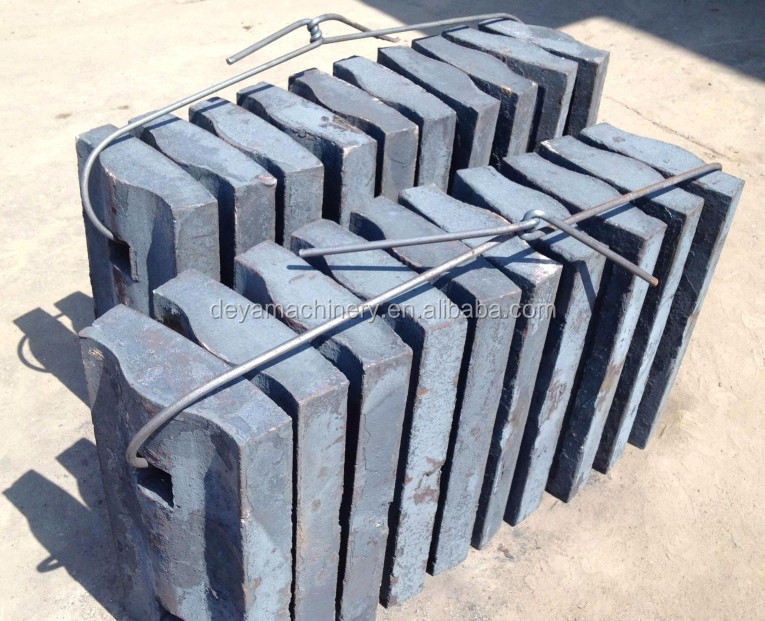

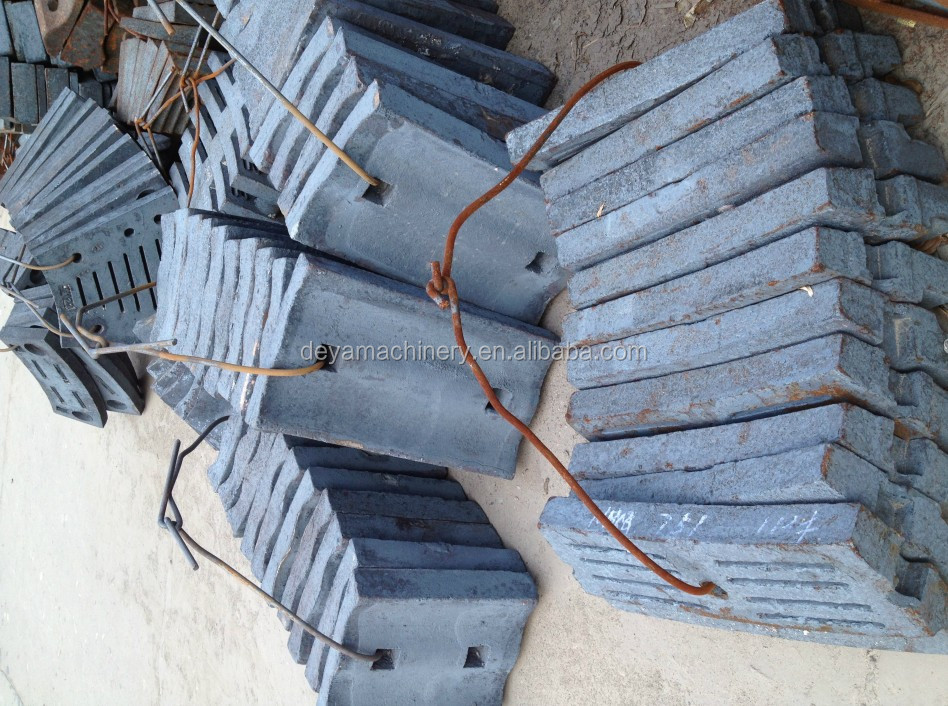

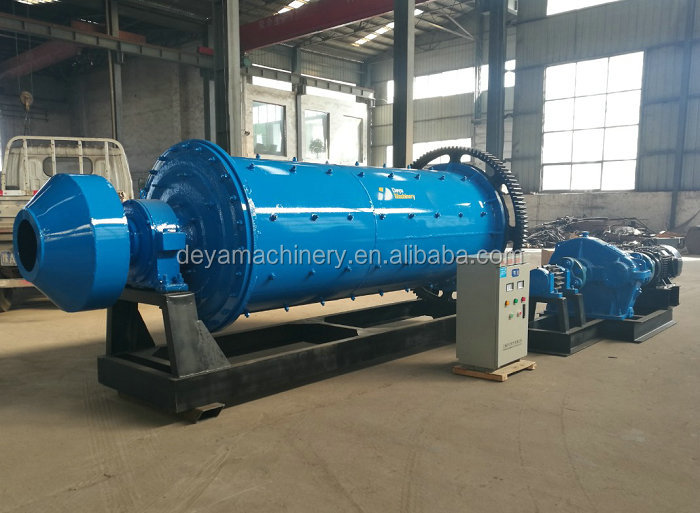

High manganese steel lined ball mill, contact us directly for more information Whatsapp and Wechat: +86 137 2141 9876

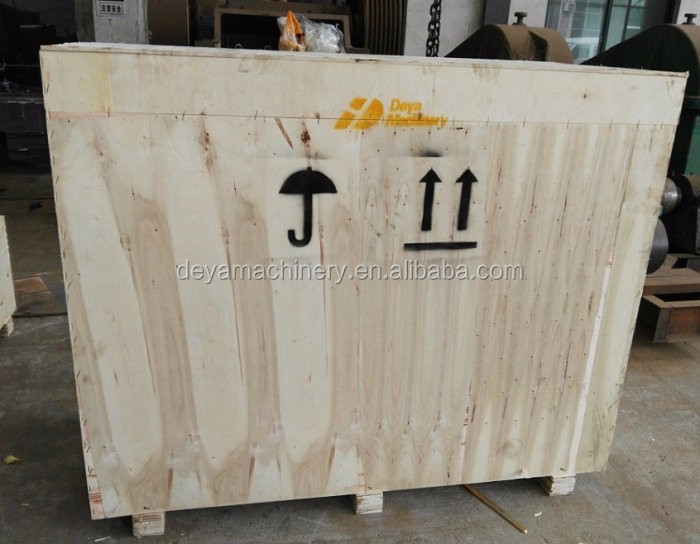

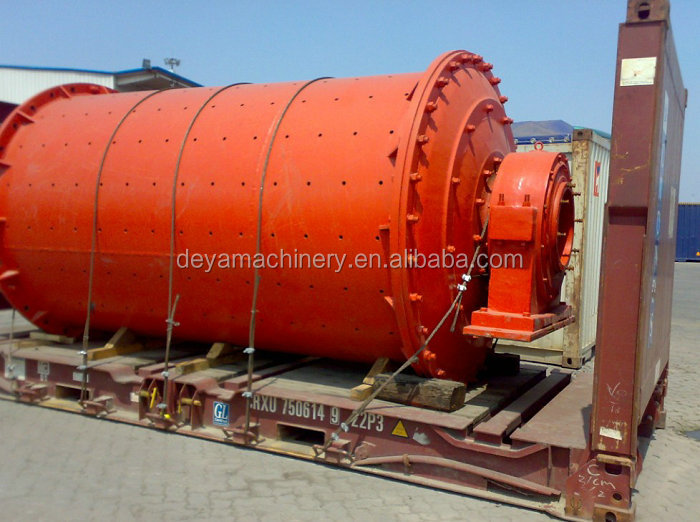

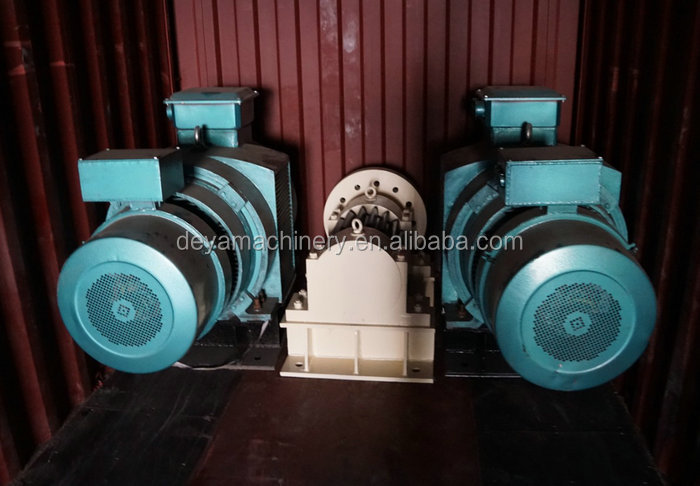

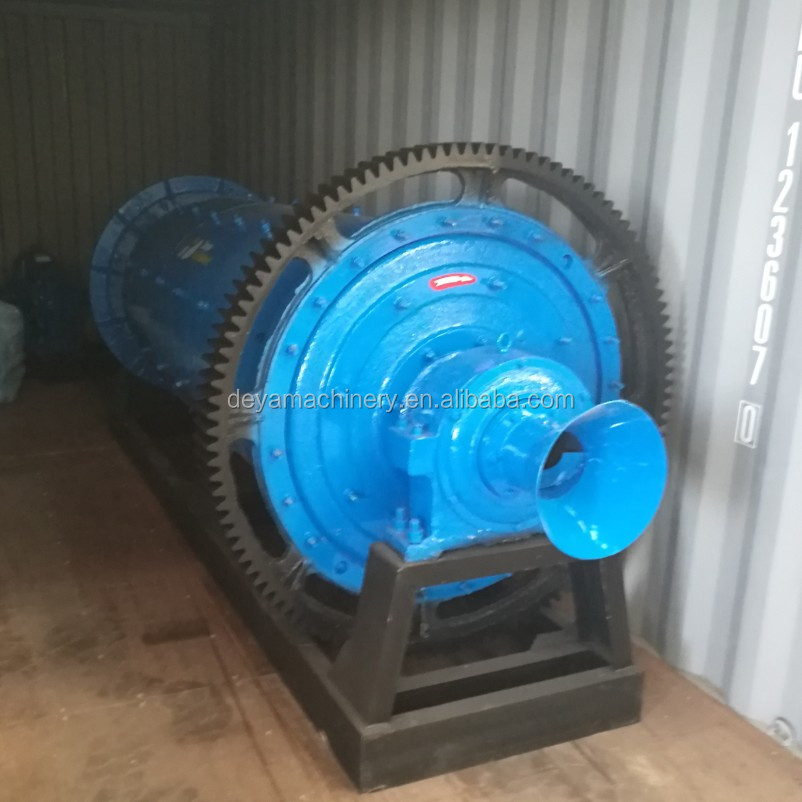

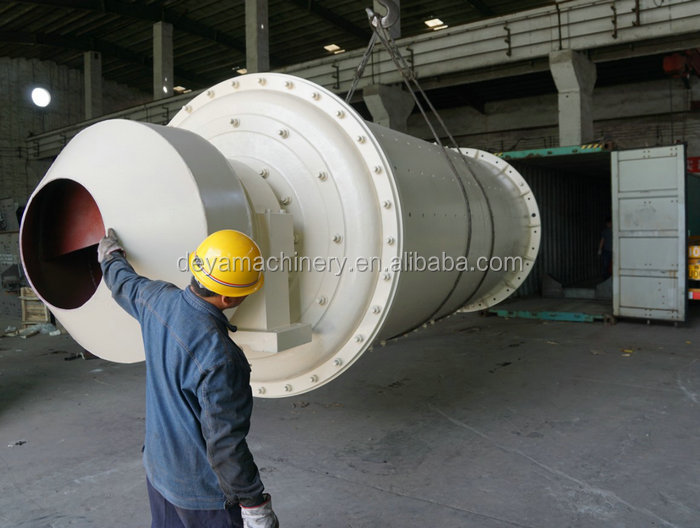

Deya Machinery provides a variety of packaging methods, fumigation-free wooden boxes, steel boxes, or according to customer requirements. Most of the time, equipment is loaded into containers at the factory. Deya staff ensure that all equipment is firmly fixed before closing the container door and will not cause damage during transportation and shipment. The picture below shows the typical packaging, container reinforcement and delivery of Deya Machinery.
-pre-sale service
According to the customer's requirements and budget, we will provide equipment pictures, job site videos, plant processing drawings, assembly drawings, foundation drawings, and plant layout drawings. Customers are welcome to visit our factory, and the equipment work site of previous customers. We will arrange car, hotel and interpreter for visiting clients.
-Sales service
Our experienced technicians can be contacted by telephone and the Internet, and customers can obtain practical guidance through telephone, email, and online services anytime and anywhere. According to the customer's requirements, we will send technicians to the mine to guide the installation, trial run test, and train operators until the equipment is in normal operation.
- After-sales service
Usually, the equipment warranty period is 18 months from installation, but it can be extended to 24 months according to customer requirements. Spare parts for equipment will be available at manufacturing cost for at least 10 years after order is placed. In order to establish a long-term cooperative relationship, we will call and send emails to customers regularly to check the operation of the equipment, put forward maintenance suggestions, and return to customers when necessary to solve problems in the operation of the equipment.
