Professional 1000 tons/day cement grinding station ball mill price

Supplier: Henan Hongji Mine Machinery Co., Ltd.
Region: Henan, China
Contact: Ms yu Amanda
Price: $8000.00 /set
Min. Order: 1 set

Click here to contact

Product details

price:	negotiable and reasonable	Core component warranty:	2 years
flow chart:	supply	Output size:	0.074 to 0.89 mm
Operation training:	supply	Mechanical test report:	if
Installation adjustments:	under technical guidance	Feed size:	Less than 20mm
color:	customizable	Package preview:
weight:	5500kg	brand:	Hongyoshi
spare parts:	Lifetime provision	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Supply capacity:	100 sets per month	Warranty:	2 years
type:	ball mill	Video outbound inspection:	if
Marketing type:	2020 new products	Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
Dimensions (lengthwidthheight):	Different models.	Packaging details:	Export standard or naked, spare parts in wooden boxes or according to customer needs
Applicable industries:	Building materials stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, construction projects, energy mining, cement, silicates, fertilizers, ferrous metals, etc.	port:	Qingdao, Tianjin, Shanghai
Showroom location:	Turkey, Philippines, Brazil, Saudi Arabia, Indonesia, Pakistan, South Africa, Kazakhstan, Uzbekistan	Health status:	new
product name:	Silica sand powder grinding ball mill	Production capacity (tons/hour):	0.65 to 400 tons/hour
Place of origin:	Henan, China	Motor type:	AC motor

Product Description

Applications:

Ball mill is the key equipment for grinding after crushing. It is widely used in cement, silicate, new building materials, refractory materials, fertilizers, ferrous metals, non-ferrous metals, glass ceramics and other manufacturing industries. It can be used for various ores and other grindable materials. Dry and wet grinding of plastic materials.

main feature:

1) This ball mill changes the inherent structure of the mill.
2) The main body and the bottom plate are a whole. So you only need to place it on a flat surface once when fixing it.
3) Using a centripetal spherical double-layer roller shaft as the host shaft support can reduce energy costs by 30%.
4) The inherent grille mode for forced evacuation is changed to be controlled by the tipover mode. This improves particle grinding and reduces throughput by 15-20%.

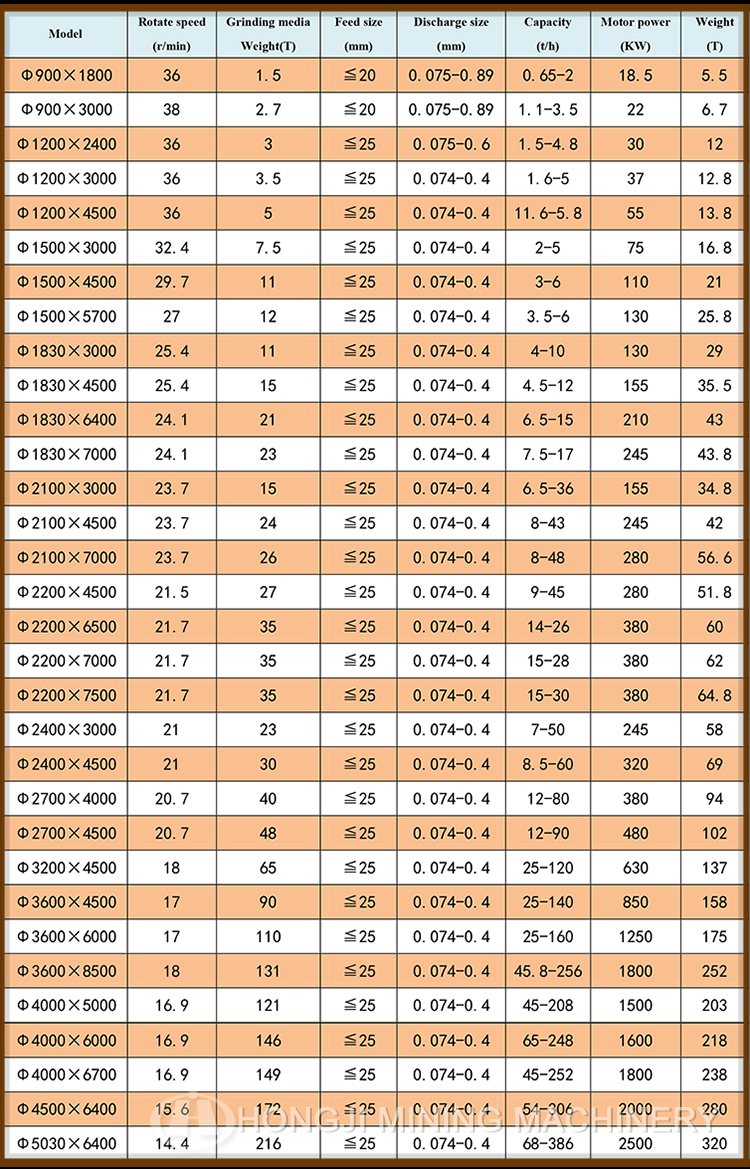

Product parameters

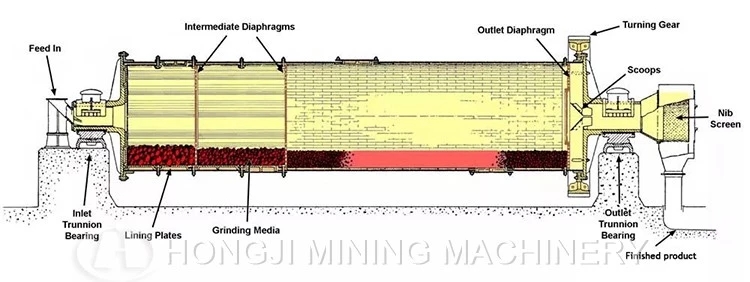

Work principles

The ball mill is a horizontal rotating device driven by an external gear. The material is evenly transported to the grinding chamber through the hollow shaft. There are trapezoidal lining plates, corrugated lining plates and steel balls of different specifications in the cavity. The centrifugal force generated by the rotation of the cylinder brings the steel balls to a certain height, impacting and grinding the materials. The ground materials are discharged through the discharge plate to complete the grinding process.

Our advantage

1	High production capacity and crushing ratio;
2	Low power consumption and uniform particle size;
3	Simple structure and easy operation;
4	Low investment cost and high profits;
5	Perfect service, whether it is pre-sales service or after-sales service.
