Sand washing machine , Sand washer, Sand cleaner under Hongji Brand

Product details
Motor Type:AC Motor;Application:Artifical sand wahing, river sand wash;
Use place:Quarry /stone pit, beach, valley ect.;Capacity(t/h):15-500t/h;
Spare parts:Offered Anytime;Color:Customizable;
Supply Ability:100 Set/Sets per Month Sand washing machine , Sand washer, Sand cleaner under Hongji Br;Certification:CE ISO;
Dimension(L*W*H):Customized;Brand Name:HONGJI;
Installation:Under Engineer's Guide;After-sales Service Provided:Video technical support,Free spare parts,Online support,Field installation, commissioning and training,Field maintenance and repair service;
The Machines classification:Mining Washing Machinery;Condition:New;
Packaging Detail:Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case;Water recycle:80%;
Place of Origin:Henan China;Port:Qingdao ,Shanghai ,Tianjin;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Usage:Building material;
Weight:2.7-118 Tons;Product name:Sand washing machine , Sand washer, Sand cleaner under Hongji Brand;
After Sale Service:Life-long Service;Warranty:2 years;

Sand washing machine , Sand washer, Sand cleaner under Hongji Brand

Product Description

 Product Application



Sand washer is widely used for the washing of the material sand quarry, mining, building materials, transportation, chemical industry, water conservancy and hydropower, concrete mixing station,etc.

According to different kind of washing type, we have:

Spiral sand washing machine:

Wheel type sand washing machine:

Detailed Images

1. This machine's structure is simple. The impeller drive device is separated with water and the watered materiel avoiding that the bearing is damaged by Deeping in water, sand, or contamination.
2. This machine has obvious advantages compared with screw sand washer. The details are as follows:
a. The medium and fine sand are washed away less. The washed construction sand's gradation and modulus of fineness can get the standard which is regulated in national ' construction sand' and ' construction scree and gravel'.
b. There are almost no wearing parts except screen mesh.

1. High capacity

2. Heavy duty conveying paddles

3. Fabricated with heavy duty tubs

4. Oversize bearings and gears

5. Thick-walled shafts

6. Lower end bolted to fully machined stub shaft. Upper end mounted through flexible coupling to output shaft of gearbox

7. The compound drive divides the operating load over an optimal combination of oversized helical and spur gears

Continuous grinding and abrading log washer paddles

8. Adjustable water discharge gates on both sides of lower end of the tub



Machine Difference

Difference of Wheel Sand Washer and Spiral Sand Washer:

+

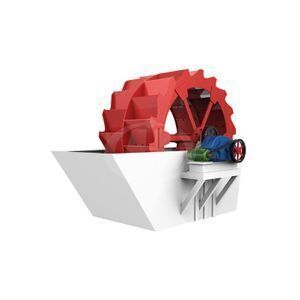

Wheel Sand Washing machine:

Wheel type sand washer a professional cleaning devices for less than 8mm sand grain. Simple structure, impeller drive bearing unit with water and by water isolation material, to avoid bearing due to flooding, sand and pollutants cause to the damage phenomenon.

In the job, fine sand and stone powder wastage is minimal. In addition, the screen has almost no wearing parts, long life, long-term without maintenance.

+

Spiral Sand Washing machine

Spiral sand washer can be used to clean sand, gravel, or for grading equipment. It is widely used in cleaning the materials containing a large quantity of mud obvious. It's a good seal structure, fully enclosed gear, efficient, durable, good dehydration effect, the power consumption is small, fine products remain stable.

Its seal structure, the use of closed transmission device, has high efficiency, durable, dehydration effect is good, small power consumption, and fine particle characteristics of products remain stable.

Technical Parameters

 Wheel Sand Washing machine:

+
ModelDiameter of the wheel bucket (mm)Speed of Rotor (r/min)Feed opening size (mm)Production Capacity (t/h)Motor Power (kw)Overall Dimensions (mm)Weight (kg)
XS2600(Ⅰ)26002.5≤1020-505.53515*2070*26722500
XS2600(Ⅱ)26002.5≤1030-705.53515*2270*26722900
XS280028001.2≤1050-1007.53900*3300*29903980
XS320032001≤1080-120113965*4440*34107270
XS360036001≤10120-180154355*4505*38109430

Spiral Sand Washing Machine:

+
ModelXL508XL610XL762XL9152XL915
Spiral Dia (mm)508610762915915
Sink Length (mm)67057225762075857585
Feeding Size (mm)≤10≤10≤10≤10≤10
Capacity (t/h)2040-5050-75100200
Spiral Speed (r/min)3832262121
Motor Power (kw)5.57.511112*11
Water Consumption (t/h)6-606-639-6310-8020-160
Dimension (mm)8000*2343*14308000*2050*14008545*2650*38628500*2810*36008420*3765*3960
Weight (t)2.673.805.236.2711.11
Packaging & Shipping

Related Products

Our Company

Our Service and FAQ

 Pre-Sales Service:

1) Inquiry and consulting support.

2) Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you.

3) View our Factory. Field trips to sell products.

After-Sales Service:

1) After acceptance of the equipment, we will draft the construction program and detailed process, and complete the export process.

2) After-sales service: We sent engineer to the scene to guide installation, debugging and training operators.

3) Spare parts and wearing parts will be offered with production cost in 10 years.

FAQ:

Q: For providing you the suitable quotation we need to know the following information:

A: 1.What is the raw material for the production line?

    2. What is the capacity per hour you required?

    3. What is the maximum input size of the raw material?

    4. What is the output size and application for the final product? Once we get your answers, I can provide you the best quotation immediately.

Remarks: The price will depend on different models. Reply message you will get 5% discount price.

Q: What about Warranty of the products?

A: Hongji Machinery grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in normal operation, we will at our discretion replace or repair the defective parts freely. Mini Mobile/ Stationary Soft to Hard Rock Stone Jaw Crusher with factory price.

Q: The reason you choose Hongji Machinery:

A: 1. Professional manufacturer of supplying mining crushing equipment, construction equipment, Ore beneficiation equipment and mining dryers.

    2. Experienced and professional R&D team and manufacturing team;

    3. Professional sales team consisted of dedicated, dynamic and innovative people with international version.

    4. Professional logistics service ensuring safety and timely delivery of products all over the world through ocean, airline, road and railway.

Contact us for more details about price, packing, shipping and discount.!!!
