DU-8200 UV/Visible Spectrophotometer supplier

Product details
Wavelength Repeatability:≤0.2nm;Wavelength Setting:Auto, Resolution 0.1nm;
Power Requirements:AC 90-250V,50/60Hz;Place of Origin:China;
Model Number:DU-8200;Supply Ability:500 Piece/Pieces per Month;
Weight:9kgs / 13kgs;Size:431x318x195mm;
Wavelength Accuracy:±0.8nm;Port:Shanghai;
Baseline Flatness:±0.003A;Stray Light:≤0.1%T(220/360nm);
Payment Terms:L/C,T/T,Western Union,MoneyGram;Focal Length:±0.8nm;
Wavelength Range:190-1100nm;Brand Name:Drawell;
Packaging Detail:Standard export package with pure English.;Measurement Range:190-1100;
Stability:≤0.002A/h (500nm,0A);Spectral Bandwidth:2.0nm or 4.0nm optional;

UV/VIS Spectrophotometer



DU-8200



8200 series spectrophotometer is the ideal instrument for education and QC laboratories. They are simple to fit a curve by using your standard. They are widely used in colleges and quantitative analysis lab.



 Features

Small fine design, space saving

The excellent optical and electric system

Low noise and Low stray light

Large LCD display (128*64 Dots), can display curve

High quality grating, detector and lamps

Data and Curve can be stored in real-time

Auto setting WL, auto Blank

Easy to change Pri-aligned lamps

Reinforced baseboard and bracket assures durability



Function:

Photometric: T%, Abs

Quantitative: Standard Curve

System Utility

WL Scan (Spectrum Scan) (PC)

Time Scan (Kinetics) (PC)

DNA/Protein Test (PC)

Multi-WL Test (PC)





 Specifications:

Model

DV-8200

DU-8200

Wavelength Range

320-1100nm

190-1100nm

Spectral Bandwidth

2.0nm or 4.0nm optional

Optical System

Single Beam, Blazed Holographic Grating (1200 lines/mm)

Wavelength Accuracy

±0.8nm

Wavelength Repeatability

≤0.2nm

Wavelength Setting

Auto, Resolution 0.1nm

Photometric Range

0~200%T, -0.3­~3A, 0~9999C

Photometric Accuracy

±0.002A (0~0.5A), ±0.004A (0.5~1A), ±0.3%T (0~100%T)

Photometric Repeatability

≤0.001A (0~0.5A), ≤0.002A (0.5~1A), ≤0.2%T (0~100%T)

Stray Light

≤0.1%T(220/360nm)

Scan Speed

High, Medium, Low.  Max.1000nm/minute

Baseline Flatness

±0.003A

Stability

±0.002A/h (500nm,0A)

Noise

≤0.2%T/3min (250/500nm,0%T); ≤0.5%T/3min (250/500nm,100%T)

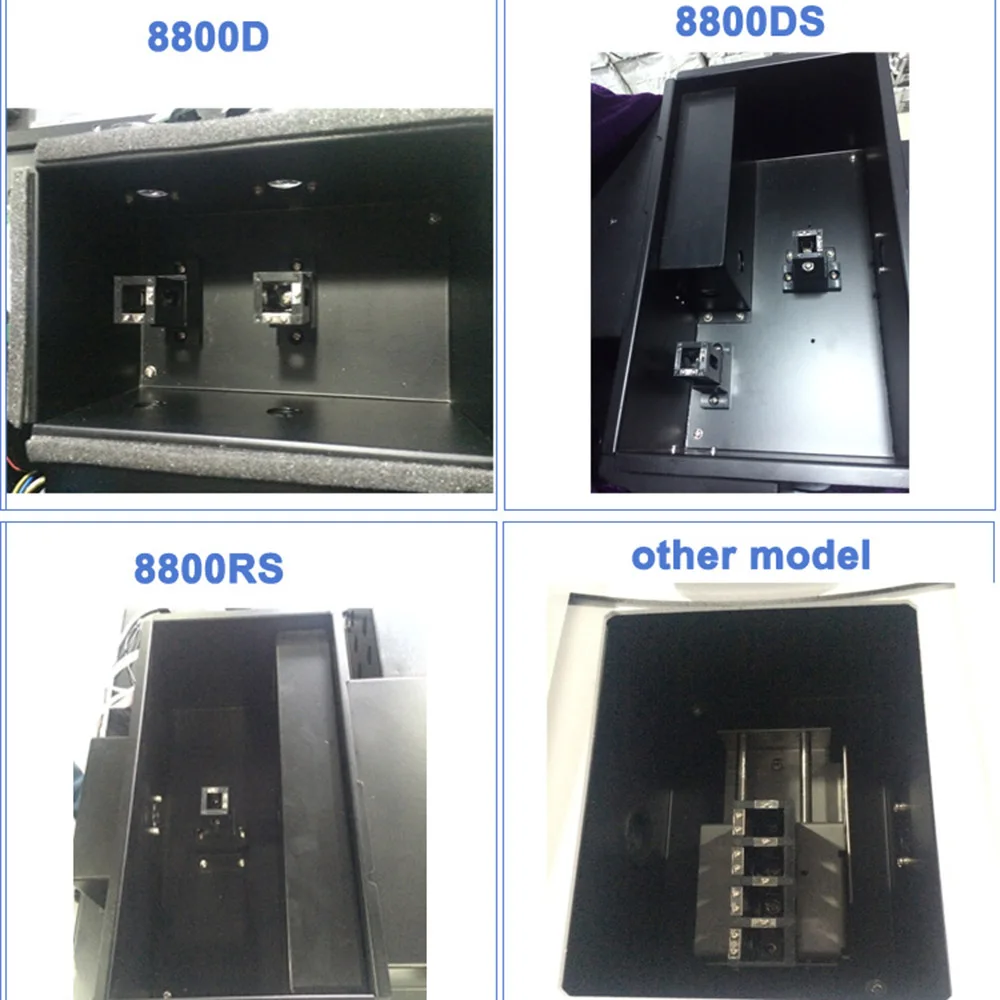

Sample Compartment

Accommodate 5-100mm Pathlength Cuvette

Detector

Silicon Photodiode

Lamps

Tungsten Lamp & Deuterium Lamp (Pre-aligned)

Display

Graphic LCD (128x64 Dots)

Keypad

11-key Membrance Keypad

Output Port

USB Port & RS232 Port

Printer

Mini Serial Printer; PC Printer

PC Software

Optional PC Scanning Software

Power Requirements

AC 90-250V,50/60Hz

Dimension

431x318x195mm

Net Weight / Gross Weight

8.2kgs / 12kgs

9kgs / 13kgs
