Warranty: | 1 Year; | Weight: | 5500kg/4500kg; |
Type: | Gear Hobbing Machine; | Dimension(L*W*H): | 2752x1490x1870/2440x1370x1800; |
CNC or Not: | Normal; | Color: | Customized Optional; |
After-sales Service Provided: | Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service; | Place of Origin: | Jiangsu China (Mainland); |
Name: | gear hobbing machine; | Supply Ability: | 20 Set/Sets per Month; |
Packaging Detail: | Standard Exporting Package; | Port: | shanghai port; |
Condition: | New; | Payment Terms: | L/C,D/P,T/T,Western Union,MoneyGram; |
Certification: | CE; | Voltage: | 380V; |
Brand Name: | SMAC; | Power(W): | W; |

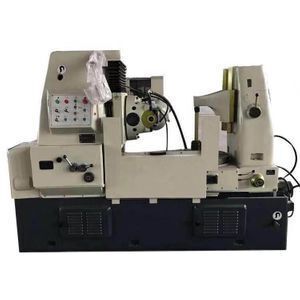

gear hobbing machine Y3180H/Y3150E
The gear hobbing machineis suitable for processing bulk and singlepiece production spur gears,helical gears, worm and sprockets.
This machine has good rigidity, high strength, high precision, easy operation, adjustment and maintenance simple.
Hwasun milling methods can be used milling machining gear, axial or radial can be processed.
Can be configured according to the requirements of customers of Siemens CNC system, complete drum gear and small taper bevel gear processing machine can also be heightened, lengthened to expand the machining range.
MODEL | Y3180H | Y3150E |
Max workpiece diameter | with rear column 550mm | 550mm |
without rear column800mm | ||
Max hobbing modulus | 10mm | 8mm |
Max Processing Width | 300mm | 250mm |
Min processing gear | Z/K=8 | Z/K=6 |
Max vertical travel of tool post | 350mm | 300mm |
max swiver angel of tool post | 240° | 240° |
Distance between cutter axis and worktable | MAX585mm | MAX535mm |
MIN235mm | MIN235mm | |
Spindle taper | Morse 5 | Morse 5 |
Hob diameter | Max diameter 180mm | Max diameter 160mm |
Min length 180mm | Min length 160mm | |
Max axial movement of cutter | 50mm | 55mm |
Hob abor diameters | Φ22 Φ27 Φ32 Φ40mm | Φ22,Φ27,Φ32mm |
Distance between hob axis center and worktable | MAX 550mm | MAX 330mm |
MIN 50mm | MIN 30mm | |
Distance of hydraulic worktable Rapid moving | 50mm | 50mm |
Worktable aperture | 80mm | 80mm |
Taper bore of workpiece mandrel | Morse 5 | Morse 5 |
Worktable diameter | 650mm | 520mm |
Spindle rotate speed and range | 8LEVEL40~200r/min | 9LEVEL40~250r/min |
Rapid travel speed of tool post slide | ≤540mm/min | ≤540mm/min |
Worktable rapid moving speed | ≤500mm/min | ≤500mm/min |
Distance between worktable and outer support of axis face | MIN400mm | MIN400mm |
MAX600mm | MAX600mm | |
Axial feed rate and degree | 12LEVEL 0.4-4mm/r | 12LEVEL 0.4-4mm/r |
main motor power and synchro-speed | N=5.5kw, 1500r/min | 4kw 1500r/min |
Axial rapid motor power and synchro-speed | N=1.1KW 1500r/min | 1.1kw 1500r/min |
Worktable rapid motor power and synchro-speed | N=0.55KW 1500r/min | 0.55kw 1500r/min |
Hydraulic oil pump power and synchro-speed | N=1.1kw, 910r/min | 1.1kw 1000r/min |
Machine weight | 5500kg | 4500kg |
Overall dimension | 2752x1490x1870mm | 2440x1370x1800mm |
