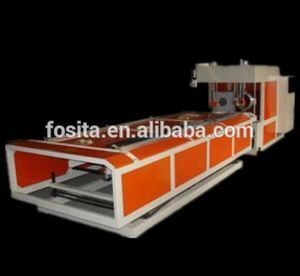

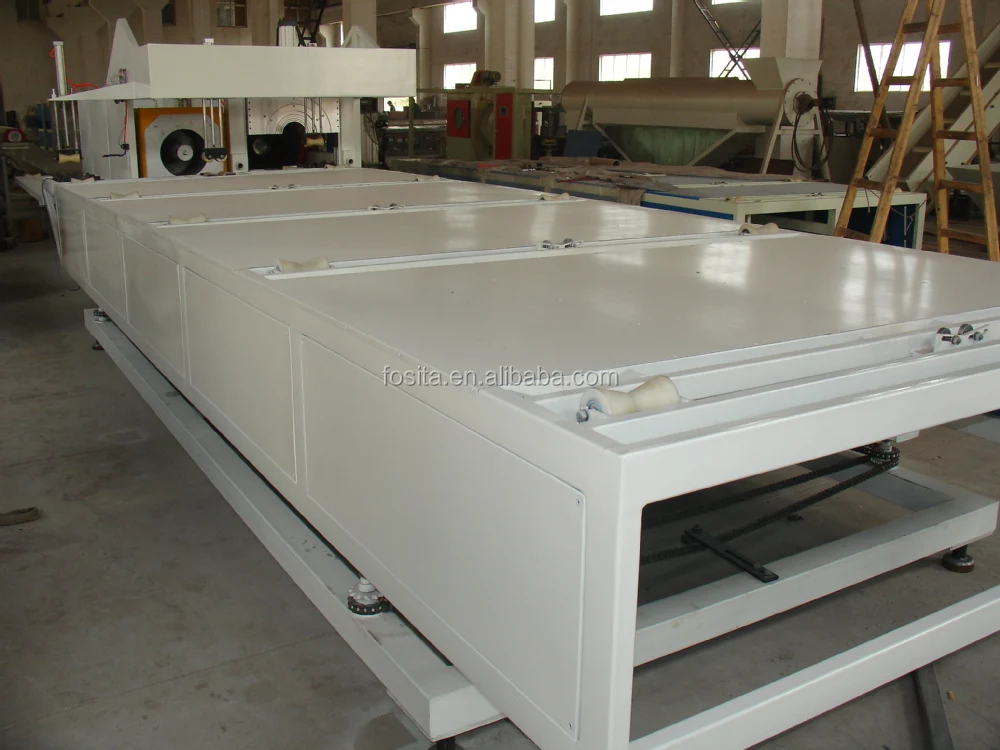

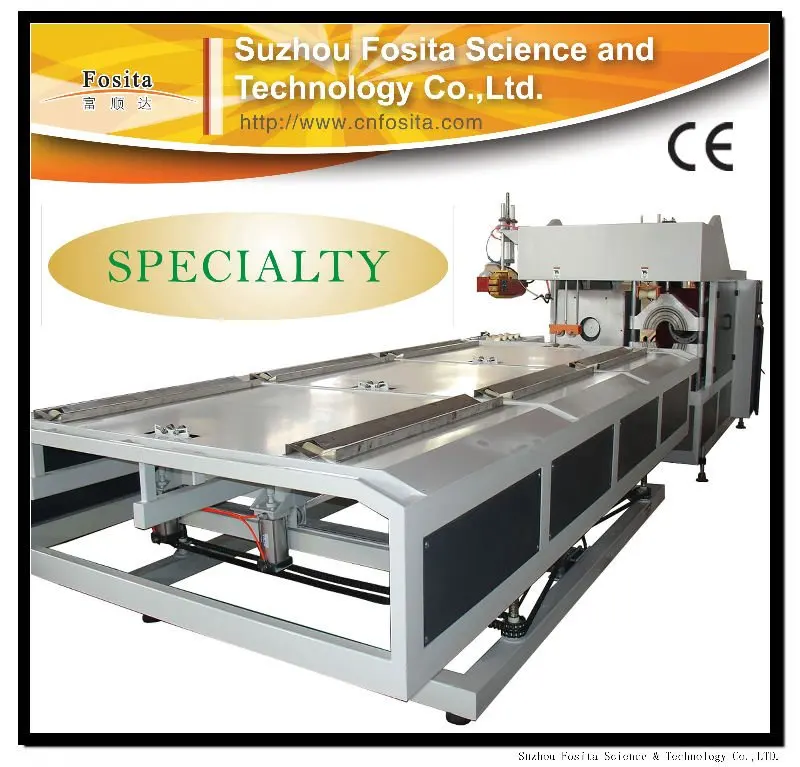

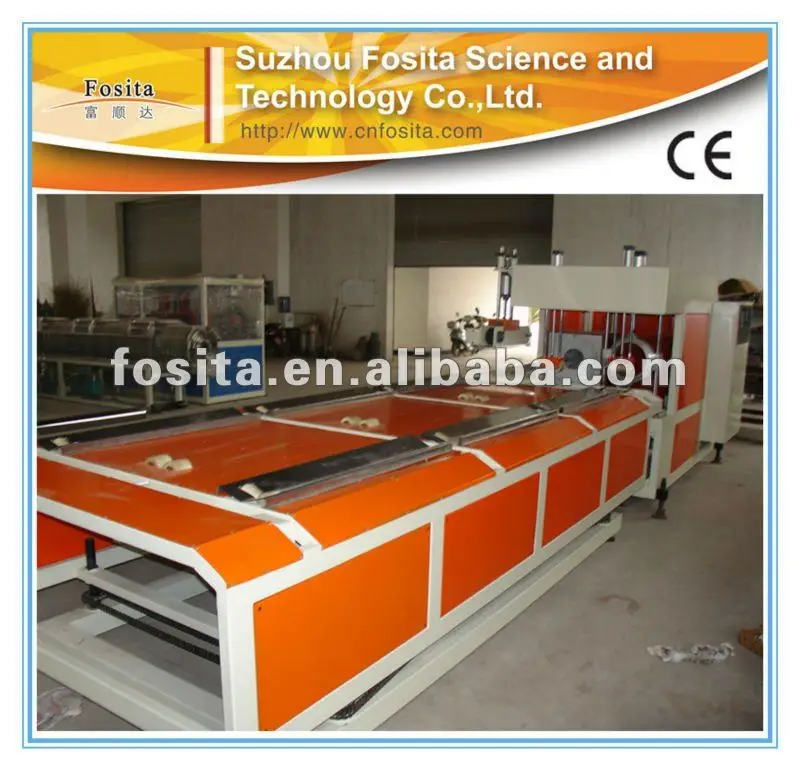

Fully Automatic PVC UPVC Pipe Belling Socket Machine/Expanding Machine for water drain

Supplier: Suzhou Fosita Science And Technology Co., Ltd.
Region: Jiangsu, China
Contact: Mr YONGBING QIU
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Processing Type:	Pipe Belling Machine;	Place of Origin:	Jiangsu China (Mainland);
Port:	shanghai;	Product Type:	Plastic Pipe;

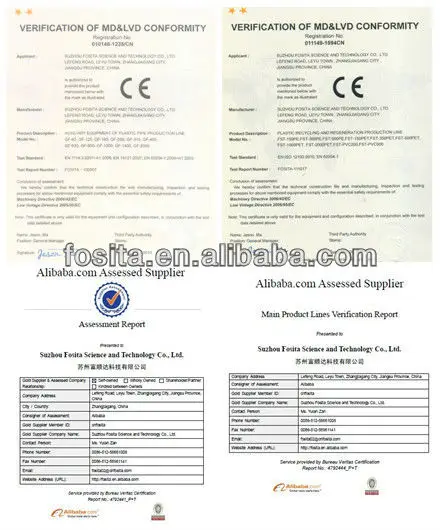

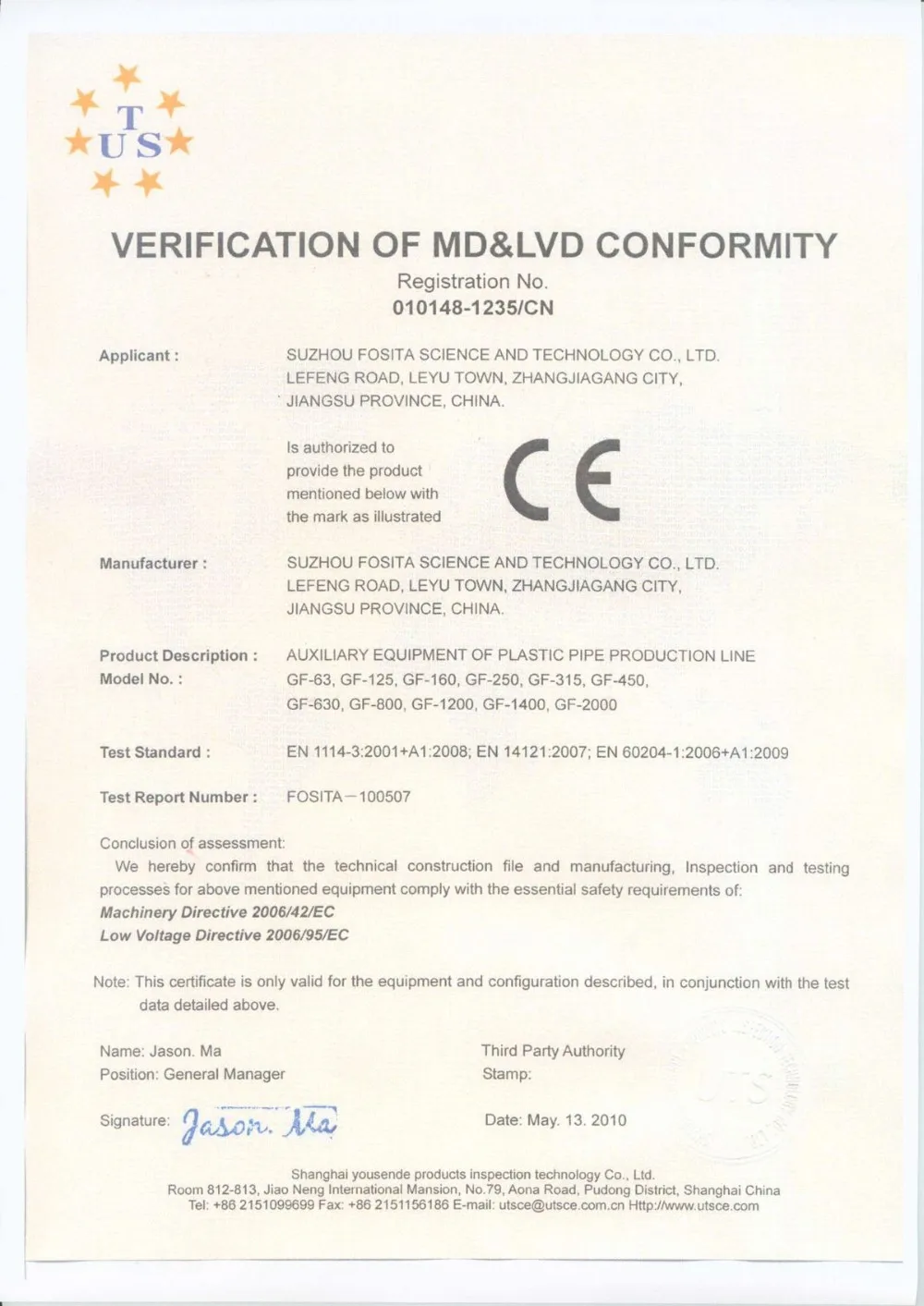

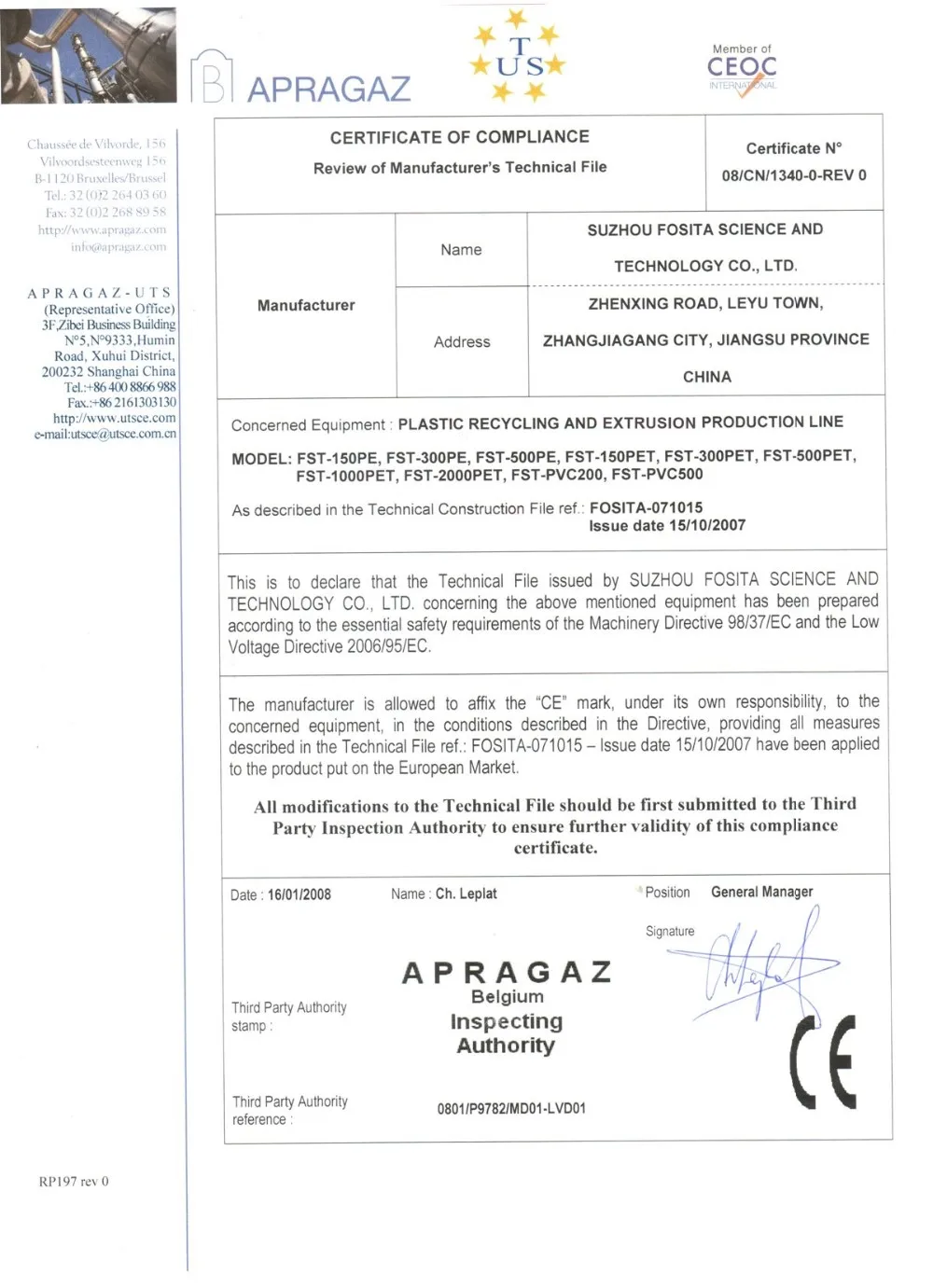

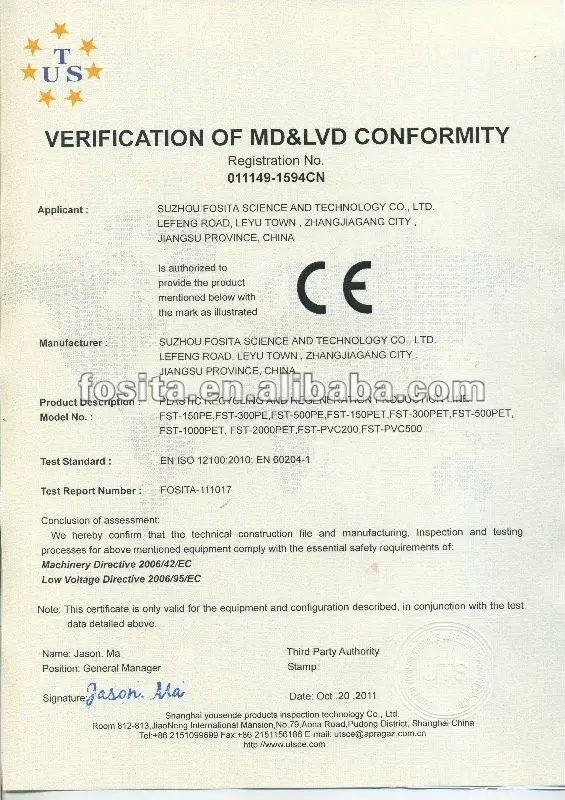

Certification:	CE;	packing:	according to customer's demand;
Weight:	1.5-8t;	Power(W):	15kw;
Condition:	New;	Supply Ability:	10 Set/Sets per Month;
Model Number:	SGK pvc pipe belling machine;	After-sales Service Provided:	Engineers available to service machinery overseas;
Dimension(LWH):	as you request;	Brand name:	FOSITA pvc pipe belling machine;
Model Number:	SGK pvc pipe belling machine;	Voltage:	380V;
Voltage:	380V;	Delivery Detail:	30 days after payment;
Warranty:	12 Months;	Product Type:	Plastic Pipe;
Certification:	CE;	Brand Name:	FOSITA pvc pipe belling machine;
Packaging Detail:	According to customer's demand.;	Power(W):	15kw;
Warranty:	12 months;	Payment Terms:	L/C,T/T;
Belling type:	R-type;	COLOR:	Customizable;

Product Description

Product Application

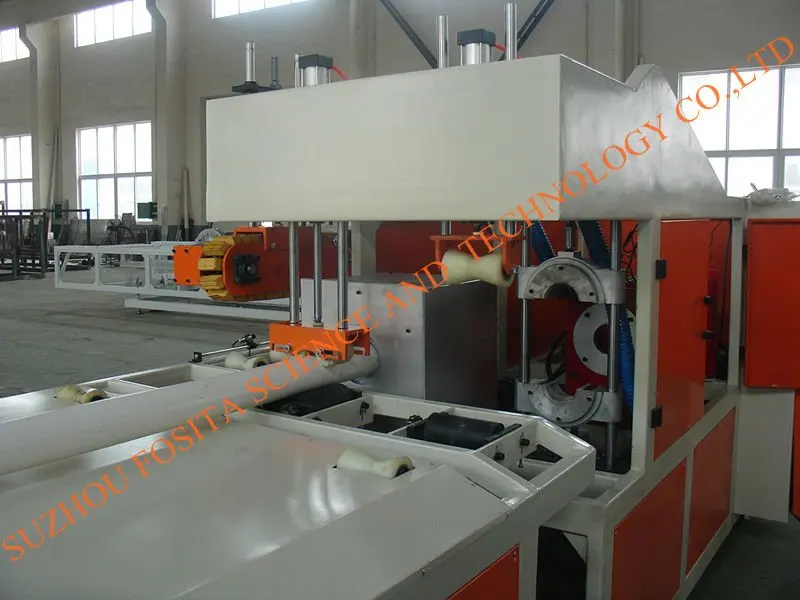

SGK Series Full Automatic Plastic Pipe Belling Machine is collocated with material-receiving pulling device as well as related process interfaces that are matched with the main machine, it not only can work together with the main machine, it can work solely at the same time; horizontally moves pipes, stable and accurate actions, and not easy to hurt pipes; this machine adopts infrared ray heating way and it is a double-heating furnace, and each heating furnace is collocated with central heating furnace core; adopts expansion tube head shaping way, with accurate dimension of nozzle; it has conversion switches of expansion solvent plug (direct type) and expansion flexibility sealing washer type plug (R type) in control panel, so it is very convenient to choose the way of tube expansion, with strong craft adaptability; main electric control components adopt imported ones, with stable and reliable system performance

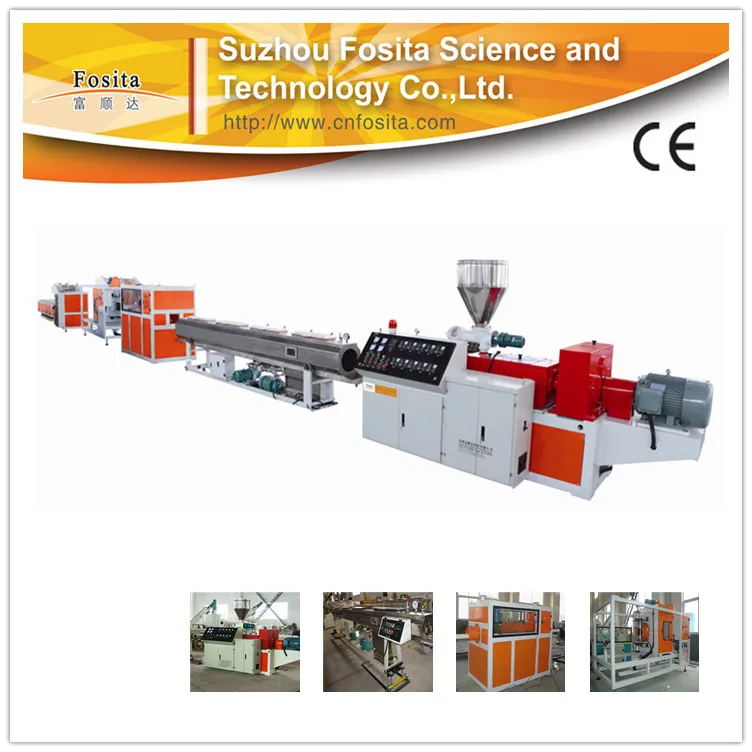

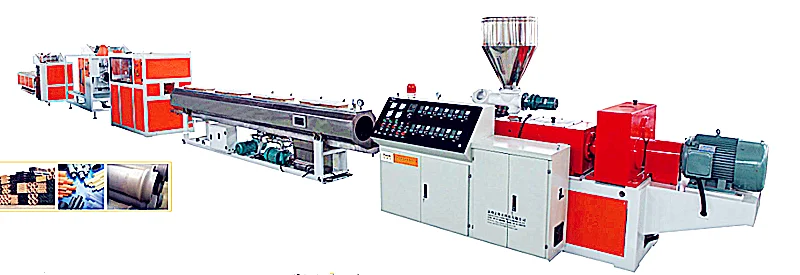

Fosita main product used with extruding machine pvc pipe belling machine

Model	Scope(mm)	Heating Power(kw)	Total Power(kw)	Central Height(mm)	Belling Type
SGK630	315-630	25.4	36.32	1100	straight type and R type
SGK400	160-400	15.5	22	1100	straight type and R type
SGK250	50-250	7.2	12.5	1000	straight type and R type
SGK63	20-63	4	5.5	1000	straight type and R type
SGK50	2-20-50	6	6.5	1000	straight type
