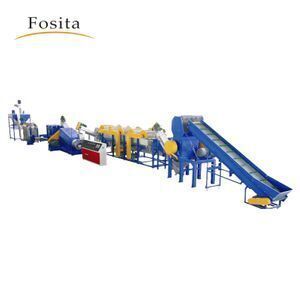

Waste PP PE PET Plastic Bottle Washing Recycling Machine

Product details
Warranty:1 Year;After-sales Service Provided:Video technical support,Free Spare Parts,Field installation, commissioning and training,Field maintenance and repair service,Online support;
Package Type:Film Package;Voltage:380V, 50Hz, 3Phases;
Contactor:Shneider;Condition:New;
Local Service Location:None;Application:Recycling PET BOTTLES;
Place of Origin:China;Material Processed:Plastic bottles/flakes;
final PET flake water content:Less Than 2%;Package Preview:https://sc01.alicdn.com/kf/H0cf0a1a51cb3434096390c26f6f8c506a.jpg_640x640.jpg;
Capacity:300kg/h-2000kg/h;Showroom Location:None;
Inverter:ABB;Single gross weight:0.5 KG;
Weight:per capacity;Production Capacity (kg/h):500;
Brand Name:FOSITA-PET;Motor brand:Siemens;
Steel:SUS304 stainless steel;Applicable Industries:Manufacturing Plant;
Certification:CE;Dimension(L*W*H):according to model;
Single package size:20X15X10 cm;Weight (T):4;
Automatic Grade:Automatic;Selling Units:Single item;
Size of final products:10-14mm;Key Selling Points:High-accuracy;
Crusher Blades:SKD-II;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;

Waste PP PE PET Plastic bottle washing recycling machine



Description:



PET Plastic recycling machine is mainly used for crushing, washing, palletizing of PET bottles to realize auto separation for caps and labels: belt conveyer, crusher, steam washer, scrubbing washing unit, rinsing and precipitation washing unit, centrifugal dewatering unit, hot air flow drying unit, and electric control cabinet. It can be equipped in L or U shape according to your requests. Which capability arrange 300-2000KG/h.



Main Advantages:



1. Automotive line for recycling the PET bottles and other waste plastic profile, except the film.



2. The final product is the cleaning flakes, if you want the final product is pellets, we should equip the granulator line again.



Process flow:

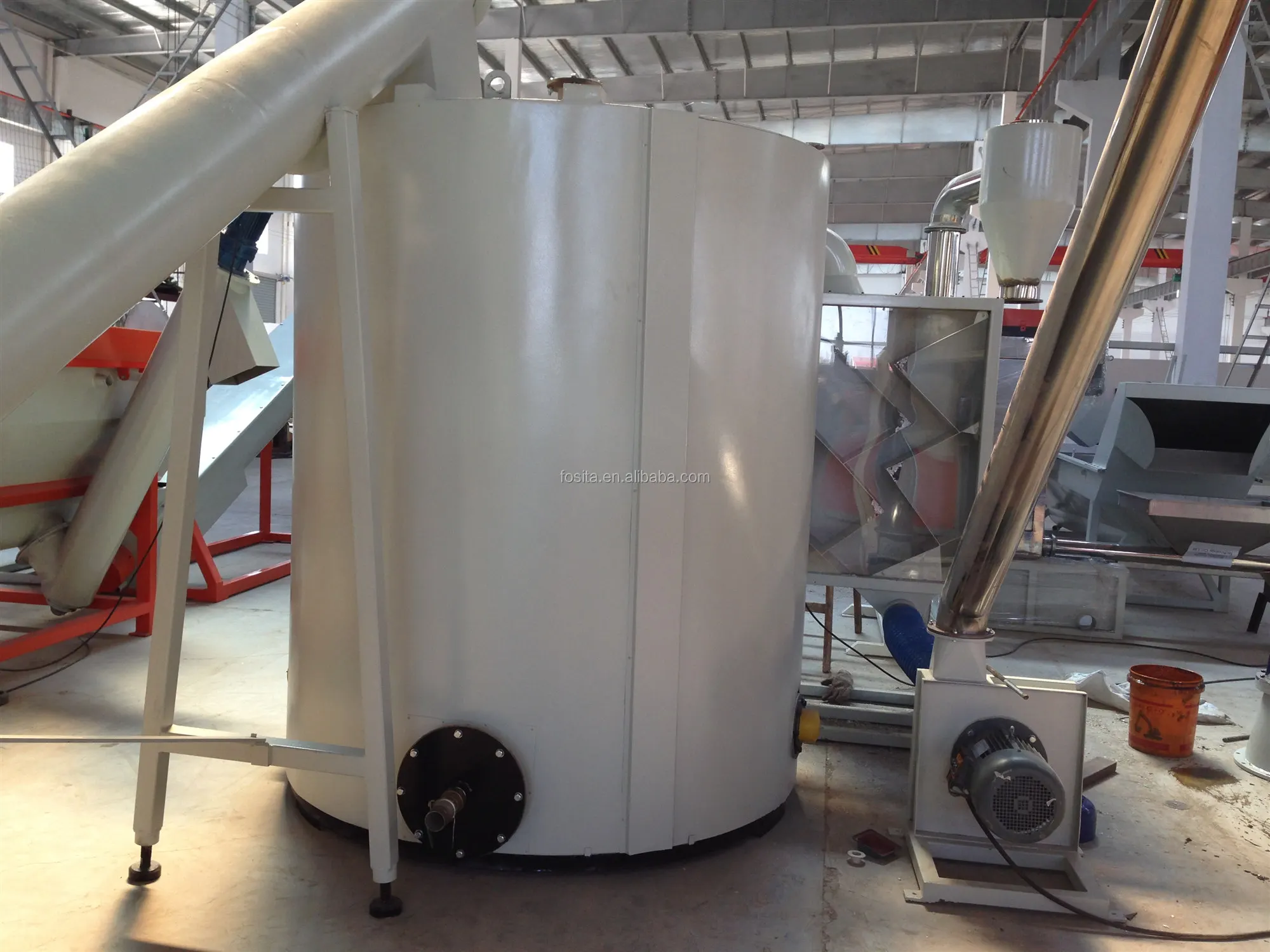

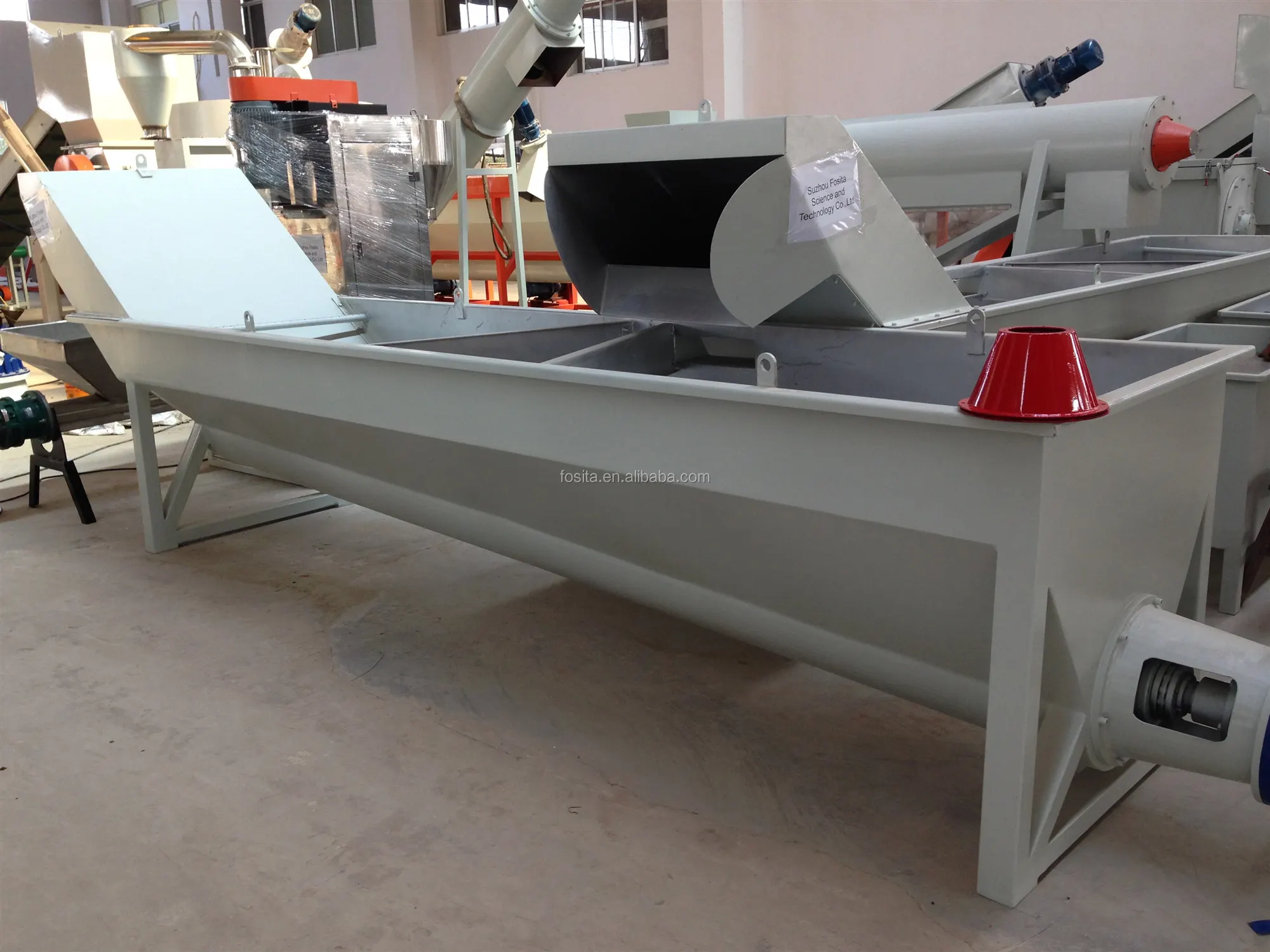

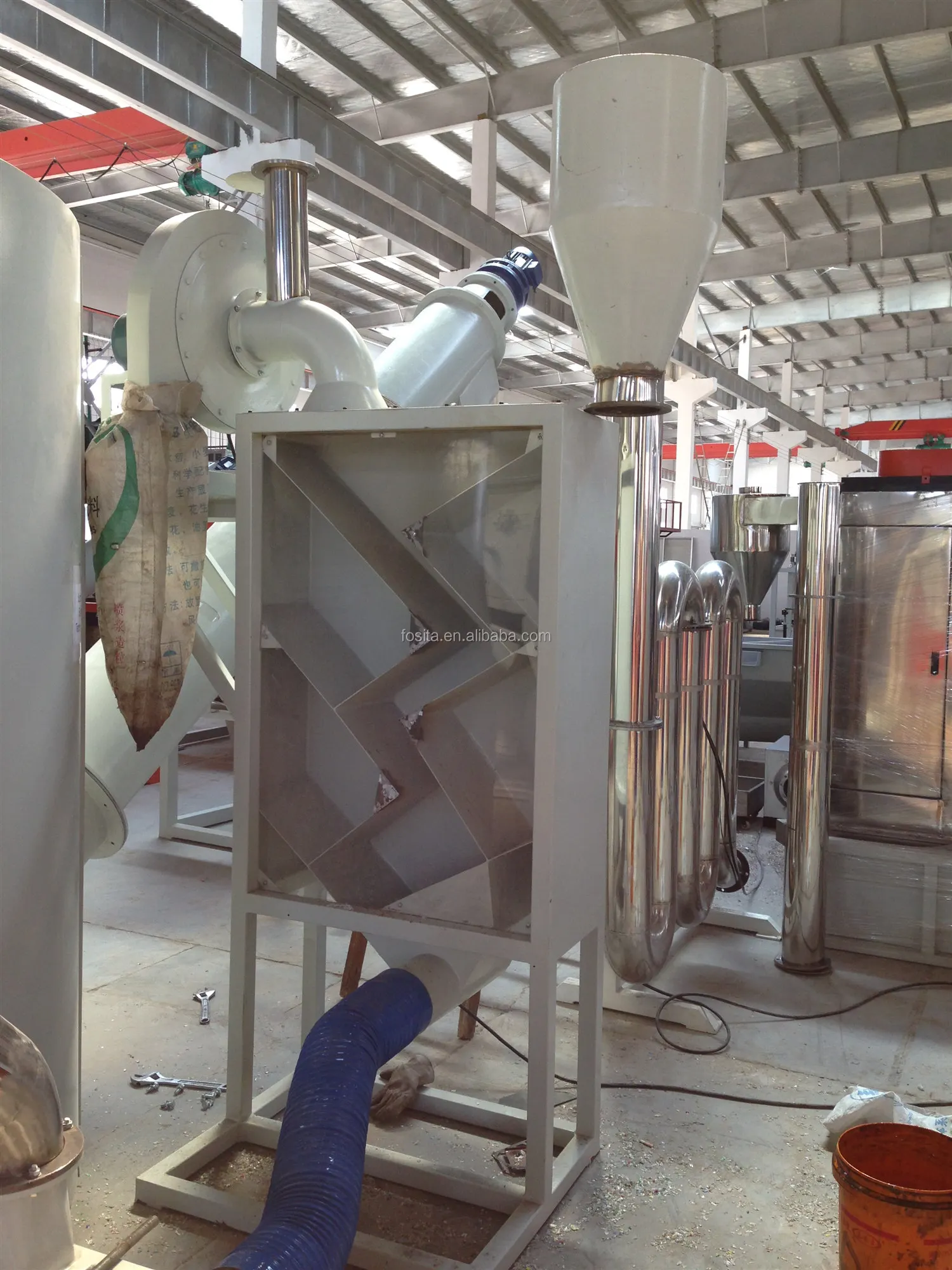

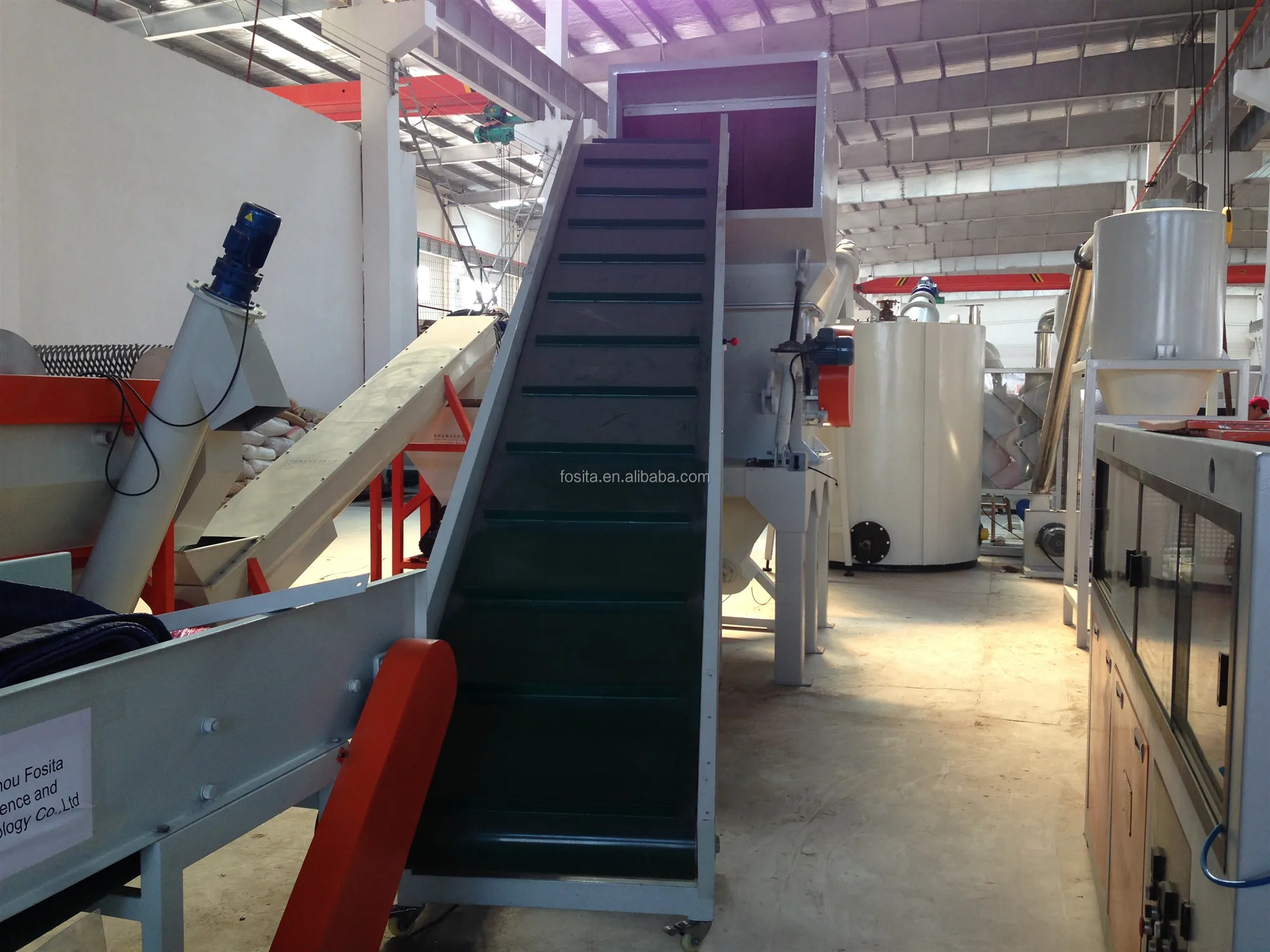

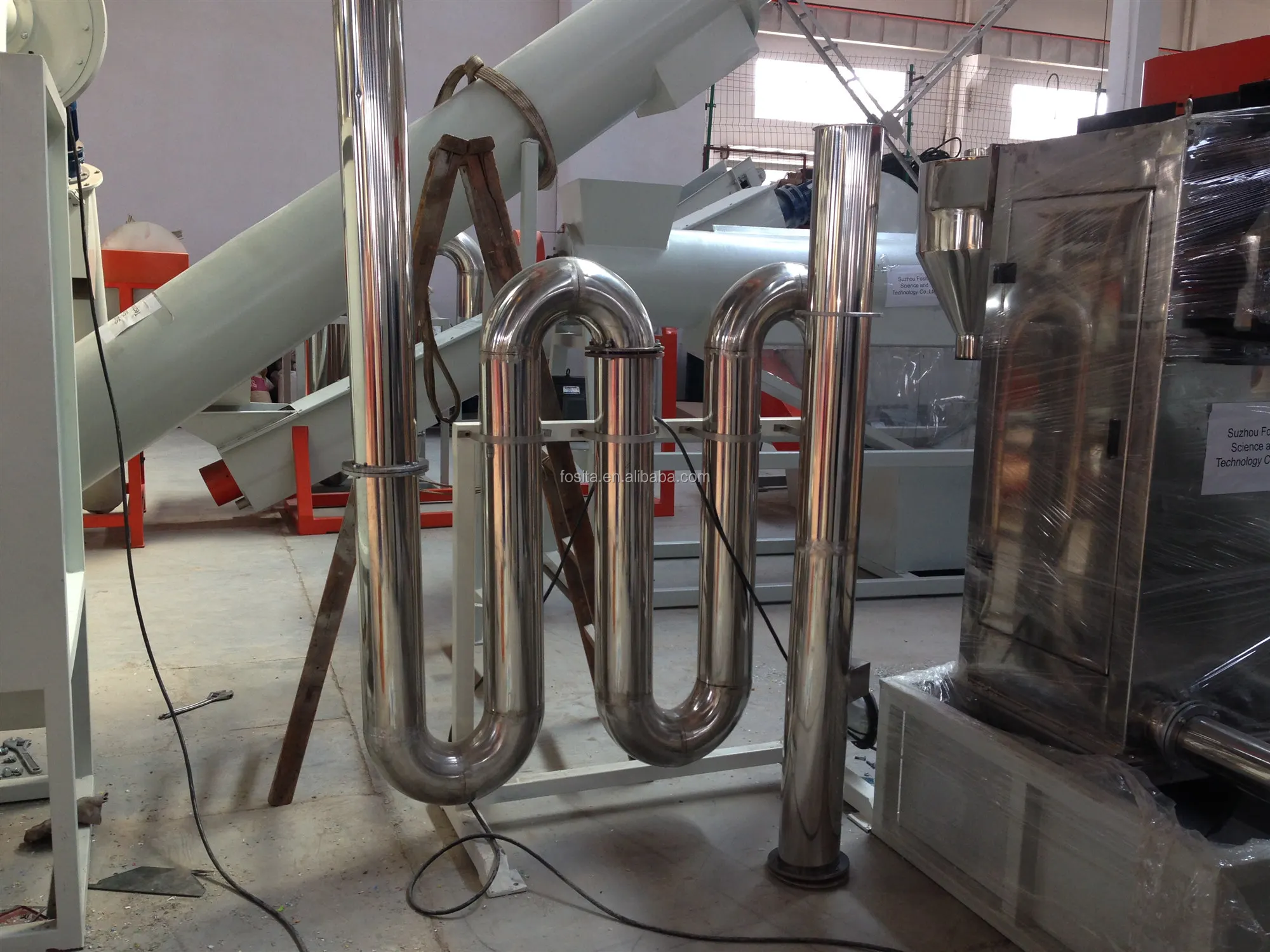

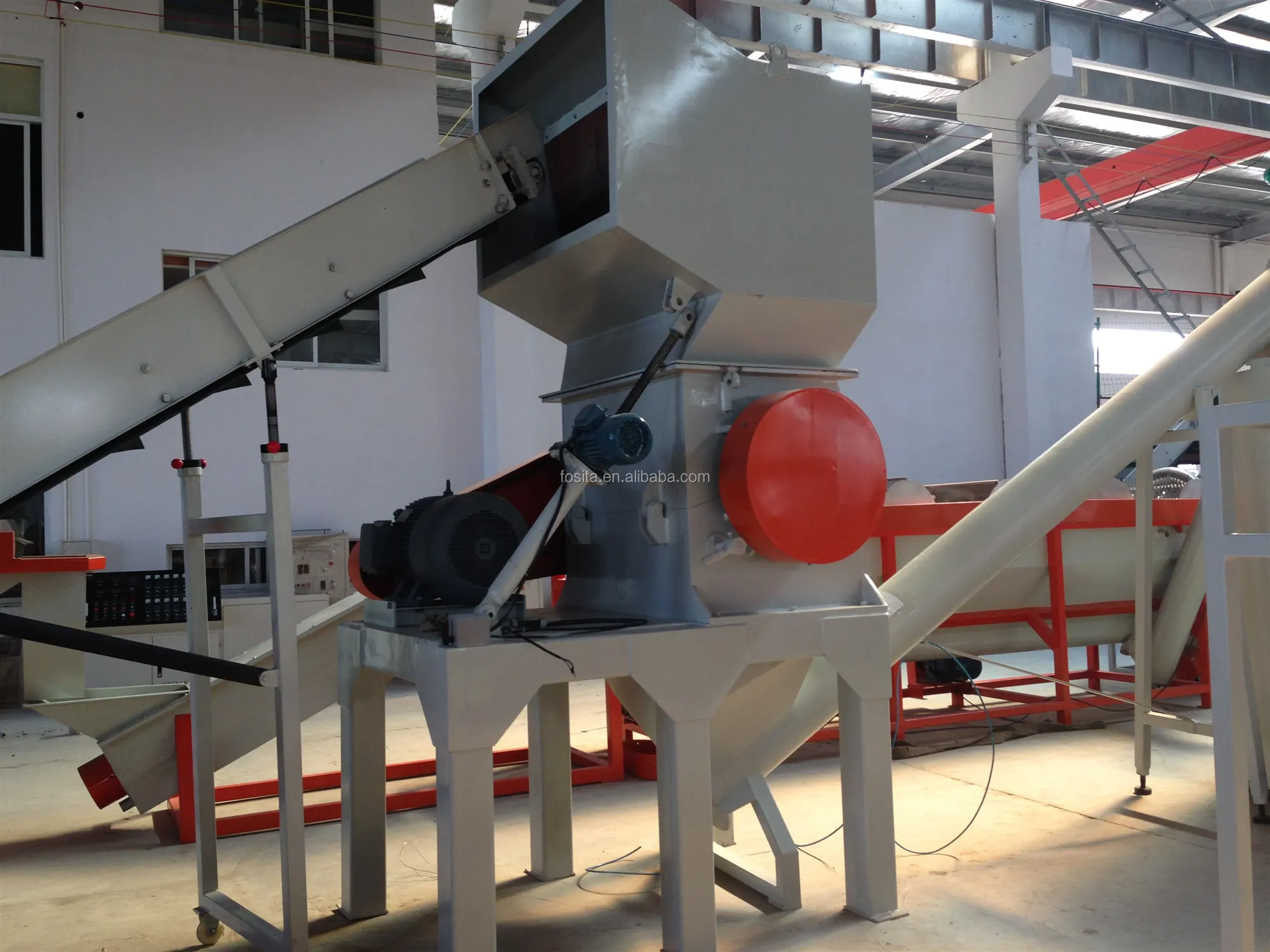

Bale opening machine→Belt conveyor→Label stripper→Separating conveyor→Belt conveyor→Crusher→Screw conveyor→Boiler→Screw conveyor→Friction cleaning machine→Fulling mill→Screw conveyor→Twin-screw washing tank→Twin-screw washing tank→Centrifugal dewatering machine→Heating dryer→Blowing conveyor





Technical Parameter

Product capacity

300kg/h

500kg/h

1000kg/h

1500kg/h

Workshop(L*W*H)

40m*7.5m*6m

42m*10m*6m

70m*12m*6m

75m*15m*6m

Needed worker

3-4 persons

5-6persons

7-8persons

10-12persons

Water supply
(recycle use)

2-3ton/h

3-5ton/h

7-10ton/h

10-15ton/h

Final product quality

Moisture: max 1%
Bulk density: 0.3G/CM3
Particle size: 10-18mm
Metal content: max.20ppm
Floatable contamination: less than 200ppm
Total impurity: 100-320ppm

Application: PET Strap, PET Yarn Fiber

Bottle Types: PET Bottle, Plastic Bucket, Water Bottle, Coke Bottle

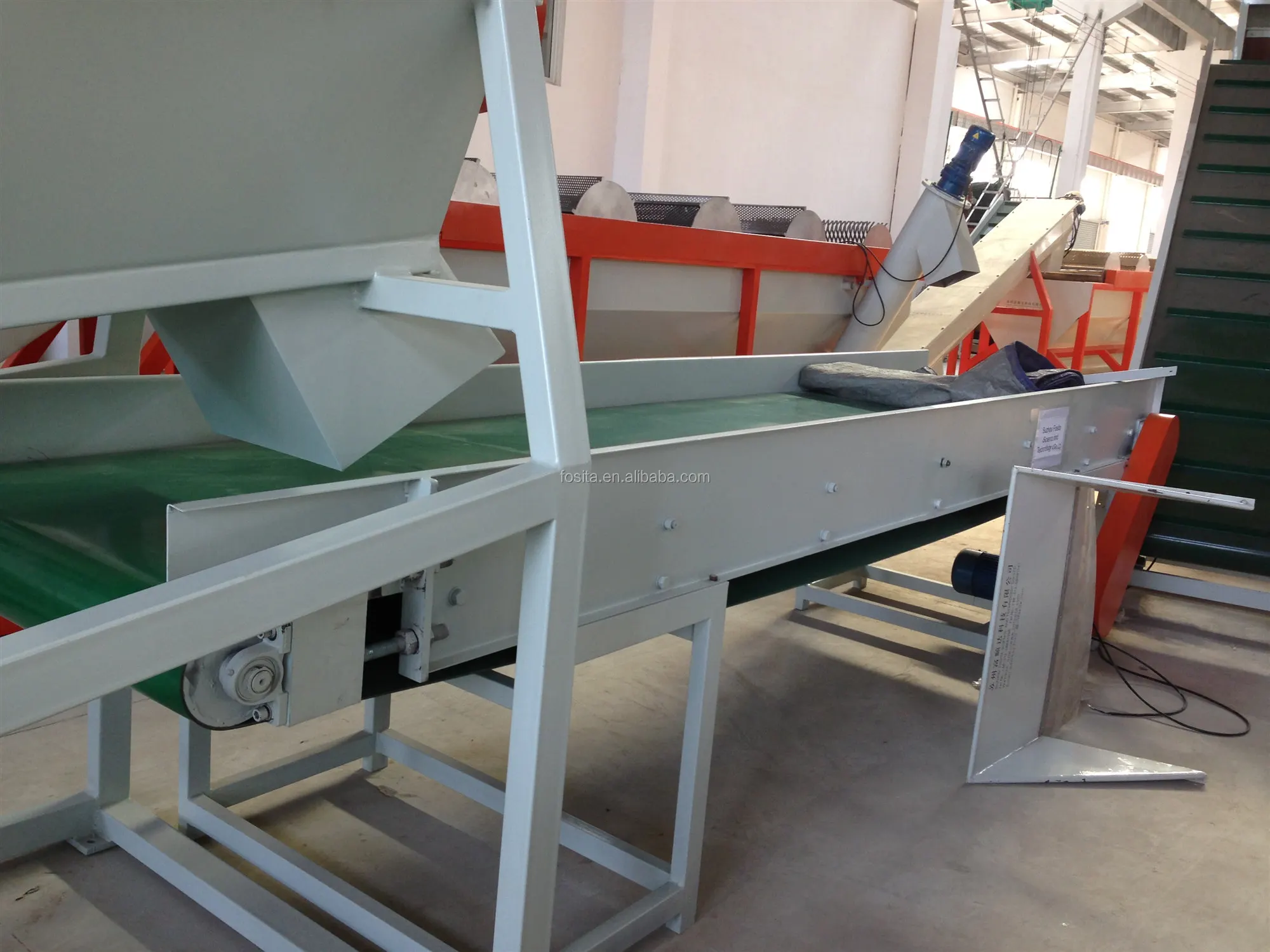

Pictures:
