Warranty: | 1 Year; | After-sales Service Provided: | Video technical support,Online support; |
Type: | Granulator; | Payment Terms: | L/C,T/T,Western Union; |
Place of Origin: | Shanghai China (Mainland); | After-sales Service Provided: | Engineers available to service machinery overseas; |
Supply Ability: | 10 Unit/Units per Month; | Application: | Granules; |
Applicable Industries: | pharmacy, chemical, food, electronic, metallurgy; | Application: | Granules; |
Type: | Granulator; | Port: | Shanghai; |
Packaging Detail: | seaworty package; | Brand Name: | TIANFENG; |
The ZL rotary granulator is widely used in industries such as pharmacy, foods, medicinal granules, chemicals, and solid beverage. It can press the mixed substance into the demanded particles or smash wasted tablets and dried cubes and then roll them into particles. It is especially suitable for highly sticky substance. The part where the rotary granulator contacts with the substance is made of stainless steel. It possesses a beautiful appearance, proper structure, a high efficiency of particle formation. The particles are beautiful, too. It sends out substance automatically so as to avoid damage caused by manual sending, so it is suitable for line production. The roller blade and the swaging rotate in the opposite directions by means of mechanical rotation. The swaging leaf is placed at a certain angle to push the substance downward into the roller blade, then the large-angle helical blade pushes the substance into the sieve's wall, at last, the blade squeezes the substance into particles through the sieve pores.
Technique Parameter
Model | ZL250 | ZL300 |
Trough capacity (L) | 250 | 300 |
Granule Dia. (mm) | 2-2.2 | 1.8-2.5 |
Overall size (mm) | 700×540×1300 | 880×640×1300 |
Motor power (KW) | 3 | 3 |
Weight (kg) | 350 | 400 |
Capacity (pieces/h) | 100-200 | 140-400 |

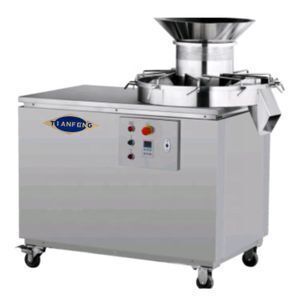

ZL250 ZL300 rotary granulator

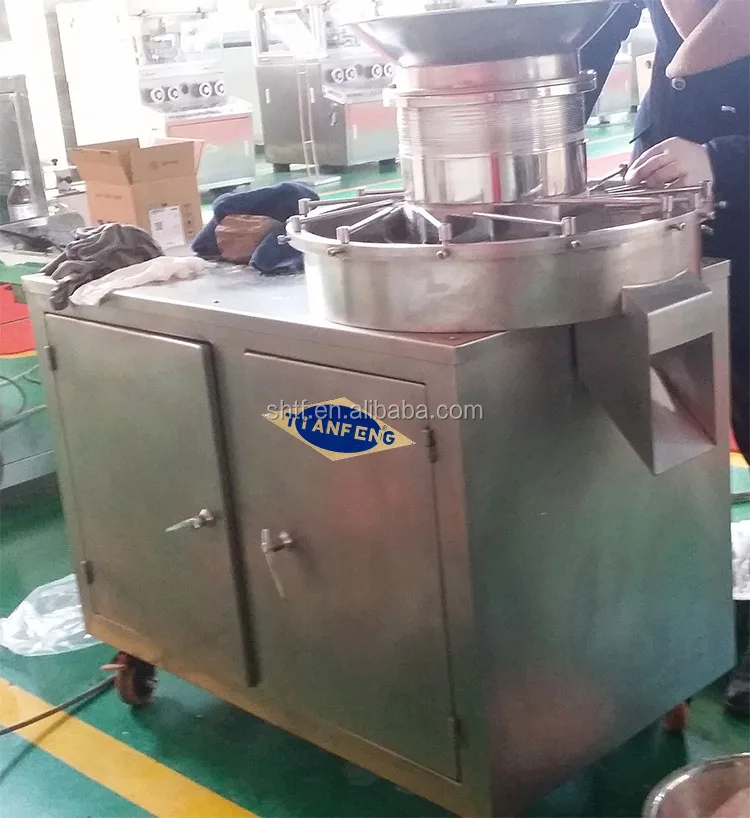

Ordinary one

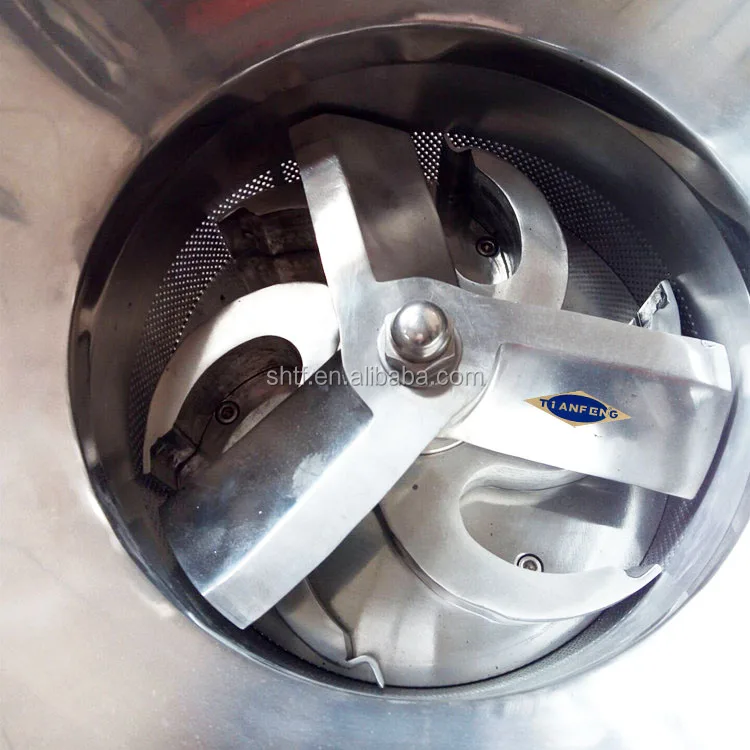

With knives
Shanghai Tianfeng Pharmaceutical Machinery Co., Ltd. has made elaborate designs and products, on the basis of absorbing features and advantages of similar products both at home and combing with national GMP standard.We have successfully developed the brand of TDP, DP, THP, ZP, ZPW series tablet presses; CFQ, CXJ, TSG, QVC series assistant machine of tablet presses; CH, V, HD series mixers; YK, ZL, LG, HLSG series granulators; GF, Dl, CW series crushers; RXH series drying machines; BY series sugarcoating machines; ZLK series high speed granulator and various dies, which are suitable for pharmaceutical, food, chemical, electronics and metallurgy industries.
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually to ship ZL250 / ZL300 Rotary granulator by sea way.
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Spare Part Replacement
First screen for free, discount if more order.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
<
Chen ( Sales Manager )
