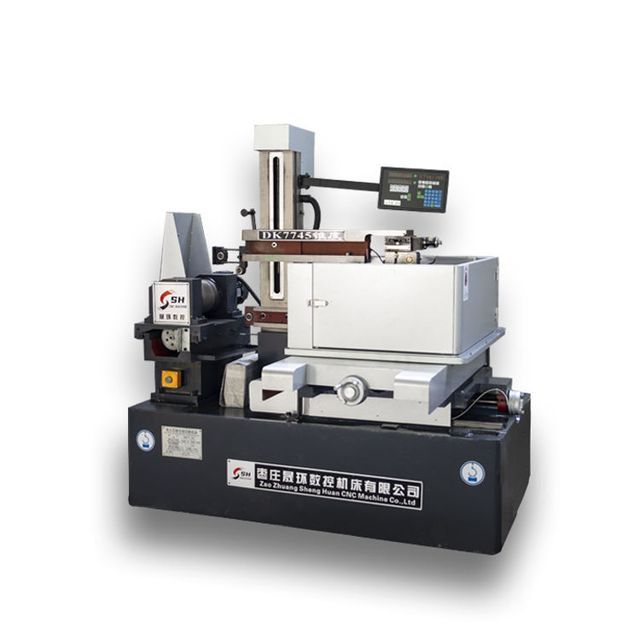

DK7745 High Precision Wire Cutting CNC Machine Tool

Click here to contact

Product details

Marketing Type:	New Products for 2022	control method:	CNC system
Voltage:	380	Maximum workpiece weight:	400 kg
Package preview:		Core components:	motor, gear
brand:	Carnival	Health status:	new
Origin:	Shandong Province, China	Core component warranty:	1 year
Applicable industries:	Building material stores, machinery repair shops, manufacturing plants, household, energy and mining, construction	Table size (mm):	810*570
Surface roughness:	Ra<2.5um	Supply capacity:	100 groups per week
Key words:	Dk7745 High Precision Wire Cutting Machine	Whether CNC:	CNC system
Type of machine:	wire cutting	Power (kW):	2
Showroom location:	Türkiye, Indonesia, India, Russia, Kazakhstan, Ukraine	Video outbound inspection:	if
Weight (kg):	1400	color:	customer optional
Dimensions (LWH):	160012001600	Mechanical test report:	if
Warranty:	1 year	product name:	DK7745 High Precision Wire Cutting CNC Machine Tool
Packaging Details:	The outer packaging made of tin foil has better moisture-proof function. The outer packing box of the machine tool is made of fumigated wood board with a thickness of 7mm, which has better protection and moisture-proof performance. Double protection can make customers feel more at ease	port:	Qingdao Port
Main selling points:	multifunctional	accurate:	0.02mm
payment terms:	Letter of credit, documents against payment, documents against acceptance	Processing taper:	custom made
Year:	2022

DK7745 High Precision Wire Cutting CNC Machine Tool

DK7735 series machines:

1. Standard maximum cutting taper: ±6°/80mm; (±15°, ±30°, ±45° optional)

2. Accuracy ≤ 0.02mm, in line with GB7926-2005 standard; (if equipped with linear guide rail, the accuracy can reach 0.01mm)

3. The best surface roughness ≤ Ra2.5μm (single cut), Ra1.5μm (multi-cut);

4. Molybdenum wire diameter: 0.1-0.2mm;

5. Maximum. Cutting speed ≥120mm^2/min;

6. Voltage: three-phase 380V (single-phase 220V, three-phase 220V or other voltages can be customized), power: 1.5KW;

7. Working fluid: water-based emulsion.

Model	Table travel (mm)	Table size(mm)	maximum. Cutting thickness(mm)	maximum. Load (kg)	Dimensions (mm)	Weight (kg)
DK7720	200*250	420*270	200	100	12509501250	800
DK7725	250*320	520*340	300	200	14509001500	1000
DK7735(32)	350(320)*450(400)	710*460	400	300	140011001600	1100
DK7745(40)	450(400)*550(500)	810*570	400	500	160012001600	1400
DK7745F(40F)	450(400)*630	950*600	400/600	600	160015801600	1600
DK7755(50)	550(500)*650(630)	950*650	700	700	200015001900	1800
DK7755F(50F)	550(500)*800	1140*650	700	700	200016501900	2000
DK7763	630*800	1140*750	700	1000	210017002050	2400
DK7763F	630*1000	1350*750	700	1200	225018502050	2800
DK7780	800*1000	1350*980	900	2000	240019002350	4000
DK7780F	800*1200	1600*1050	900	2400	255019502400	4500
