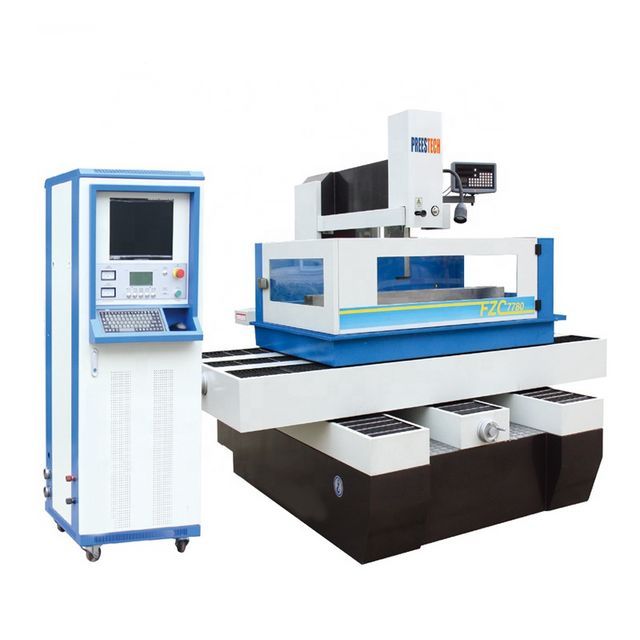

CNC wire cutting machine EDM DK7780C Mold metal multi-strip medium speed machine

Product details
product name:CNC wire cutting machineWarranty:1 year
Core component warranty:2 yearsbrand:Price
Video outbound inspection:ifVoltage:220V/380V/415V 50HZ 60HZ
ODM and OEM:acceptableapplication:metal cutting
Dimensions (length*width*height):1600X1300X1600Main selling points:High accuracy
Core components:PLC, bearings, motors, pumpsType of machine:wire cutting
Marketing type:New products for 2021Model:DK7780C
Health status:newMechanical test report:if
Year:2021Showroom location:Vietnam, Philippines, Brazil, Indonesia, Pakistan, India, Russia, Thailand, Bangladesh, Uzbekistan, Malaysia

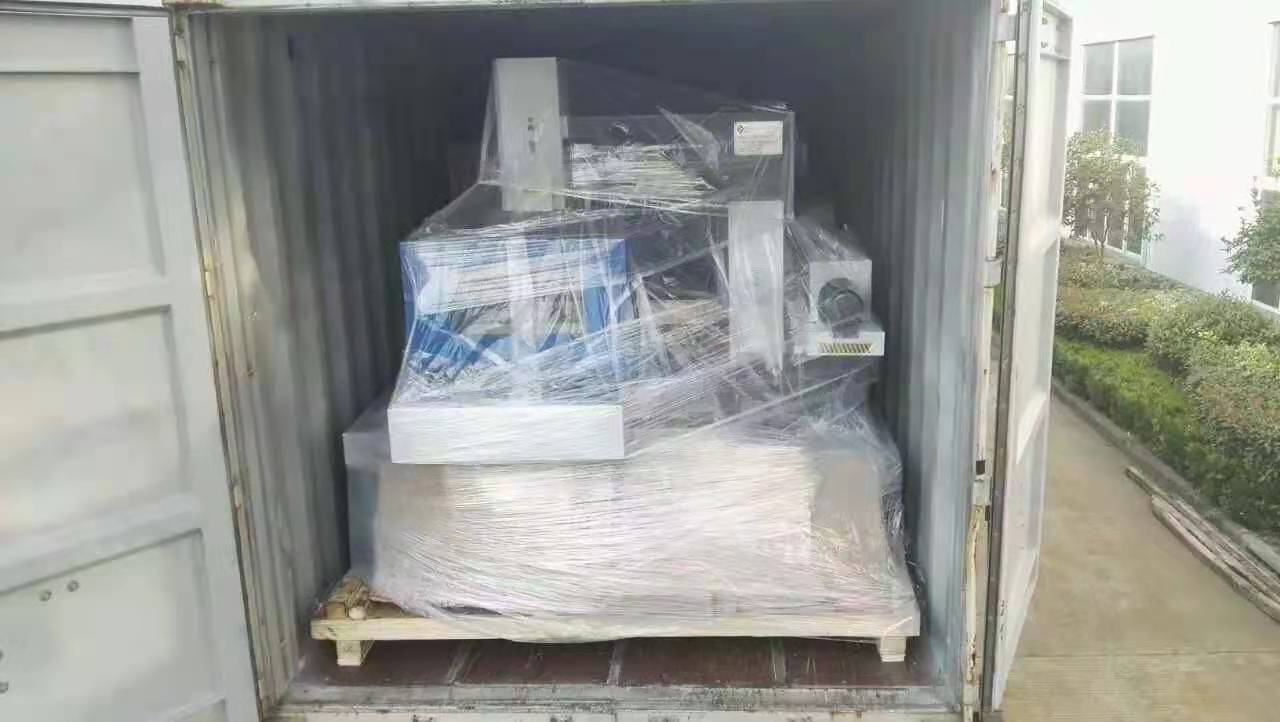

Supply capacity:200 sets per monthPackaging details:wooden box or pallet
Power (kW):2.5brand:Pristek
Whether CNC:CNC systemWeight (kg):2100
control method:CNC systemPlace of origin:Jiangsu, China
Applicable industries:Machine repair shops, manufacturing plants, construction projectspayment terms:Letter of credit, wire transfer
type:Molybdenum wire cutting EDM machineport:Shanghai/Ningbo

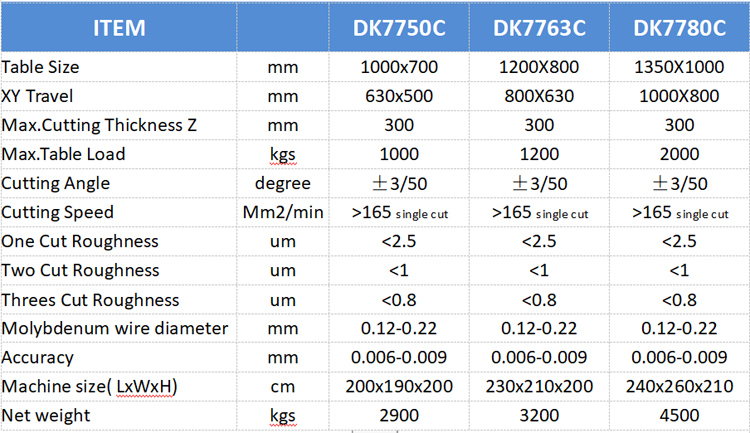

Main features - CNC wire EDM - multi-cut DK7750C/DK7763C/DK7780C
1.C type integral castingMachine baseheat treatment
2.XYUVequippedHigh-precision Taiwan HIWIN ball screw, linearguidance method andstepper motor
3.Special tension mechanismKeep the molybdenum wire cutting stably.
4.Frequency control speed wire feed drum rotation
5.Digital raster display with ruler monitorXY position
6.Wire diameter 0.12- 0.22 mm (as small as 0.08mm)
7.Accuracy: 0.01mm-0.005mmAccording to different cutting shapes and working conditions
8.Roughness:
9.Mass flow high pressure coolant pump and water tank with filter.
10.Advanced CAD/CAM softwareHas file transfer and translation capabilities.
11.The control system adopts luxurious cabinet. (Automatic cutting) under Win XP/Win7

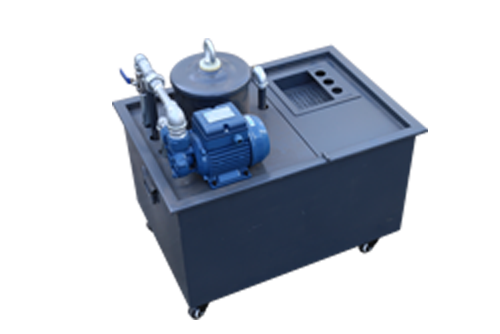

fluid coolant pump
High pressure quality pump
fluid coolant filter
large capacity water tank

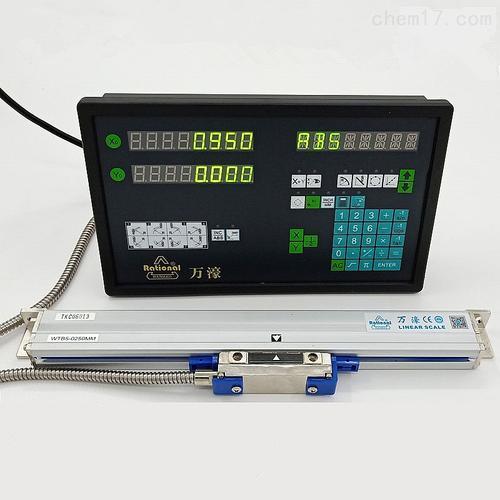

Digital readout with grating scale
XY 2 axis with ABS and INC Wanghao WE6800 multi-function
High-precision grating ruler can reach 0.1u

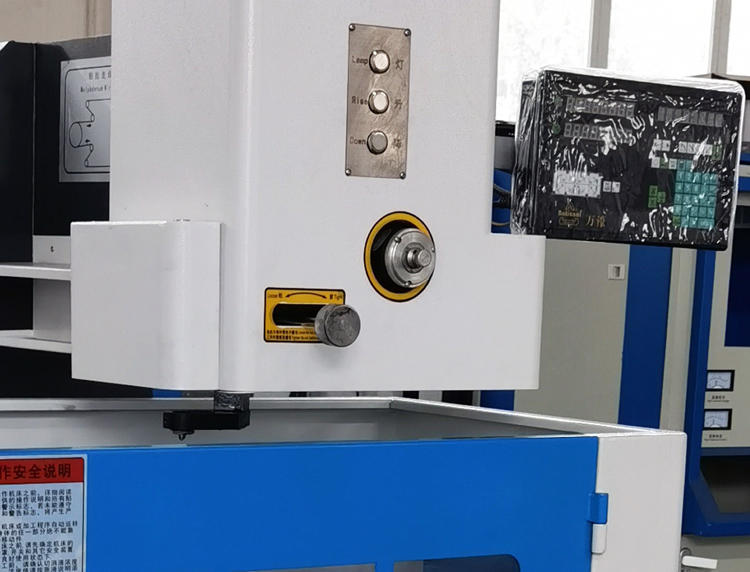

Motor driven Z-axis height
Motor-driven type, the wire rack can be raised and lowered by pressing the button
Simple and labor-saving

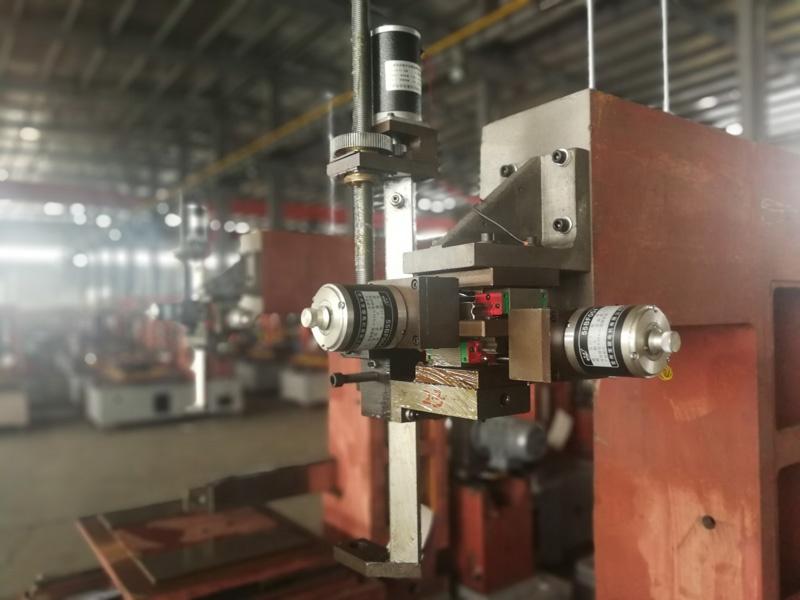

UV axis group
Driven by ball screws and stepper motors
Cutting taper ±3 degrees/50mm
XYUV 4-axis linkage

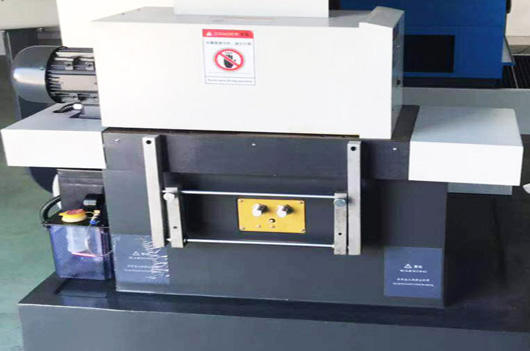

Non-contact limit switch/spool
Variable frequency drive spool
Contactless design, suitable for long-term work service
Simple position adjustment
Automatic lubrication system
quality brand
Automatic lubrication timing setting
Alarm buzzer warning when less than

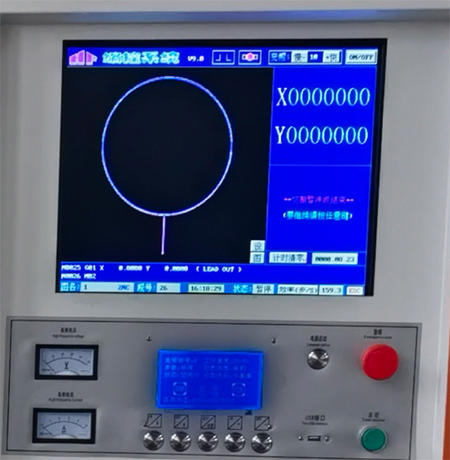

Control and operating panels
Multifunctional integrated control panel
HF/AUTOCUT software for Autocad Transfer; 15-inch LED screen with parameter setting touch screen
Current/high frequency power/pulse control

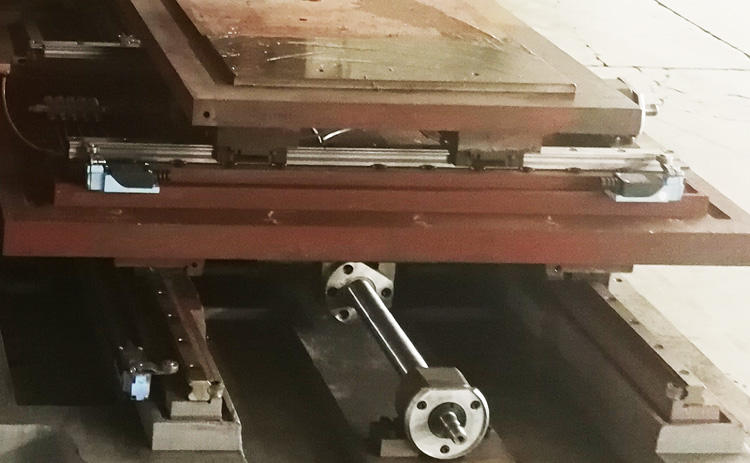

XYUV axis drive system
All axes adopt HIWIN high-quality linear guides and high-precision high-quality ball screws to jointly improve machine accuracy.
Optional HIWIN ball screw
Stable sliding structure

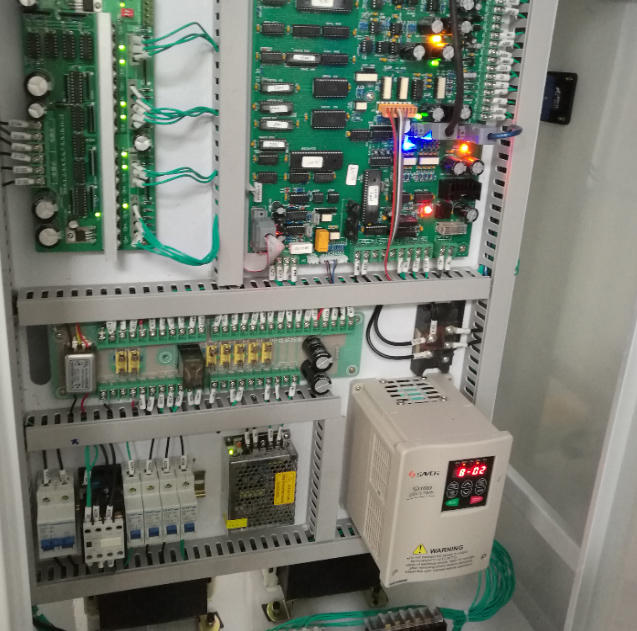

Electrical cabinet
VFD control spool
High quality high frequency power supply/driver card
All parts are from high quality brands
48 hours to run tests
Integrated design, saving space
