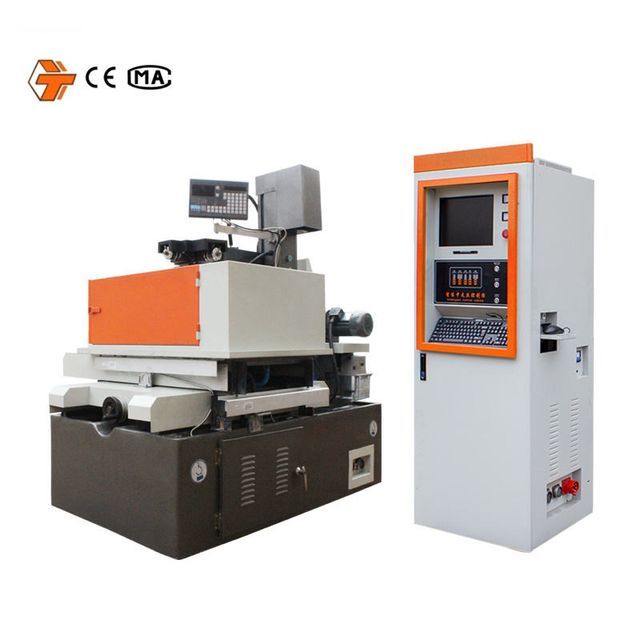

DK7745 economical 5 axis fast dk77 CNC wire cutting electric discharge machine

  • Supplier: Taizhou Terui CNC Machine Co., Ltd.
  • Region: Jiangsu, China
  • Contact: Mr jack mao
  • Price: $5600.00 / 1 - 2 sets
    $5400.00 / 3 - 4 sets
    $5200.00 / >=5 sets
  • Min. Order: 1 set
Product details
Table travel (mm):450*550maximum. Cutting thickness (mm):400
Table size (mm):810*570Supply capacity:100 DK7745 economical 5-axis metal wire cutting machines per month
Optimum machining surface roughness:≤2.5 micronsHealth status:new
Packaging Details:DK7745 Economical Five-Axis Metal Wire Cutting Machine Packing: Wooden Boxbrand:Sharp CNC
Mechanical test report:ifCore components:PLC, bearings, motors, pressure vessels, gears, pumps
Voltage:50Hz.380VVideo outbound inspection:if
Certification:International Organization for Standardization CE certificationWire diameter (mm):0.10-0.20
Weight (kg):900accurate:≤0.02mm
Package preview:Processing taper (mm):6°/80mm
Power (kW):1.5payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
Showroom location:Egypt, Pakistan, Colombia, UkraineCore component warranty:2 years
Processing speed (mm^2/min):≥120port:Shanghai
Marketing Type:normal productType of machine:wire cutting
Whether CNC:CNC systemproduct name:DK7745 Economical Metal Five-Axis Cutting Machine
Origin:Jiangsu, ChinaWarranty:2 years
Dimensions (L*W*H):1600*1200*1600Applicable industries:Building material stores, machinery repair shops, manufacturing plants, energy and mining, construction
Main selling points:High precision, automation
product display
Product Description
Taizhou Terui CNC Machinery Co., Ltd. produces DK77 full-series CNC wire-cut electric discharge machine, which adopts high-precision V-shaped guide rails (linear guide rails are optional) and P3-level high-precision ball screws. The products are of good quality, complete models, long service life and high precision. Machine specifications can be customized according to customer needs for non-standard models DK7740(45)F, DK7750(55)F, DK7763F, DK7780F, DK77100F, DK77120F or even larger models. The company also produces ±30°, ±45° swing large taper machines and CNC high-precision medium-speed wire-cut electric discharge machines (accuracy≤±0.005mm, roughness≤1.0μm). The following are the main parameters of DK77 series machines:
1. Standard maximum cutting taper: ±6°/80mm; (±15°, ±30°, ±45° optional)
2. Accuracy ≤ 0.02mm, in line with GB7926-2005 standard; (if equipped with linear guide rail, the accuracy can reach 0.01mm)
3. The best surface roughness ≤ Ra2.5μm (single cut), Ra1.5μm (multi-cut);
4. Molybdenum wire diameter: 0.1-0.2mm;
5. Maximum. Cutting speed ≥120mm^2/min;
6. Voltage: three-phase 380V (single-phase 220V, three-phase 220V or other voltages can be customized), power: 1.5KW;
7. Working fluid: water-based emulsion.
Model
Table travel (mm)
Table size(mm)
maximum. Cutting thickness(mm)
maximum. Load (kg)
Dimensions (mm)
DK7720
200*250
420*270
200
100
1250*950*1250
DK7725
250*320
520*340
300
200
1450*900*1500
DK7735(32)
350(320)*450(400)
710*460
400
300
1400*1100*1600
DK7745(40)
450(400)*550(500)
810*570
400
450
1600*1200*1600
DK7745F(40F)
450(400)*630
950*600
400/600
600
1600*1580*1600
DK7755(50)
550(500)*650(630)
950*650
700
700
2000*1500*1900
DK7755F(50F)
550(500)*800
1140*650
700
700
2000*1650*1900
DK7763
630*800
1140*750
700
1000
2100*1700*2050
DK7763F
630*1000
1350*750
700
1200
2250*1850*2050
DK7780
800*1000
1350*980
900
2000
2400*1900*2350
DK7780F
800*1200
1600*1050
900
2400
2550*1950*2400
DK77100
1000*1200
1600*1100
1000
2600
2850*2500*2500
DK77100F
1000*1400
1800*1250
1000
2800
2950*2050*2500
DK77120
1200*1400
1800*1350
1000
3000
3050*2750*2500
DK77120F
1200*1600
2000*1500
1000
3500
3100*2850*2500
DK77160
1600*1800
2000*1700
1000
4000
3250*3000*2500
