SJX Series Alternator Vertical/Horizontal Force Test Stand

Supplier: Wenzhou Sundoo Instruments Co., Ltd.
Region: Zhejiang, China
Contact: Ms sundoo sundoo
Price: $1200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	sundoo;	Port:	Ningbo/shanghai;
Capacity:	500N--30KN;	Model Number:	SJX;
Power supply:	110V/220V;	Place of Origin:	Zhejiang China (Mainland);
Supply Ability:	50 Set/Sets per Week;	Payment Terms:	T/T;
Packaging Detail:	Standard export plywood case;

Product Description

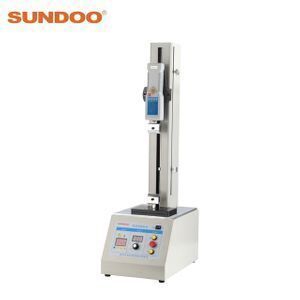

SJX Series Electric Vertical/Horizontal Test Stand is tensile/compressive measurement especially designed to match push pull force gauge. This Test Stand has good stability, wide application range and convenient to use. It has atepless speed adjusting uniform motion, digital display of the testing speed, converting mode between manual operation and automatic. It is specialized for tension/compression, insertion/withdraw, fatigue test and fracture test.

Product Parameter

Model	Capacity	Stroke	Speed	Weight	Dimension(mm)
SJX-500H	500N	210mm	50-500mm/min	28kgs	590210320
SJX-500V	500N	250mm	50-500mm/min	24kgs	430245570
SJX-1KV	1000N	520mm	50-500mm/min	31kgs	410270970
SJX-1KVL	1000N	1000mm	50-500mm/min	57kgs	3802851490
SJX-2KV	2000N	600mm	50-500mm/min	52kgs	4653101180
SJX-5KV	5000N	200mm	30-240mm/min	55kgs	4102601030
SJX-10KV	10000N	200mm	20-120mm/min	60kgs	4102601330
SJX-20KV	20000N	200mm	20-120mm/min	63kgs	4102601080
SJX-30KV	30000N	200mm	8-75mm/min	63kgs	4102601080

Product Package

Exhibition
