WIRE COMBUSTION SPRAY

  • Supplier: PARAT TECHNOLOGIES
  • Region: Rajasthan, India
  • Contact: Mr. Parat Technologies
  • Price: $1500.00 /unit
  • Min. Order: 1 unit
Product details
Power(W):Nil;Voltage:Nil;
Weight:3.5 Kg;After-sales Service Provided:Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;
Equipment Name:Spray Coating Gun;Dimension(L*W*H):25 x 26 x 25;
Type:Coating Spray Gun;Applicable Industries:Machinery Repair Shops,Manufacturing Plant,Energy & Mining;
Packaging Detail:SUITCASE & CARTON WITH EXTRA SAFEGAURDS;Place of Origin:Rajasthan India;
Warranty:1 Year;Payment Terms:T/T;
Kinds of coating:Metallic;Supply Ability:100 Unit/Units per Month;
Certification:ISO9001 & CE;COLOR:GOLDEN;
Substrate:Aluminum;Application:Metal Surface Coating;
Usage:Corrosion Resistant;Brand Name:PARAT;
Condition:New;Technology:Thermal Spray;
Spraying Guns:Spray Zinc Gun , Aluminium , Stainless steel;Port:ANY PORT;
Coating:FLAME SPRAY;
Product Description

Wire Flame Spray-:


Wire Flame Spray uses a single wire that is fed into a jet flame. The temperature is close to 10,000 K, melting the wire. The air stream from the jet atomizes the molten particles, propelling them onto the substrate. The technological parameters, such as feed stock, flame spray gas composition and flow rate, and energy input, play a large role in the relationship between the particles and the substrate.


MODEL
WIRE
DIAMETER
WIRE FEEDING
GASES USED
12P
Zinc,           Stainless Steel, Aluminium,Copper, Brass, Bronze etc.
3.17 mm
Pneumatic
OXYGEN,PROPANE/ACETYLENE
12P-ED
Zinc, Aluminium,
Stainless Steel, Copper, Brass, Bronze NiAl etc
1.6/2.3/3.17 mm
Electric Motor
Oxygen, Acetylene, Propane, LPG
5-PK
Molybdenum
1.6/2.0/2.3 mm
Electric Motor
Oxygen, Acetylene
14P
Zinc, Aluminium,
Stainless Steel, Copper, Brass, Bronze etc.
3.17 mm
Pneumatic
OXYGEN,
PROPANE/ACETYLENE
Application


Flame spraying is widely used where a cost effective thermal spray coating is desired and a lower quality can be tolerated. The majority of components are sprayed manually.

Corrosion protection; structures and components

Reclamation worn shafts, particularly of bearing areas with materials such as stainless steel or bronze alloys

The surface coatings produced are porous and lubricants can be absorbed into the coating, enhancing performance of the bearing.

Aluminium, zinc, stainless steel, bronze, low carbon steel, nickel-based materials, molybdenum.



Process details

Flame spraying uses the heat from the combustion of a fuel gas, usually acetylene or propane with oxygen, to melt the spray coating material. In this process a consumable, usually a powder or wire, is heated and propelled onto a substrate to form a surface coating

Advantage

Technical Advantages:

1. Less oxides
2. Coatings can be easier to machine due to reduced oxide

Economic Advantages:

1. Higher deposit efficiency with low melting point materials such as aluminum and zinc
2. Lower initial equipment cost


Operational Advantages:

1.Non-conductive wires can be sprayed


2. Less fine dust created when spraying makes overspray less flammable or explosive


3. More portable for on-site spraying


4. Simple to ignite

5. Easy to operate


6. High spray rate with low gas consumption


7. Low maintenance design reduces operating costs


8. Can be used with both hard and soft wires


9. Extension modules for internal bore applications

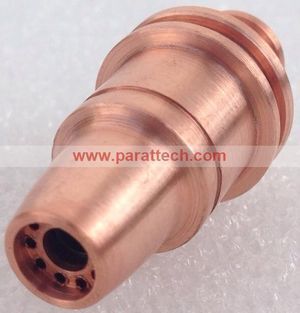

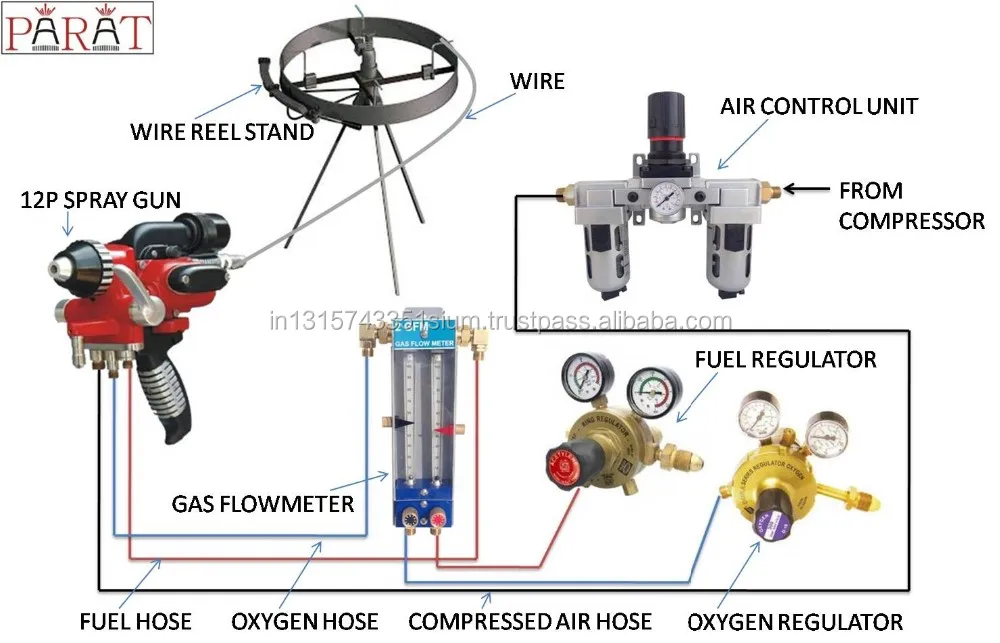

Detailed Images

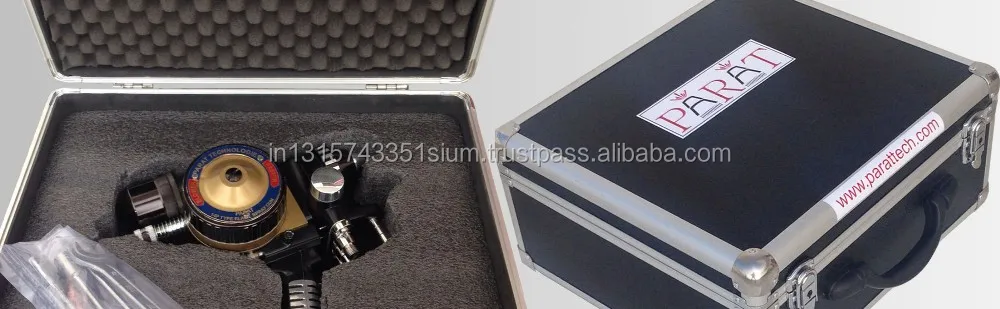

Packing & Delivery

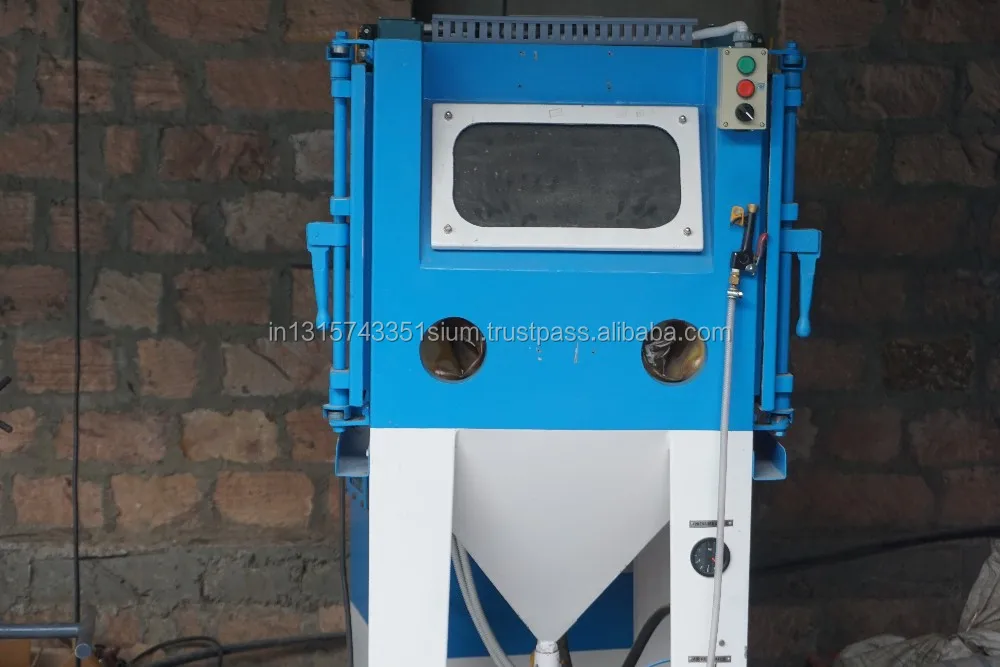

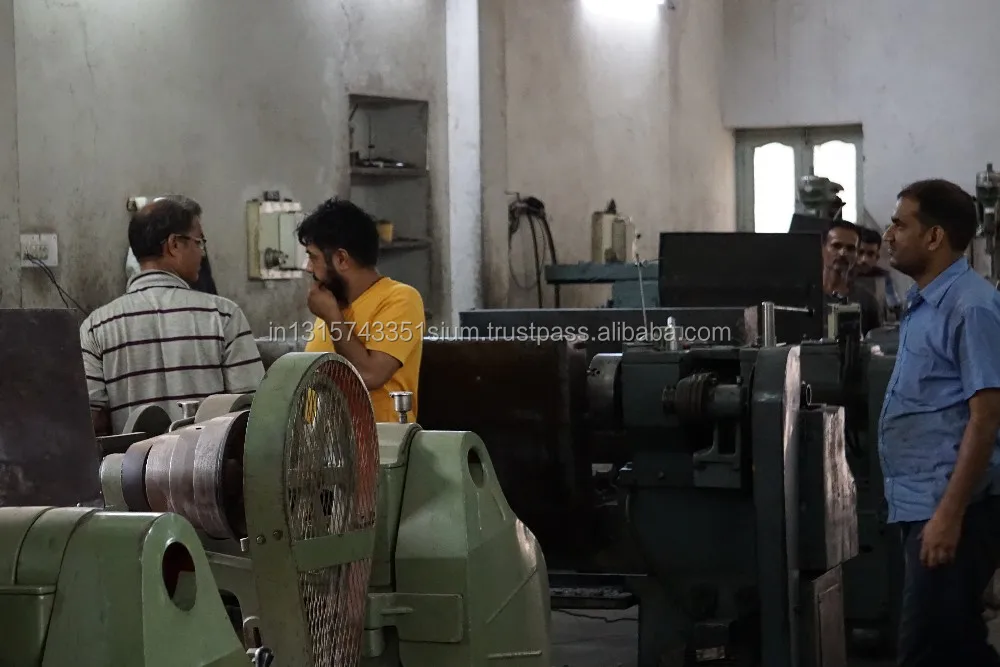

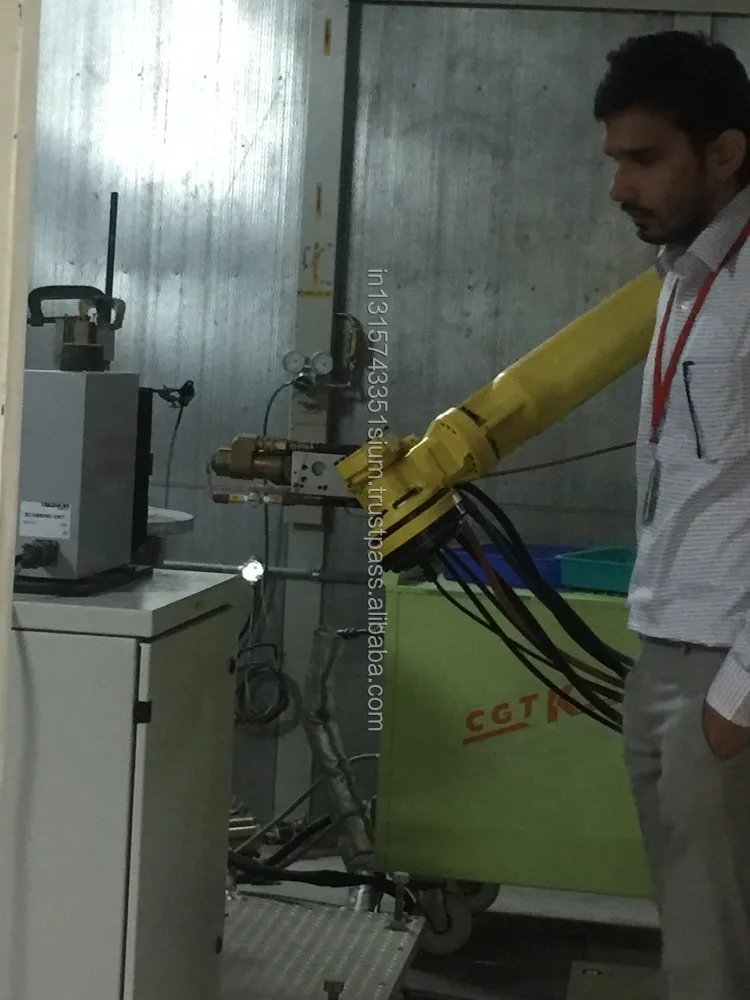

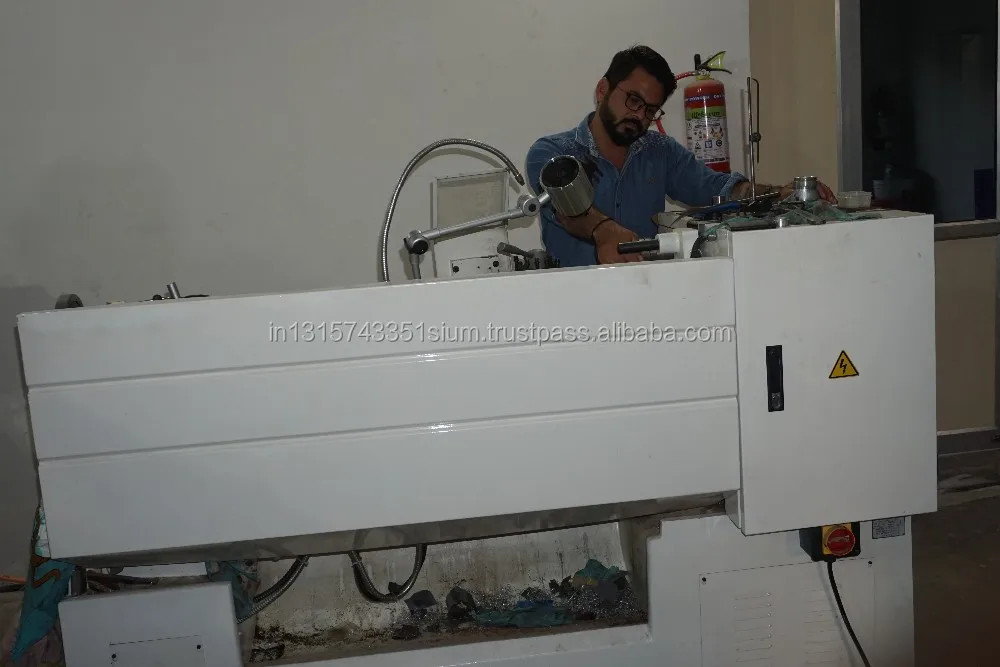

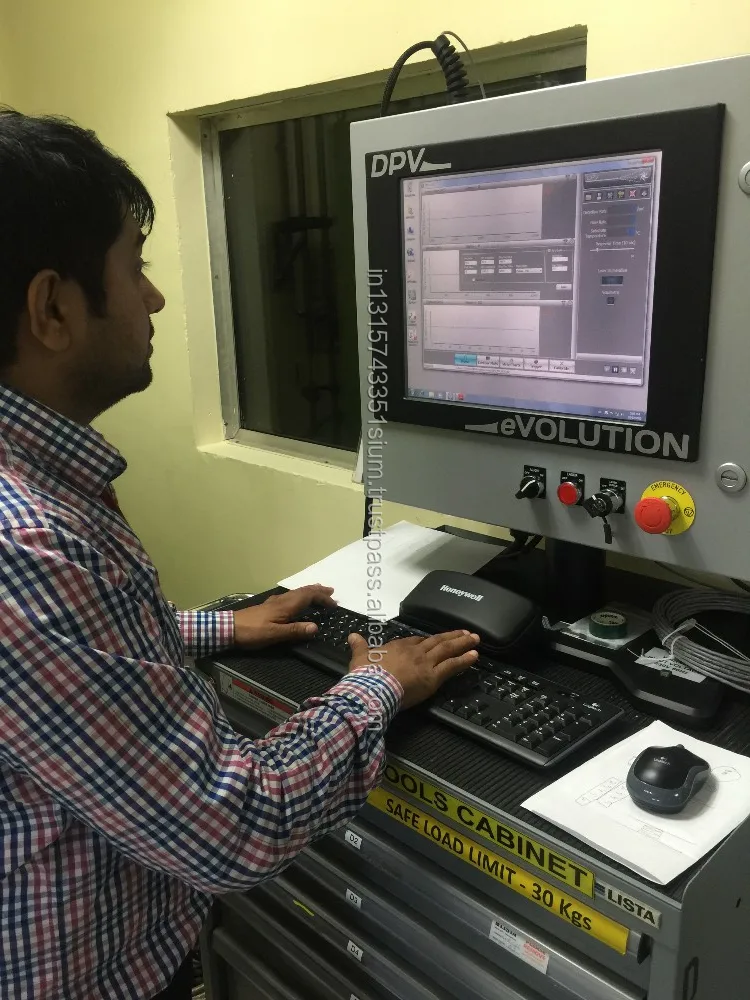

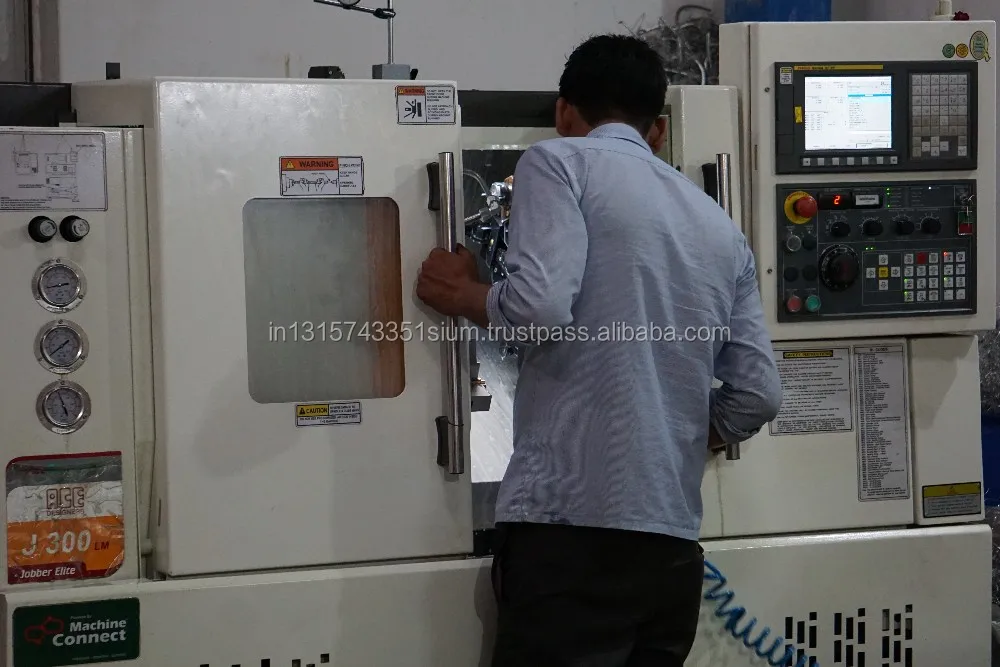

Plant & Machinery
Our Service

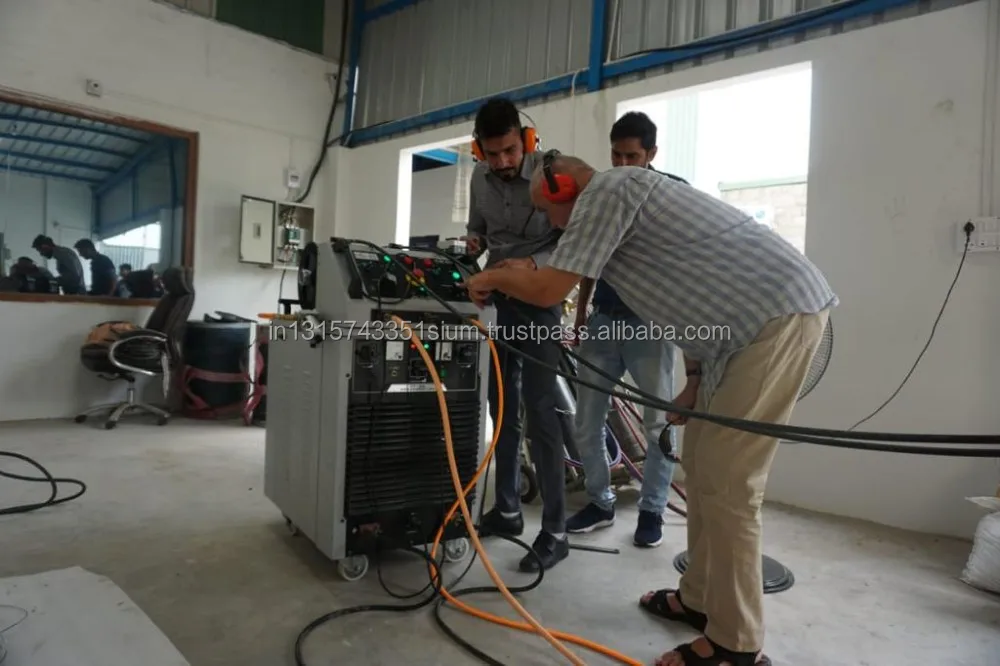

TRAINING

Parat Tech can provide comprehensive solutions and program management to your thermal spray consulting and training needs. For any service providing engineering company most important key feature is synchronization among team members; a team consists of captain/supervisor & other team members. Planning of optimum utilization of all available resources is responsibility of the supervisor, and playing their roles with maximum efficiency is duty of all members; then only a successful execution of the project can takes place. Keeping these important aspects of working in mind we have planned our training course which include two following levels :-



Supervisor Level Training

Operator Level Training

Supervisor Level Training consists of following ingredients :-

Thermal Spray Introduction

Various Processes & Their Applications

Focus on one of the chosen industry applications

Process Parameters – for one chosen process

Material selection technique

Testing methods with names of their respective standards

Do's & Don'ts of one selected process

Study Materials



Operator Level Training consist of following ingredients :-

Surface preparation techniques

Handling of equipments while doing job

Safety Precautions

Practical Experience





Apart from these if you have special training requirements, then customized training course can be crafted as per your need. However our training programmes include following processes :

Wire Flame Spray

Powder Flame Spray

Wire Arc Spray

HVOF – Powder Spray

HVOF – Wire Spray



"Always Render More and Better Service Than Is Expected Of You, No Matter What Your Task May Be"

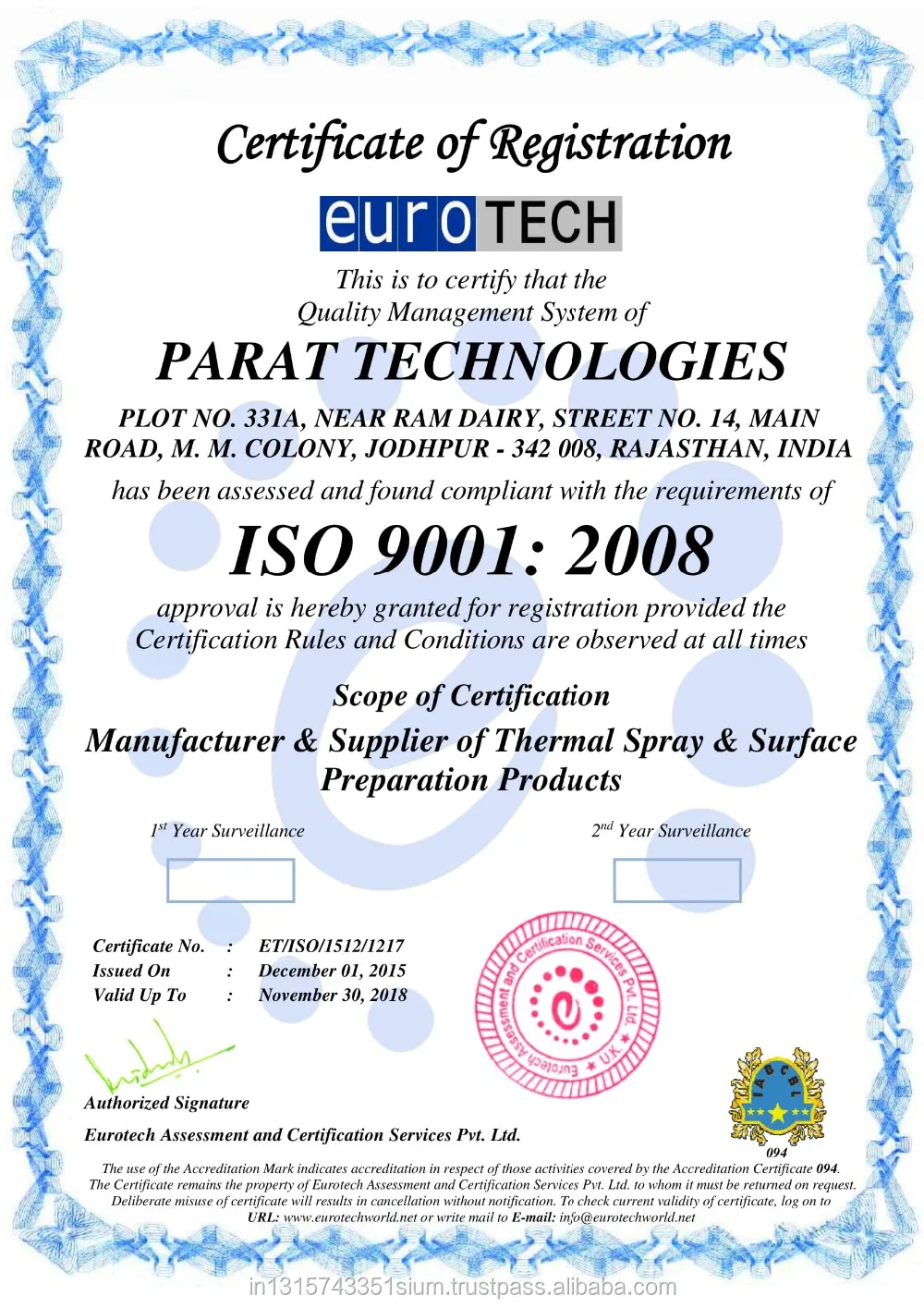

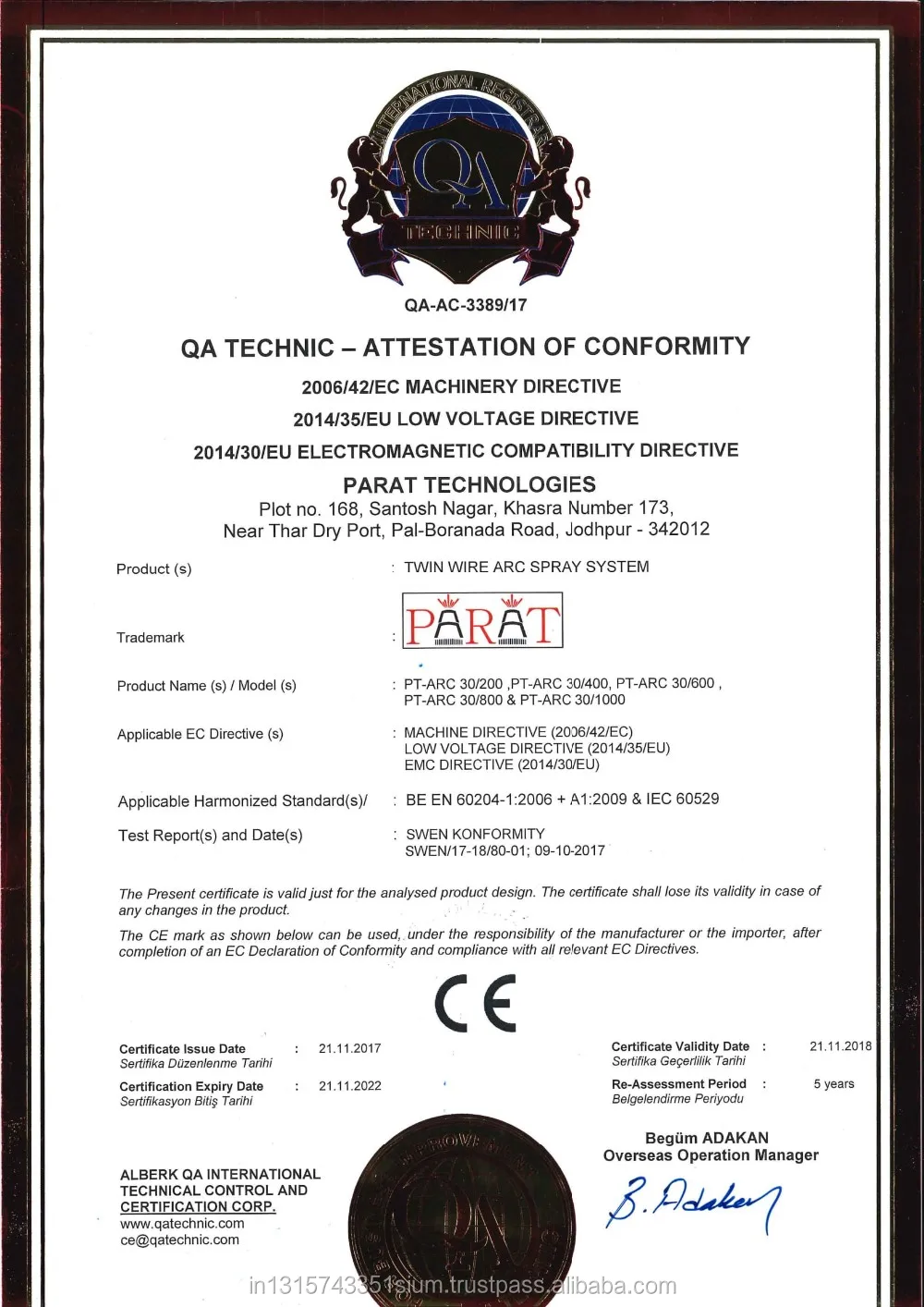

Our Certifications
