aoke maxwell flatbed digital corrugated box sample maker cutter

Supplier: Shanghai Maxwell Technology Co., Ltd.
Region: Shanghai, China
Contact: Mr Ivan Meng
Price: $22999.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Automatic Grade:	Semi-Automatic;	Function:	corrugated box foam cutting mg;
application:	paper box sample maker;	Certification:	ISO9001;
Supply Ability:	30 Unit/Units per Month;	brand:	aoke box sample maker;
Weight:	1000kg;	Dimension(LWH):	Customized;
Packaging Detail:	wooden box package;	Port:	Shanghai;
Condition:	New;	Place of Origin:	Shanghai China (Mainland);
item:	digital box sample digital cutter;	Payment Terms:	L/C,T/T,Western Union,PAYPAL;
Brand Name:	MAXWELL;	power:	2000w;
power supply:	380v three phase;	Usage:	Paper Forming Machine;
After-sales Service Provided:	Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;	Warranty:	1 Year;
Voltage:	220V;

Product Description

Product Application flatbed cutting machine corrugated box sample cutter

flatbed cutting machine corrugated box sample cutter , DCZ7X series high speed digital flatbed cutter is a newly developed cutting system aiming at the industries like packaging, printing, advertisement, display, etc. Configured with versatile tools including oscillating knife, creasing wheel, drag knife, V cutting knife and pen, this high speed cutting equipment whose maximum cutting depth is 60mm, can be used to cut corrugated paper, honeycomb board, card paper, foam, grey board, KT board, PVC expansion board and other materials. This product also called box sample maker, sample maker, AD cutting machine, Display cutting machine, foam cutting machine, smart digital cutting system and so on, according to the different cutting material and application. This product can be used for sample making and small scale production in the industries of packaging, printing, advertisement, etc.

Descriptions

Model	DCZ762516	DCZ761713	DCZ761310
Effective cutting area	2500*1600mm	1700*1300mm	1300*1000mm
Configuration	Oscillating knife、pen、creasing tool、drag knife, foam tool, v cut tool
Max aped	1400mm/s
Smallest cutting diameter	6mm
Maximum cutting thickness	60mm
Control line and driver	Servo
Precision	≤0.1mm
Data form	HPGL、DXF、PDF,AI
Voltage	220v±10%50Hz
Data port	parallel port，serial port，USB port
Option	Video registration system, Kasemake Design software
Occupy dimension(LWH)	350032001400mm	270029001400mm	230026001400mm
Note	Other size can be customized.

Main Features

1. Our flatbed cutting machine corrugated box sample cutter,high speed digital flatbed cutter consists of two independent modules and its cutting tools are interchangeable.
2. Table of this digital corrugated board cutter is designed with a new vacuum zone and adopts steel frame instead of the original section material frame. This new design endows the cutting machine with stronger suction capacity and more stable mechanical property
3. Automatic tool setting system makes tool replacement more convenient. After replacing the knife tools, you just need to press the button and then depth of the knife tool will be set automatically. In this way, damaged to the cutting table caused by manual operation error will be avoided

Cutting materials:
Corrugated paper, honeycomb board, card paper, foam, grey board, Advertising cloth, flag cloth, canvas, KT board, PVC expansion sheet etc.
Application:
Ads, Display, Packaging, Graphic.

Certifications

Detailed Images

Machine Parts

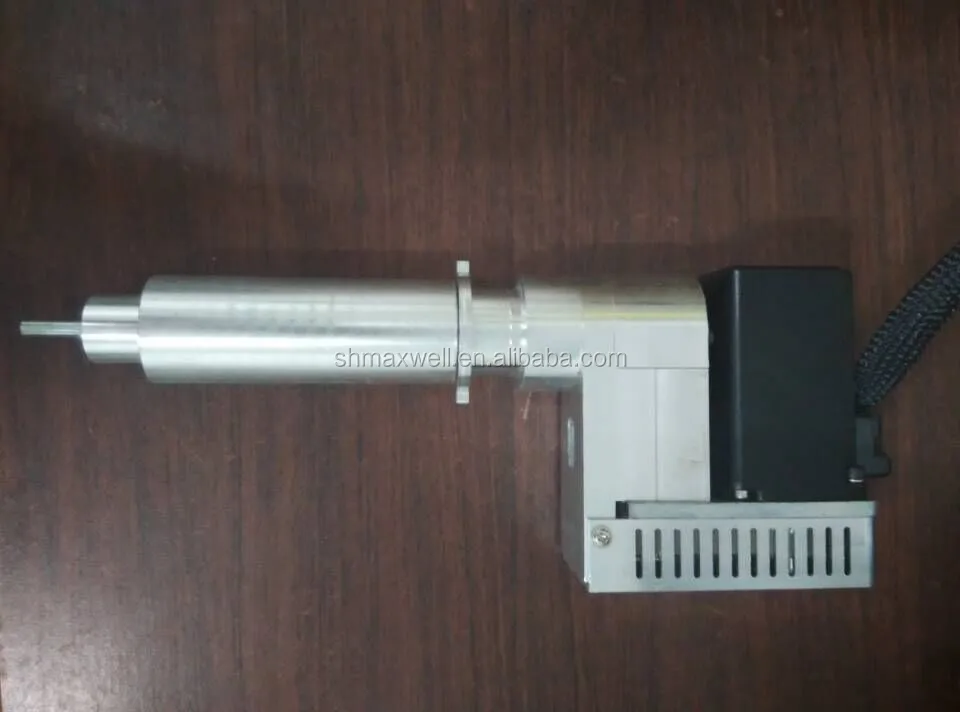

Name: Oscillating knife holder(EOK)

Brand: MAXWELL

Original: CHINA

150W MOTOR

powerful

24 hours continuely working

Main Features

Name: Blades
Brand: MAXWELL
Original: CHINA
16 Degree blades

20 degree blades

26 degree blades

Machine Parts

Name: Tools
Brand: Maxwell
Original: China
pen

V-cut (15 degree, 22.5 degree, 30 degree , 45 degree)

Creasing wheels

Drag knife

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	3380 (L) * 2260 (W) * 1210 (D)
Weight	540KG
Packaging Details	The normal package is wooden Crate box(Size: 3380L2260W1210H).no need to be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	3380 (L) * 1020 (W) * 860 (D)
Weight	500KG
Packaging Details	The normal package is wooden Crate box(Size: 3380L1020W860H)No need to be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
