Plant Hot Selling Ce Coal Charcoal Briquette Briquetting Extruder Making Machine Price

Product details
Single gross weight:68 KG;Spindle moving speed:35-60turns/min;
Selling Units:Single item;After-sales Service Provided:Engineers available to service machinery overseas;
Certification:ISO CE;Diameter of final briquettes:20-80mm;
Single package size:50X50X50 cm;Warranty:12 Months;
Performance:durable and long service life;Type:Briquette Machines;
Package Type:Standar export wooden case or packing charcoal briquette extruder machine for according to your requirements;raw material:coal,charocal,carbon black etc;
After-sales Service Provided:Free spare parts,Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;final briquettes shape:round shape, cubic, stick shape etc;
binder:you need it;Motor Type:AC Motor;
Capacity:1-6 t/h;peration:Easy and safe;
Applicable Industries:Hotels,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Food & Beverage Shops,Advertising Company;Condition:New;
Dimension(L*W*H):2.1*1.1*1.15m;Brand Name:Mingyang;
Name:charcoal briquette extruder machine;Production Capacity:1-1.5ton/h;
Place of Origin:Henan China (Mainland);

Plant Hot Selling Ce Coal Charcoal Briquette Briquetting Extruder Making Machine Price

Product Description

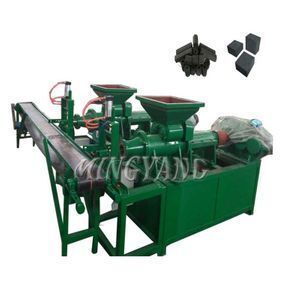

 1. The general introduction of the charcoal briquette extruder machine
Coal stick machine is one of the main machine in our plant , it  is mainly used to use the screw extrusion principle to process charcoal powder mixed with a certain proportion of liquid binder into different bar shapes and size of briquettes, with certain strength, also you can choose to make the briquettes with or without a hole in the core part. The utilization of this machine can make full use of the charcoal powder material, you do not need to mix the material with lime, it reduces the cost of fuel, and improves the calorific value of raw material.

Click now for price and videos

Click now for price and videos

2. The raw material of the charcoal briquette extruder machine

The raw material can be charcoal powder , wood charcoal powder . coconut shell charcoal powder  , rice husk charcoal powder.charcoal dust , coal powder  . the most suitable size of the powder is less than 5mm . the mositure of the powder should be 12-14%

 Click now for price and videos

Click now for price and videos



3. The specifications of the charcoal briquette extruder machine

Model

MBJ-140

MBJ-180

MBJ-300

Capacity

1-2T

2-3T

3-5T

Forming Rods

20-30mm

20-30mm

18-30mm

Spindle Speed

46-60rpm

39-60rpm

132rpm

Spiral Blade

5

5

5

power(kw)

11

22

55



Click now for price and videos

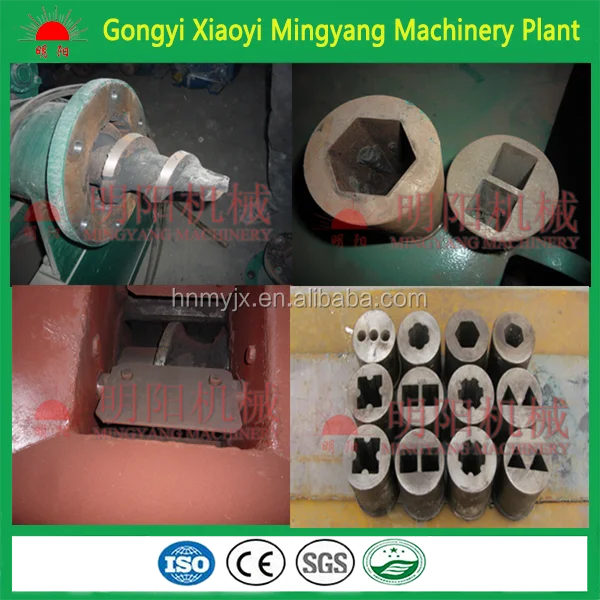

4. The photos of the spare parts of the charcoal briquette extruder machine

Click now for price and videos



5. The photos of the final briquettes of the charcoal briquette extruder machine

Click now for price and videos

6. The package photos of the charcoal briquette extruder machine
 in our plant :

Click now for price and videos

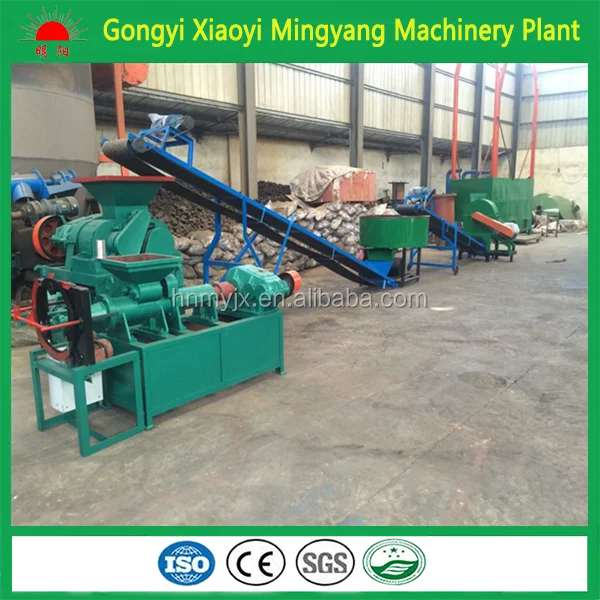

The production line of the charcoal briquette extruder machine

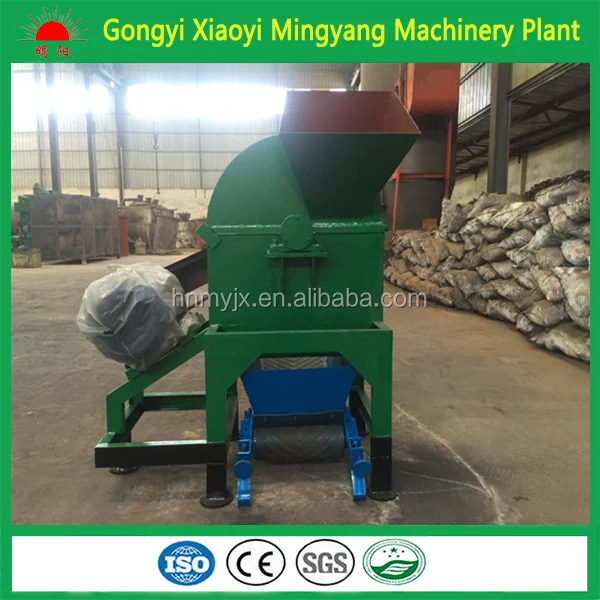

a) charcoal crusher

It is used for crushing the charcoal into powder :

Click now for price and videos





B) charcoal mixer :

This machine is used to mix the grinded charcoal dust (charcoal powder) with water and binder etc. It can flip on the side to drop the charcoal automatically after mixing without taken by hand.

Click now for price and videos

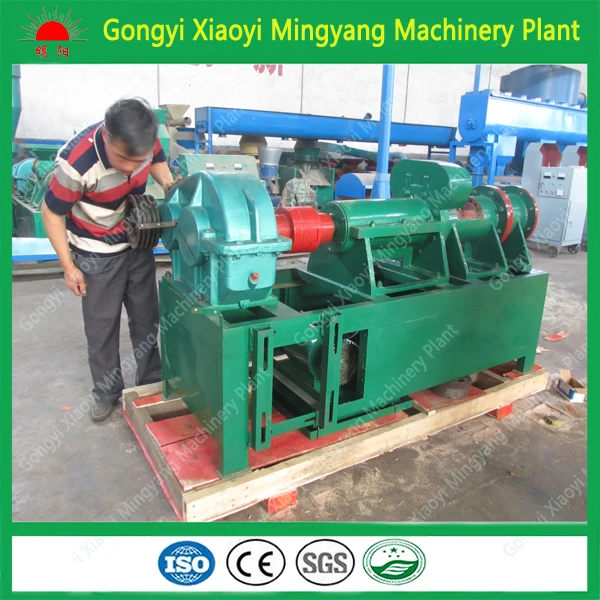

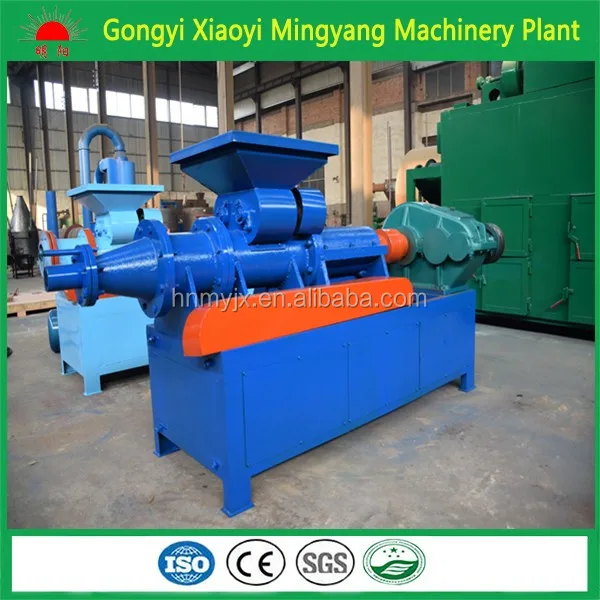

C The charcoal extruder :

Click now for price and videos

Click now for price and videos

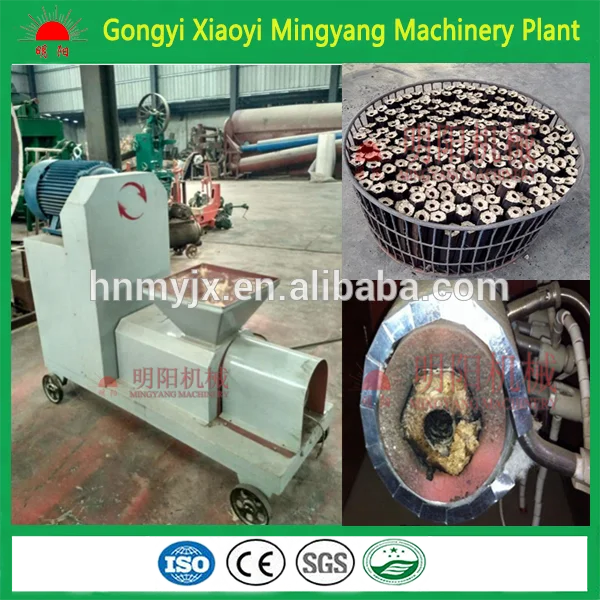

if your raw material is biomass you can use our biomass briquettes machine :



Plant hot selling CE coal charcoal briquette briquetting extruder making machine price 008615039052280

Plant hot selling CE coal charcoal briquette briquetting extruder making machine price 008615039052280

Plant hot lling CE co

+
             Send your Inquiry Details in the Below, Click send Now!

al charcoal briquette briquetting extruder making machine price 008615039052280



FAQ



The requirement for material

Size: less than 3mm;

Moisture: 10-14 is best moisture for briquette making on briquette extruder. Of course, you can make the briquette with other moisture, but there are disadvantages, with low moisture, the friction will be bigger which makes the briquette output slower, the briquette with high moisture will be softer and takes more time to dry.

Using different shapes molds. we can produce a variety of shapes of briquettes, the die mold is easy to change and with long service life, you can use just one machine to manufacture different briquette to meet your customers’ need.

Size: Common size for briquette are from Diameter 20 mm to 80 mm.

Shape (Rod cross-sectional):  Triangle, round, square, rectangle, plum blossom, etc.

Automatic cutting system

We design the automatic cutting system for you to make standard briquette for storage and sell
