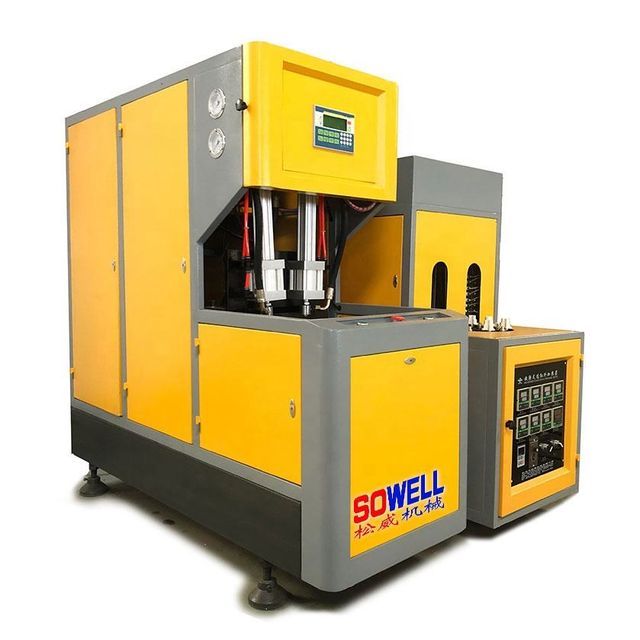

Semi-automatic blow molding machine with cheap price

Supplier: Taizhou Waton Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr Bruce Lee
Price: $3300.00 / 1 - 4 sets
$3000.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

PLC brand:	New Jet	Warranty:	1 year
Applicable industries:	Food and Beverage Factory	advantage:	Inexpensive and widely used
Plastic processing:	PET, FRPP/PVC	High pressure valve brand:	AirTAC
Suitable bottle:	Water bottle/Juice bottle/Beverage bottle/Oil bottle	After-sales service provided:	Engineers available to repair machinery overseas
Machine Color:	custom made	Health status:	new
Year:	new	Weight (kg):	1100 kg
Machine capacity:	700-1000BPH	payment terms:	L/C, Western Union, T/T, MoneyGram
Supply capacity:	30 sets per month	application:	bottle
Origin:	Zhejiang, China	Bottle capacity (ml):	2000ml
Power (kW):	13	Blow molding type:	stretch blow molding
Showroom location:	Peru, Saudi Arabia, Spain, Turkey, France, Russia, Italy, Thailand, Mexico, Pakistan, Vietnam, Canada, USA, Brazil, UK, Indonesia, Germany, Egypt, Philippines, Korea, Algeria, Chile, UAE, Japan, Uzbekistan Stan, Argentina, Romania, Australia, Ukraine, Kyrgyzstan, Malaysia, Kazakhstan, Tajikistan, Bangladesh, Kenya, South Africa, Colombia, Morocco, Sri Lanka	port:	Ningbo
Core component warranty:	1 year	Main selling points:	easy to operate
Maximum bottle diameter:	100mm	Maximum bottle diameter (mm):	100mm
Voltage:	custom made	Rotary cylinder brand:	SMC
Dimensions (LWH):	16809501980	automation:	semi-automatic
bottle height:	350mm	Core components:	PLC, others, pressure vessel
Maximum bottle height (mm):	350 mm	Packaging Details:	Bubble and film packing or wooden case
brand:	Wharton	Hollow part volume:	2 liters
Certification:	CE	Bottle capacity:	2000ml
Video outbound inspection:	if	Mold cavity:	2
Neck Diameter (mm):	35 mm	Package preview:
Mechanical test report:	not available

Product Description

Model	MS-2L
theoretical capacity	700-1000 per hour
mold cavity	2
neck size	18~38mm
maximum. volume	2 liters
advantage	It is suitable for all kinds of PET bottles from 100ml to 2L, and has a wide range of applications. Infrared heater, independently adjustable, simple structure, stable operation.

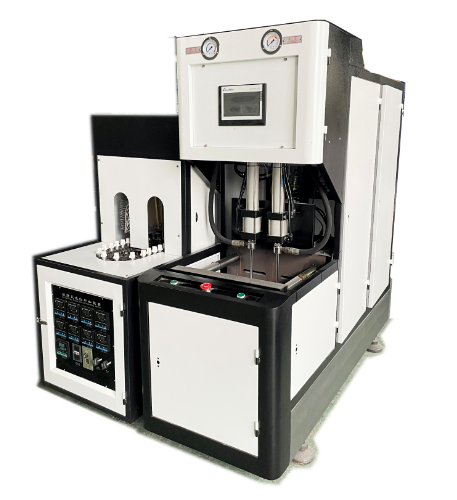

MS series is the traditional model of semi-automatic bottle blowing machine. Each set of MS series machine is composed of blow molding machine and infrared preform oven. Suitable for all kinds of PET bottles from 100ml to 2L, with a wide range of applications. Infrared heater, independently adjustable, simple structure, stable operation.

user's guidance

1. We will arrange our professional technicians to go to your factory, they will help you and teach you how to install and maintain the machine you bought. Or help you repair the machine when there is a problem with the machine.

2. We will send you the manual for you to install the machine. You can talk to our engineers by video chat, or we will send engineers overseas to help you.

Description of application effect

Wharton Machinery designs the most suitable model according to the special requirements of customers, suitable for 100ml~20L PET containers, including water, carbonated beverages, fruit juices, milk, edible oil, beer, solid food, cosmetics, medicines, ETC.

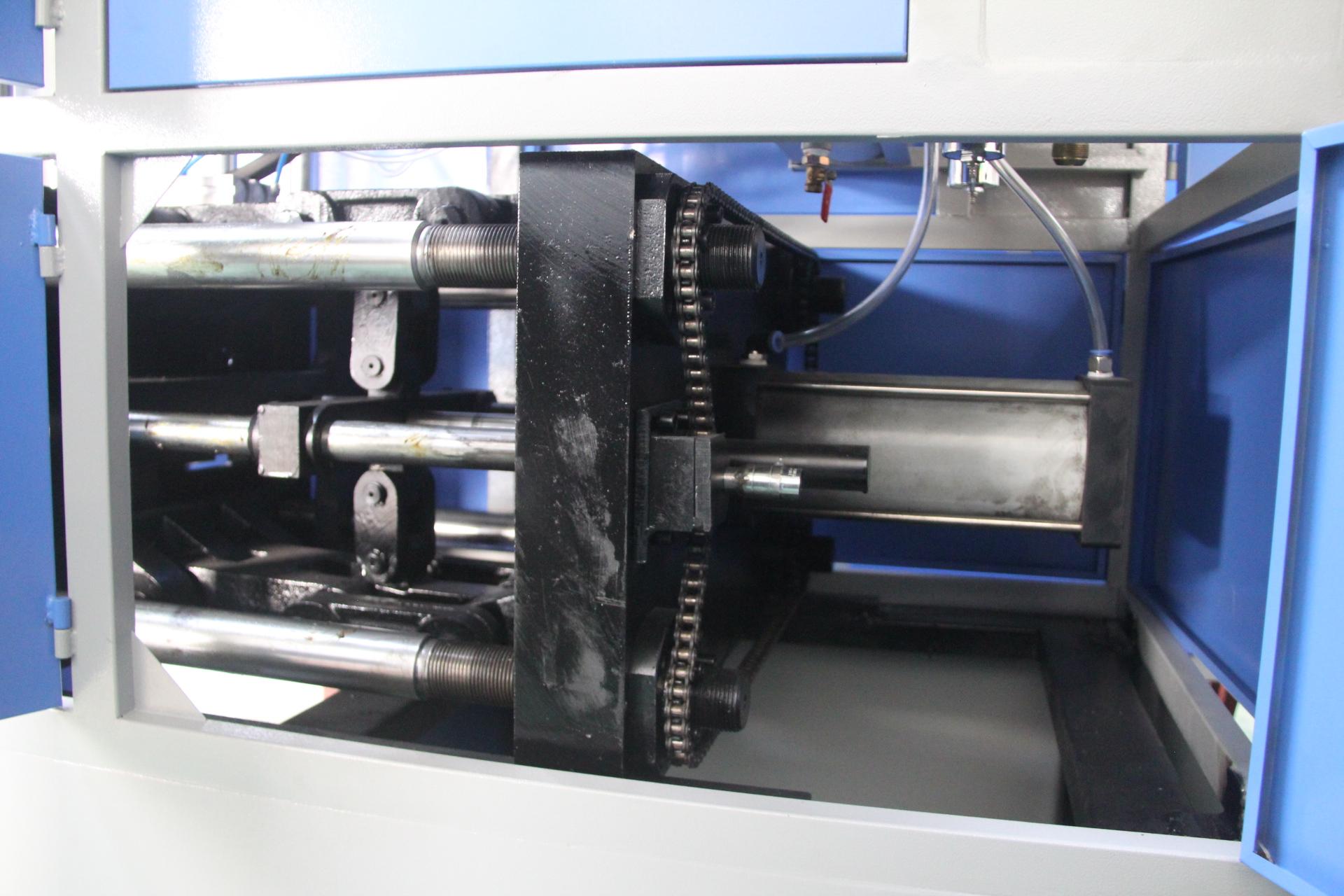

detailed image

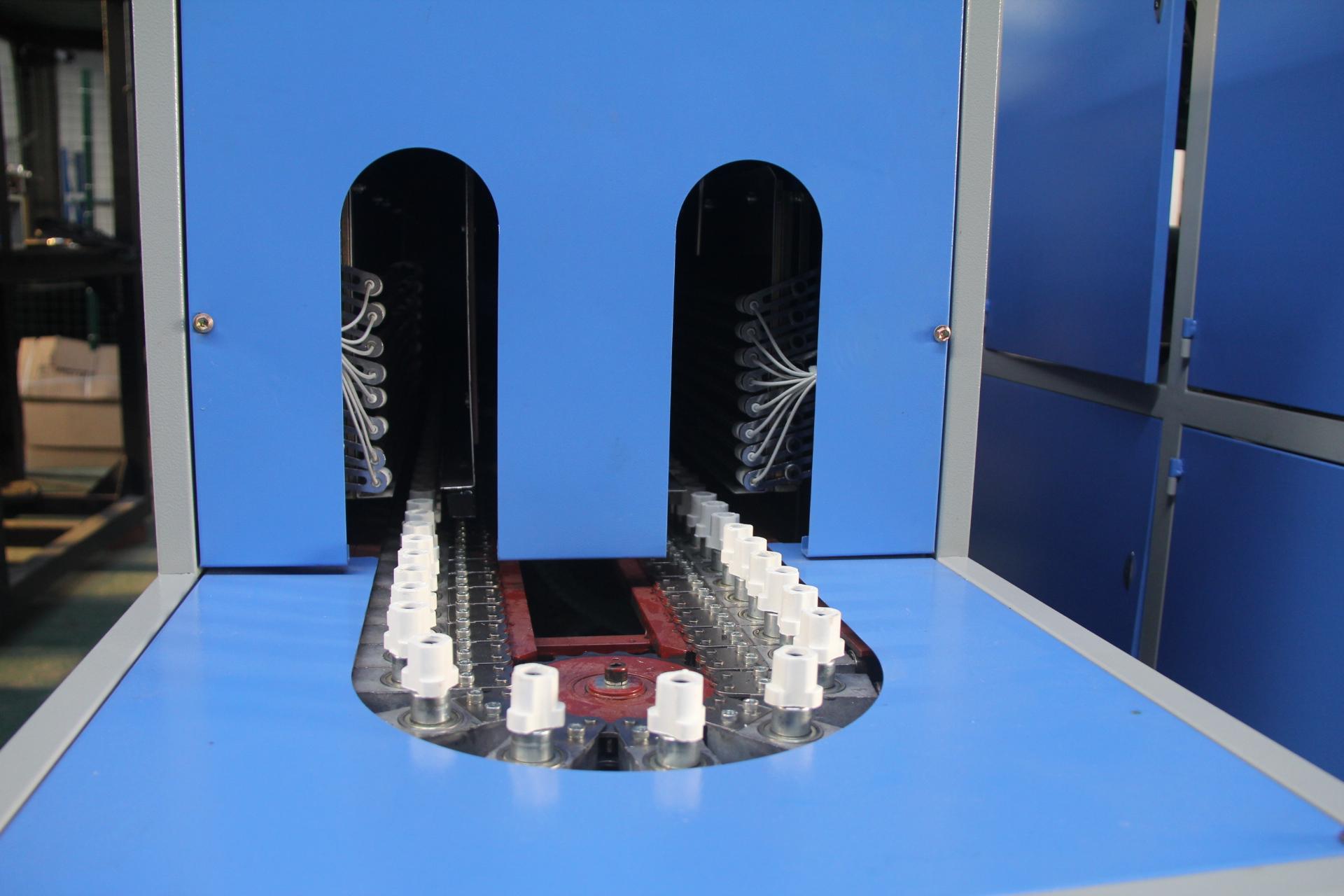

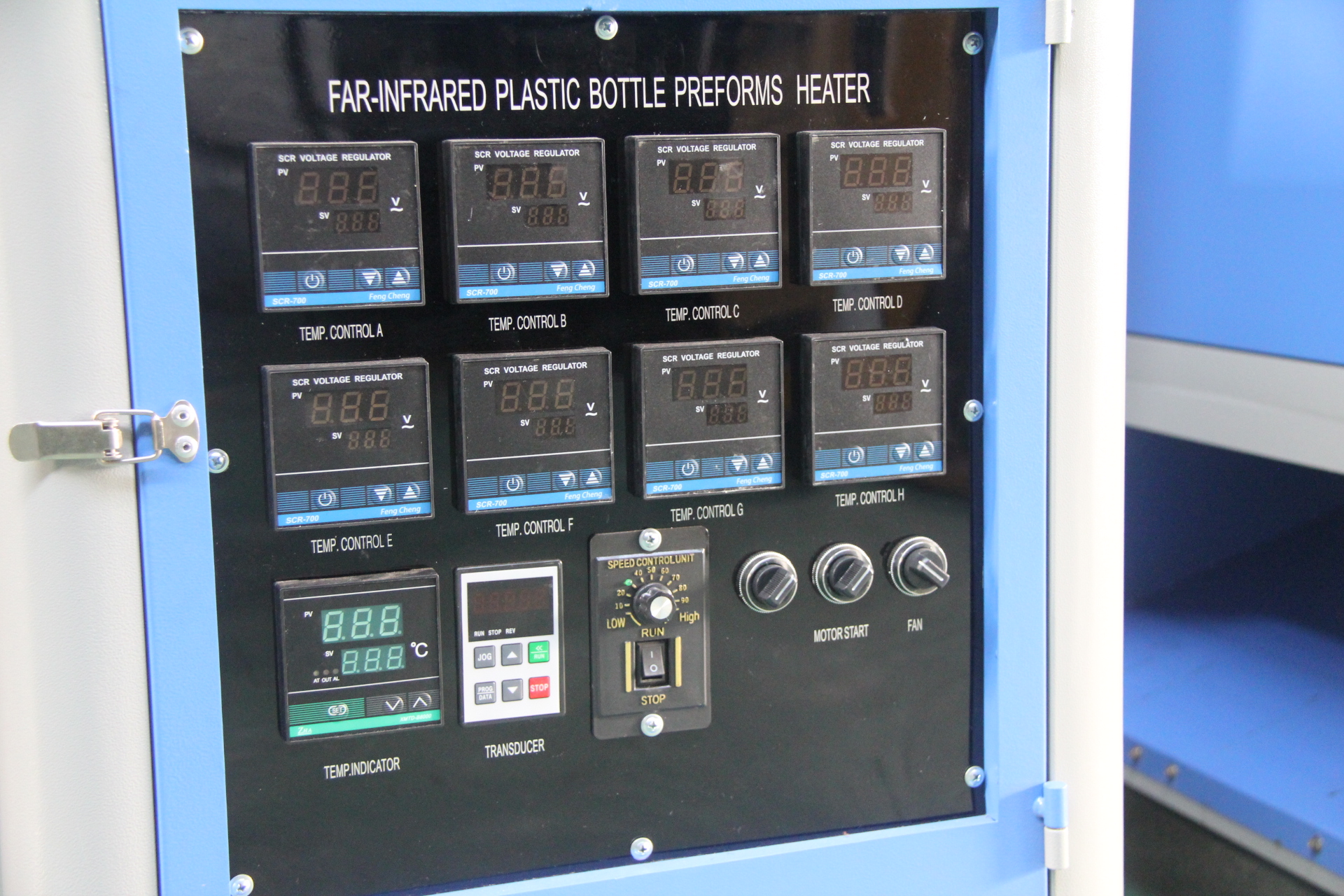

Each set of MS series machine is composed of blow molding machine and infrared preform oven. The role of these two parts is:Infrared preform oven:Heat the PET preform to a suitable softening state for blowing;

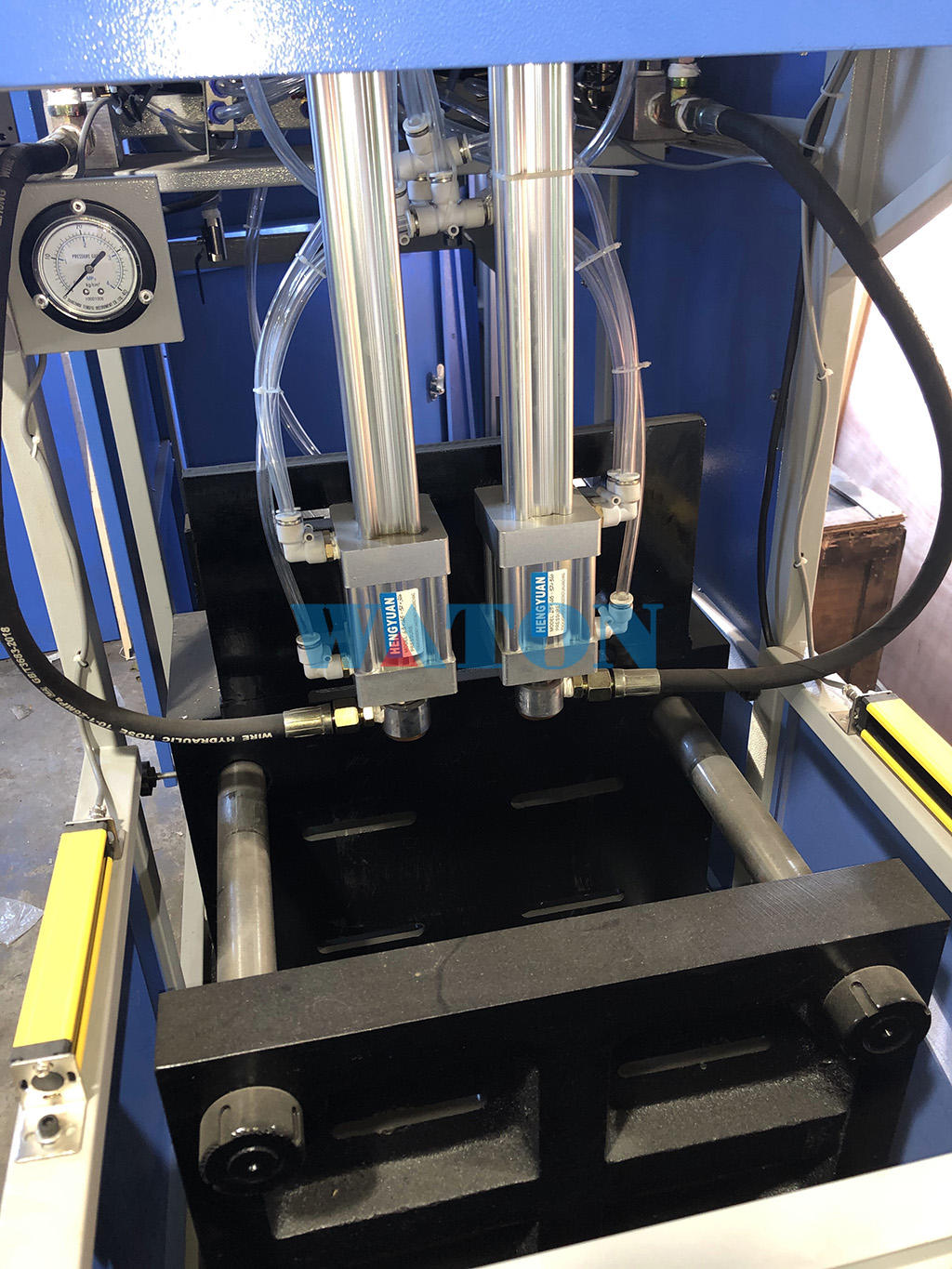

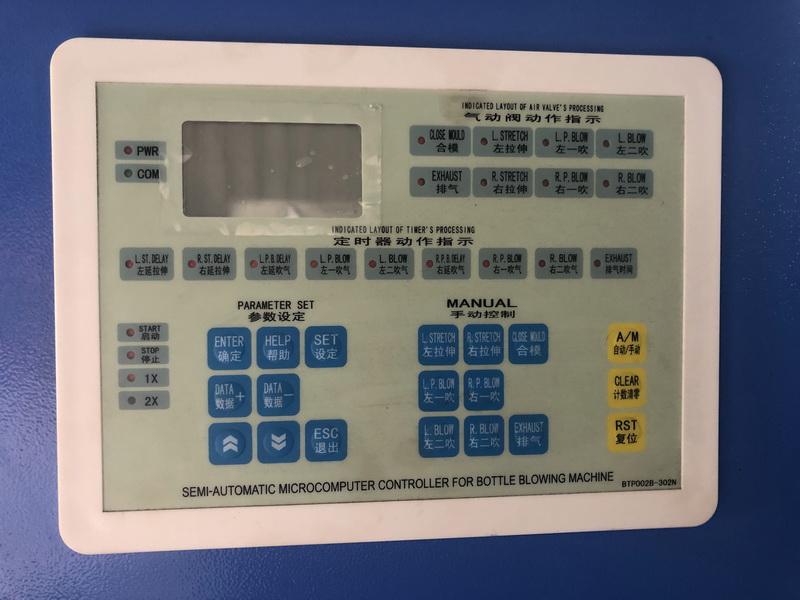

Blower:The entire bottle blowing process, such as sealing, stretching, bottle blowing, exhaust, blow mold movement, etc., is controlled by an advanced PLC control system.Patented air blowing heating system and pre-blowing functionIt plays an important role in producing high-quality bottles and eliminating bottle whitening.

Specification

model			MS-2L	MS-2L4	MS-5L-1	MS-5L-2	MS-20L
Theoretical capacity (BPH)			800~1,000	1,400~2,000	350~400	700~800	60~240
mold cavity			2	4	1	2	1
bottle	maximum. neck size	100mm	100mm	110 mm	110mm	55mm
		maximum. volume	2000ml	2000ml	5000ml	5000ml	20000ml
		maximum. diameter	105mm	105mm	180mm	180 mm	280 mm
		maximum. high	330 mm	330 mm	350mm	350mm	500 mm
Host size			16809501980 mm	Host 1	19006501580 mm	19008001580mm	25008001900mm
heater size			16507001700mm	1 heater	21006001350mm	21006001350mm	26007001580mm
Host weight			1500 kg	2500 kg	1700 kg	1700 kg	2400 kg
