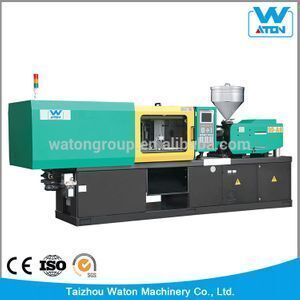

LOG160 PET Newest Type Machines To Make PET preforms
-
Supplier: Taizhou Waton Machinery Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Bruce Lee -
Price: $20000.00 /set -
Min. Order: 1 set
| Injection Volume: | 392g; | Oil tank capacity: | 210L; |
| Screw Diameter: | 50mm; | Blow Moulding Type: | Injection Blow Moulding; |
| Voltage: | Customized; | Packaging Detail: | Export wooden case.; |
| Weight: | 4720KG; | Condition: | New; |
| Delivery Detail: | Shipped in 30 days after payment; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Power(W): | 15KW; | space between tie bars: | 460*460(mm*mm); |
| Certification: | CE; | Warranty: | 1 Year; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Screw L:D ratio: | 23:1; |
| Automatic: | Yes; | Supply Ability: | 10 Set/Sets per Month; |
| Place of Origin: | Zhejiang China; | Plastic Processed: | PET,PE,PC,PPS; |
| Clamping force: | 1600Kn; | Dimension(L*W*H): | 5.5*1.25*2.0(M); |
| Model Number: | LOG160 PET; | Brand Name: | WATON; |
| Port: | Ningbo/Shanghai; | Application: | preform,cap/closure,handle,etc.; |
| INJECTION | LOG160 PET | LOG210 PET | LOG250 PET | LOG300 PET | LOG320 PET | LOG400 PET | |
| A | A | A | A | A | A | ||
| Screw diameter | mm | 50 | 55 | 65 | 70 | 75 | 90 |
| Screw L/D ratio | - | 0.959028 | 0.959028 | 0.959028 | 1.000694 | 1.000694 | 1.000694 |
| Injection Volume | cm³ | 392 | 569 | 863 | 1077 | 1414 | 2290 |
| Shot weight | g | 478 | 676 | 1020 | 1274 | 1670 | 2710 |
| Max injection rate | cm³/s | 172.8 | 200 | 297 | 382 | 416 | 514 |
| Plasticizing rate | Kg/h | 152 | 183 | 227 | 241 | 312 | 425 |
| Injection pressure | mpa | 135 | 145 | 132 | 130 | 133 | 125 |
| Screw stroke | mm | 200 | 240 | 260 | 300 | 320 | 360 |
| Screw speed | rpm | 0-180 | 0-200 | 0-180 | 0-150 | 0-150 | 0-135 |
| CLAMPING | |||||||
| Clamping force | Kn | 1600 | 2100 | 2500 | 3000 | 3200 | 4000 |
| Opening stroke | Mm | 430 | 480 | 520 | 570 | 615 | 670 |
| Platen size | MmXmm | 680*680 | 745*745 | 820*790 | 870*850 | 945*945 | 1060*1040 |
| Space between tie bars | MmXmm | 460*460 | 510*510 | 560*530 | 610*590 | 660*660 | 730*710 |
| Mold thickness (Min--Max) | Mm | 180-500 | 200-550 | 200-580 | 200-600 | 250~670 | 250-730 |
| Max.daylight | Mm | 930 | 1030 | 1100 | 1170 | 1285 | 1400 |
| Ejector stroke | Mm | 140 | 150 | 150 | 160 | 160 | 185 |
| Ejector force | Kn | 50 | 67 | 67 | 77 | 77 | 111 |
| GENERAL | |||||||
| Pump motor | Kw | 15 | 18.5 | 22 | 30 | 30 | 37 |
| Heating power | Kw | 17.2 | 17.4 | 20.4 | 22.5 | 26.3 | 36.1 |
| Dry cycle time | sec | 2 | 4.5 | 4.8 | 5 | 5 | 5.1 |
| Oil tank capacity | L | 210 | 310 | 380 | 380 | 500 | 820 |
| Machine dimension | mxmxm | 5.5*1.25*2.0 | 5.7*1.32*2.1 | 6.8*1.6*2.15 | 6.8*1.5*2.18 | 7.1*1.58*2.25 | 7.9*1.75*2.41 |
| Machine weight | kg | 4720 | 6500 | 8000 | 9100 | 12500 | 14970 |
1.How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (Whats APP, We Chat, Skype).
2.How long can I get feedback after enquiry?
We will reply you within 10hrs in working day.
3.Where is your factory located? How can I visit there?
Our factory is located in Huang Yan, Tai Zhou City, Zhe Jiang Province, China. There has flight from Shanghai(one hour), Guang Zhou(2 hrs) and Shen Zhen(2 hrs) to our city. Train from Shanghai to our city is 4 hrs. Welcome to visit our factory.
4.Delivery time
Machines & molds order takes 30 days after pre-payment received. Preform orders depends on the qty. Please inquiry sales.
5.What is the package? Is it suitable for shipment?
Machines will be packed by standard wooden case. It is very much strong for oversea transportation. Preforms are packed by standard double layer carton.
6.Payment term
30% by T/T as down payment, balance 70% by T/T or L/C before delivery. We offer credit to customers, in which case the balance payment could be months after delivery. Welcome to inquiry sales.
7.Can I trust you?
Sure, we’re Alibaba verified supplier & Alibaba Trade Assurance Suppier.
8.How long is the warranty for machines?
Machines warranty is 12 months from installation & commissioning.
9.How' s your after-sale service?
Out after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 48 hrs upon registering your need
10.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
-
