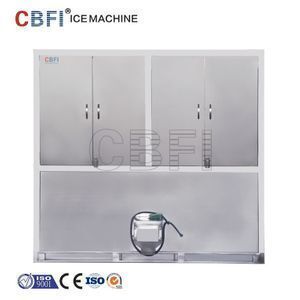

Guangzhou CBFI ice cube making machinery High-performance
-
Supplier: Guangzhou Icesource Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Millie Li -
Price: $1000.00 /set -
Min. Order: 1 set
| Delivery Detail: | Shipped in 30 days after payment; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Certification: | CE; | Port: | Guangzhou; |
| Expansion valve: | Danfoss; | Refrigerant: | R22/R404a; |
| Warranty: | 12 Months; | Brand Name: | CBFI; |
| Condition: | New; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Keyword: | ice cube making machinery; | Solenoid valve: | Castal; |
| Packaging Detail: | 1.Machine installed completely and strictly tested in our factory before shipping. 2.Completely machine:ice machine, cooling tower, water pumps, water pipes, water pipe fittings. 3.Cutomer only need prepare power and water for running the machine.; | Model Number: | CVseries; |
| Compressor Brand: | Bitzer; | Machine body materia: | Stainless steel 304; |
| Electrical components: | LG; | Weight: | Depands on capacity; |
| Supply Ability: | 30 Set/Sets per Month; | Capacity: | 1-20tons; |
| Ice Shape: | cube; | Control system: | PLC program control; |
| PLC program: | Germany brand Siemens; | Dimension(L*W*H): | Customeried; |
| Place of Origin: | Guangdong China (Mainland); | Cooling way: | Water cooling / Air cooling; |
| Power(W): | Depands on capacity; | Voltage: | 380v/220V; |
Guangzhou CBFI ice cube making machinery High-performance
Specification
producing cube ice with a nice look.
two different cube ice for option:
22mm x 22mm x 22mm |
29mm x 29mm x 22mm |
highly efficient,energy saving and environmental protection.
Features

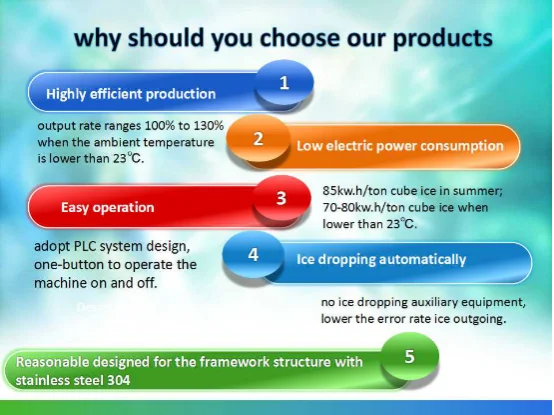

Five main features
Advanced technology
Parameter
Model | Ice making capacity | Rated power | Circulating water pump power | Cooling water pump capacity | Cooling fan capacity | Dimension | Weight of machine |
No. | Ton/24h | Kw | Kw | Kw | Kw | W*H*L(mm) | KG |
CV1000 | 1.0 | 3.69 | 0.37 | 1.5 | 0.37 | 1800*1000*1600 | 800 |
CV2000 | 2.0 | 7.11 | 0.37 | 1.5 | 0.55 | 1630*1600*1686 | 1000 |
CV3000 | 3.0 | 9.68 | 0.37 | 2.2 | 0.75 | 1980*1630*1840 | 1200 |
CV5000 | 5.0 | 18.84 | 0.55 | 2.2 | 1.5 | 2890*1780*1840 | 1600 |
CV8000 | 8.0 | 28.52 | 1.1 | 4 | 1.5 | 4820*1780*2000 | 2500 |
CV10000 | 10.0 | 37.68 | 1.1 | 4 | 1.5 | 5730*1780*2000 | 3000 |
CV15000 | 15.0 | 52.41 | 1.65 | 5.5 | 2.2 | 8620*1780*2000 | 4500 |
CV20000 | 20.0 | 75.36 | 2.2 | 8 | 3 | 11460*1780*2100 | 6000 |
Know more information about CV series,please contact us
Machine running condition
water temperature:23℃;
evaporate temperature:15℃;
condensing temperature :40℃;
reference valve is under 50Hz power supply.
There will be in a small range of production due to the difference of water temperature and ambient
temperature.
Applications
Accessory equipment

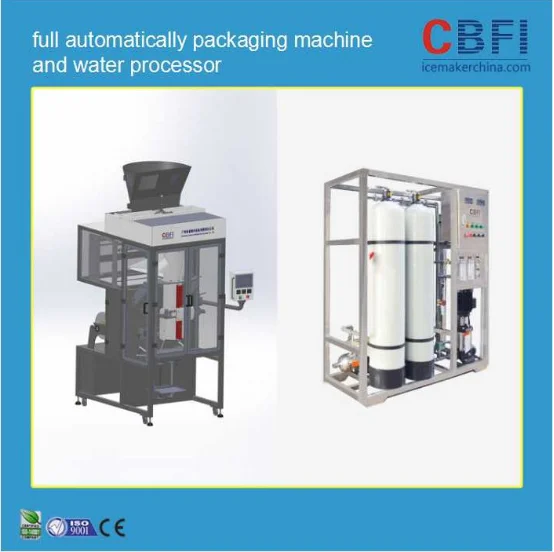

Fully automatically packaging machine for ice packaging
1,makes the production of ice more sanitary and convenient.
2,the degree of automation is high with advanced control system.
Water processor keeps ice machine`s service life longer
Know more about accessory equipment,please check http://icesourcegroup.en.alibaba.com

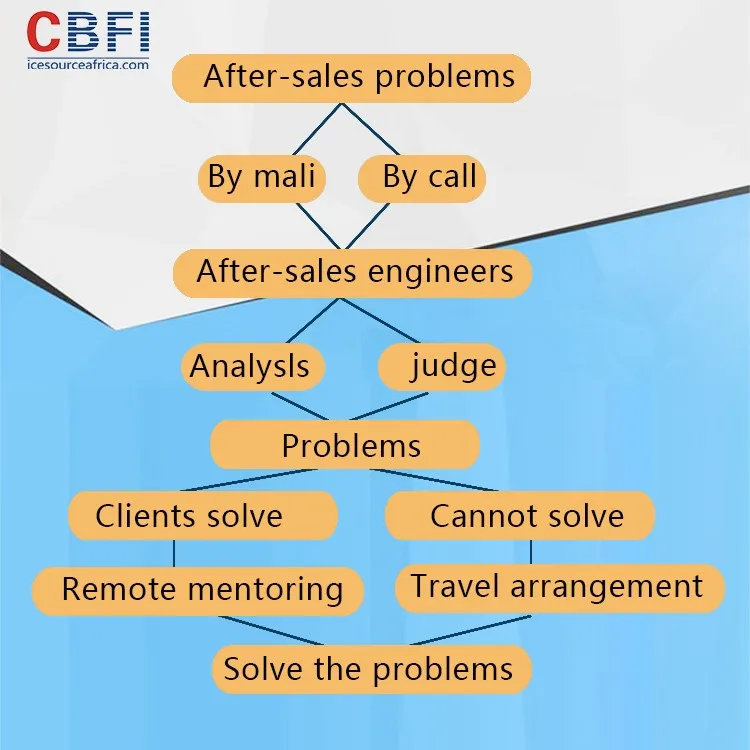

1. We have large after-sales service team,all the technicians are professional and have experience for years.
2.After -sale service overseas is available when you need.
3. Warranty: within one year, any spare parts will be free for you; beyond
one year, customer side pay the relative fees .
More about our service, please check http://icesourcegroup.en.alibaba.com
7 sets 3 tons ice cube machines for Dubai client
Welcome to click http://icesourcegroup.en.alibaba.com to read more customer cases
Guangzhou Icesource Refrigeration Equipment Co., Ltd. is specialized in researching,
designing, producing and selling large production ice machines and their accessory equipment,
for example, cold room, crane,ice crushing machine and so on.
Our teams

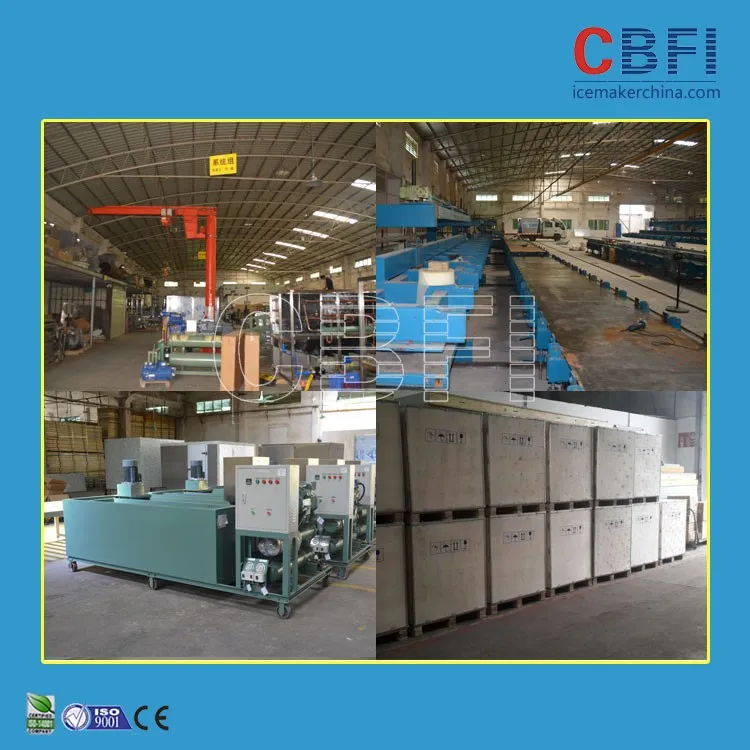

Our factory
learn more about our company,please check http://icesourcegroup.en.alibaba.com
1. The payment can be T/T,L/C,Western Union, Money Gram and in Cash.
2. The deposit is 30%, after we receive your deposit, we will start to produce the machine for you. The balance
70% should be paid before shipping.
3. The delivery time normally is 30 days after receive the deposit.
4. If necessary, we will arrange the shipping for you.
-
