top quality made in China cast steel hydraulic butterfly valve dn500 ansi flange

Product details
Disc:Ductile Iron/SS304/SS316;Medium:Fresh Water;
Material:Casting;Connection type:flange;
Seal material:NBR;Standard:ANSI BS DIN JIS;
Brand Name:sangao;Port:shanghai;
Structure:Butterfly;Body material:WCB A216;
Port Size:DN100;Payment Terms:L/C,D/P,T/T,Western Union;
Media:Water;Working pressure:150~2500LB (PN16~PN420);
Type:2-way;Model Number:D341;
Supply Ability:5000 Set/Sets per Month;Place of Origin:Shaanxi China (Mainland);
Application:General;Standard or Nonstandard:Standard;
Temperature of Media:Medium Temperature;Certificate:ISO9001:2008 CE;
Power:Manual;Pressure:Medium Pressure;
Packaging Detail:plywood case;
Product Description

 top quality made in China cast steel hydraulic butterfly valve dn500 ansi flange



body

WCB

WC6

CF8

CF8M

CF3

CF3M

disc

WCB+ENP

WC6+STL

CF8+STL

CF8M+STL

CF3+STL

CF3M+STL

stem

2cr13

25cr2mov

1cr18ni9ti

1cr18ni12mo2ti

00cr18ni10

00cr17ni14mo2

seat

graphite

graphite

graphite

graphite

graphite

graphite

packing

PTFE

PTFE

PTFE

PTFE

PTFE

PTFE





STANDARDS :

  • Design standard: API 6D API609 EN593 GB12238

  • Inspection and test: API 6D API 598 EN12266 GB/T 13927 JB/T 9092

  • Face to face: ASME B16.10 GB/T12221

  • Flange connection: ASME B16.5 EN1092 GOST54432 GB/T9113



APPLICATION :

  • applicable temperature: -29----425
  • main material: carbon steel,WCB,CF8,CF8M,CF3,CF3M,A216,A351,SS316,SS304,etc.

  • applicable medium: water, oil, gas, steam and non strong corrosive liquid

  • pressure rate: PN10—PN40,150LB---600LB

  • size range: DN50--DN1400 2’’—56’’

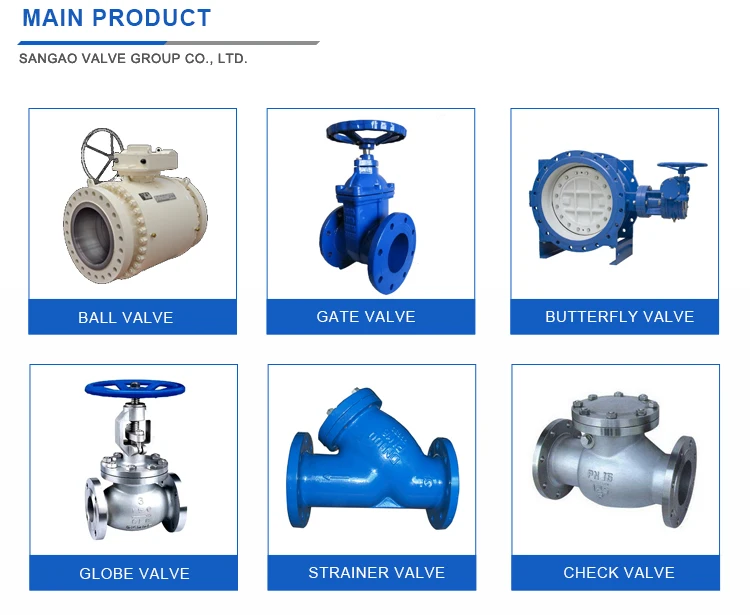

PRODUCT CATEGORY

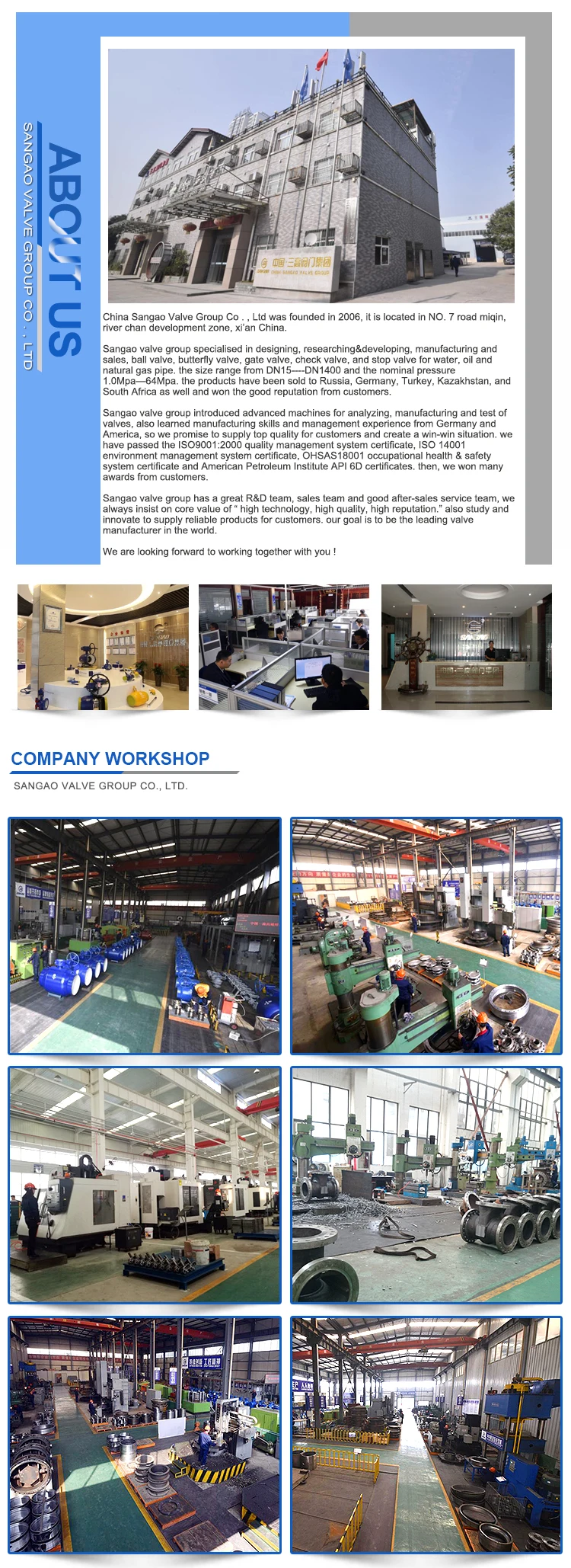

Company Information



Our Services



1.we can supply one-stop service and solution for water, oil, gas and heating supply system valves

2.the goods will be 100% inspected before ship out from factory, we can guarantee zero leakage.

3.the quality is reliable, guarantee more than 10 years life span.

4.Having a good after-sales service, if the valve parts are broken, it can be replaced

Packaging & Shipping
