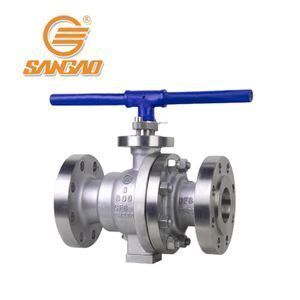

steam oil water treatment 4 inch ball valve stainless steel 600 wog pn 40 ball valve
-
Supplier: Sangao Valve Group Co., Ltd. -
Region: China -
Contact: Mr. Golf Liu -
Price: $50.00 / >=10 sets -
Min. Order: 10 sets
| Standard or Nonstandard: | Standard; | Power: | Manual; |
| Seal material: | VITON; | Packaging Detail: | plywood case; |
| Standard: | ANSI BS DIN JIS; | Working pressure: | 150~2500LB (PN16~PN420); |
| Type: | 2-way; | Temperature of Media: | Medium Temperature; |
| Payment Terms: | L/C,D/P,T/T,Western Union; | Body material: | SS316; |
| Pressure: | High Pressure; | Application: | General; |
| Port: | shanghai; | Brand Name: | sangao; |
| Medium: | Base Oil Water Gas; | Connection: | Flange Ends; |
| Place of Origin: | Shaanxi China (Mainland); | Size: | DN350--1000; |
| Model Number: | SGQ341F; | Port Size: | DN250; |
| Material: | Stainless Steel; | Structure: | Ball; |
| Media: | water,oil,gas,steam; | Supply Ability: | 1000 Set/Sets per Month; |
| Certificate: | ISO9001:2008 CE; |
steam oil water treatment 4 inch ball valve stainless steel 600 wog pn 40 ball valve
NO | parts name | carbon steel | low temperature steel | stainless steel |
1 | body | A216 WCB | A352 LCB | A351 CF8 |
2 | cap | A216 WCB | A352 LCB | A351 CF8 |
3 | nut | A194 | A194 | A194 |
4 | bolt | A193 | A320 | A193 |
5 | gasket | 304+graphite | 304+graphite | 316+graphite |
6 | spring | inconelx-750 | inconelx-750 | inconelx-750 |
7 | seat ring | A105+ENP | A350+ENP | A182 F316 |
8 | seat | RPTFE | RPTFE | RPTFE |
9 | o-ring | VITON | VITON | VITON |
10 | ball | A105+ENP | A105+ENP | A182 F316 |
STANDARDS :
Design standard: API 6D API608 BS5351 EN10217 GB/T12237
- Inspection and test: API 6D API 598 BS5146 GB/T 13927 JB/T 9092
- Face to face: EN10217 ASME B16.10 BS2080 GB/T12221
- Flange connection: EN1092 ASME B16.5 GB/T9113
APPLICATION :
- applicable temperature: -29----425
- main material: carbon steel Q345R,20#, A105,WCB A216, A351 CF8, A352 LCB, etc.
- applicable medium: water, oil, gas and non strong corrosive liquid
- pressure rate: PN10—PN100,150LB---600LB
- size range: DN15--DN1400 1/2’’—56’’
1.we can supply one-stop service and solution for water, oil, gas and heating supply system valves
2.the goods will be 100% inspected before ship out from factory, we can guarantee zero leakage.
3.the quality is reliable, guarantee more than 10 years life span.
4.Having a good after-sales service, if the valve parts are broken, it can be replaced
-
