Current: | 6A Min - 16A Max; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
Supply Ability: | 5000 Piece/Pieces per Month; | MTBF: | 100,000 hours; |
Brand Name: | TEISON; | Enclosure: | IP55; |
Product name: | Ev Charger Connector; | Power Supply: | AC power supply socket; |
Operating Temperature: | -30℃~+50℃; | Frequency: | 50Hz Or 60Hz; |
Storage Temperatu: | -40℃~+8; | Place of Origin: | Jiangsu China (Mainland); |
Model Number: | TS-PEC-001; | Port: | Shanghai or Ningbo; |
Install: | Portable, plug and play; | Voltage(choose one only): | AC220V/120V/208V/240V; |
Packaging Detail: | with canvas package of delicate and upscale appearance.; |

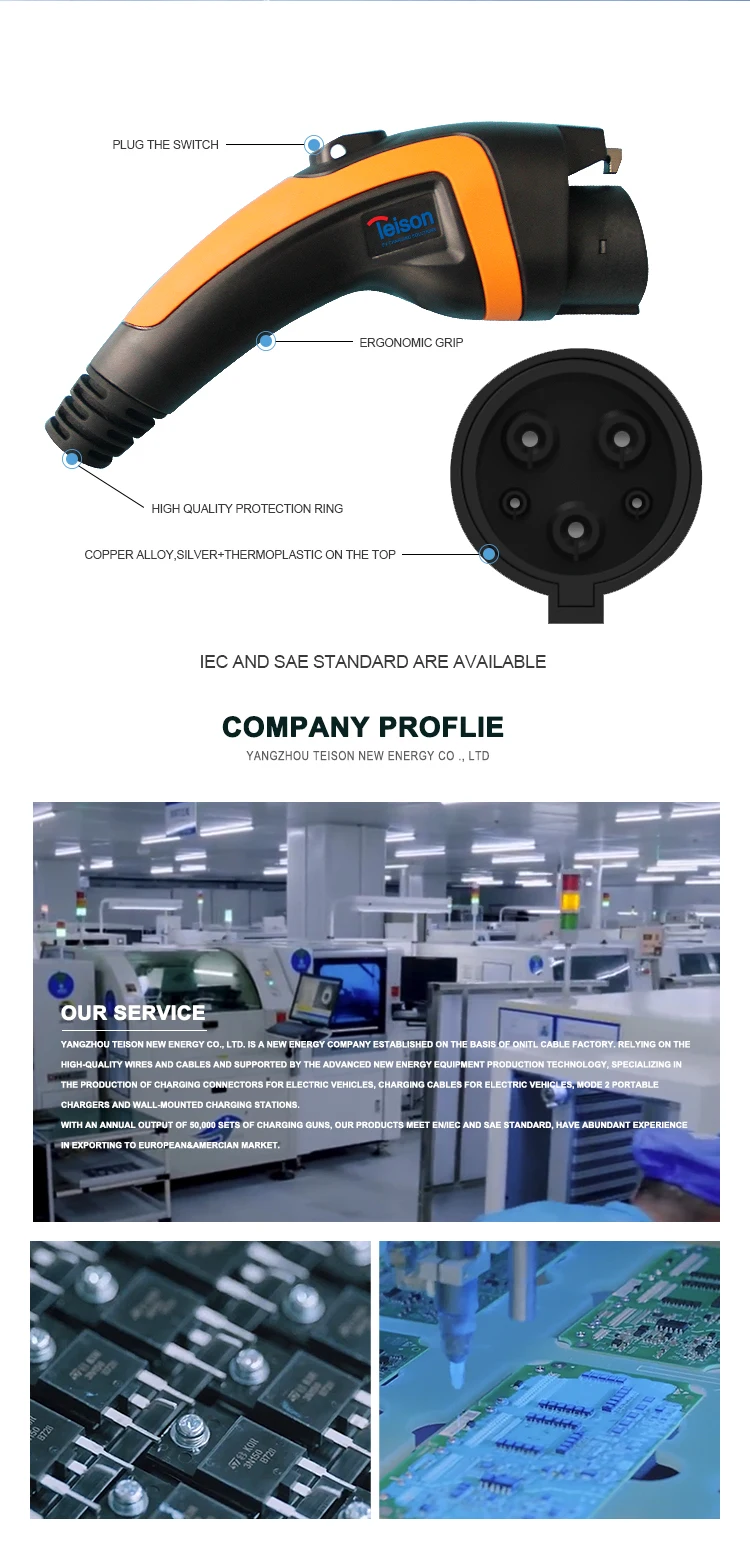

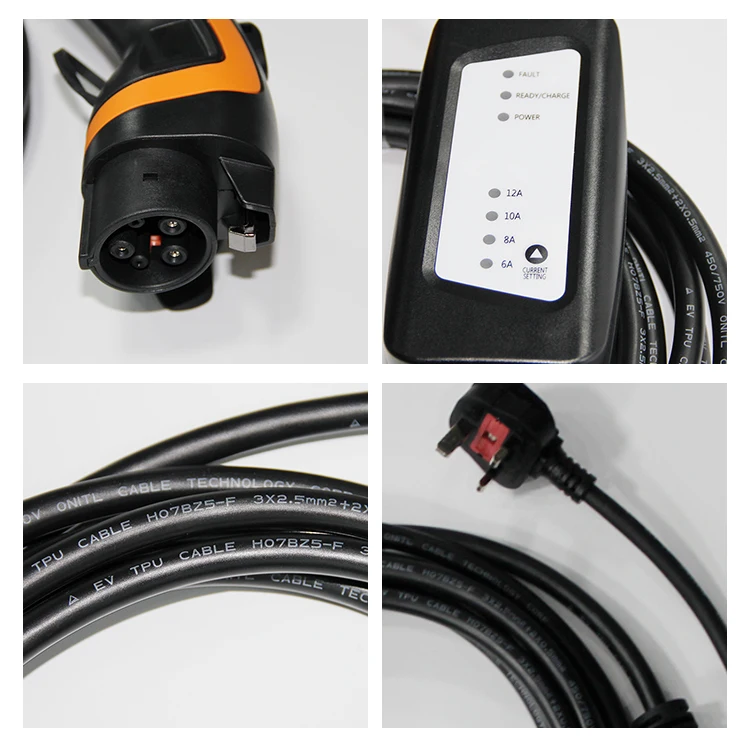

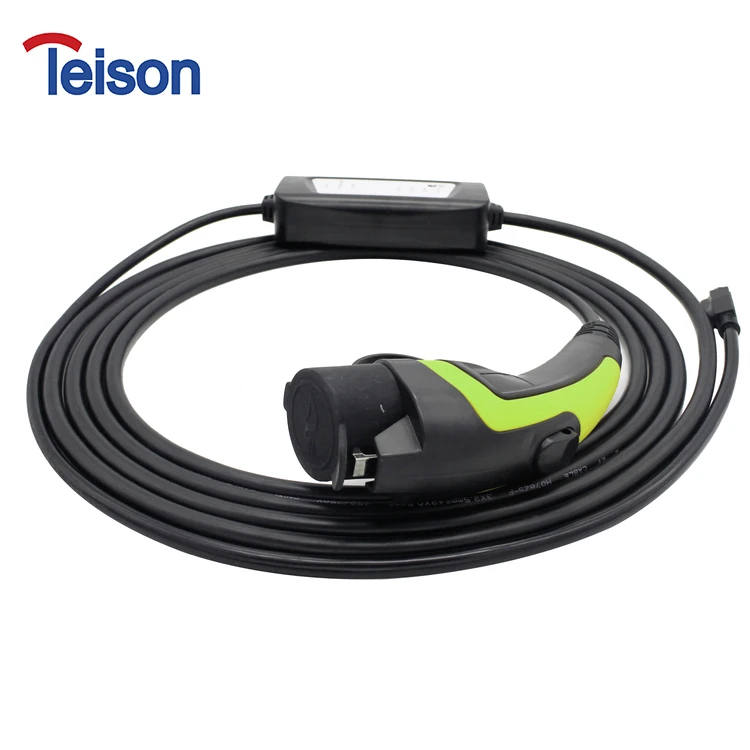

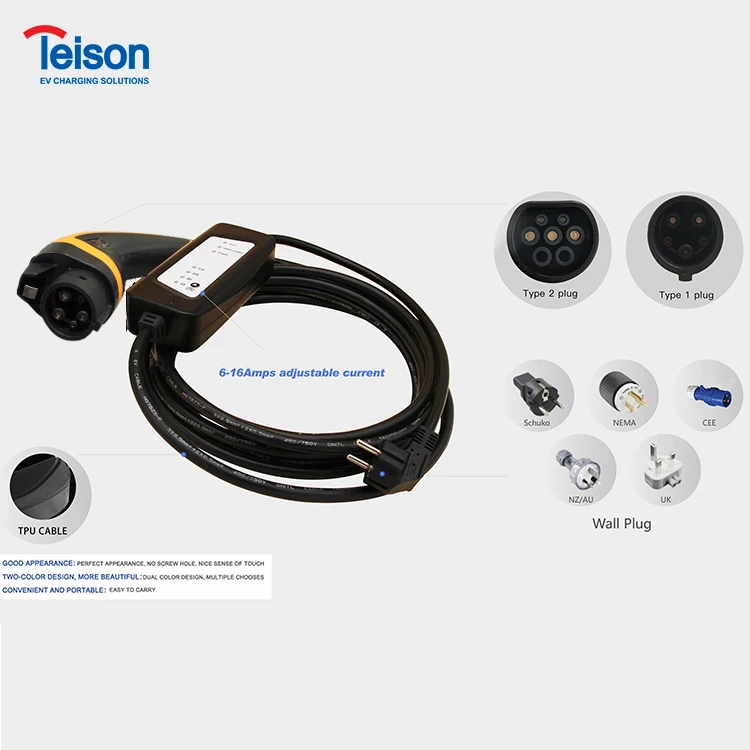

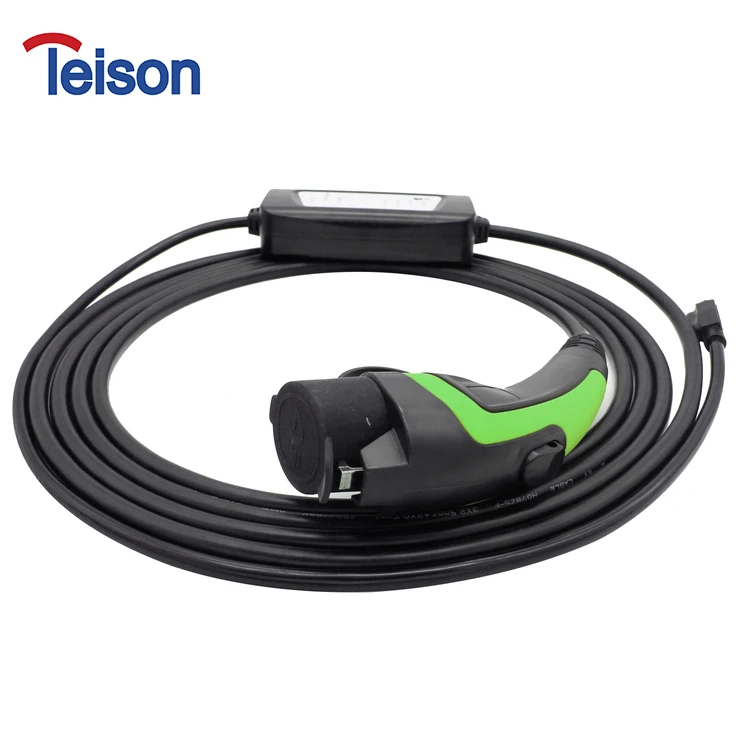

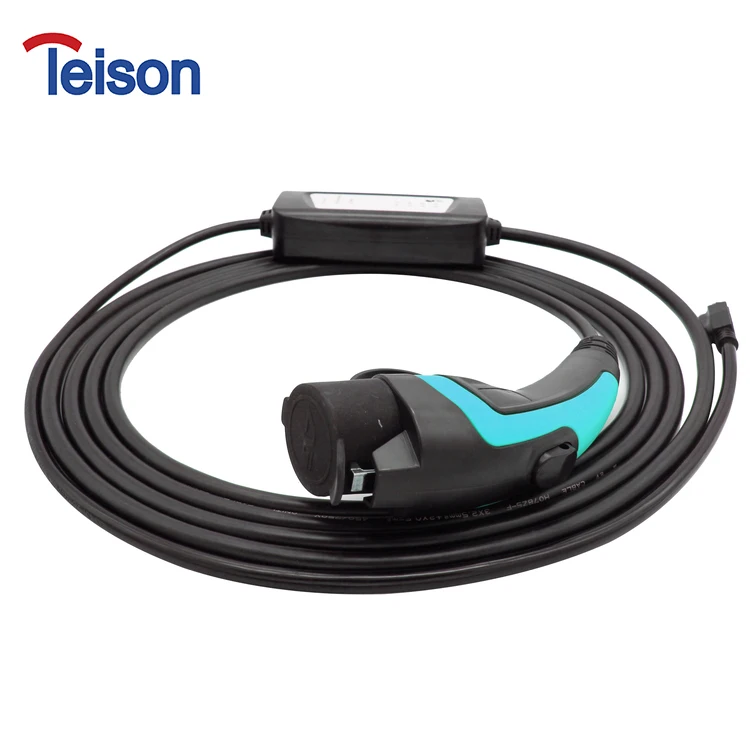

Teison type 2 adjustable 16A Portable EV Charger
Teison type 2 adjustable 16A Portable EV Charger | |
Product Model | TS-PEC-001 |
Install | Portable,Plug and Play |
Stardard | SAE J1772,IEC 62752,EN 62186-2,IEC 61851-1 |
Rated Voltage | 120V/250V |
Rated Frequency | 50Hz/60Hz |
Adjustable Current | 6A min.-16A max. |
Rated Power | 3.8kw |
Charging Cable Length | 5m or Customization |
Operating Temperature | -30 ℃ to +65 ℃ |
Storage Temperature | -40 ℃ to +80℃ |
Protection level | IP65 |
Control Box Size | 170*70*38mm |
Weight | 1.8KG |
Protection | 1.Short circuit protection 2.Leakage current protection 3.Over voltage and under voltage protection 4.Over and under frequency protection 5.Over current protection 6.Over temperature protection 7.Ground protection 8.Lighting protection |
