Usb digital video microscope driver camera with lcd screen

Supplier: Zhengzhou Nanbei Instrument Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Sarah Guo
Price: $1133.00 /set
Min. Order: 1 set

Click here to contact

Product details

Magnification range:	40X~1600X;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Trade Assurance;
Theory:	Biological Microscope;	Objective lense:	4X,10X,20X(S),40X(S),60X(S),100X(S,Oil);
Model:	SMART;	Nanbei:	Usb digital video microscope driver camera with lcd screen;
Delivery Detail:	about 7 day after your payment;	eyepiece:	10 X large field of view 16 X eyepiece;
Supply Ability:	1000 Set/Sets per Month Usb digital video microscope driver camera with lcd screen;	Port:	Shanghai Qingdao;
converter:	Inclined internal positioning four hole (five hole) converter;	Brand Name:	NANBEI;
Drawtube:	Binocular;	Packaging Detail:	carton case Usb digital video microscope driver camera with lcd screen;
function:	500x driver 1000x 4000x 10000x zoom eyepiece adapter;	feature:	halogen cold ring point light source laboratory portable;
Model Number:	SMART;	Optical system:	OTICS Infinite Distortion Correction Optical System;
usage:	lab low power latest rohs android software radical;	Place of Origin:	Henan China (Mainland);

Usb digital video microscope driver camera with lcd screen

Our Product

1.Feature and Description

novel integrated rack, mirror arm hollow observation hole, the rear handle to facilitate the portable

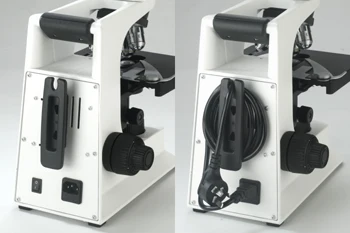

New winding device for easy handling and storage

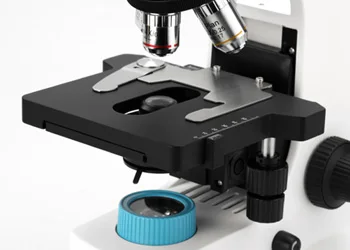

The new wire drive platform prevents scratching the body
100 × water immersion objective lens to replace the traditional oil mirror

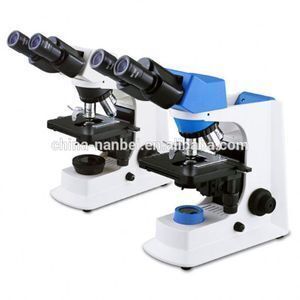

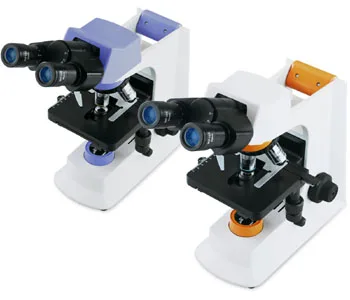

2.Picture for Our product

3.Usage and Application

Applicable to medical laboratory, laboratory research, university and college teaching

4.Technical data

Optical system	Infinite Distortion Correction Optical System
Magnification range	40×~1600×
eyepiece	10 × large field of view, high eye point field eyepiece, field of view Φ20mm, 16 × eyepiece, with a pointer
Objective lense	Infinity field achromatic objective lens:4×,10×,20×(S),40×(S),60×(S),100×(S,Oil) Infinity far field achromatic water immersion objective:100×(S,W)
Observation tube	Hinged binoculars, 30 ° tilt, 360 ° rotation, interpupillary distance adjustment 48 ~ 75mm
	Hinged three eyepiece group, 30 ° tilt, 360 ° rotation, interpupillary distance adjustment 48 ~ 75mm
converter	Inclined internal positioning four hole (five hole) converter
Focusing device	Coarse coaxial focus, coarse adjustment with elastic adjustment, and focus on the upper limit device
Object table	Mechanical moving stage, double clip structure
	Wire drive stage (X-axis is not protruding), double-clip structure
Condenser	Abbe chisel, N.A.1.25, with variable light bar
Lighting system	6V / 20W halogen (wide voltage input: 100V ~ 240V), brightness adjustable
	6V / 30W halogen (wide voltage input: 100V ~ 240V), brightness adjustable
	3W-LED cold light source lighting system
Phase contrast device	10×/20×/40×/100×Unlimited field field phase contrast lens and phase contrast board
Dark field device	Dark field condenser (dry, suitable for 4 × / 10 × / 20 × / 40 × objective lens)
	Dark field condenser (wet, suitable for 100 × objective lens)
Polarizer	Polarizer, analyzer
Mirror group	Flat concave double mirror
Camera interface	1 × camera tube (for digital camera)
	0.5 × camera tube (for camera system)
Digital microscope	Built-in integrated 3.2 million and 5 million digital microscope SMARTe
Digital camera	Can be configured CANON, NIKON, OLYMPUS and other digital cameras
