2000N force gauge
-
Supplier: Zhengzhou Nanbei Instrument Equipment Co., Ltd. -
Region: Henan, China -
Contact: Ms Sarah Guo -
Price: $480.00 /set -
Min. Order: 1 set
| Supply Ability: | 2000 Piece/Pieces per Month; | Data interface: | Rs232 nine-hole socket; |
| Indication error: | 0.50%; | Model Number: | HF-2000; |
| Packaging Detail: | Carton push and pull force testing tools; | Ambient temperature: | 5° C~35° C; |
| Size: | 280 x 200 x 170 mm; | load division value: | 1N; |
| Sensor structure: | S-tye sensor with high precision (inner sensor); | Unit: | N / kg / lb; |
| Port: | qingdao; | Brand Name: | NANBEI; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union; | Type: | tension & compression test; |
| Place of Origin: | Henan China; | Peak load value: | 2000N; |
| Gross weight: | 2kg; |

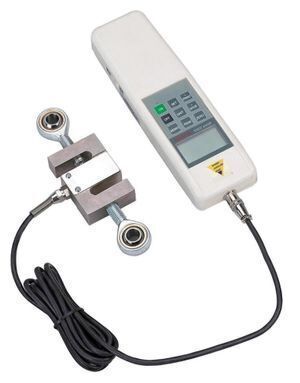

Force Measuring Instruments push and pull force testing tools
Product Description
The HF series are digital force gauge with compact size, high accuracy,
Widely applied in electron, high & low voltage electrical appliance, hardware, automobile parts,
lighter and ignition system, light industry, mechanical, textile.
Character:
1.Connect the computer in-phase test.
2.The compare value set by user’s request.
3.Big memory deposit function.
4.LCD overturns show.
5.Auto peak.
6.Auto close time set
Model specification sheet of force gauge with inner sensor:
Model specification | HF-2000 | HF-5000 | HF-10K | HF-20K | HF-50K | HF-100K | HF-200K | HF-500K | HF-1000K | |||
Peak load value | 2000N | 5000N | 10KN | 20KN | 50KN | 100KN | 200KN | 500KN | 1000KN | |||
load division value | 1N | 1N | 0.01KN | 0.01KN | 0.01KN | 0.1KN | 0.1KN | 0.1KN | 1KN | |||
0.1kg | 0.1kg | 0.001kg | 0.001kg | 0.001kg | 0.01kg | 0.01kg | 0.01kg | 0.1kg | ||||
0.1lbs | 0.1lbs | 0.001Klbs | 0.001Klbs | 0.001Klbs | 0.01Klbs | 0.01Klbs | 0.01Klbs | 0.1Klbs | ||||
Indication error | ±1% | ±1% | ||||||||||
Unit | N / (KN), kg / (Mg or t), lb (KIb) | |||||||||||
Data interface | Rs232 nine-hole socket | |||||||||||
Power | rechargeable batteries, charger(charging voltage 100V-240V) | |||||||||||
Sensor structure | S-tye or column sensor with high precision (external sensor) | |||||||||||
Ambient temperature | 5° C~35° C | |||||||||||
Transport temperature | -10° C~60° C | |||||||||||
Relative humidity | 15%~80%RH | |||||||||||
Working conditions | No hypocenter and corrosive medium | |||||||||||
Gross weight | 6 kg | 9 kg | 24 kg | 36 kg | ||||||||
Size | 280 x 200 x 170 mm | 310 x 260 x 190 mm | ||||||||||
Spring tester For morde details please click here |

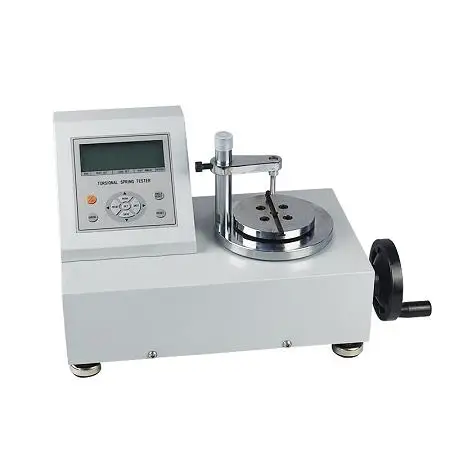

Torsion spring tester For more details please click here
|
