OEM: | welcome | application: | telecommunications |
Package: | 10 pieces/box | Protection type: | Overvoltage |
shell material: | ABS or PBT (UL94-V0) | Supply capacity: | 1000 pieces per day |
payment terms: | L/C, Western Union, T/T | Certification: | ISO9001:2008 |
type: | LSA Lightning Arrester Magazine | model: | MT-2113 |
Place of origin: | Zhejiang, China | weight: | 75g |
brand: | melontel | color: | grey |
Packaging details: | 10 pieces/box | part: | gas discharge tube |
product name: | arrester magazine | port: | Ningbo |
Product Description
Name: | arrester magazine |
country of origin: | Ningbo, China |
application: | telecommunications |
product weight: | 75g |
Package weight: | 22kg/carton |
shell material: | ABS or PBT (UL94-V0) |

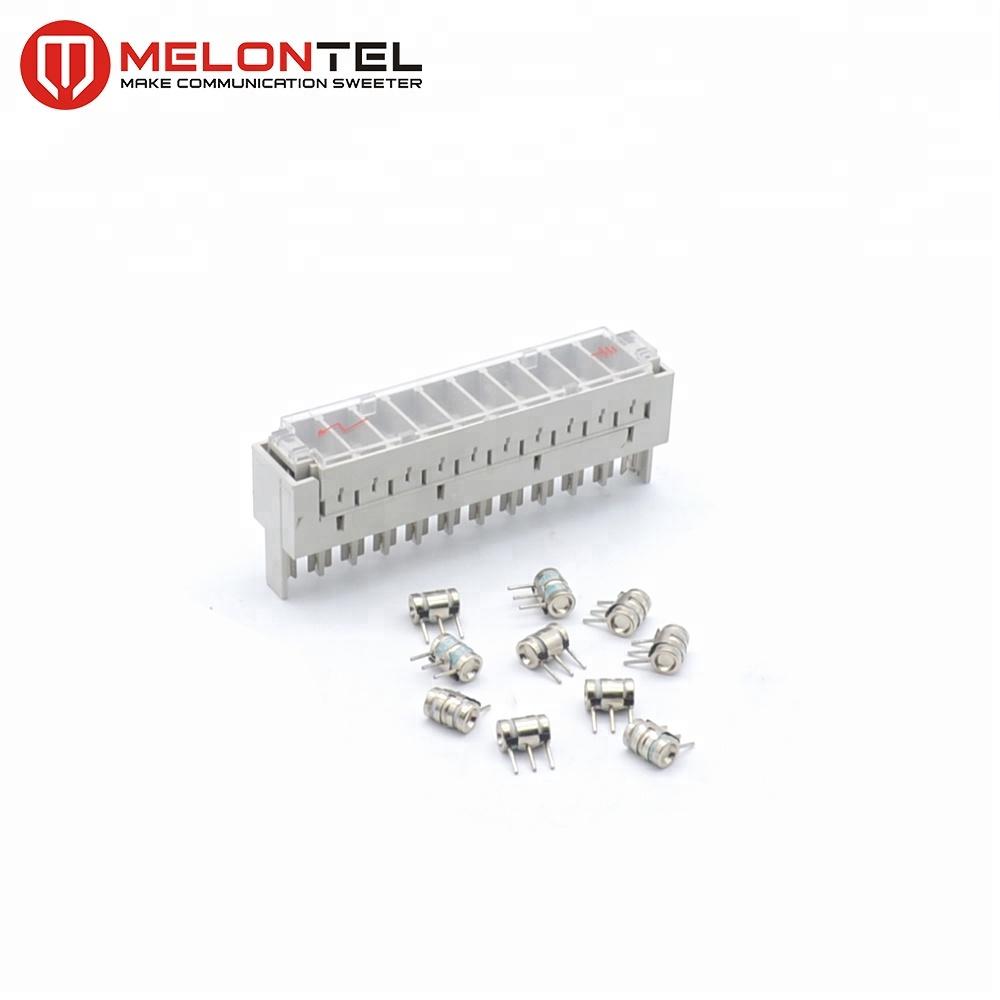

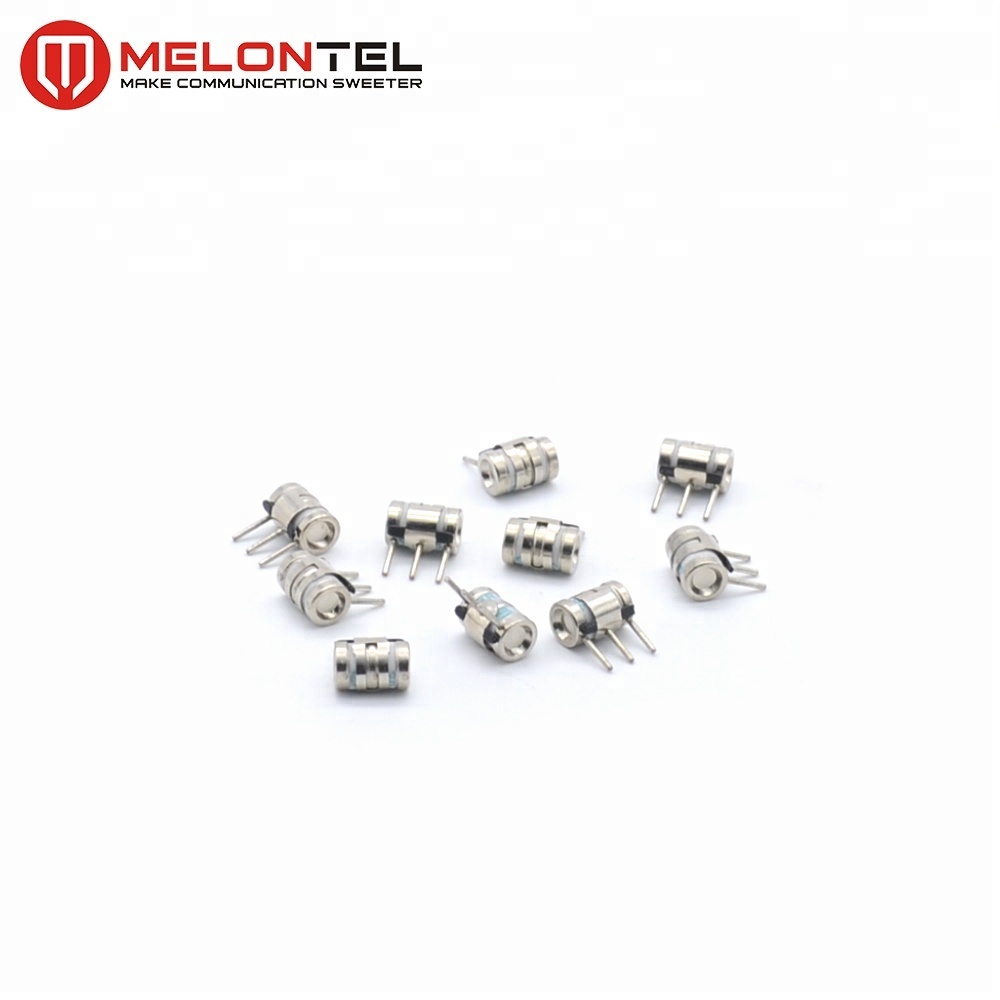

Protective parts: | gas discharge tube |
color: | grey |
type: | 3 poles |
Package: | 10 pieces/box |
Protection type: | Overvoltage |
warranty period: | 5 years |
describe:

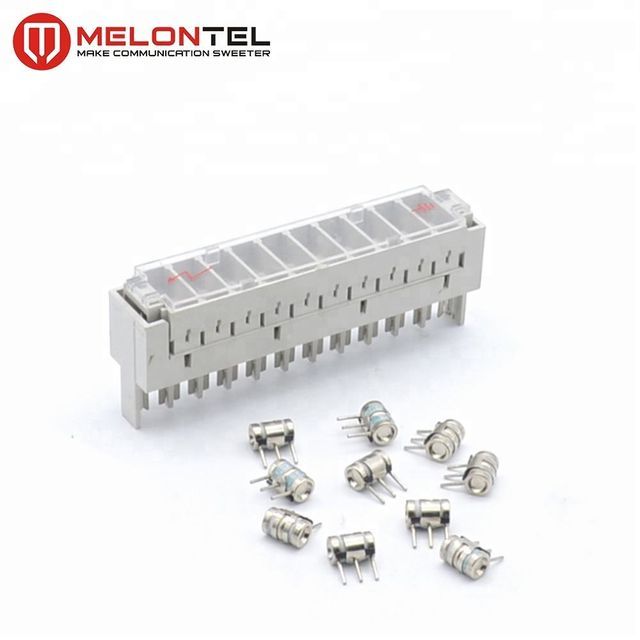

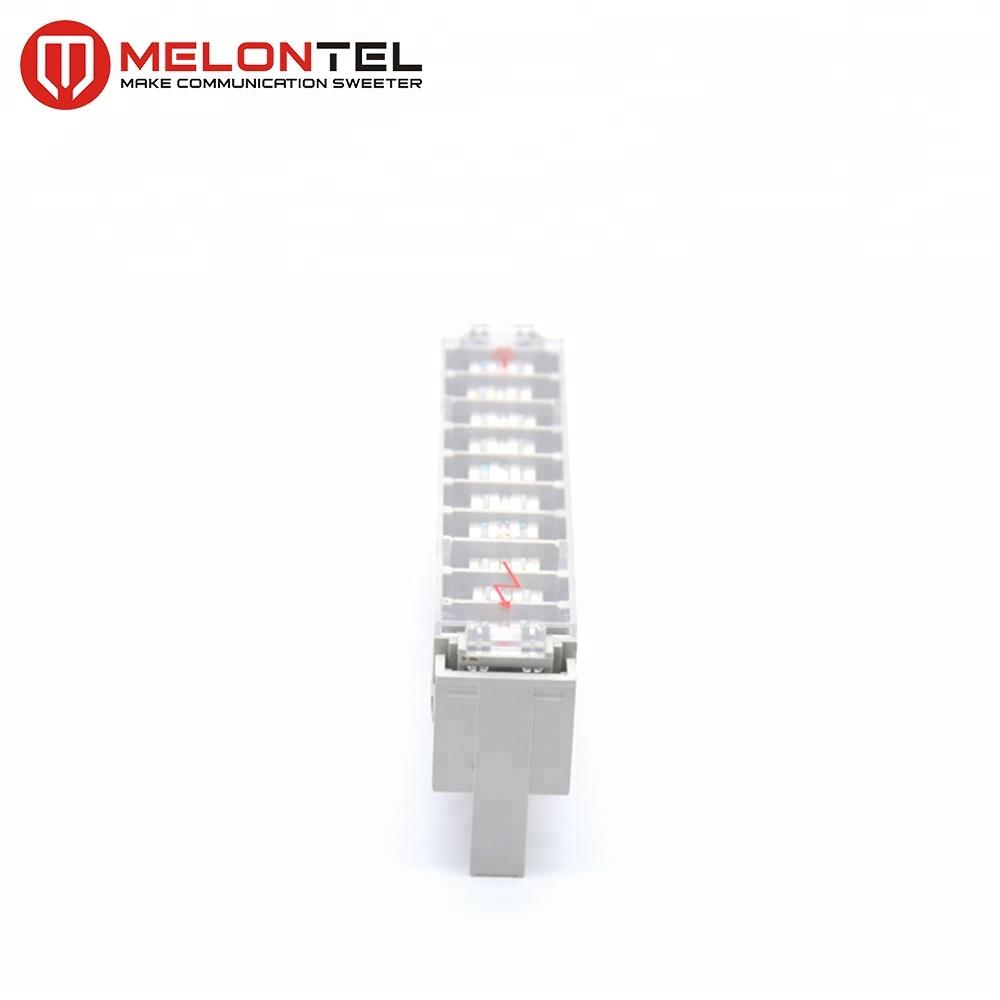

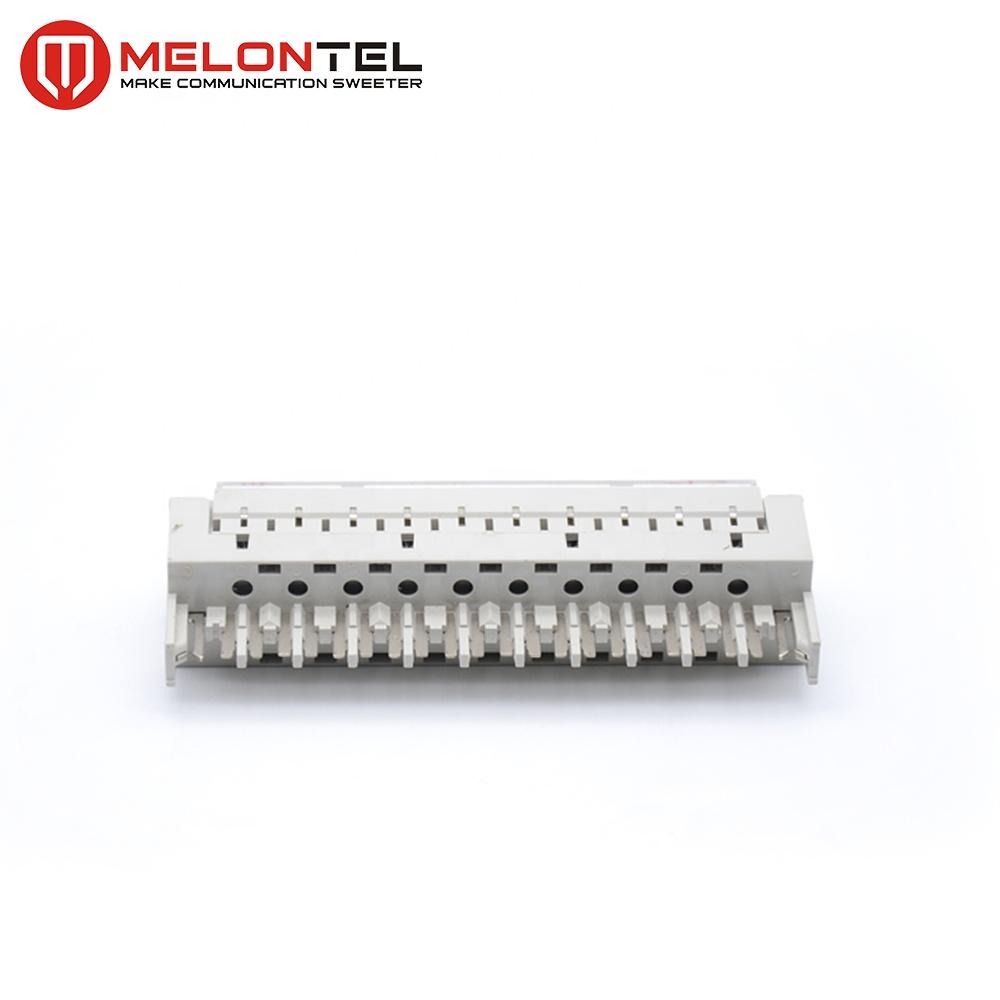

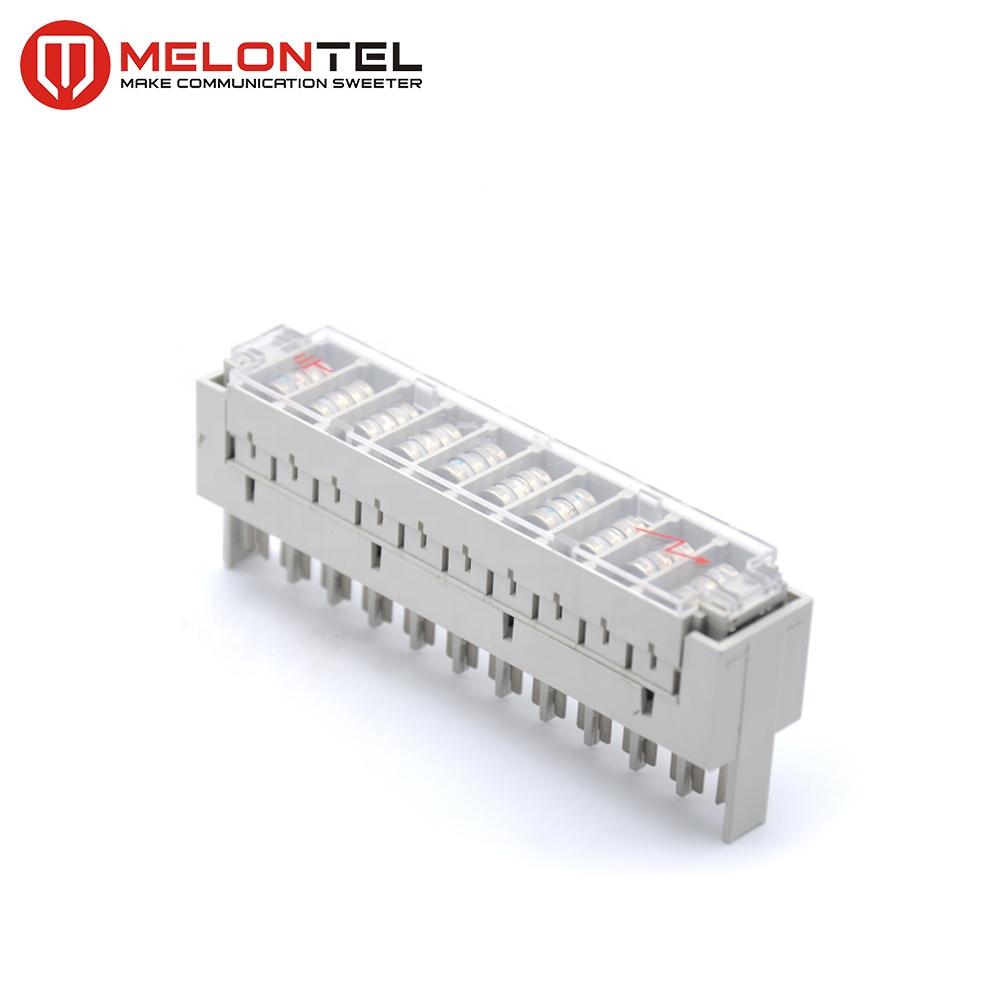

1. Name: 3-pole overvoltage protection magazine
2. Material: ABS (UL94V-0) body & phosphor bronze contactor
3. Silver plating: 0.5um
4. Purpose: Installed on krone type terminal block
5. Type: 8 pairs or 10 pairs available.
6. 10 pairs of protective magazines, krone single pair protector, 5pin lightning protector,
Various types of options.
7. Certification: ISO9001. 100% test passed.
8. Packing: 10 pieces/box. 250 pieces/carton
Mechanical behavior
Plastic material: ABS&PBT (UL94V-0)
Contact material: Phosphor bronze.
Surface silver plating (0.5um-5um)
Ground Rod: Phosphor Bronze.
Nickel plated surface
Electrical properties:
Insulation resistance: R≥1000M ohm
Contact resistance: R≤5m ohm
Dielectric strength: 1200V DC, no sparks or arcing for 60s
Ordering Information
YH-60892024-61 10 pairs of magazines with 2-pole arrester, optional
YH-60892023-08 10 pairs of magazines with 3-pole arrester, optional
The module shell materials we provide mainly use imported GE PBT and ABS (UL94V-
0).For both materials we will use new materials instead of recycled materials (first recycled or
second recycling). So we can provide modules with good performance. You can get very cheap price
There are products on the market, but they are mainly made from such recycled materials, PBT or ABS.
