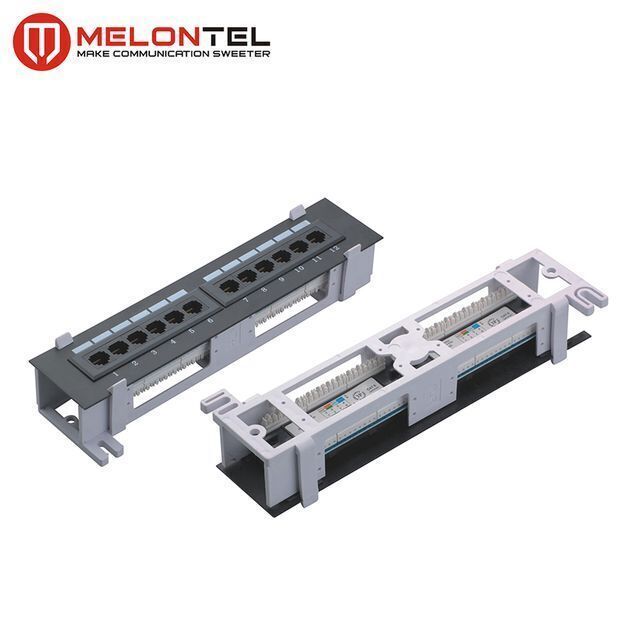

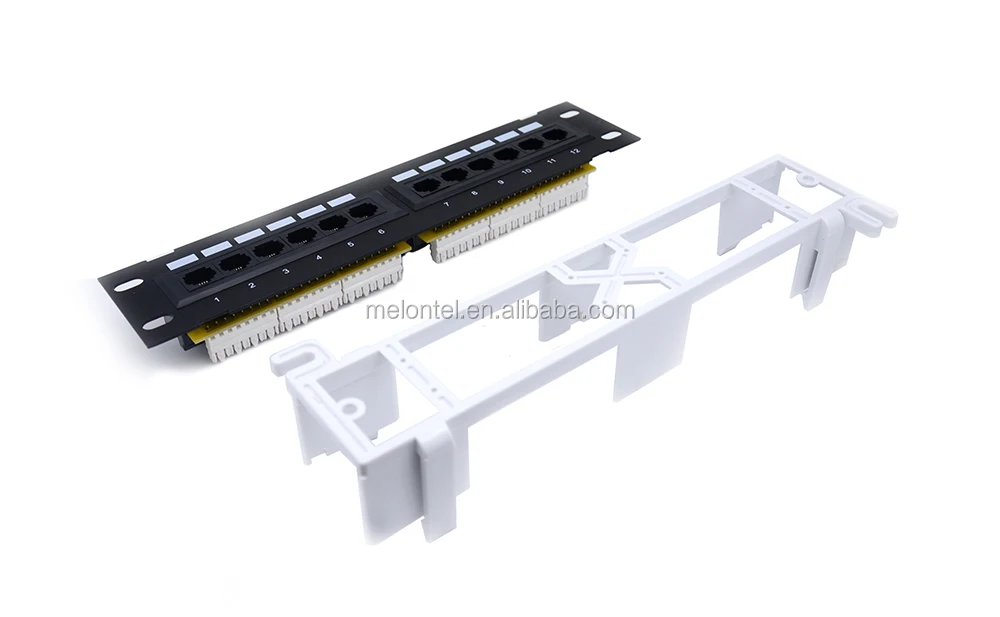

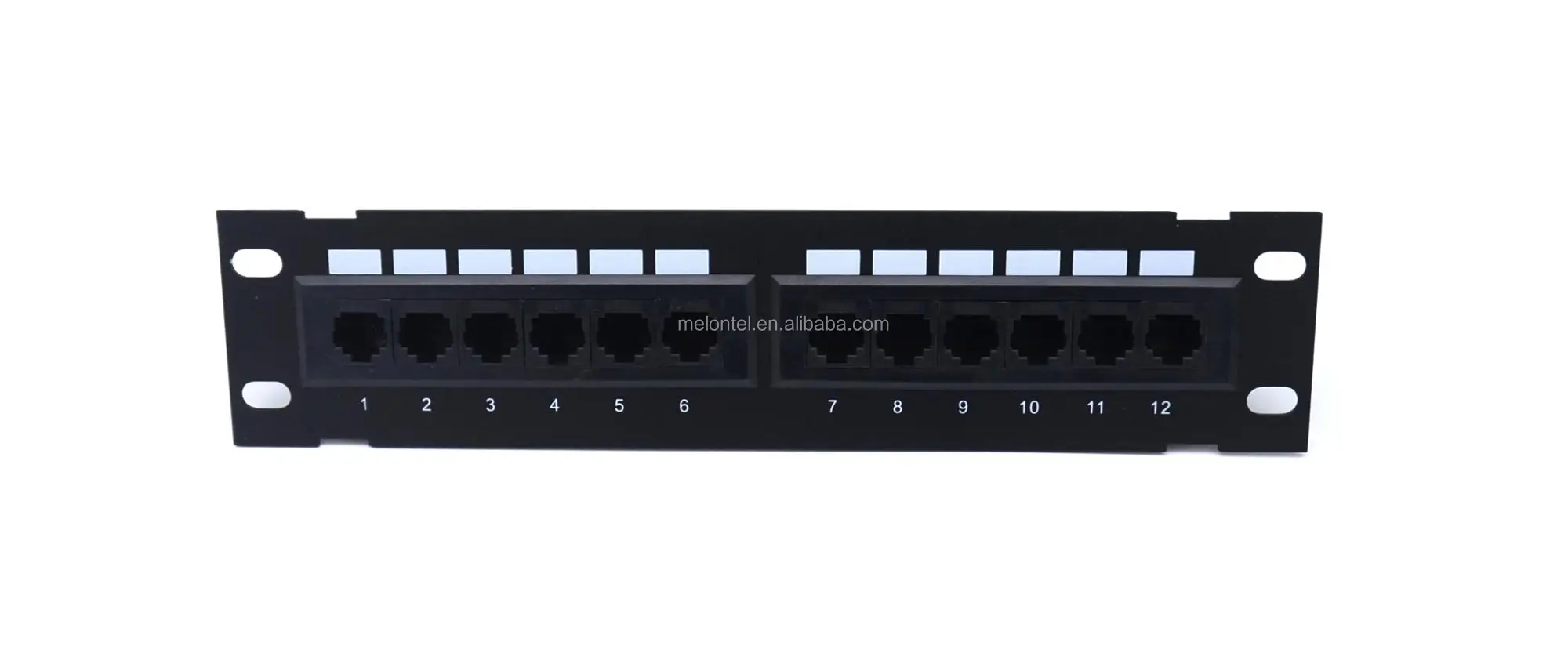

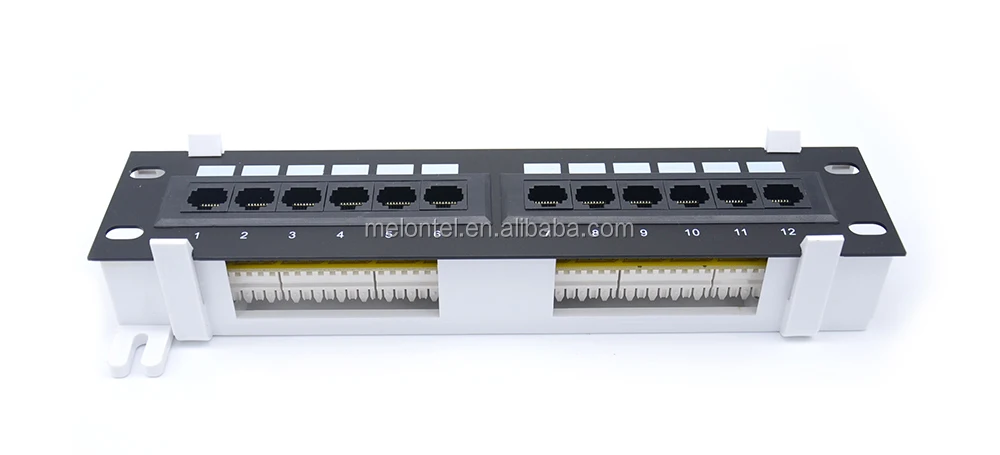

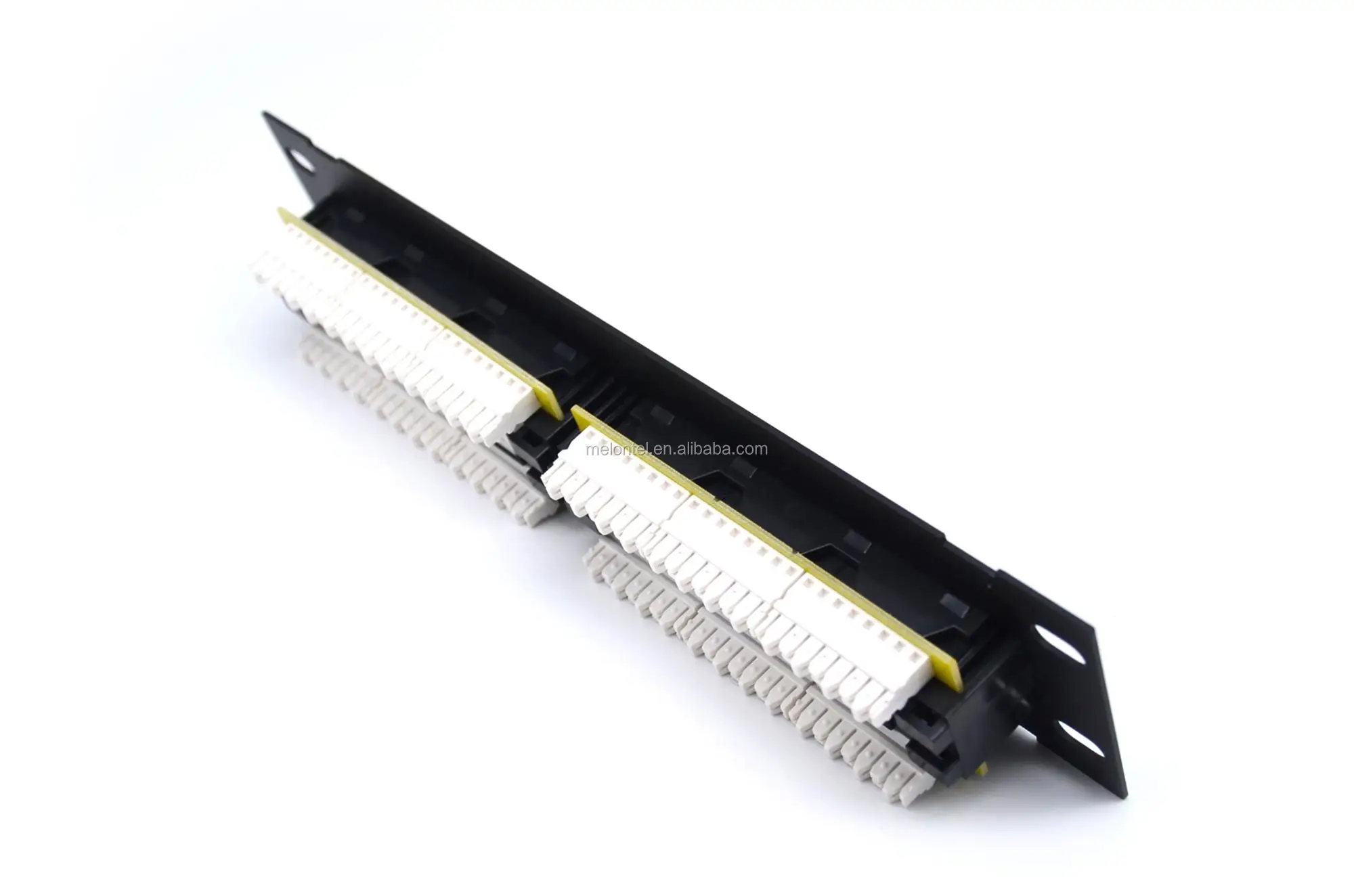

MT-4006B 8 12 port wall mount Patch Panel

Supplier: Ningbo Meilan Communication Equipment Co., Ltd.
Region: Zhejiang, China
Contact: Mr Ben He
Price: $3.00 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Description:	10 Inch 1U Patch Panel;	Brand Name:	Melontel;
Packaging Detail:	1 Pcs /Box;	OEM:	Weclome;
Port:	12 Port;	Size:	255x64x48mm;
Place of Origin:	Zhejiang China;	Payment Terms:	L/C,Western Union,T/T;
Certification:	ISO9001:2008;	IDC:	Krone/110/Dual IDC;
Weight:	308g;	Supply Ability:	1000 Piece/Pieces per Day;
Model Number:	MT-4006B;	Product name:	12 Port Patch Panel;
Port:	NingBo;	Grade:	Cat.5E,Cat.6;
Type:	Wall Mount;

Name :	12 Port Patch Panel
Country of origin :	Ningbo,China
Description :	10 Inch 1U Patch Panel
Type :	Wall Mount
Color :	Black
IDC :	Krone/110/Dual IDC

We are professional patch panel manufacturer in China. Our patch panel includes voice type 25port and 50port, data type(cat.5e,cat.6, cat.6a) with 6port 12port 24port 48port and 72port on option. We use good PCD board and IDC connectors (krone IDC, 110 IDC, Dual IDC for option) to ensure the characters for each product. Specially for 24port Cat5e.UTP patch panel ,we offer not only in flat configuration as normal but also offer angel patch panels configuration.

The patch panel is offered universal wiring both T568A and T568B,color Coded TIA/EIA 568a and 568b Wiring For Easy Installation.Termination accepts 22,24 26 AWG (0.64 ,0.5 and 0.4 )solid wires.Meet or exceed the requirement of ANSI /TIA/EIA 568B.2. We will do the Fluke test before sending you our products.

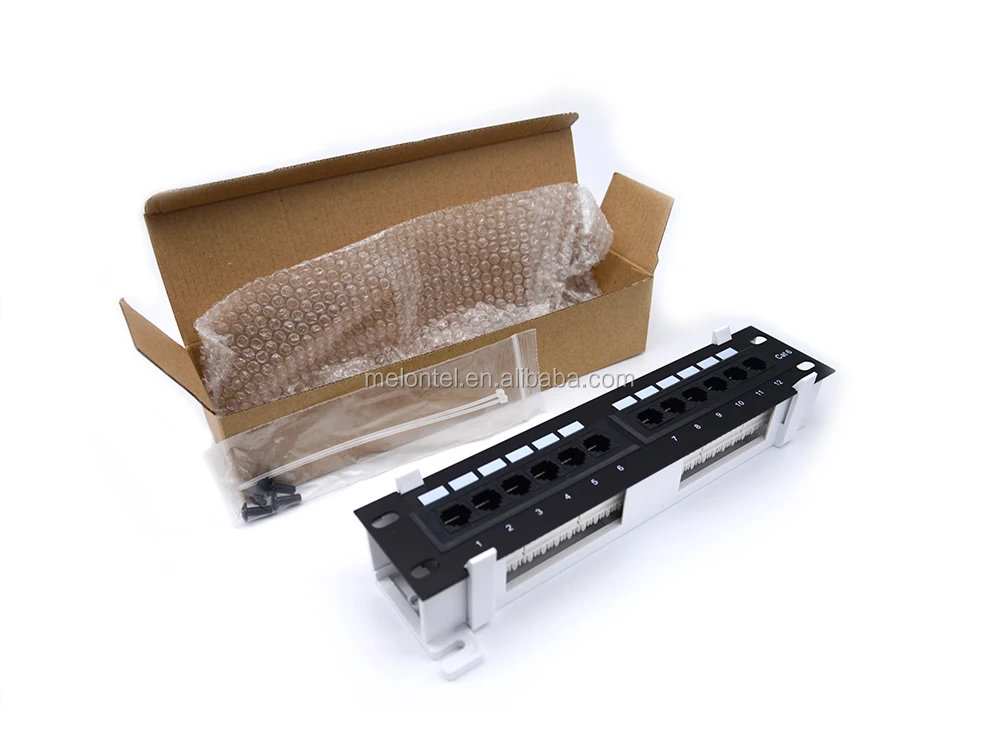

Each patch panel will be packed firstly with a plastic bag and then a firm inner box.Colorful inner box OEM is available.Usually we use a natural brown box for most of the clients.The patch panel we sell annual amount above 10000peices over the world.
