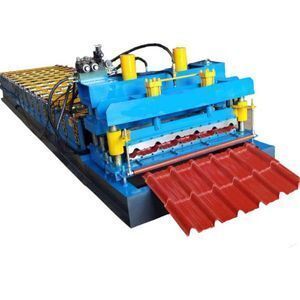

Tile Making Machine Construction Building Material Metal Roofing Panel Machine for sale

Supplier: Shijiazhuang Zhouming Trading Co., Ltd.
Region: Hebei, China
Contact: Ms candy ji
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

diameters of roller:	65-90mm;	Voltage:	380v(depend on design);
Supply Ability:	50 Set/Sets per Month;	Warranty:	1 Year;
Tile Type:	Colored Steel;	Use:	Roof;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Construction works ;	Port:	Tianjin Xingang port;
oversea Service:	available;	Condition:	New;
Production Capacity:	8-12m/min(depend on design);	Brand Name:	zhouming;
Dimension(LWH):	depend on design;	Product name:	Construction Building Material Metal Roofing Panel Machine for sale;
Weight:	depend on design;	Packaging Detail:	secured to container by hick iron wire,rollers and plc cover by plastic cloth for coin making machine;
Certification:	CE/ISO;	control system:	PLC;
Type:	Tile Forming Machine;	After-sales Service Provided:	Online support,Free spare parts,Video technical support;
Payment Terms:	L/C,T/T,Western Union,MoneyGram,trade assurance;	roller:	45#steel hard chrome plating;
Plc:	DELTA(TAIWAN)or Mitsubishi(JAPAN);	Place of Origin:	Hebei China (Mainland);

Tile Making Machine Construction Building Material Metal Roofing Panel Machine for sale

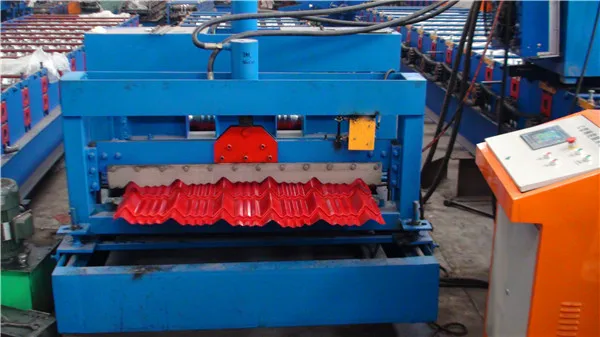

Product Description

1.Suitable material	Color steel sheet , galvanized steel sheet,aluminum sheet
2.Installation Dimension (LWH):	6.5m1.5m1.4m
3.Main motor power	3KW with Cycloidal reducer
4.Hydraulic station power	3KW
5. Hydraulic oil pump	CB-E 310
6.Thickness of material	0.2mm~0.8mm
7.Diameter of principal axis	Φ70-90mm
8.Material expand width	1000,1200,1250mm
9.Electric tension	380V 3phase 50HZ or as the customer's requirements
10.Material of roller	High grade 45# forged steel plated with hard chrome plating
11.Controlling system	PLC
12.Processing speed	3-6m/min
13.Processing precision within	1.00mm (depend on design)
14.Material of cutting blade	Cr12 mould steel with quenched treatment
15.Kind of drive	0.6 inch chain link bearing model 6210
16.Roller station	8-20 Rollers
17.Roller material	high grade 45#steel; Cr12 quenching
18. Leak frame load-bearing	4.6T

Production Flow

Our Services

Our factory engineer can design roll forming machines according to your detail requirements.

Advantages

12 Months guarantee. if some part of the machine is broken. we will supply the best part,but if the damaged parts due to operate error,buyer will pay for the shipping fee.

After-sale service:

We sent technician to your country to fix the machine.the buyer shoule bear all the cost includng:visa,roundtrip ticket and suitable accommodation,also buyer should pay the salary 100USD/DAY.

Packaging & Shipping
