New Retail 1kg collaborative robot arm 6 axis robot coffee shop collaborative robot articulated robot for food delivery packaging

Supplier: Shenzhen Era Automation Co., Ltd.
Region: Guangdong, China
Contact: Ms Mavis Xu
Price: $2990.00 / 1 - 9 sets
$2590.00 / 10 - 99 sets
$1990.00 / >=100 sets
Min. Order: 1 set

Click here to contact

Product details

feature:	Collaborative, lightweight, space-saving	Package Preview:
Core components:	Engine, gearbox, motor	Development Environment:	C#/C++/Python/Java/ROS
arrival:	475.6 mm	Warranty:	12 months
Health status:	new	Packaging Details:	International wooden box packaging
Video factory inspection:	if	Core component warranty:	1 year
IP Classification:	IP54 (optional IP66)	HMI:	10.1-inch teaching pendant or mobile terminal APP
Origin:	Guangdong, China	Weight (kg):	50
footprint:	130 mm	port:	Any seaport in China
Production capacity:	100 sets/month	application:	Pick and place, palletizing, handling
brand:	ERA collaborative robot	Payload:	1 kg
Applicable industries:	Building material stores, manufacturing plants, machinery repair shops, food and beverage plants, farms, retail, print shops, construction, energy and mining	Marketing Type:	New products for 2023
communicate:	I/O, TCP/IP, Modbus_TCP/RTU, Profinet	Supply capacity:	100 sets per month
Voltage:	110V~230V	Repeatability:	±0.05 mm
Operating humidity:	90%RH(non-condensing)	payment terms:	L/C, Western Union, D/P, D/A, T/T
axis:	6 Axis	Exhibition Hall Location:	Canada, Peru, Thailand
Mechanical test report:	if

product description

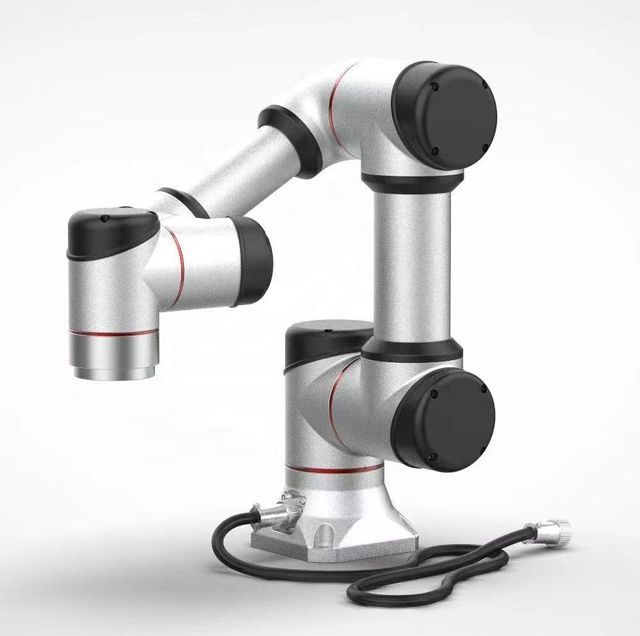

_{ERA-M1 1kg 475.6mm collaborative robot arm}

ERA-M1 is an economical industrial collaborative robot arm with industrial-grade harmonic drive and servo motors to ensure 24/7 uninterrupted operation. It also provides a 12-month quality guarantee.

Features at a glance

Model: ERA-M1
Payload: 1kg
Reach: 475.6 mm
Human-machine interface: 10.1-inch teaching pendant or mobile terminal APP
Repeatability: ±0.05mm
Communications: I/O, TCP/IP, Modbus_TCP/RTU, Profinet
Development: C#/C++/Python/Java/ROS
Footprint: 150mm

Product Specifications

Specification	Payload	1 kg
		arrival	475.6 mm
		Range/Axis	6 Axis
		HMI	10.1-inch teaching pendant or mobile terminal APP
move	Repeatability	0.05 mm
		Axis movement	Speed of work	The scope of work
		Axis 1	±175°	±180°/sec
		Axis 2	+85°/-265°	±180°/sec
		Axis 3	±160°	±180°/sec
		Axis 4	+85°/-265°	±180°/sec
		Axis 5	±175°	±180°/sec
		Axis 6	±175°	±180°/sec
		Typical TCP speeds	0.8 m/s
feature	IP Classification	IP54 (optional IP66)
		noise	Less than 65dB
		Robot installation	Any direction
		Input and output ports	Digital input 8*digital output 8	Artificial Intelligence 1 Artificial Intelligence 1
		power supply	24V/1.5A
		communicate	Ethernet Port
		Operation system	Ubuntu 18.04 (supports Windows installation and virtual machine operation)
physical	footprint	110 mm
		weight	About 6 kg
		Operating temperature	0-45℃
		Operating humidity	90%RH(non-condensing)
		Material	Aluminum, steel

Our advantage

aspect

application

Collaborative robots can be widely used in industries such as automobiles and parts, 3C electronics, semiconductors, new energy, home appliances, kitchen and bathroom, daily chemicals, food and beverages, medicine, and metal processing to complete tasks such as equipment maintenance, picking and placing, loading and unloading, transfer between processes, screw locking, assembly, gluing, spraying, riveting, bonding, packaging, stacking, polishing, welding, and quality inspection.
