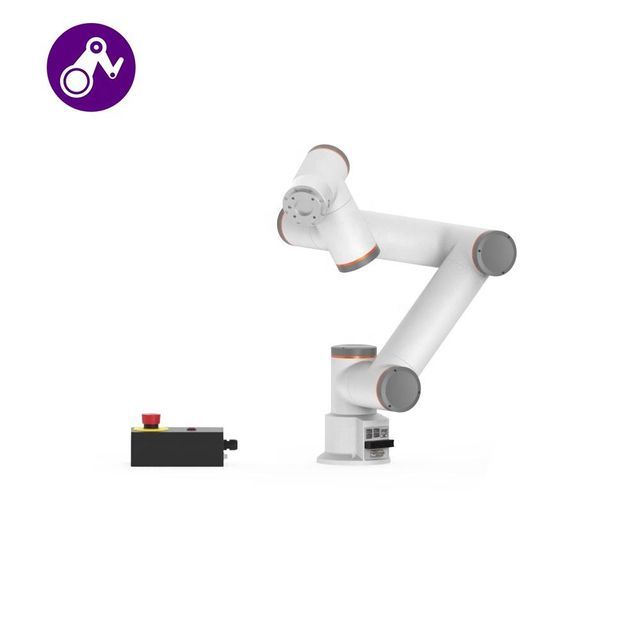

Small desktop robot arm camera cobot robot arm 3kg load collaborative robot 5kg load

  • Supplier: Anno Robot (Shenzhen) Co., Ltd.
  • Region: Guangdong, China
  • Contact: Mr Robot Anno
  • Price: $7500.00 / 1 - 4 pieces
    $7358.00 / 5 - 9 pieces
    $7259.00 / 10 - 9999 pieces
    $5896.00 / >=10000 pieces
  • Min. Order: 1 piece
Click here to contact
Product details
strength:50/60 HzMarketing Type:normal product
Maximum load:3KG/5KG/10KG/16KG/20KGVideo shipment inspection:if
brand:GuangdongVoltage:220V, 50HZ
Certification:cePackaging Details:Export-specific wooden box packaging, depending on the size of the machine and the transportation distance
payment terms:wire transferHealth status:new
Core components:motor, gearMaximum operating radius:620mm/922mm/14000mm/1600mm/2000mm
reducer:gear reducerWarranty:1 year
Core component warranty:1 yearvoltage:220V
Protection class:IP54port:Shenzhen
Supply capacity:100 sets per monthRepeatability:±0.05mm
Mechanical test report:ifApplicable industries:Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Shops, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Shops, Construction, Energy and Mining, Food and Beverage Stores, Other, Advertising company
Weight (kg):twenty twoPackage preview:
Showroom location:not anyOrigin:Guangdong, China
environment:0-45℃, 20-80%RH (no fog)
Product Description
Model
AN3
AN5
AN10
AN16
AN20
Payload
3 kg
5 kg
10 kg
16 kg
20 kg
arrival
622mm
922mm
1400mm
1600mm
2000mm
degrees of freedom
6
6
6
6
6
HMI)
10.1-inch teach pendant or mobile APP
repeatability
±0.02mm
±0.02mm
±0.05mm
±0.03mm
±0.1mm
The scope of work)
J1
±175°
±175°
±175°
±175°
±175°
J2
﹢85°/﹢265°
﹢85°/﹢265°
﹢85°/﹢265°
﹢85°/﹢265°
﹢85°/﹢265°
J3
±150°
±160°
±160°
±160°
±160°
J4
﹢85°/﹢265°
﹢85°/﹢265°
﹢85°/﹢265°
﹢85°/﹢265°
﹢85°/﹢265°
J5
±175°
±175°
±175°
±175°
±175°
J6
±175°
±175°
±175°
±175°
±175°
Maximum speed
J1
±180°/sec
±180°/sec
±120°/sec
±120°/sec
±120°/sec
J2
±180°/sec
±180°/sec
±120°/sec
±120°/sec
±120°/sec
J3
±180°/sec
±180°/sec
±180°/sec
±180°/sec
±120°/sec
J4
±180°/sec
±180°/sec
±180°/sec
±180°/sec
±180°/sec
J5
±180°/sec
±180°/sec
±180°/sec
±180°/sec
±180°/sec
J6
±180°/sec
±180°/sec
±180°/sec
±180°/sec
±180°/sec
Typical TCP speed
1 m/s
1 m/s
1.5m/
Second
1 m/s
2 m/s
IP classification
IP54 (optional IP66)
noise
<65dB
robot installation
any direction
input/output port
Digital Input (DI) 2 Digital Output (DO) 2
Analog Input (AI) 1 Analog Output (AO) 1
Tool Power
24V/1.5A
communicate)
I/O, TCP/IP, Modbus_TCP/RTU, Profinet
development environment
C#/C++/python/java/ROS
footprint
130mm
150mm
190mm
190mm
240mm
weight)
≈15kg
≈22kg
≈40kg
≈40kg
≈65kg
Operating temperature
0-45℃
0-45℃
0-45℃
0-45℃
0-45℃
Working humidity
90%RH (no condensation)
Material
aluminum, steel
main application
