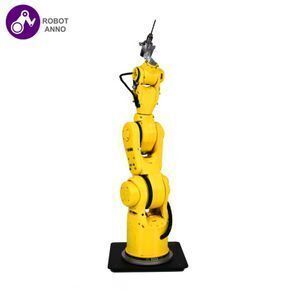

6 Axis Small China Industrial Cnc 7bot Robot Arm

Supplier: Anno Robot (Shenzhen) Co., Ltd.
Region: Guangdong, China
Contact: Mr Robot Anno
Price: $1000.32 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Warranty:	1year;	Loading capacity:	1KG;
Quantity of control axis:	6 Aixs;	Condition:	New;
After-sales Service Provided:	No overseas service provided;	Speed Reducer:	Synchronous Belt Deceleration;
Motor:	Stepping Motor;	Package Type:	1.Robot Arm body box 505060cm;
Place of Origin:	Guangdong China;	Key words:	6 Axis Small China Industrial Cnc 7bot Robot Arm;
Selling Units:	Single item;	Single gross weight:	14.15 KG;
Dimension(LWH):	303075;	Structure Type:	Series Connection;
Brand Name:	RobotAnno;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Energy & Mining,Food & Beverage Shops,Advertising Company;
Certification:	CE ROHS;	Weight:	15kg;
Vertical Travel(mm):	886.3;	Package Preview:	https://sc01.alicdn.com/kf/HTB1nBkPXTHuK1RkSndVq6xVwpXa6.jpg_640x640.jpg;
Power(W):	360;	Type:	Robot Arm;
Horizonal Travel(mm):	980;	Body Shell Material:	Plastic;
Function:	Pick Forging Welding Place Load also available;	After-sales Service Provided:	Video technical support;
Single package size:	44X53X44 cm;

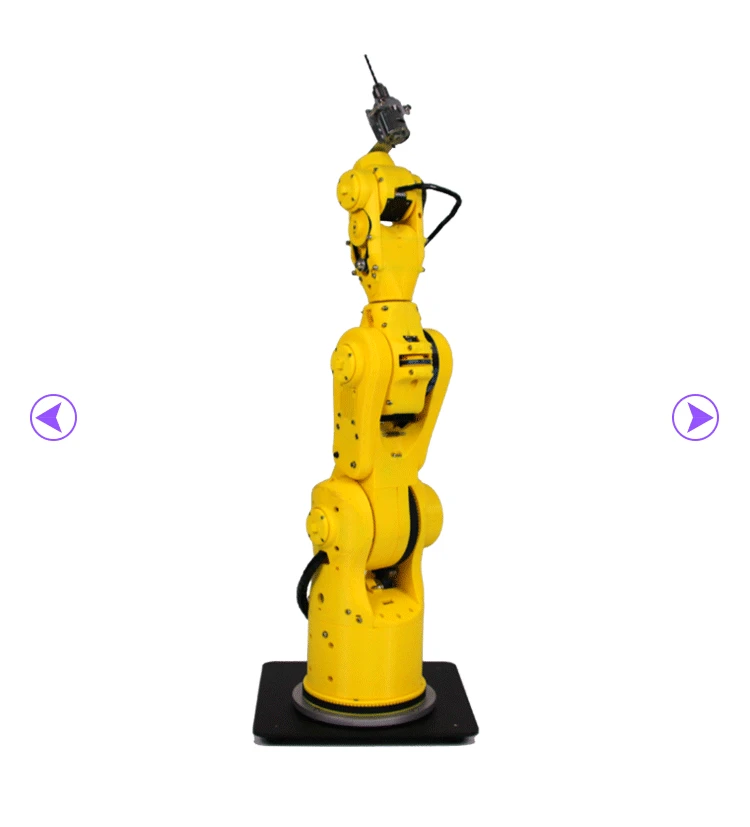

6 Axis Small China Industrial Cnc 7bot Robot Arm

Product Parameters:

N.W.	15KG
Vertical Stroke	834.7mm
Horizontal Stroke	886.7mm
Voltage	110V/220V
Power	360W
Max Working Radius	482.3mm
Specified Load	1KG
Repeat Positioning Accuracy	±0.5mm
Application	Welding, Polishing, assembly, picking

Axis'Working Range:

Axis	Working Range	Max Speed
Axis 1	±180°	200°/s
Axis 2	±115°	200°/s
Axis 3	±130°	200°/s
Axis 4	±180°	200°/s
Axis 5	±165°	200°/s
Axis 6	±180°	200°/s

Overall Composition:

Structure Type	Series Connection
No. of aixs	6 Axis
Controller	Singel Chip
Body Shell Material	Plastic
Install To	Desktop
Speed Reducer	Synchronous Belt Deceleration
Motor	Stepping Motor

Features:

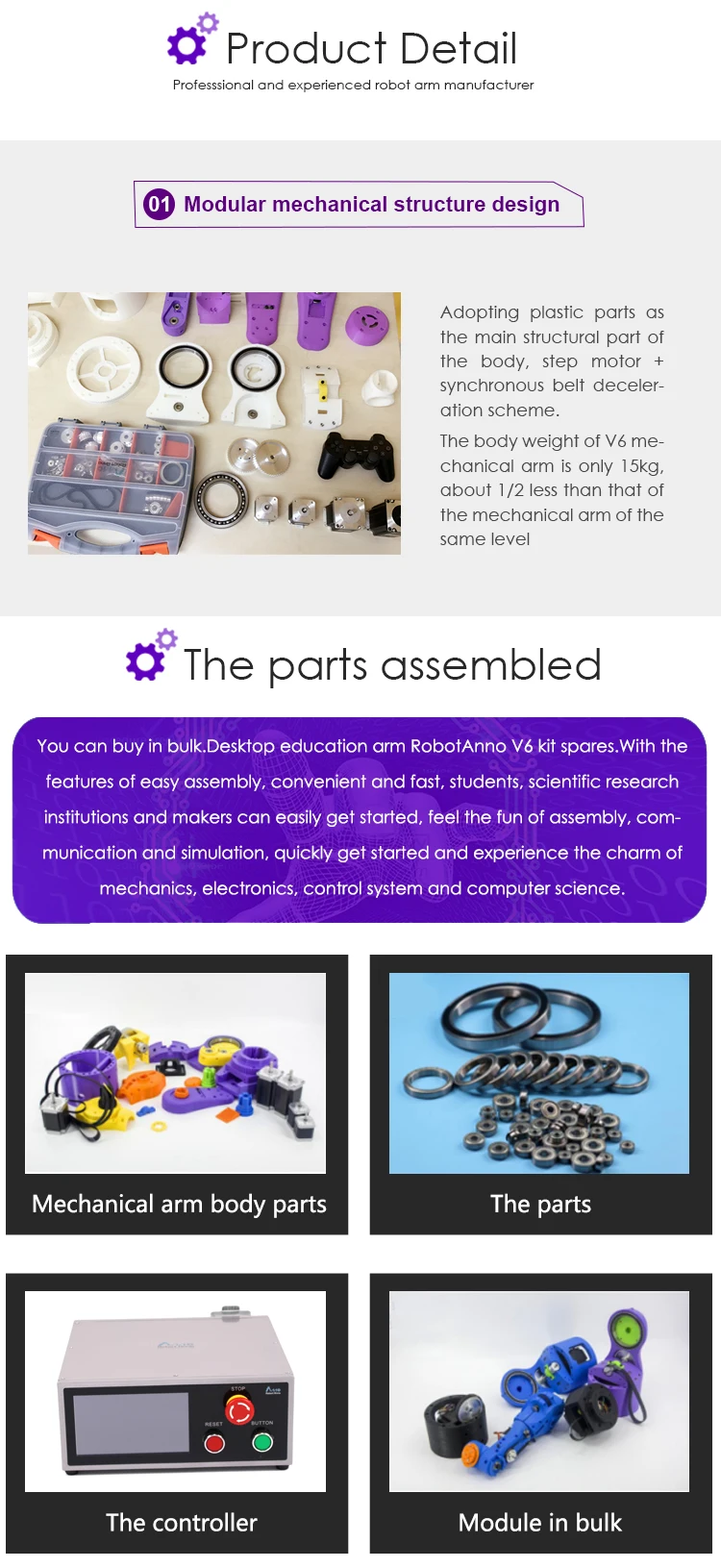

- Fully Assembled & Ready for Use: 6-Axis robot arm comes with controller and speed reducer
- Lightweight: Engineering plastic is the outer shell material which makes it weight only 15kg, much lighter than the others of the same level
- Various Intelligent Interactive Control Methods: It supports PC, mobile phone, teaching devices, voice and APP control

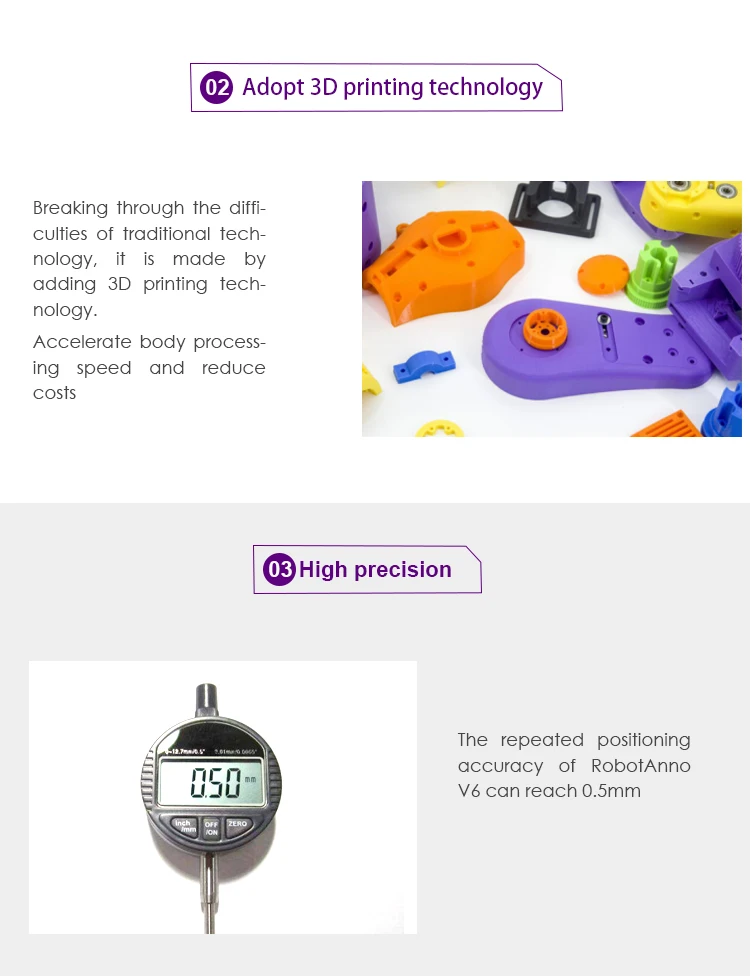

- Highly Precise: 6 DOF is for active joint bearing connection and high precision. 3D printing technology is adopted to produce all the parts
- Multiple Operation Interfaces: Graphical programming, handle control, PC control and mobile phone control
- Small Size: Compact size and high speed make it easy to finish jobs sorting, assembling etc.
- Smart Robot Arm: Perfect for projects ranging from hobby use to higher level education, robotics research, light industry and industrial sector
- Application Scenario: Used for welding, suction, clamping, making Kongfu tea etc.

Packaging & Shipping

Note:
There are 4 colors for your choice.

Package: Normally we use the standard exporting packaging. We also can according to clients' request .

Shipping :

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.

2. By Air: Delivery from the Shenzhen airport to customers’ destination city air port.

3. By Sea: Delivery from the Shenzhen sea port .

Product applications

Highly Recommand

Company Information

RobotAnno has been speciliazing in Business & Industry,Hobbies & Toys,CNC Products and Health care supplies for over 5 years.We committed to enhance customer satisfaction by continually improving the process with a vision of expertise in the field.
Aiming to provide high quanlity products and great service for buyer,we are strict on product quanlity control and offer instant communication service.Welcome to contact us!

Our Advantages:
-  Free-shipping all over the world.
-  Source only the best consumer goods and ensure the highest quality.
-  Streamline the buying and payment process, and make it as easy as possible.
-  Help the customers all over the world discover products and manufacturers in China.
-  The Shortest order processed time and speed delivery

FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A: Samples arrived often need 3-5 days.

Q3. Do you have any MOQ (minimum order quality)limit?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed an order?

A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.

Q6. Is it acceptable to print my logo on the product?

A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer one-year warranty for our products.

Q8: How to deal with the flaw?

A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%
