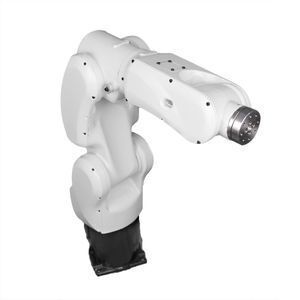

Automatic Metal Manipulator With Gripper 6 Axis Robotic Arm Harmonic Reducer

Supplier: Anno Robot (Shenzhen) Co., Ltd.
Region: Guangdong, China
Contact: Mr Robot Anno
Price: $3978.20 /piece
Min. Order: 1 piece

Click here to contact

Product details

Function:	Pick Forging Welding Place Load also available;	Type:	Robot Arm;
Quantity of control axis:	6 Aixs;	Brand Name:	RobotAnno;
Showroom Location:	None;	After-sales Service Provided:	No overseas service provided;
After-sales Service Provided:	Video technical support;	Key words:	Robot Arm With Vacuum Suction Cup;
Body Shell Material:	Metal;	Local Service Location:	None;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Speed Reducer:	Harmonic reducer;
Single gross weight:	40 KG;	Condition:	New;
Weight:	28;	Dimension(LWH):	80X40X80;
Warranty:	1 year;	Selling Units:	Single item;
Repeat Positioning Accuracy:	±0.1mm;	Place of Origin:	China;
Power(W):	360;	Structure Type:	Series Connection;
After Warranty Service:	Online support;	Single package size:	80X40X80 cm;

Automatic Metal Manipulator With Gripper 6 Axis Robotic Arm Harmonic Reducer

PRODUCT INSTRUCTION

Light weight robot, small in shape and light in weight makes it suitable for assembling, small unit robots which can complete all kinds of work such as loading/unloading/sorting/assembly at high speed and high precision. At the same time, all the robot cables are built in and can be operated flexibly in a small space. The installation mode can be installed on the ground, mounted or inverted.

Features: Wrist rated load: 2Kg. Maximum working radius: 540mm.

Features:

Light weight

Fast running speed

Beautiful

High precision of repeated positioning

Built-in cable

Application:

Material handling:

1. Greater flexibility. more stable performance and lower energy consumption;

2. Maximum throughput with high speed;

3. Long working and running time;

4. Save ground space;

Assembly:

1. High speed and high repeatable positioning accuracy;

2. Saving ground space;

3. Long working and running time;

Polishing:

1. High level of protection;

2. High wrist torque.

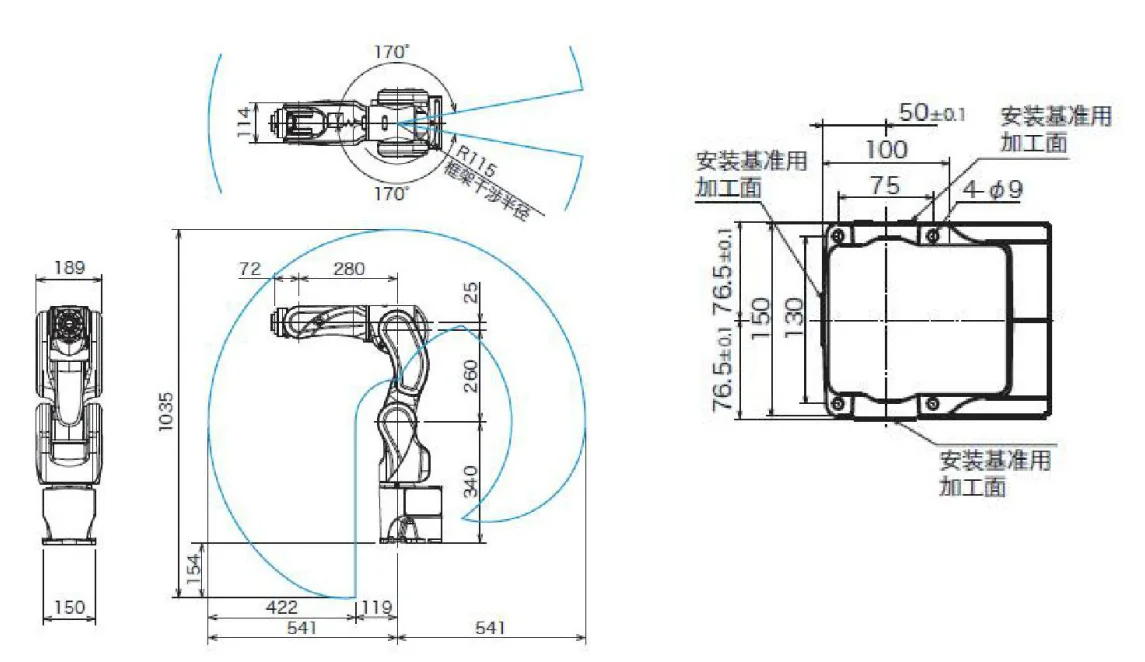

SPECIFICATION

Model		602
Payload		2kg
Maximum working radius		540mm
DOF		6
	J1	370°/s
	J2	370°/s
Joint speed	J3	430°/s
Joint speed	J4	300°/s
	J4	300°/s
	J5	460°/s
	J6	600°/s
	J1	±170°
	J2	±110°
Joint range	J3	"+40°/- 220°
Joint range	J4	±185°
	J4	±185°
	J5	±125°
	J6	±360°
Maximum torque allowed in an	J5	35Nm
instant	J6	24Nm
Weight		28kg
Repeated positioning accuracy		±0.05mm
Operating temperature		0-40℃

Packaging & Shipping

Note:
There are 4 colors for your choice.

Package: Normally we use the standard exporting packaging. We also can according to clients' request .

Shipping :

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.

2. By Air: Delivery from the Shenzhen airport to customers' destination city air port.

3. By Sea: Delivery from the Shenzhen sea port .

Our Factory

FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A: Samples arrived often need 3-5 days.

Q3. Do you have any MOQ (minimum order quality)limit?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed an order?

A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.

Q6. Is it acceptable to print my logo on the product?

A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer one-year warranty for our products.

Q8: How to deal with the flaw?

A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%
